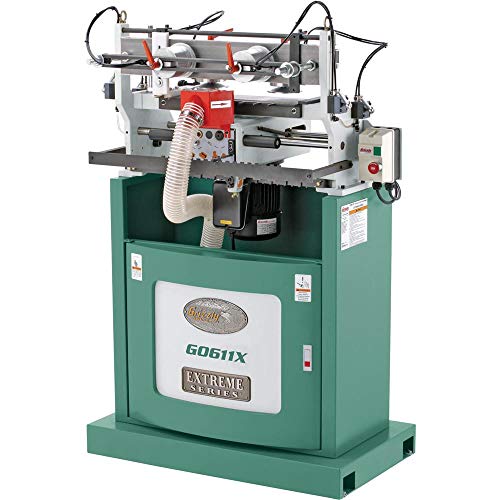

Grizzly Industrial G0611X - 16-1/2" Extreme Series Dovetail Machine

Brand: Grizzly Industrial

Features:

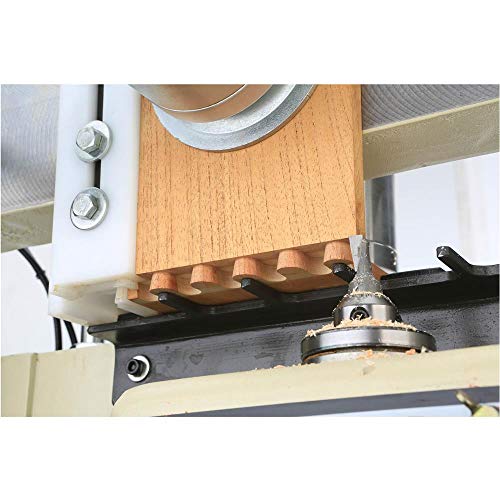

• Our dovetail machines make it fast and easy to produce strong and attractive half-blind dovetail joints

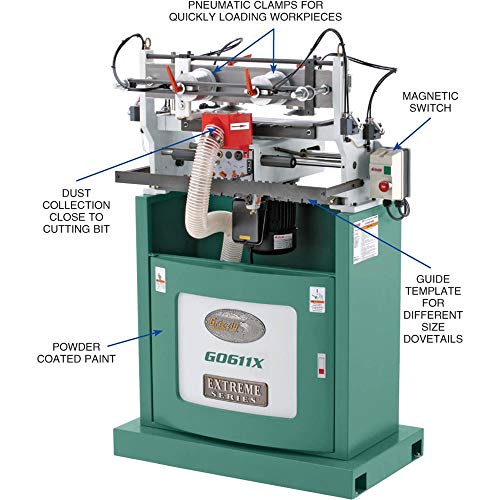

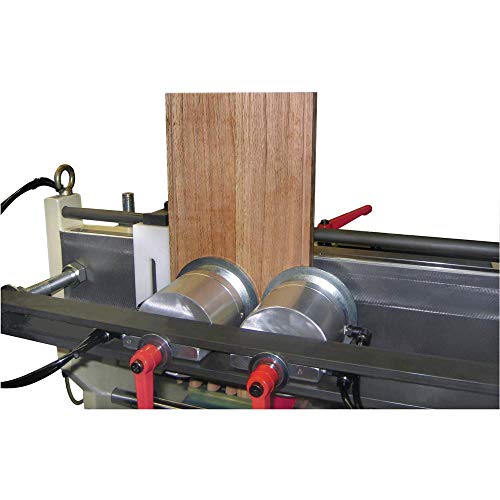

• Each machine is outfitted with stops and clamps so you can quickly insert pre-cut boards clamp them in place and start cutting
• With the ability to cut two joints at a time these dovetail machines can produce a 4-sided drawer in under two minutes if the boards are prepared

Binding: Tools & Home Improvement

model number: G0611X

Part Number: G0611X

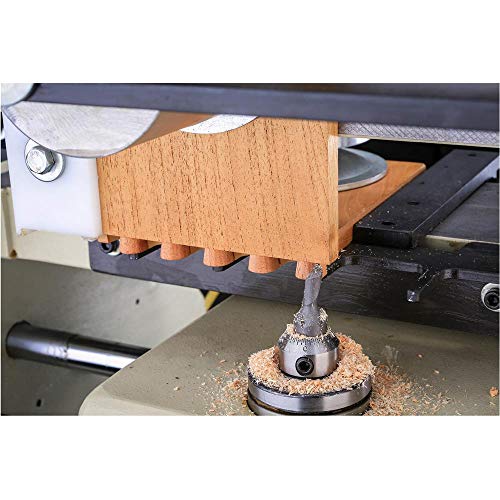

Details: Our dovetail machines make it fast and easy to produce strong and attractive half-blind dovetail joints. Each machine is outfitted with stops and clamps so you can quickly insert pre-cut boards clamp them in place and start cutting. With the ability to cut two joints at a time these dovetail machines can produce a 4-sided drawer in under two minutes if the boards are prepared properly. Includes a 4-sided template for cutting 1" 1-1/2" 2" and 2-1/2" dovetails. Also spindle heads are micro-adjustable to give you complete control of dovetail "fit." If you're currently doing production dovetails with a dovetail jig our dovetail machine will quickly pay for itself.. SPECIFICATIONS: • Motor: 1 HP 110V/220V single-phase prewired 220V • Table size: 24" x 7-3/4" • Floor to table height: 46-7/16" • Number of spindles: 1 • Spindle speed: 18 500 RPM • Dovetail bit: 10-Degree angle x 5/8" long • Dovetail shank: 12mm • Maximum dovetail height: 3/4" • Minimum dovetail height: 3/16" • Maximum thickness: 2-3/8" • Minimum thickness: 13/32" • Maximum stock size: 59" long x 16-1/2" wide • Minimum stock size: 7-7/8" long x 2-3/8" wide • Overall size: 38" wide x 57" high x 28" deep • Approximate shipping weight: 492 lbs.

EAN: 0690550706110

Package Dimensions: 65.0 x 42.0 x 29.0 inches
