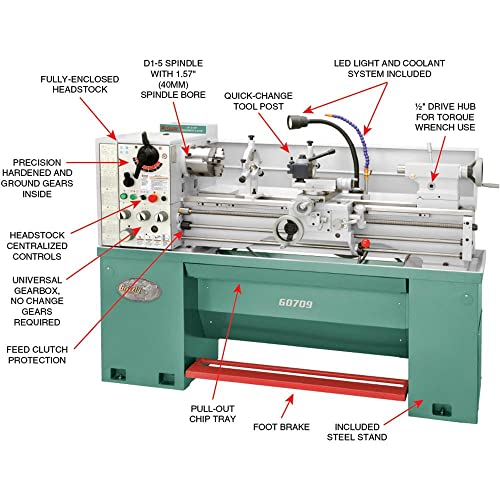

Grizzly Industrial G0709-14" x 40" Gunsmithing Gearhead Lathe

Brand: Grizzly Industrial

Features:

• 2 MT#3 dead centers (1 carbide tipped) 1 MT#3 live center 1 MT#5 - MT#3 sleeve 1/2" drill chuck w/ MT#3 arbor
• Dimensions 51-3/4"H, 71-3/4"L, 30"W Approximate shipping weight 1550lbs 11" face plate
• Motor 2 HP, 110/220V, single-phase, 20/10 Amps, 60Hz, 1725RPM Number of speeds 8 Range of speeds 70-2000RPM
• Spindle bore 1-9/16" Spindle nose taper MT#5 Spindle nose D1-5 Camlock D1-5 spindle nose (6 pin) 1-9/16" spindle bore
• Swing over bed 14" Swing over gap 19-3/4" Swing over cross slide 8-3/4"

Binding: Tools & Home Improvement

model number: G0709

Part Number: G0709

Details: From the Manufacturer

G0709 14 inch X 40 inch Gunsmithing Lathe

Another great addition to our line of spectacular Grizzly lathes is this 14 inch x 40 inch workhorse. Supplied with an 8-speed gearhead, it also comes with a 2 HP motor, D1-5 spindle with a generous 1-9/16 inch bore, a 200 series quick change tool post with 2 holders, flood coolant system, halogen work light, pull-out chip tray and inch break — great for safety! Plus, the tailstock has a socket for a torque wrench mounted on the front side and the outboard end of the spindle has a spider mount system — great for stabilizing long shafting and rifle barrels. Check out the standard equipment list below.

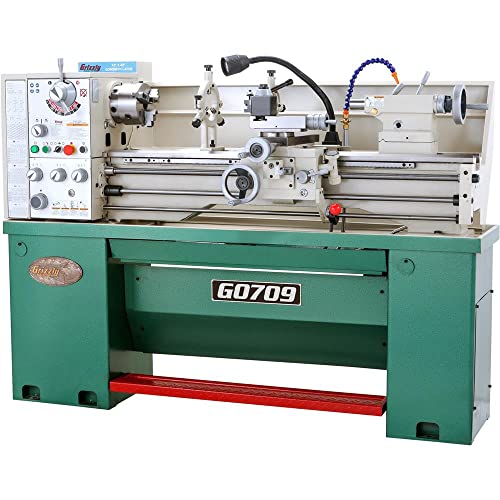

Front View

Spider Bolts
Construction

Hardened and ground cast iron bed and cast aluminum gear cover. Removable gap bed allows turnings up to 19-3/4 inch in diameter.

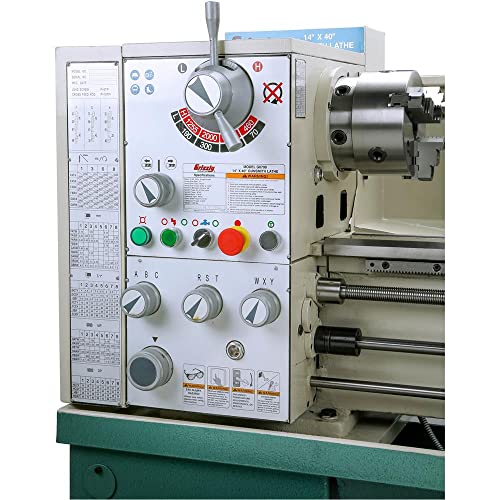

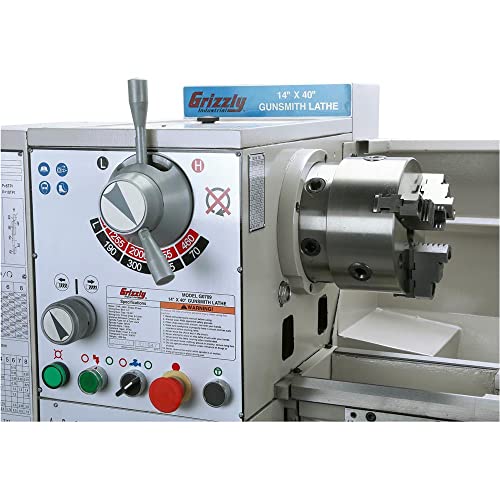

Headstock

Fully enclosed headstock features precision hardened and ground gears, D1-5 spindle with 1-9/16 inch bore, centralized controls and universal gearbox, no change gears required.

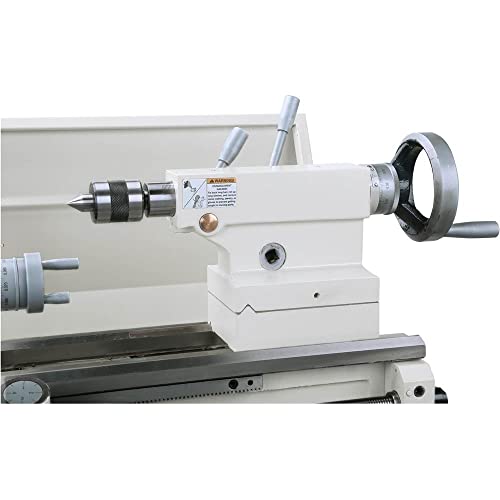

Tailstock

Tailstock with V-slide and 1/2 inch square drive socket for precise alignment of centers with a torque wrench (handle included).
Spider Bolts

4 brass-tipped spider bolts for supporting barrels.

Headstock
Standard Equipment

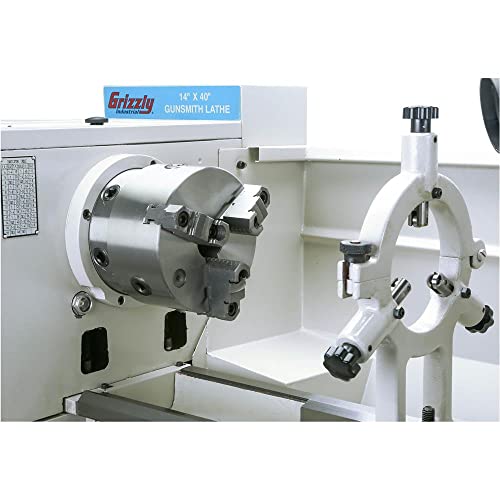

6 inch 3-Jaw Chuck with reversible jaws; 8 inch 4-Jaw Chuck with reversible jaws; 11 inch faceplate; Steady rest/follow rest; Full length splash guard; Quick change tool post with 2 tool holders; 2 MT #3 dead centers (1 carbide-tipped); 1 MT #3 live center; 1 MT#5-MT #3 sleeve*Pull out chip pan; 1/2 inch drill chuck with MT #3 arbor; Tool box.

Swing over bed: 14"
Swing over gap: 19-3/4"
Swing over cross slide: 8-13/16"
Distance between centers: 40"
Bed width: 7-3/8"
Spindle bore: 1-9/16"
Spindle nose taper: MT#5
Spindle nose: D1-5 Camlock
Cross slide travel: 6-11/16"
Compound travel: 3-9/16"
Tailstock barrel taper: MT#3
Tailstock barrel travel: 3-15/16"
Motor: 2 HP, 220V, single-phase, 10 Amps, 60 Hz, 1725 RPM
Number of speeds: 8
Range of speeds: 70-2000 RPM
Overall dimensions: 71-1/2" L x 26-3/16" W x 52" H
Approximate shipping weight: 1510 lbs.
Removable gap bed allows turnings up to 19-3/4" in diameter
Easy to use lever controls
Hardened and ground cast iron bed
Cuts 4-112 Standard TPI and 0.1-7 Metric
On/off reverse switch on carriage

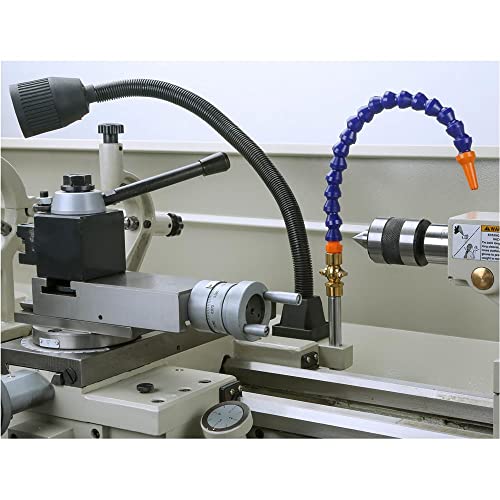

Halogen work light
Outboard spindle has 4 brass tipped screws for supporting barrels
Socket for tailstock lock
Cast aluminum gear cover
D1-5 spindle nose (6 pin)
1-9/16" spindle bore
Inch brake

EAN: 0690550108983

Package Dimensions: 76.0 x 60.5 x 30.0 inches
