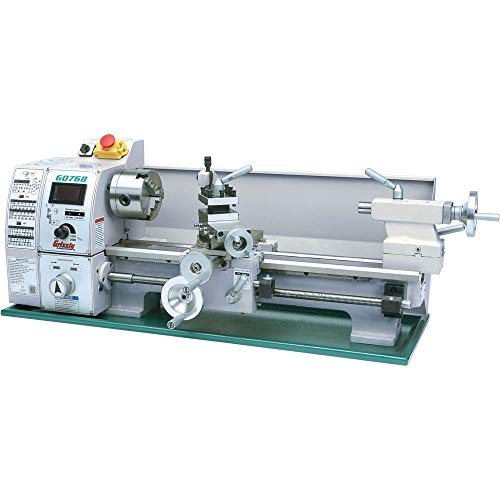

Grizzly Industrial G0768-8" x 16" Variable-Speed Benchtop Lathe
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Grizzly Industrial
Features:
- This 8" x 16" Variable-Speed Lathe is perfect for a sturdy workbench or as a stand-alone unit when mounted on the T26599 Optional Stand
- This product is easy to use easy to install and highly durable
- Specifications: Swing over: bed 8-1/4", cross slide 4-5/8"
Binding: Tools & Home Improvement
model number: G0768
Part Number: G0768

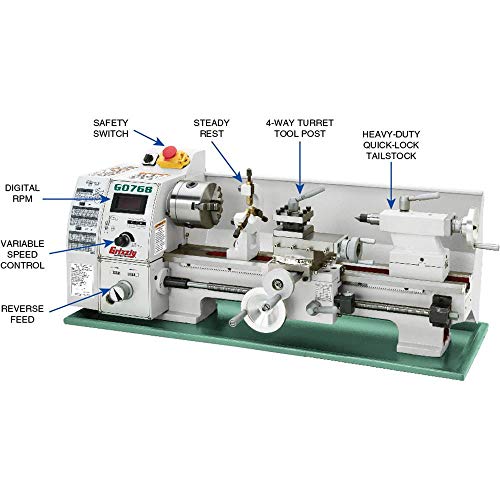

Details: This 8 x 16 inch Variable-Speed Lathe is perfect for a sturdy workbench or as a stand-alone unit when mounted on the T26599 Optional Stand. Features variable-speed spindle with high/low speed ranges, convenient quick-lock tailstock, reverse feed for cutting left-hand threads, and a great selection of included standard equipment. Specifications: Swing over: bed 8-1/4", cross slide 4-5/8" Distance between centers: 15-3/4" Spindle: bore 0.787" (20mm), taper MT#3 Motor: 600W (3/4 HP), 110V, DC, 10A Spindle speed ranges: Low 50–1000, High 100–2000 RPM Travel: compound rest 2-1/8", cross slide 3" Tailstock: quill travel 2", taper MT#2 Feed speeds: (2) 0.0037"–0.0068"/rev Inch threads: (15) 9–44 TPI Metric threads: (12) 0.4–3.0mm Cuts LH threads Footprint: 31-1/2" x 10-1/2" Overall size: 36" W x 16" D x 14" H Approx. shipping weight: 166 lbs. Standard Equipment: 4" 3-Jaw and 4-jaw chucks 6-3/4" Faceplate Steady rest & follow rest 4-Way turret tool post (3/8" max tool size) MT#2 & MT#3 dead centers
EAN: 0690550725814
Package Dimensions: 36.3 x 19.0 x 17.8 inches
