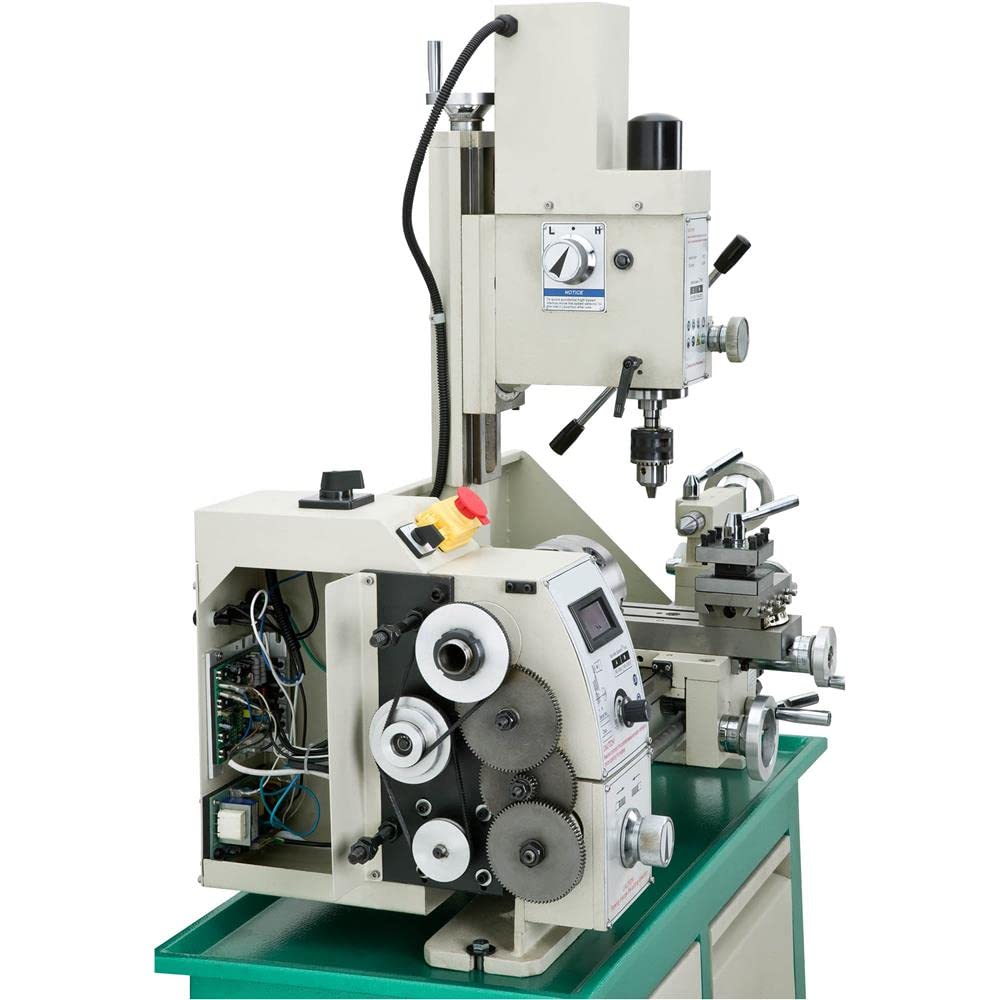

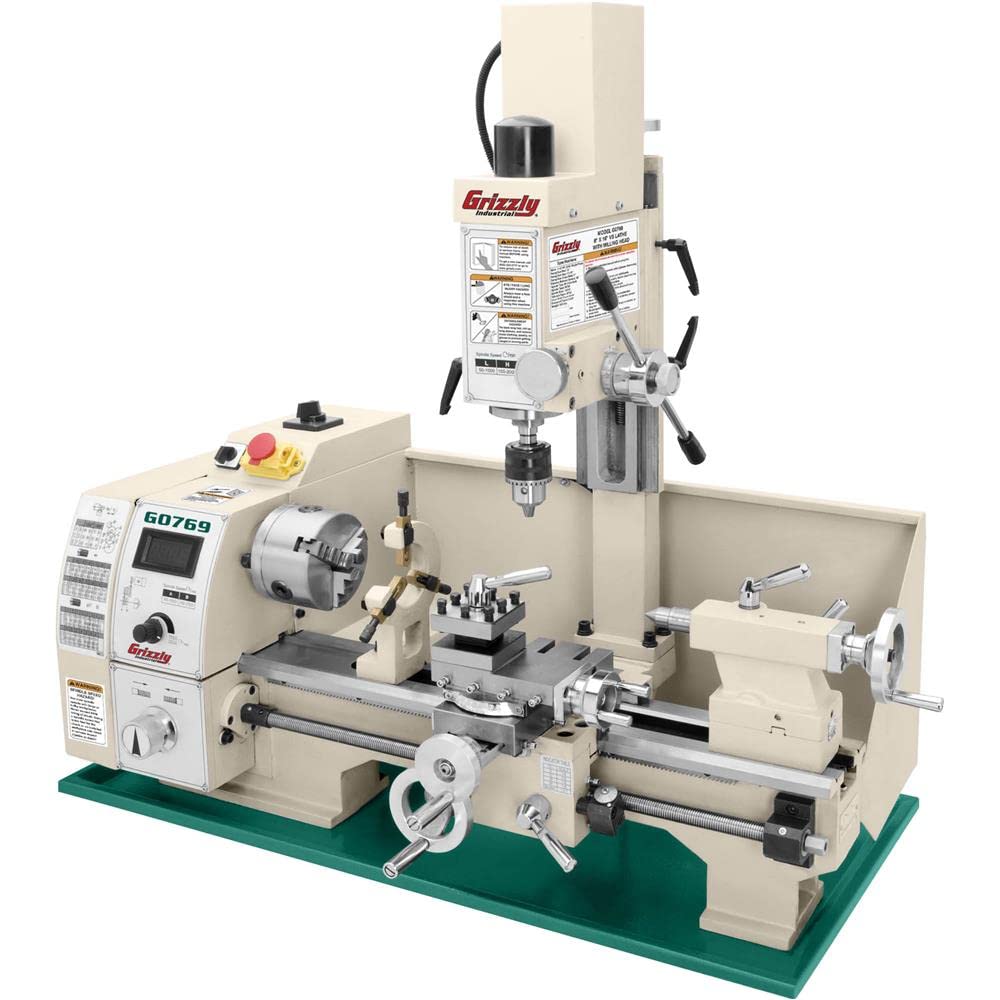

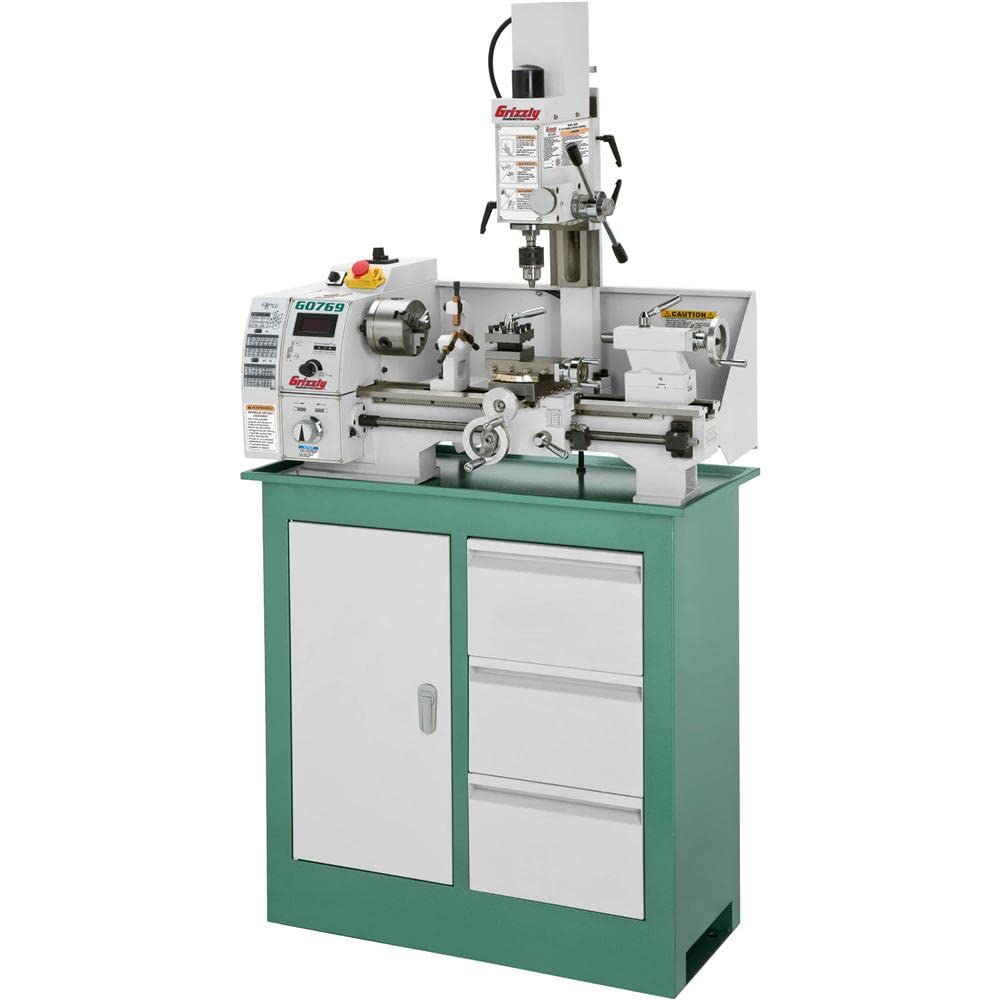

Grizzly Industrial G0769-8" x 16" Variable-Speed Combination Lathe/Mill

Brand: Grizzly Industrial

Features:

• Motor: 600W (3/4 HP), 110V, 10A
• Spindle speed ranges: Low 50–1000, High 100–2000 RPM

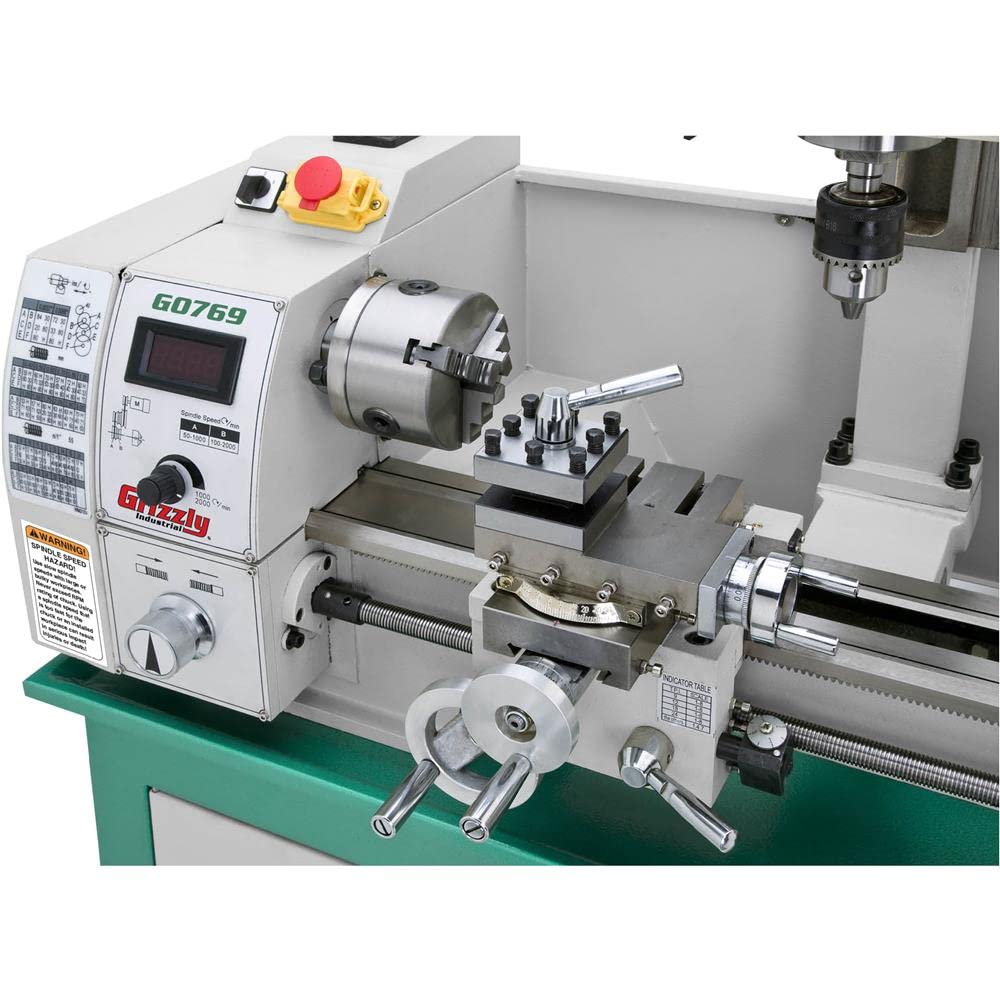

• Lathe: Swing over: bed 8-1/4", cross slide 4-5/8"
• Mill: Swing: 13"
• Overall size: 36" W x 20" D x 34" H

Binding: Misc.

model number: G0769

Part Number: G0769

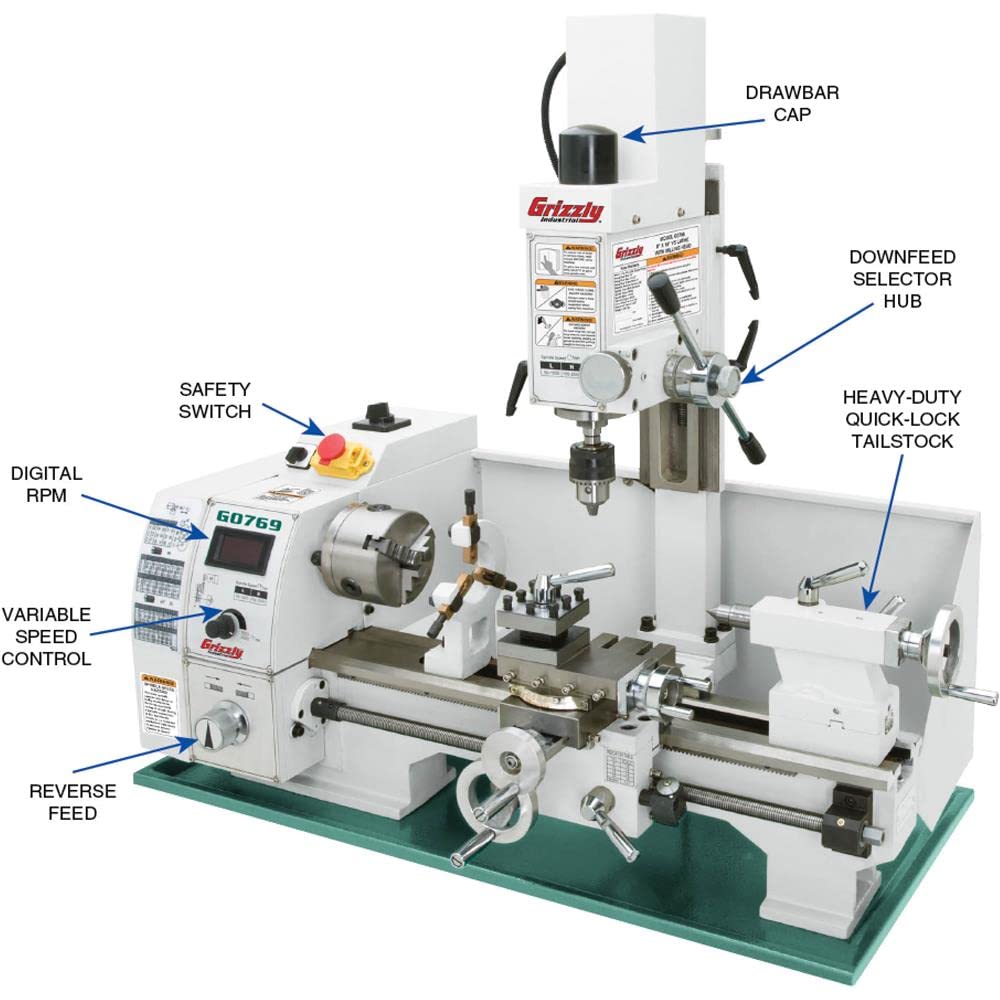

Details: LATHE SPECIFICATIONS: Swing over bed: 8-1/4" Swing over cross slide: 4-5/8" Swing over saddle: 6-7/8" Distance between centers: 15-3/4" Bed width: 4" Lathe spindle bore: 0.787" (20mm) Lathe spindle type: Intrinsic back plate Lathe spindle taper: MT#3 Tailstock taper: MT#2 Tailstock quill travel: 2" Cross slide travel: 3" Compound travel: 2-1/8" Lathe spindle speed: Variable, 50–2000 RPM Longitudinal feeds: (2) 0.0037, 0.0068 in./rev. Inch thread range: (15) 9–44 TPI Metric thread range: (12) 0.4–3.0mm MILL SPECIFICATIONS: Mill swing: 13" MIll spindle taper: MT#2 Mill spindle travel: 1-3/4" Distance from spindle to table: 9-7/8" Distance from spindle to bed: 11-1/2" Mill head vertical travel: 6-5/16" Mill head tilt: 45° left/right Table dimensions: 3-1/8" W x 7-1/4" L x 1-1/8" Th T-slots: two at 1/4", 1-1/2" on center Drawbar: 3/8-16 TPI, 8-1/2" L Mill spindle speed: Variable, 50–2000 RPM Maximum tool bit size: 1/2" Drilling capacity: 1/2" (steel) MOTOR & BODY SPECIFICATIONS: Motor: 3/4 HP, 110V, single-phase 10A Footprint: 10-1/2" x 31-1/2" Overall dimensions: 36" W x 16" D x 14" H Approximate shipping weight: 166 lbs.

EAN: 0690550427510
