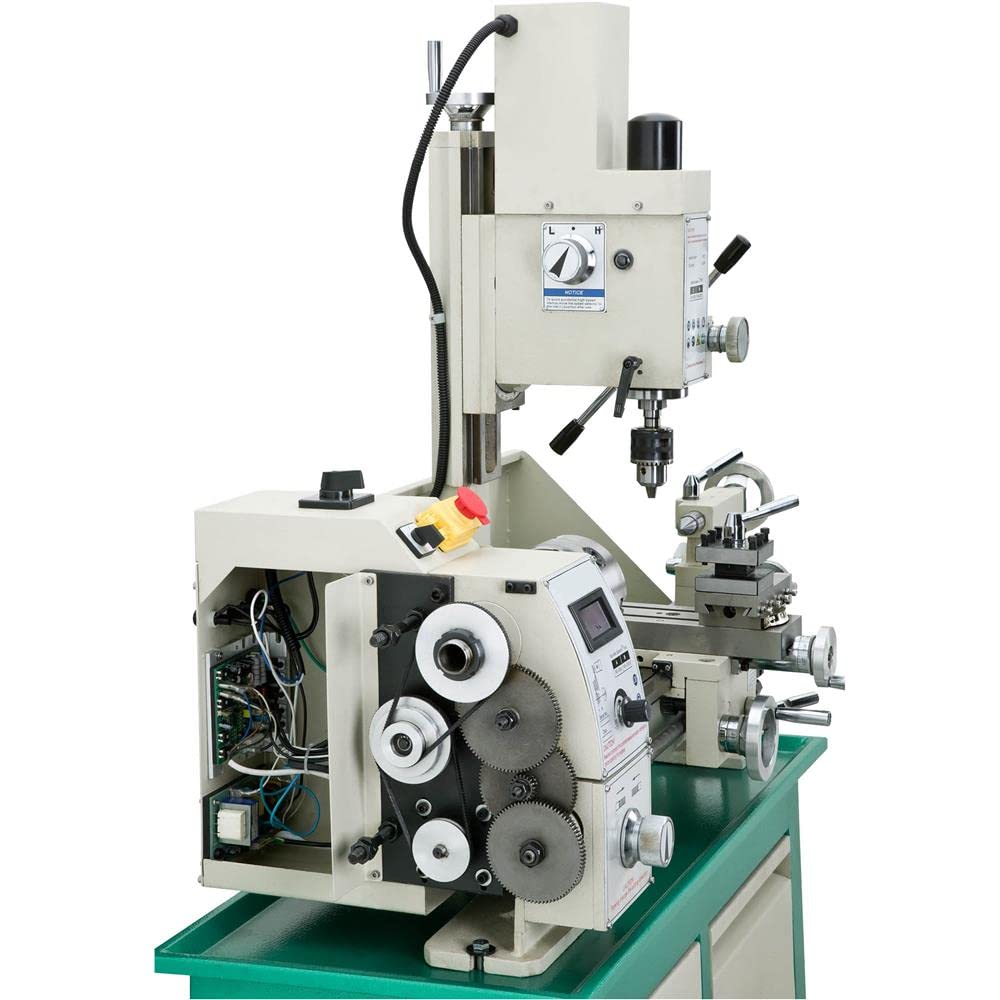

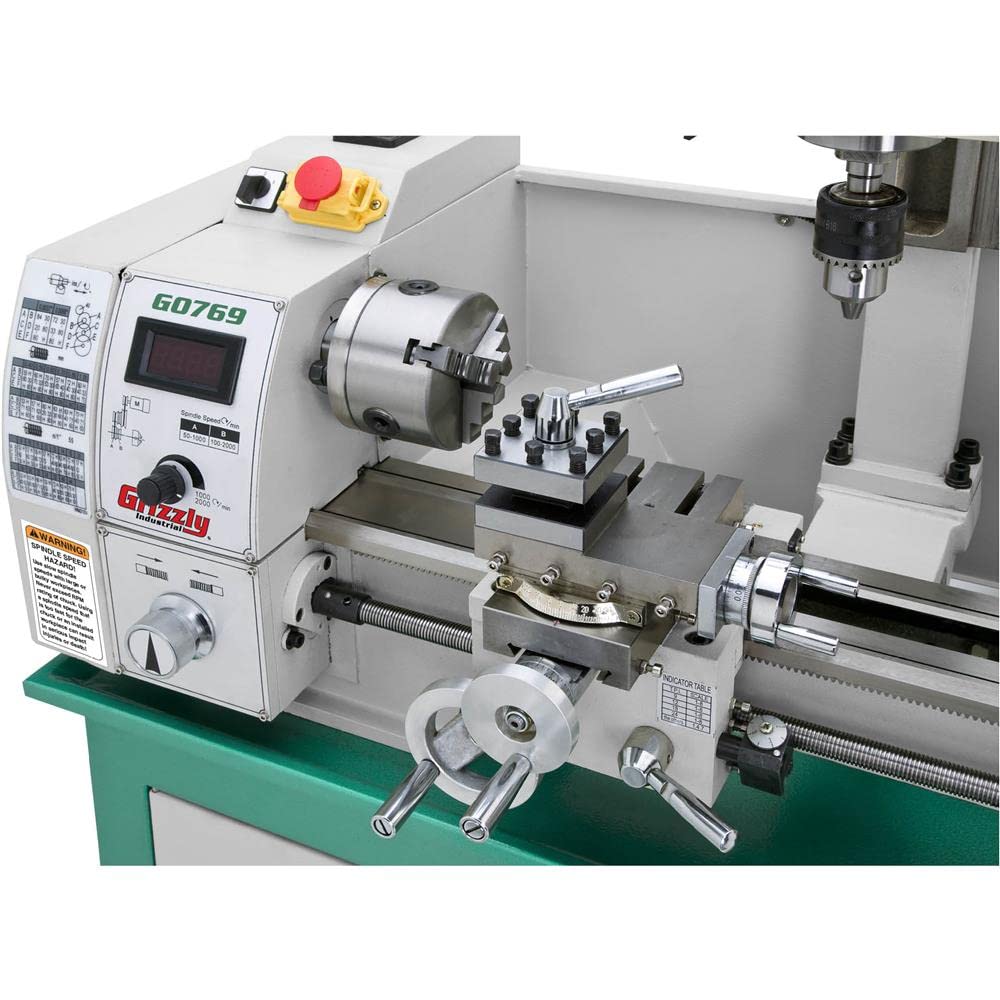

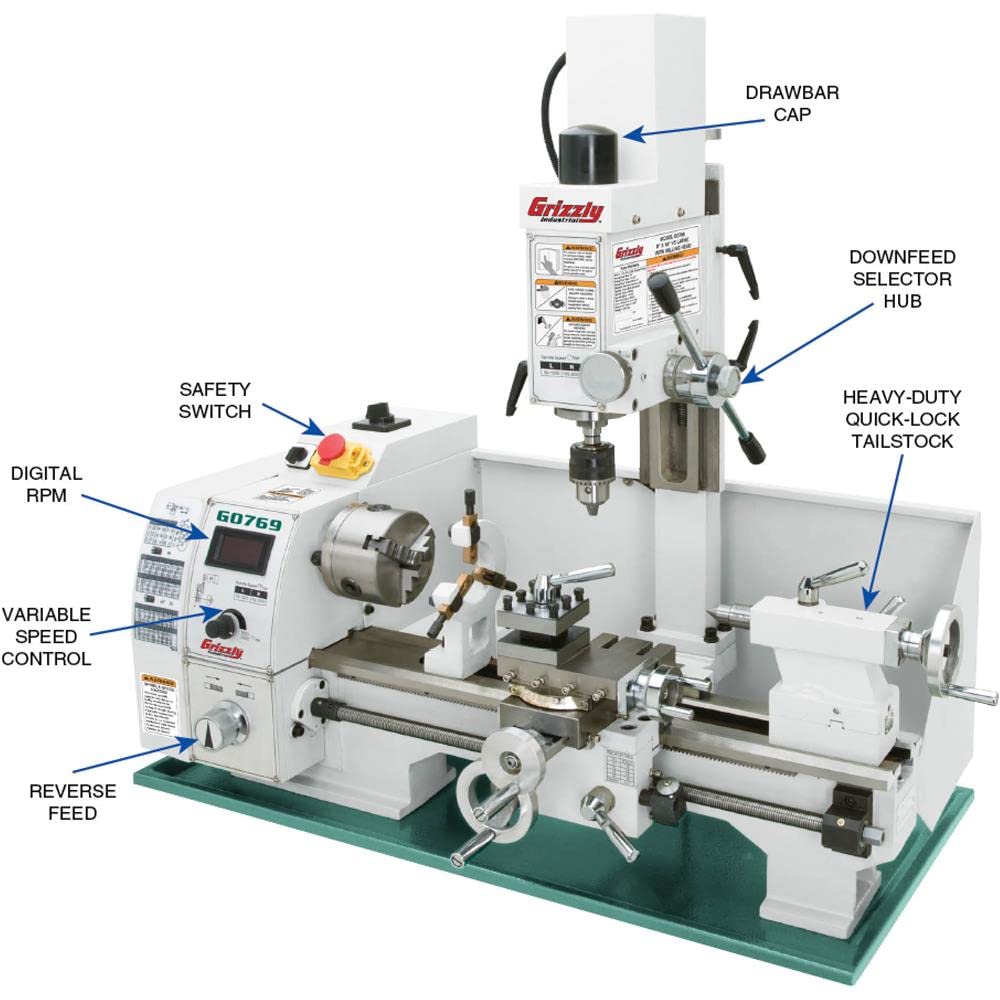

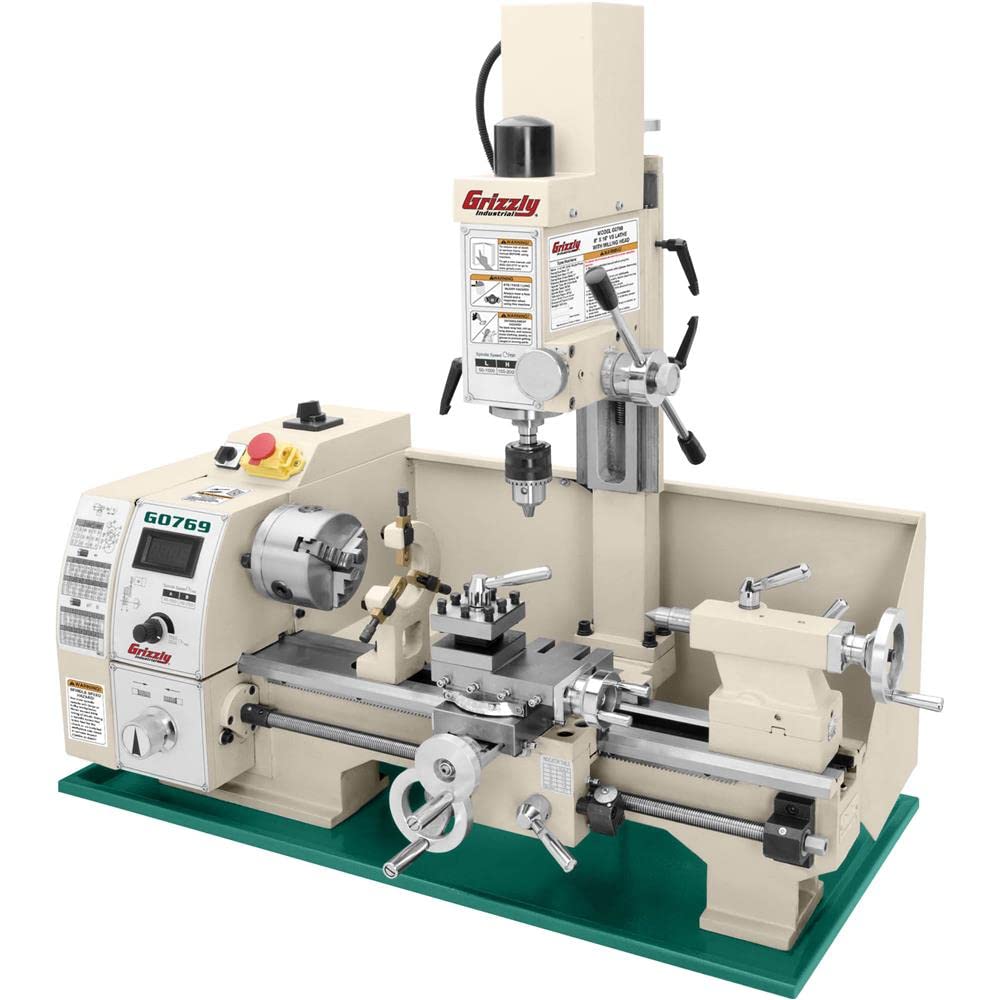

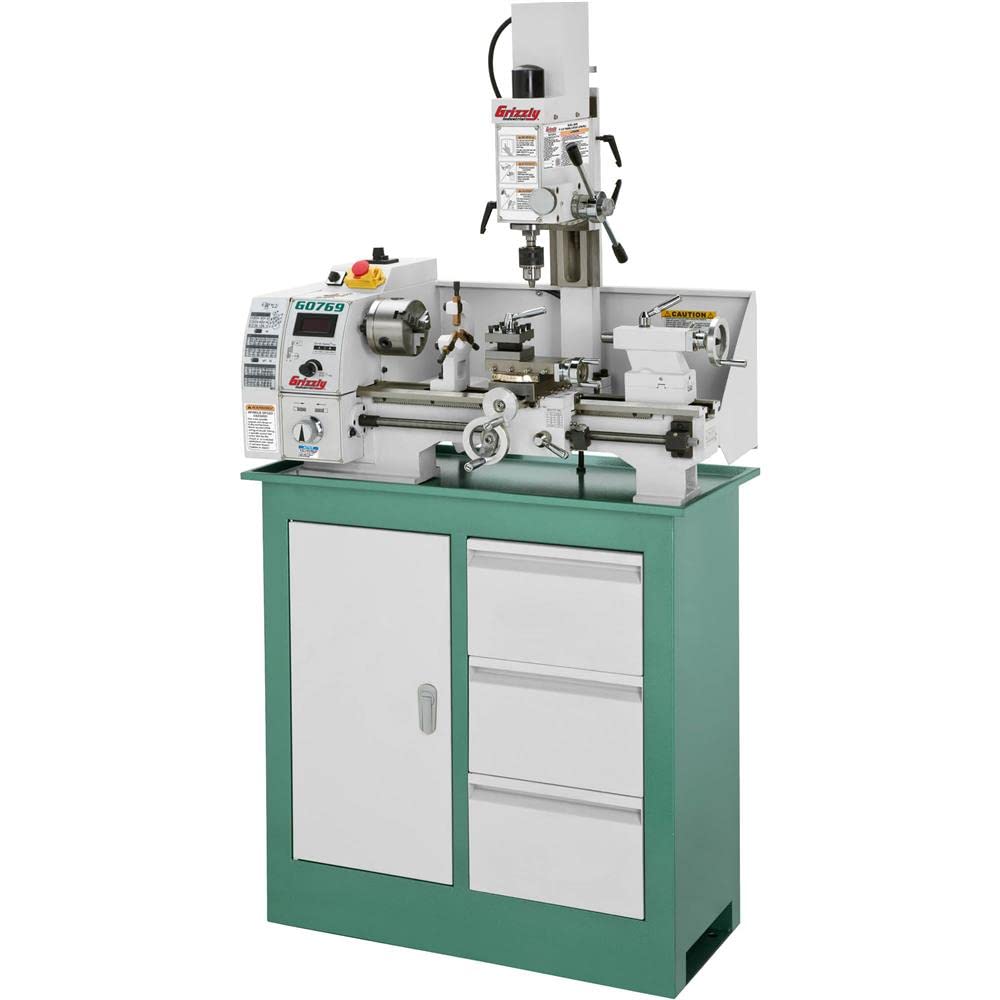

Grizzly Industrial G0769-8" x 16" Variable-Speed Combination Lathe/Mill
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Grizzly Industrial
Features:
- Motor: 600W (3/4 HP), 110V, 10A
- Spindle speed ranges: Low 50–1000, High 100–2000 RPM
- Lathe: Swing over: bed 8-1/4", cross slide 4-5/8"
- Mill: Swing: 13"
- Overall size: 36" W x 20" D x 34" H
Binding: Misc.
model number: G0769
Part Number: G0769
Details: LATHE SPECIFICATIONS: Swing over bed: 8-1/4" Swing over cross slide: 4-5/8" Swing over saddle: 6-7/8" Distance between centers: 15-3/4" Bed width: 4" Lathe spindle bore: 0.787" (20mm) Lathe spindle type: Intrinsic back plate Lathe spindle taper: MT#3 Tailstock taper: MT#2 Tailstock quill travel: 2" Cross slide travel: 3" Compound travel: 2-1/8" Lathe spindle speed: Variable, 50–2000 RPM Longitudinal feeds: (2) 0.0037, 0.0068 in./rev. Inch thread range: (15) 9–44 TPI Metric thread range: (12) 0.4–3.0mm MILL SPECIFICATIONS: Mill swing: 13" MIll spindle taper: MT#2 Mill spindle travel: 1-3/4" Distance from spindle to table: 9-7/8" Distance from spindle to bed: 11-1/2" Mill head vertical travel: 6-5/16" Mill head tilt: 45° left/right Table dimensions: 3-1/8" W x 7-1/4" L x 1-1/8" Th T-slots: two at 1/4", 1-1/2" on center Drawbar: 3/8-16 TPI, 8-1/2" L Mill spindle speed: Variable, 50–2000 RPM Maximum tool bit size: 1/2" Drilling capacity: 1/2" (steel) MOTOR & BODY SPECIFICATIONS: Motor: 3/4 HP, 110V, single-phase 10A Footprint: 10-1/2" x 31-1/2" Overall dimensions: 36" W x 16" D x 14" H Approximate shipping weight: 166 lbs.
EAN: 0690550427510
