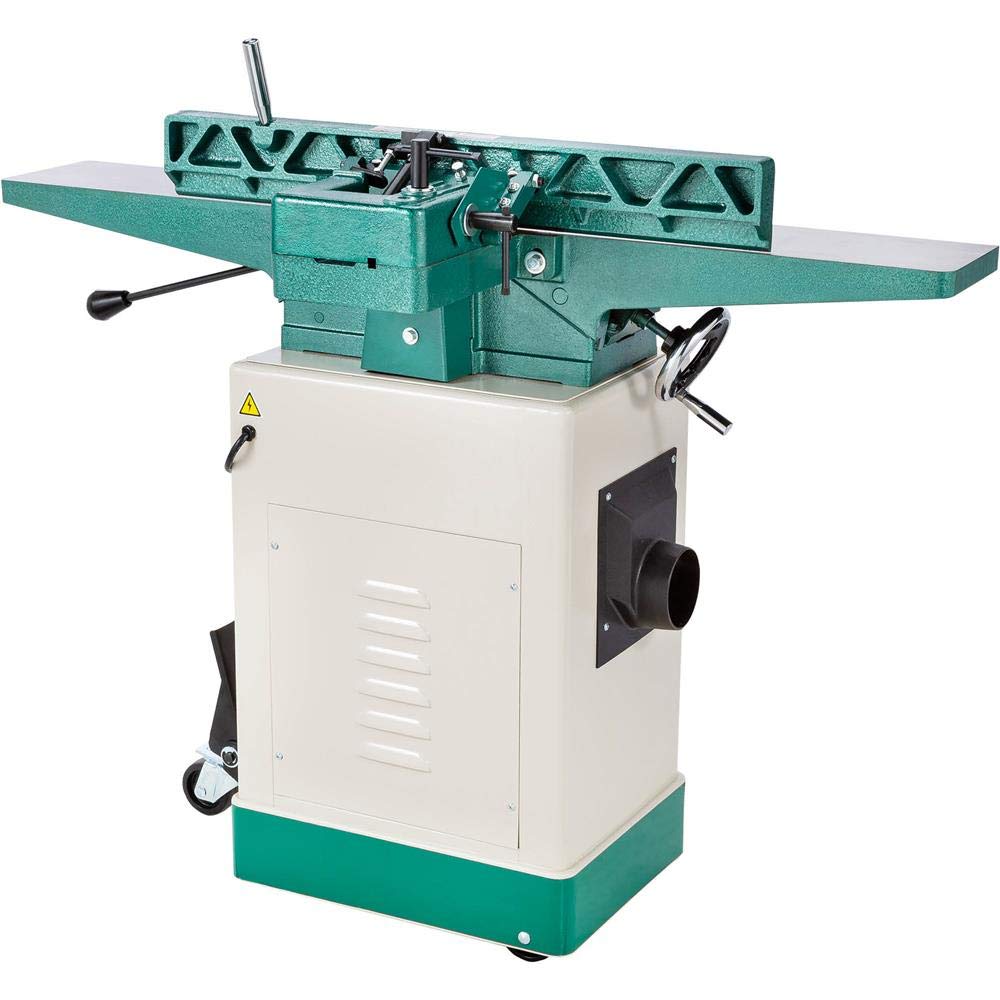

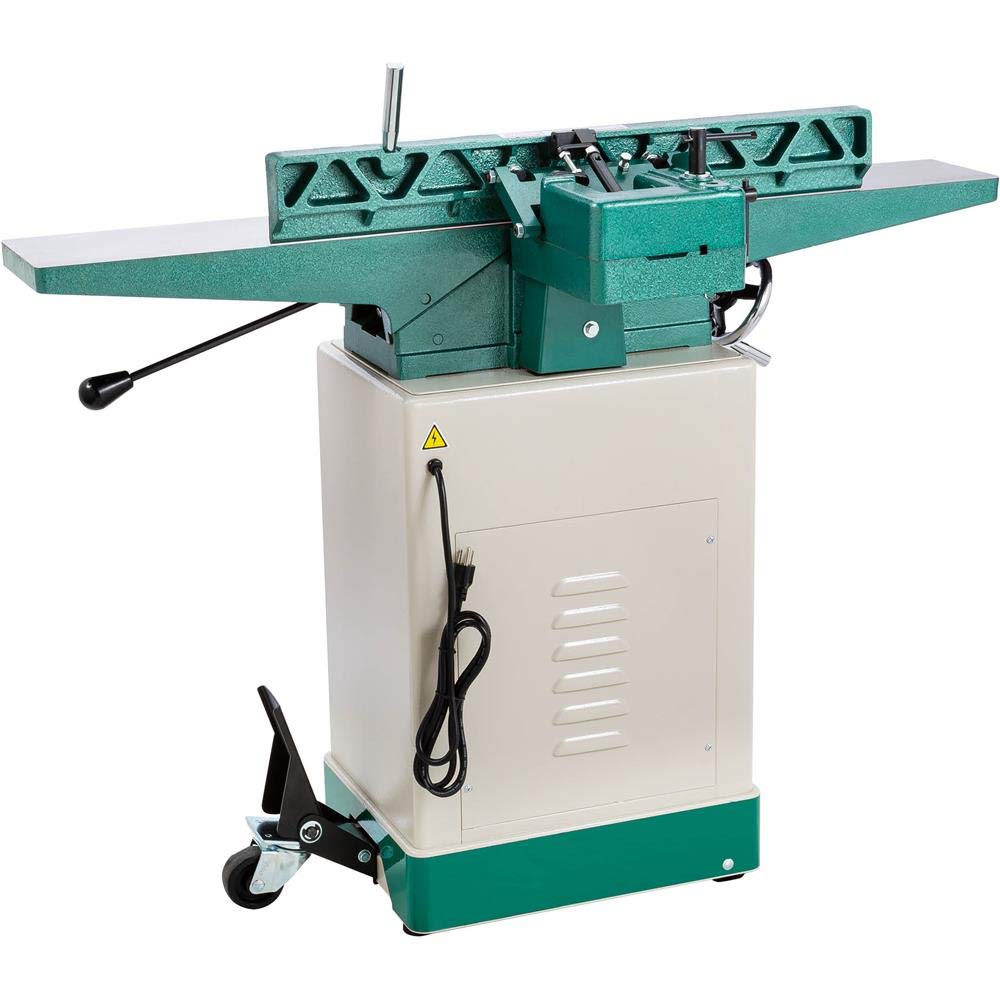

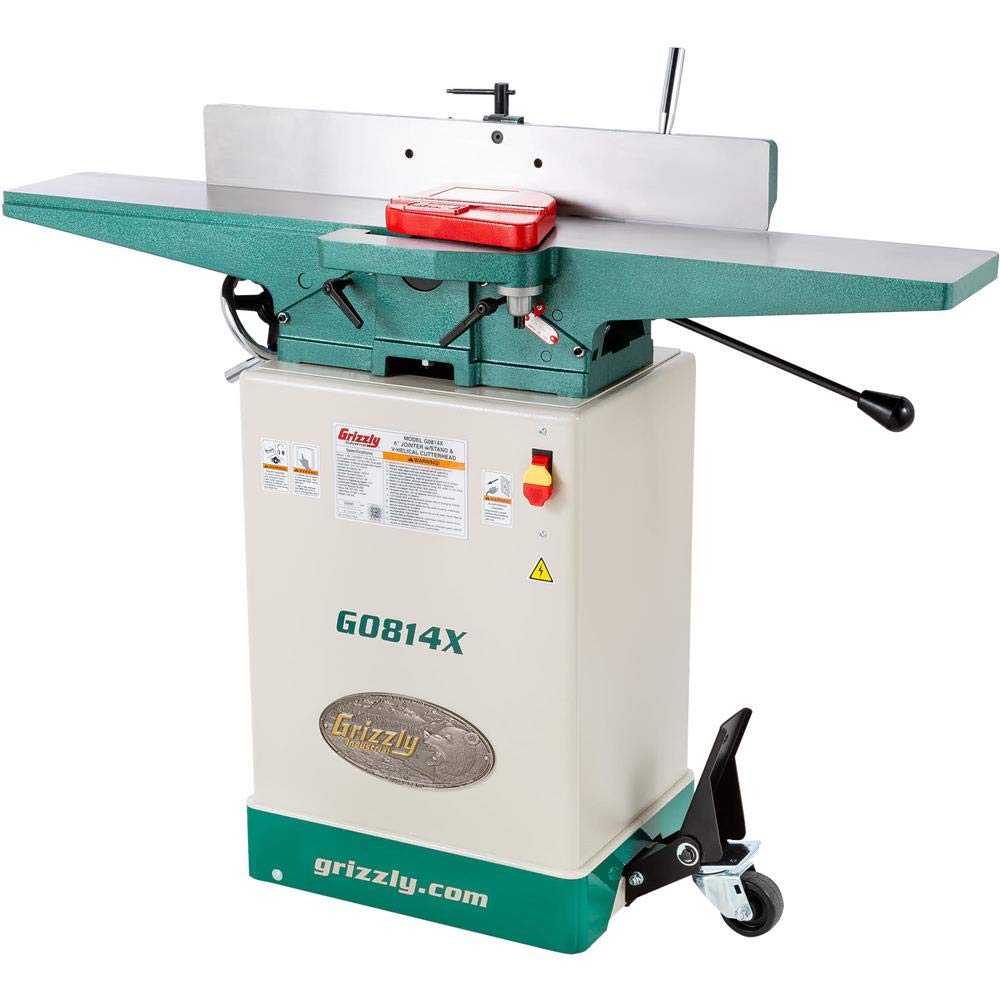

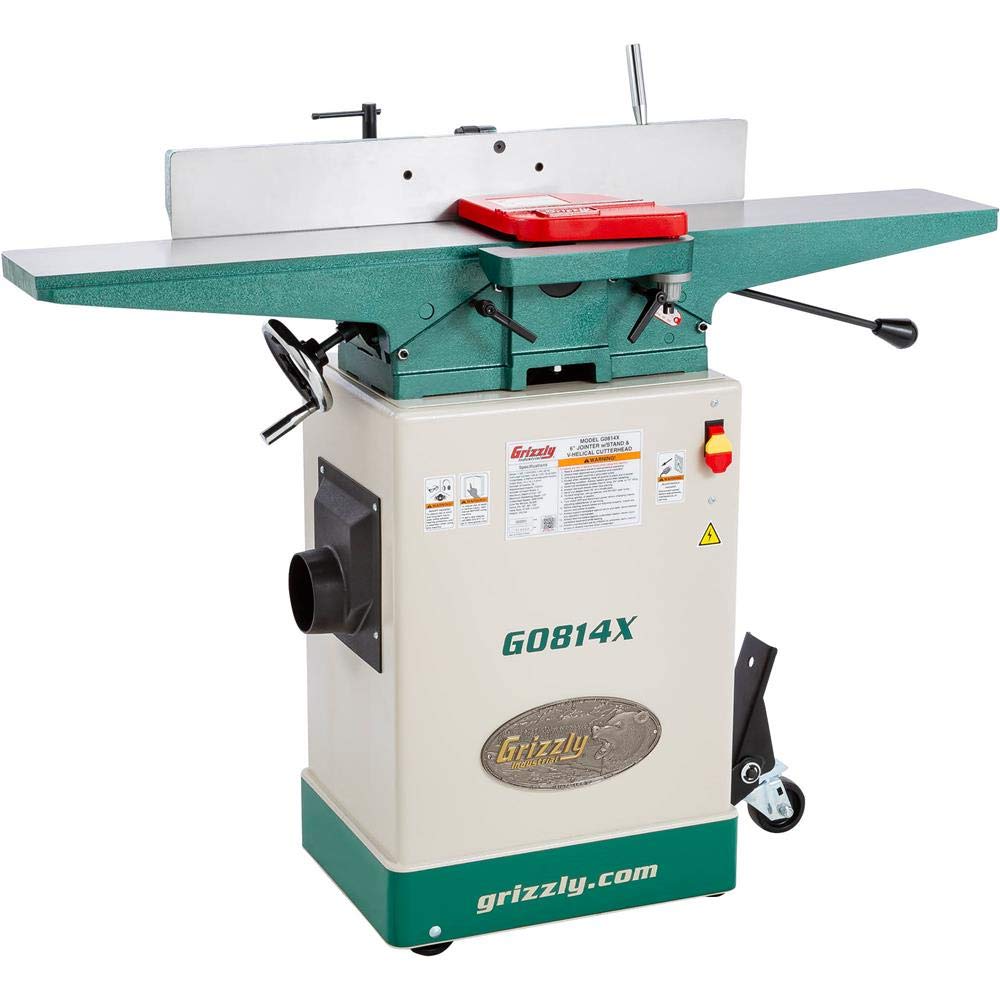

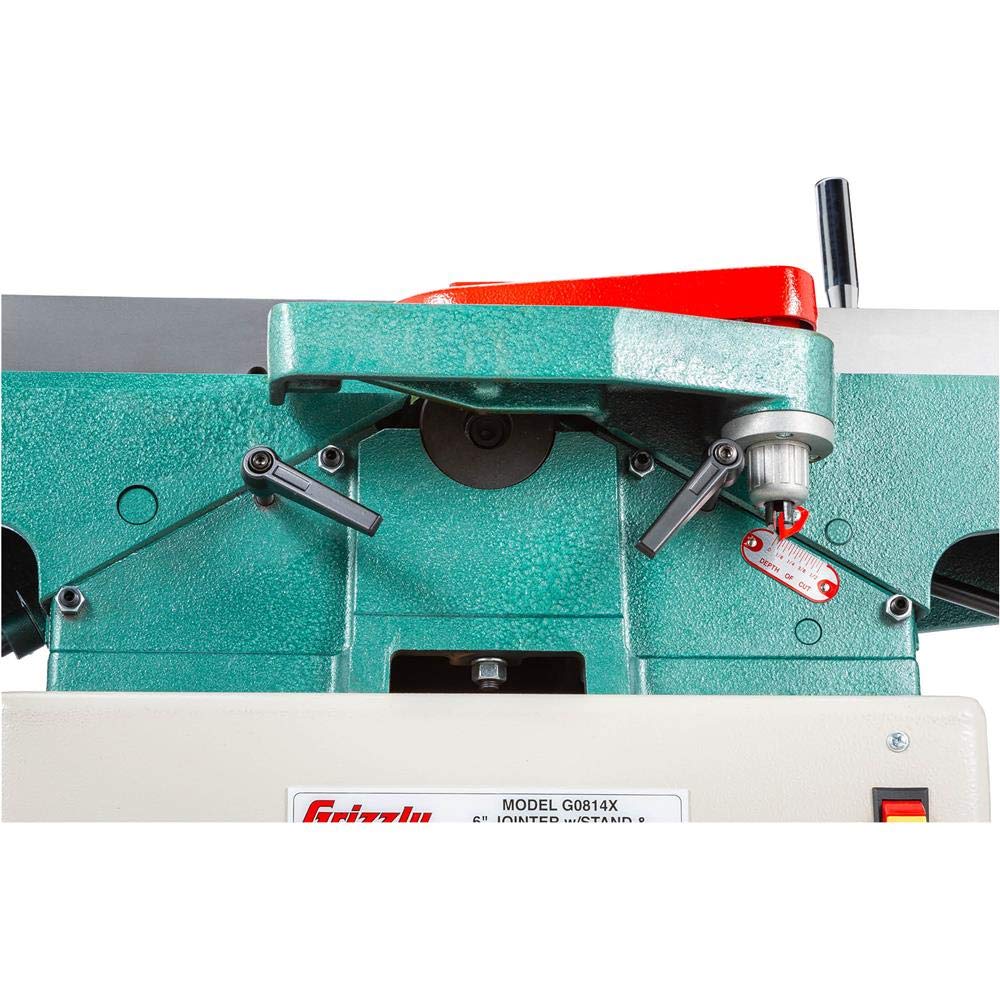

Grizzly Industrial G0814X - 6" Jointer W/Stand & V-Helical Cutterhead

Brand: Grizzly Industrial

Binding: Misc.

model number: G0814X

Part Number: G0814X

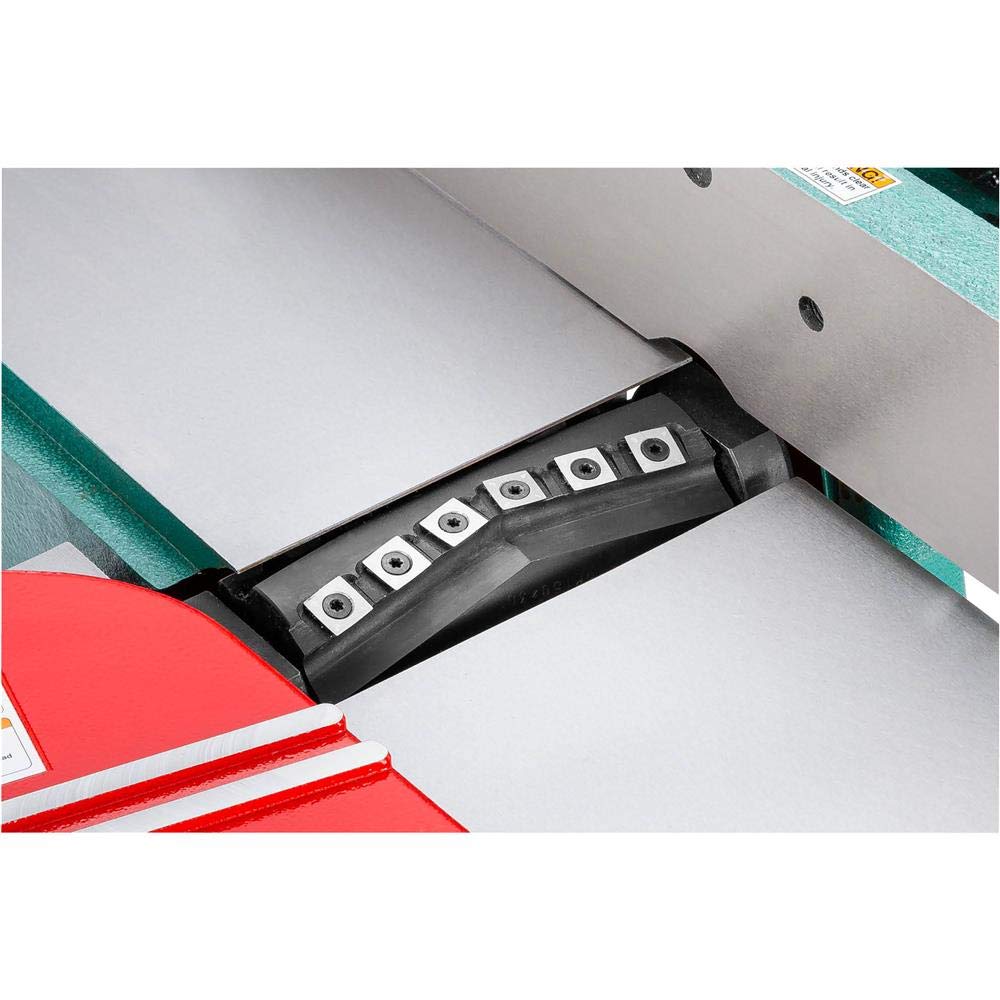

Details: A step up from our G0814 6" Jointer with cabinet stand with built-in mobile base, the G0814X comes equipped with a 4-row V-helical cutterhead for unmatched finish and long-lasting cutter edge durability. The V-helical cutterhead features 24 indexable carbide inserts that can each be rotated up to 3 times to expose a new sharp edge. No more replacing or sharpening blades every time they get dull or nicked. You'll get quieter operation, and most importantly, a significantly better finish with less tear-out using this cutterhead vs. a straight-knife model. SPECIFICATIONS: Motor: 1 HP, 110V/220V (prewired 110V), single-phase, 14A/7A Maximum width of cut: 6" Maximum depth of cut: 1/8" Maximum rabbeting depth: 1/2" Cutterhead diameter: 2-1/2" Cutterhead type: 4-row V-helical Insert size & type: 15mm x 15mm x 2.5mm, indexable carbide Cutterhead speed: 5000 RPM Table size: 6-5/8" x 47-3/8" Fence size: 29-1/8" x 4" Minimum stock length: 8" Minimum stock width: 3/4" Minimum stock thickness: 1/2" Dust port size: 4" Footprint: 13-1/2" x 18" Overall dimensions: 47-1/2" W x 20" D x 42" H Approx. shipping weight: 260 lbs. FEATURES: 4-row V-helical cutterhead with 26 indexable carbide inserts Cabinet stand with built-in mobile base Precision-ground cast-iron tables with dovetailed ways Heavy-duty center-mounted fence with stops at 45°, 90° & 135° V-belt drive

EAN: 0690550880834
