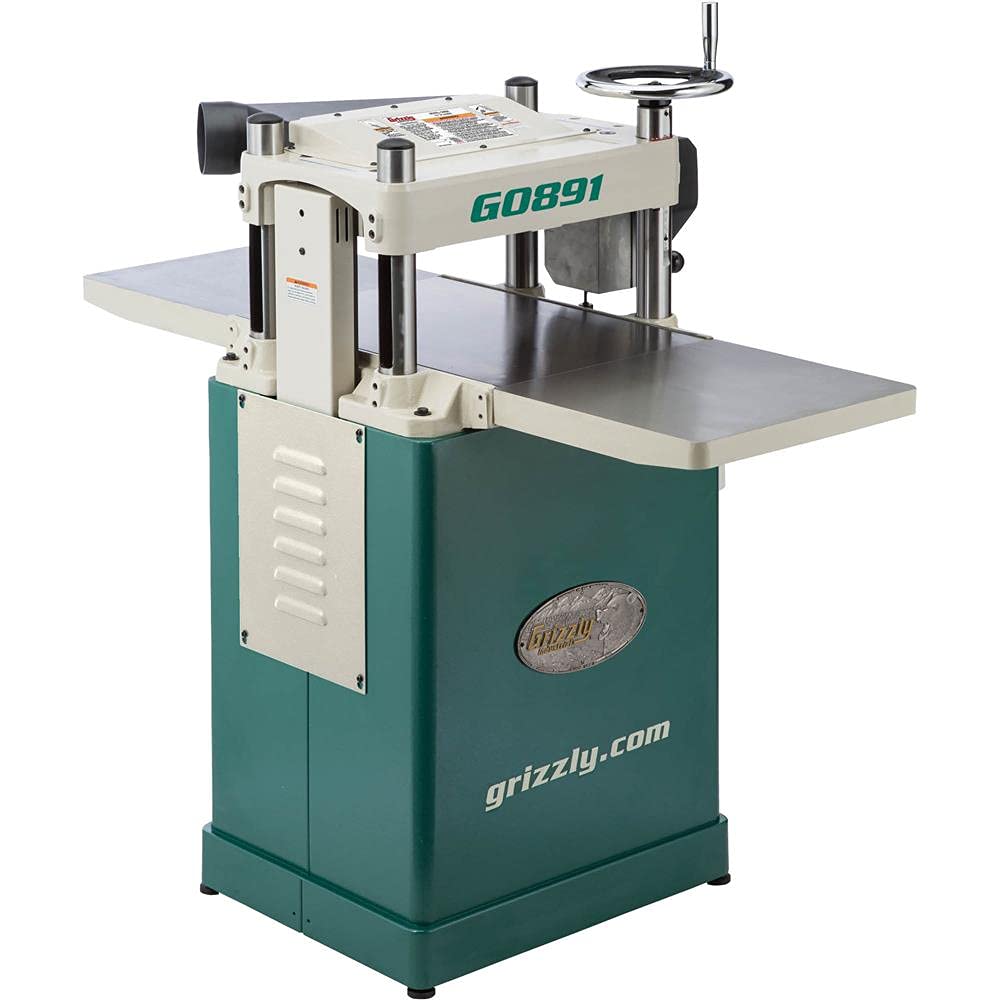

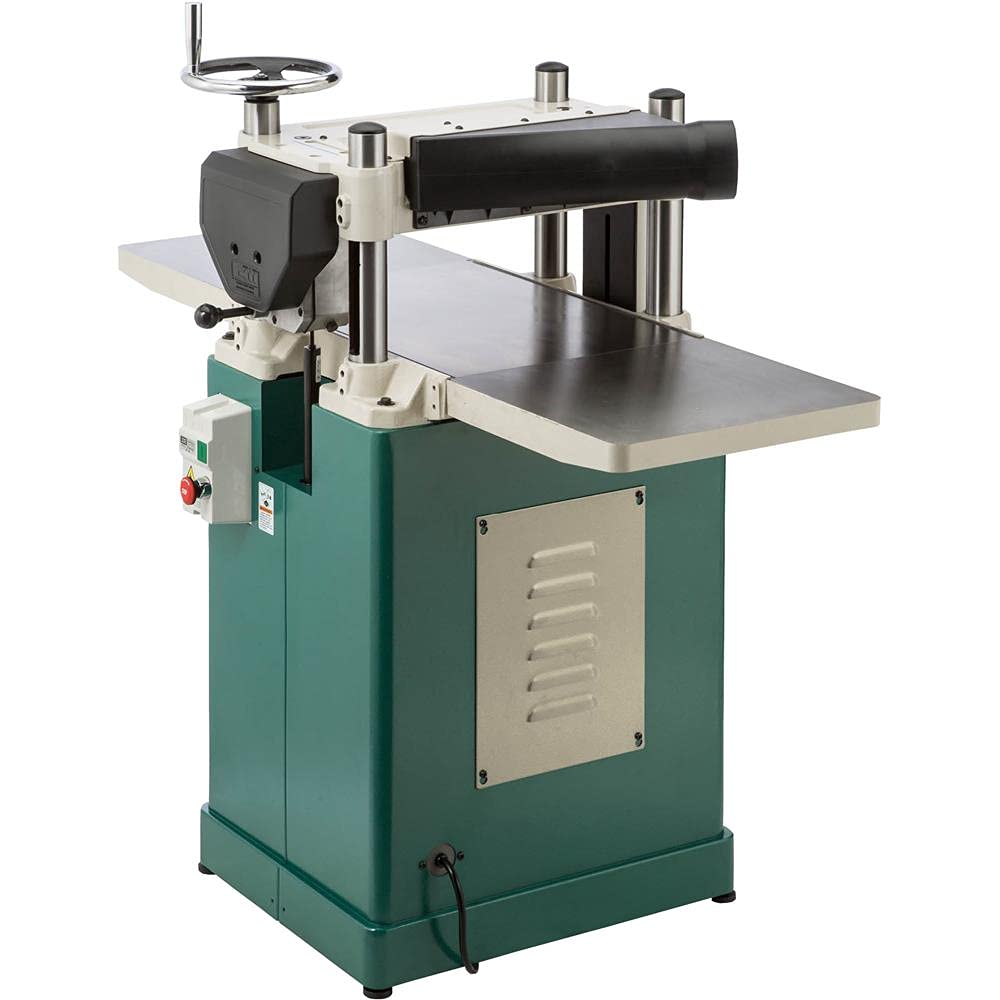

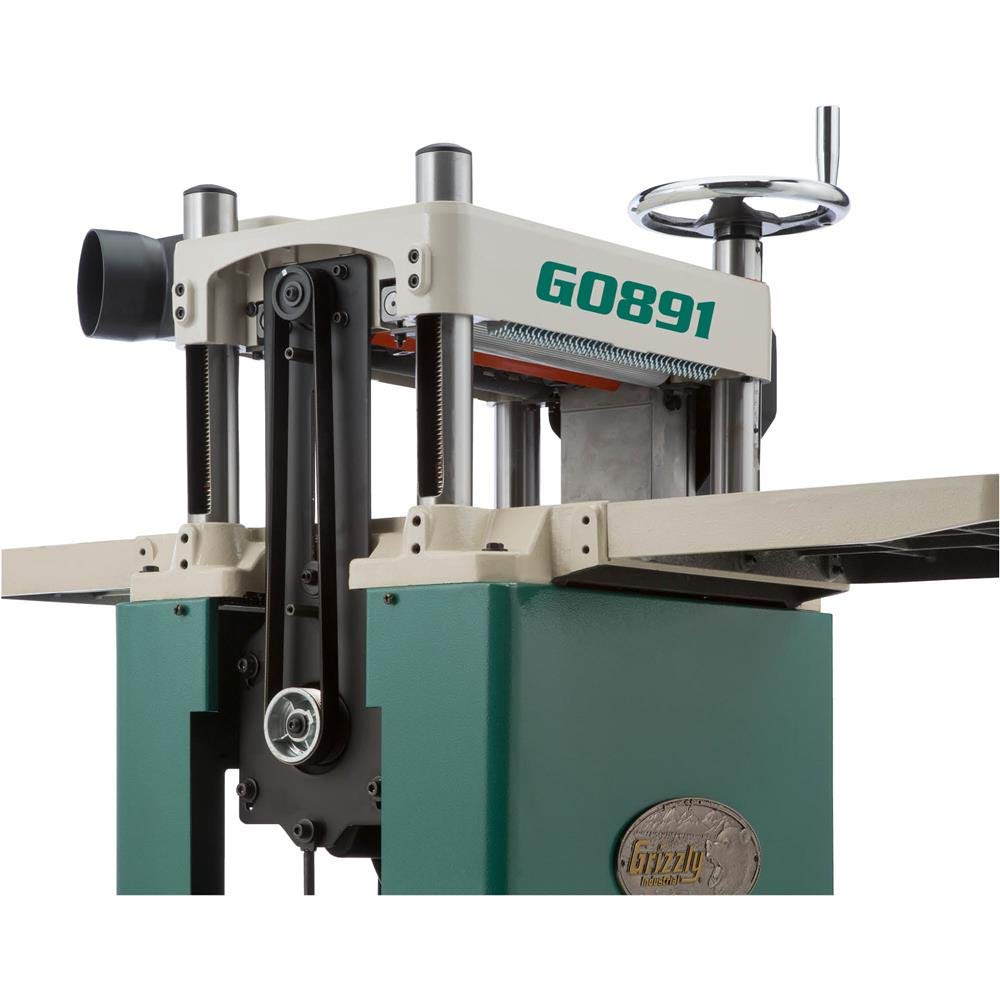

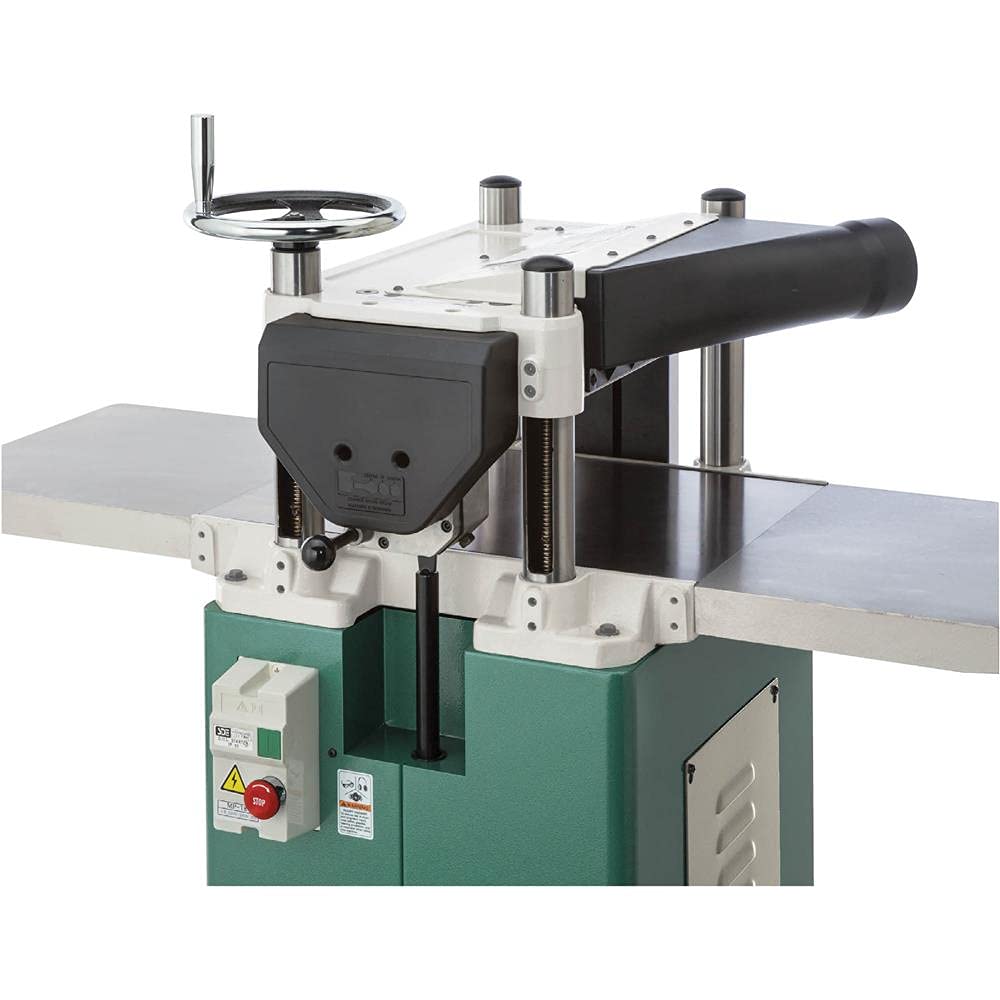

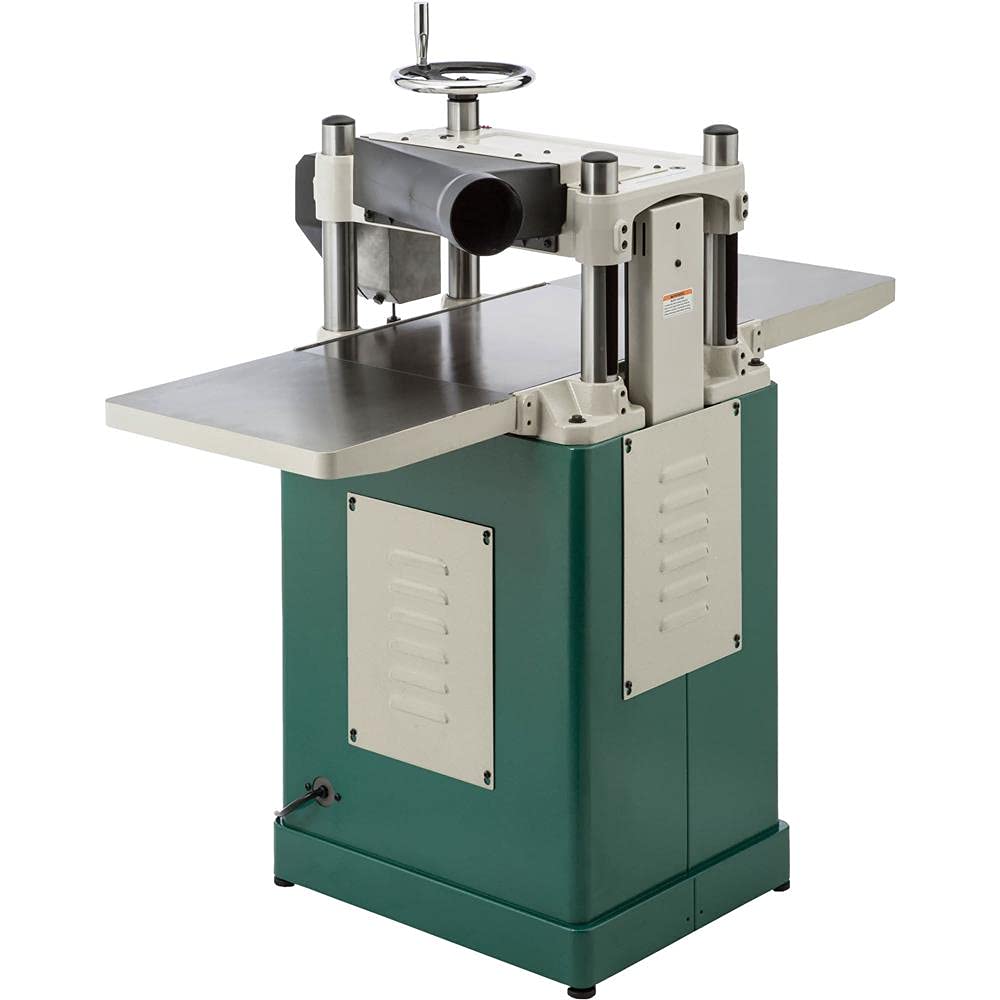

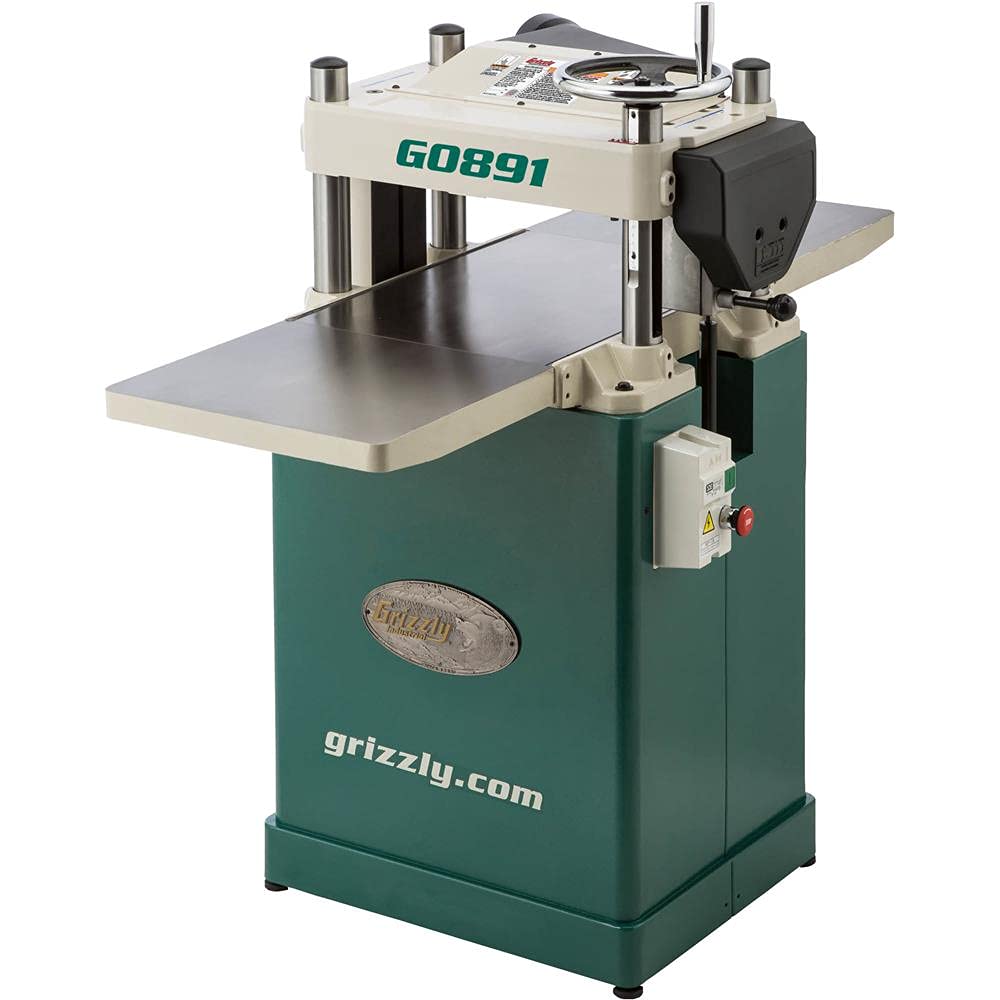

Grizzly Industrial G0891-15" 3 HP Fixed-Table Planer with Helical Cutterhead
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Grizzly Industrial
Features:
- Motor: 3 HP, 230V, single-phase
- Table size w/cast-iron wings: 15-1/2"W x 49"L
- Maximum cutting width: 15"
- Maximum cutting height: 6"
- Minimum cutting height: 3/16"

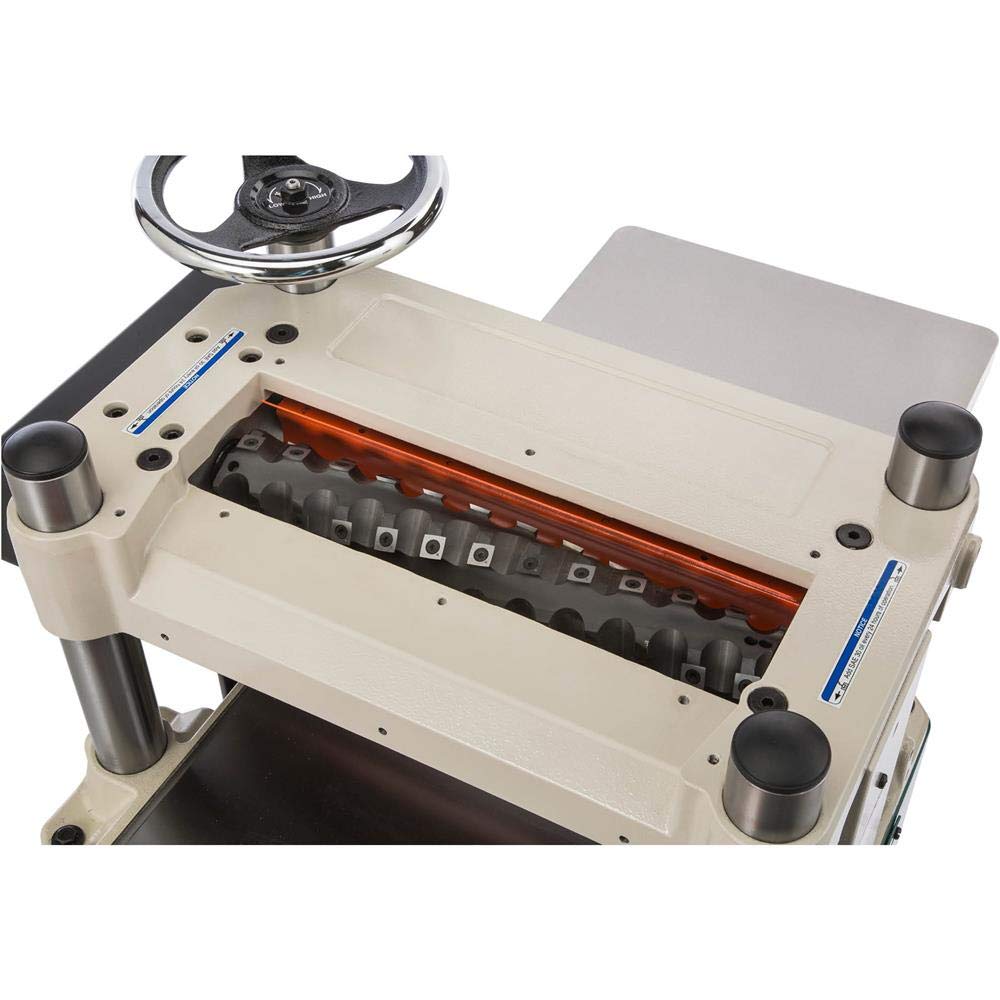

Details: This 15" Fixed Table Planer with 4-row helical cutterhead features a powerful 3 HP motor and unique fixed table height design which allows for a permanent infeed/outfeed roller table setup. This can significantly boost efficiency in production settings. The 2-speed gearbox allows you to choose between 16 and 28 FPM for a smooth finish or high-production feed rate. The headstock sits atop a sturdy four-column support with easy handwheel height adjustment thanks to the twin gas struts on either side. Made in and ISO 9001 factory Certified to CSA & UL standards SPECIFICATIONS: Motor: 3 HP, 230V, single-phase, 12A Maximum stock width: 15" Maximum stock thickness: 6" Minimum stock thickness: 3/16" Minimum stock length: 6" Maximum cutting depth: 1/8" Cutterhead diameter: 2-5/8" Cutterhead type: 4-row helical, 48 inserts Insert size & type: 15mm x 15mm x 2.5mm, 30° indexable carbide Cutterhead speed: 5200 RPM Feed rate: 16 FPM & 28 FPM Table size with extensions: 15" x 49" Dust port size: 4" Footprint: 21" x 18-1/2" Overall dimensions: 25" W x 49" L x 47-1/2" H Approximate shipping weight: 375 lbs. FEATURES: Fixed-height table design allows for permanent infeed/outfeed roller table setup Precision-ground cast-iron table with extension wings Magnetic switch with thermal overload protection Twin gas struts for headstock lifting assist Two feed speeds for rough and finish planing
EAN: 0690550574641
Part Number: G0891
model number: G0891
