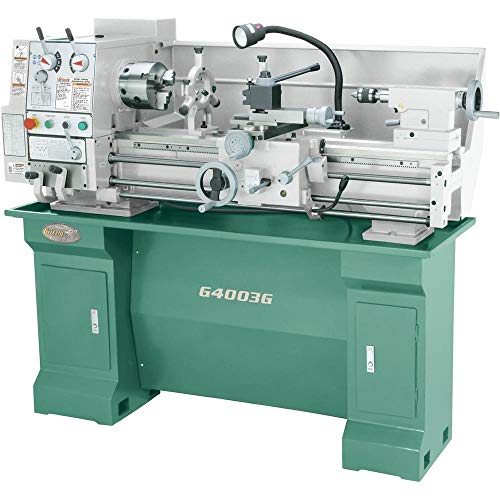

Grizzly Industrial G4003G - 12" x 36" Gunsmithing Lathe with Stand

Brand: Grizzly Industrial

Color: Not applicable

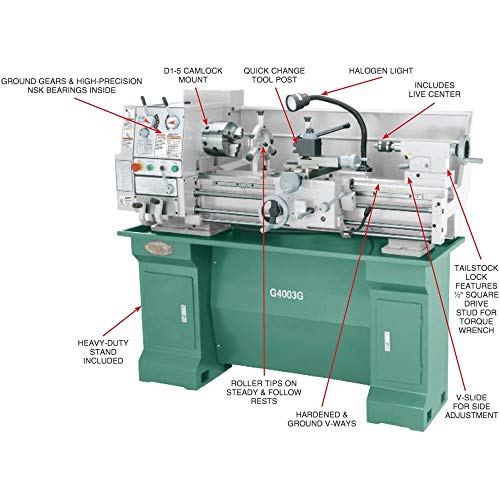

Features:

• High-quality NSK spindle bearings
• Removable gap bed allows turnings up to 17-Inch in diameter

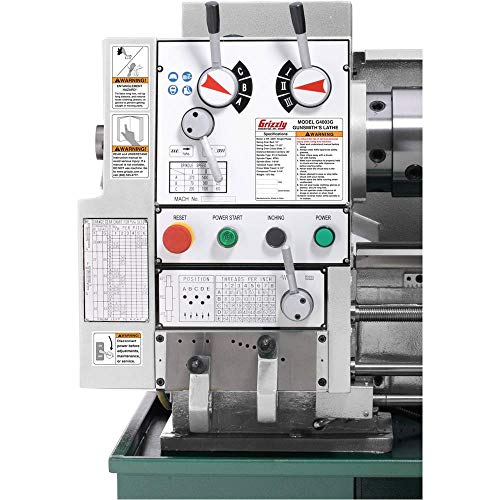

• Easy to use lever controls
• Hardened and ground cast iron bed
• Full length splash guard

Binding: Tools & Home Improvement

model number: G4003G

Part Number: G4003G

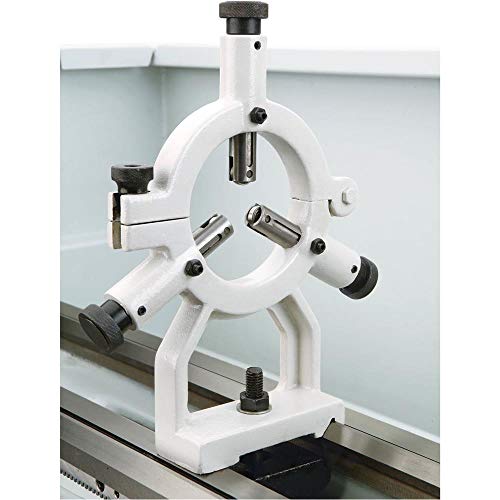

Details: When we set out to design a professional gunsmith's lathe, item # G0509G, we felt that we should also make a smaller starter lathe for aspiring hobby gunsmiths. Check out all the interesting features on this puppy! Features: Nine spindle speeds - ranging from 70 to 1,400 RPM Easy to use lever controls Hardened and ground cast iron bed Cuts 4-112 Standard TPI and 0.2-4.5 Metric Full length splash guard Spindle on/off reverse switch on carriage Halogen work light Ball bearing steady/follow rests Outboard end support screws Socket for tailstock lock Heavy-duty steel stand Cast aluminum gear cover Specifications: Motor: 2 HP, 220V, single-phase, 8.5 Amps, 60 Hz, 1725 RPM Swing over bed: 12" Swing over cross slide: 7" Distance between centers: 36" Bed width: 7-1/4" Spindle bore: 1.57" (40mm) Spindle nose taper: MT#5 Spindle nose: D1-5 Camlock Cuts LH threads Cross slide travel: 6-1/4" Compound travel: 3-1/4" Carriage travel: 30-1/2" Tailstock barrel taper: MT#3 Tailstock barrel travel: 4" Number of speeds: 9 Range of speeds: 70, 200, 220, 270, 360, 600, 800, 1000, 1400 RPM Height w/o stand: 23" Height w/ stand: 54-1/2" Length w/ stand: 61" Width of stand: 26" Approximate shipping weight: 1330 lbs.

EAN: 0690550740039

Package Dimensions: 65.5 x 51.5 x 29.3 inches
