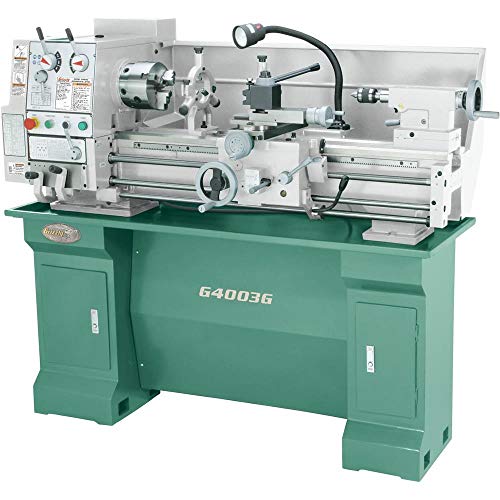

Grizzly Industrial G4003G - 12" x 36" Gunsmithing Lathe with Stand
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Grizzly Industrial
Color: Not applicable

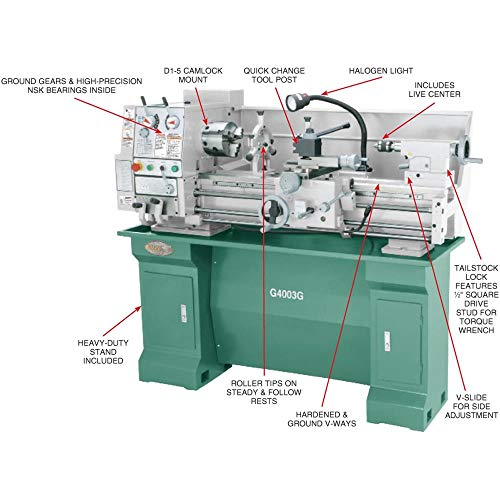

Features:
- High-quality NSK spindle bearings
- Removable gap bed allows turnings up to 17-Inch in diameter

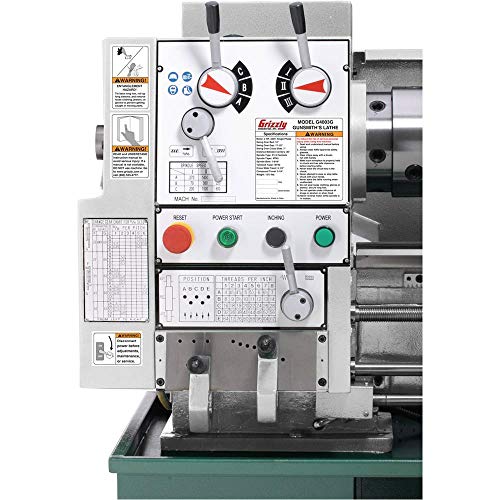

- Easy to use lever controls
- Hardened and ground cast iron bed
- Full length splash guard
Binding: Tools & Home Improvement
model number: G4003G
Part Number: G4003G

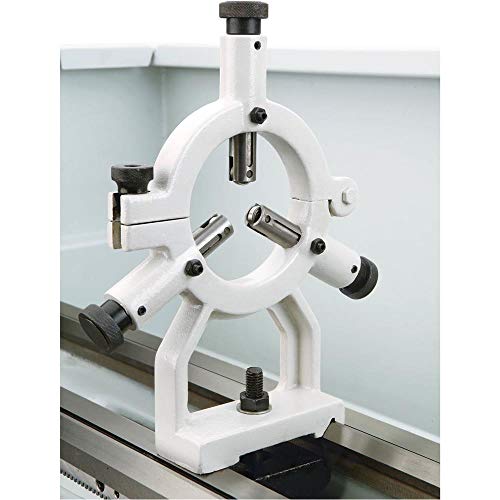

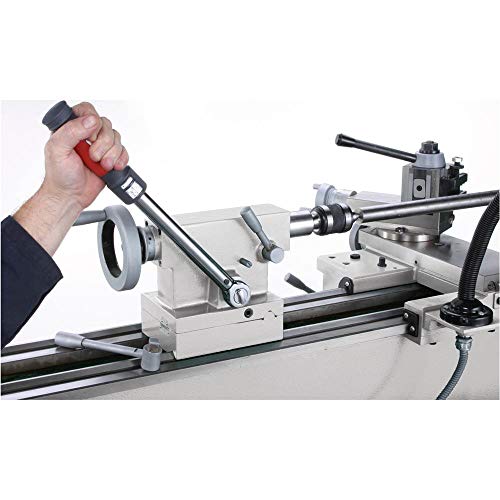

Details: When we set out to design a professional gunsmith's lathe, item # G0509G, we felt that we should also make a smaller starter lathe for aspiring hobby gunsmiths. Check out all the interesting features on this puppy! Features: Nine spindle speeds - ranging from 70 to 1,400 RPM Easy to use lever controls Hardened and ground cast iron bed Cuts 4-112 Standard TPI and 0.2-4.5 Metric Full length splash guard Spindle on/off reverse switch on carriage Halogen work light Ball bearing steady/follow rests Outboard end support screws Socket for tailstock lock Heavy-duty steel stand Cast aluminum gear cover Specifications: Motor: 2 HP, 220V, single-phase, 8.5 Amps, 60 Hz, 1725 RPM Swing over bed: 12" Swing over cross slide: 7" Distance between centers: 36" Bed width: 7-1/4" Spindle bore: 1.57" (40mm) Spindle nose taper: MT#5 Spindle nose: D1-5 Camlock Cuts LH threads Cross slide travel: 6-1/4" Compound travel: 3-1/4" Carriage travel: 30-1/2" Tailstock barrel taper: MT#3 Tailstock barrel travel: 4" Number of speeds: 9 Range of speeds: 70, 200, 220, 270, 360, 600, 800, 1000, 1400 RPM Height w/o stand: 23" Height w/ stand: 54-1/2" Length w/ stand: 61" Width of stand: 26" Approximate shipping weight: 1330 lbs.
EAN: 0690550740039
Package Dimensions: 65.5 x 51.5 x 29.3 inches
