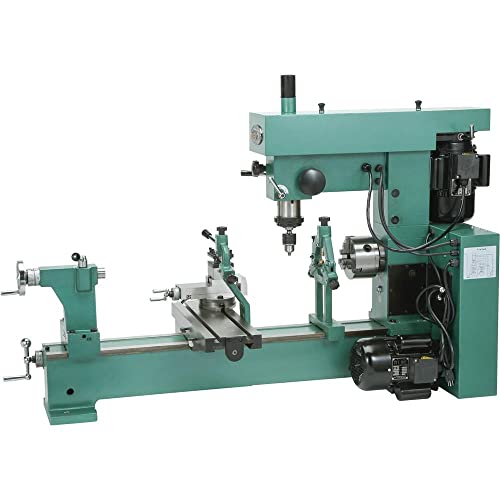

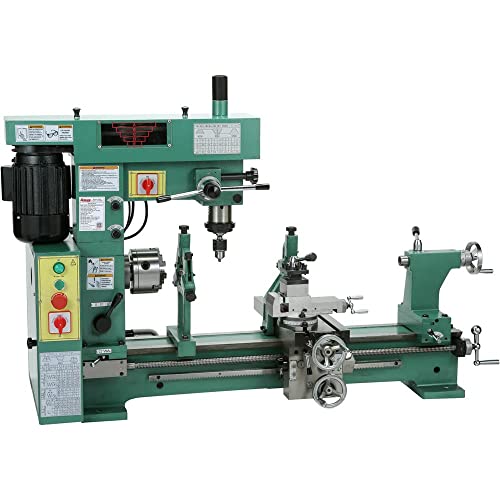

Grizzly Industrial G9729-31" 3/4 HP Combo Lathe/Mill

Brand: Grizzly Industrial

Features:

• Forward / reverse switch
• Built-in milling table with T-slots
• Two separate motors
• Power longitudinal feed
• Power cross feed

Binding: Tools & Home Improvement

model number: G9729

Part Number: G9729

Details: Need a larger combo machine? One with an awesome 31" between centers and 16-1/2" swing? Then the G9729 is the answer. With great features like a magnetic controller and a forward/reverse switch hardened and ground bed ways two motors for extra power and a 4-way turret tool post makes this a real do-it-all machine. Cuts inch and metric threads with ease and includes a built-in milling table with T-slots a steady rest and a follow rest. Convenient window allows easy verification of drill spindle speeds. An incredible machine at an unbeatable price. FEATURES: • Forward/reverse switch • Built-in milling table with T-slots • Two separate motors • Power longitudinal feed • Power cross feed • Magnetic switch • Four-position turret tool post • Steady and follow rest • Tailstock offsets 1/2" • Threading dial SPECIFICATIONS: • Swing over bed: 16-1/2" • Swing over cross slide: 11-1/2" • Distance between centers: 31" • Spindle: 4-bolt intrinsic • Spindle nose taper: MT -4 • Drawbar: 3/8" x 16 TPI • Spindle bore: 1-1/8" • Tailstock barrel taper: MT -3 • Tailstock travel: 2-1/2" • Cross slide travel: 3-3/4" • Top slide travel: 2-1/2" • Spindle to work table: 12" • Spindle travel : 4-5/16" • Spindle taper : MT -3 • Number of speeds: 7 lathe/16 mill/drill.

EAN: 0690550097294

Package Dimensions: 57.0 x 44.0 x 23.0 inches
