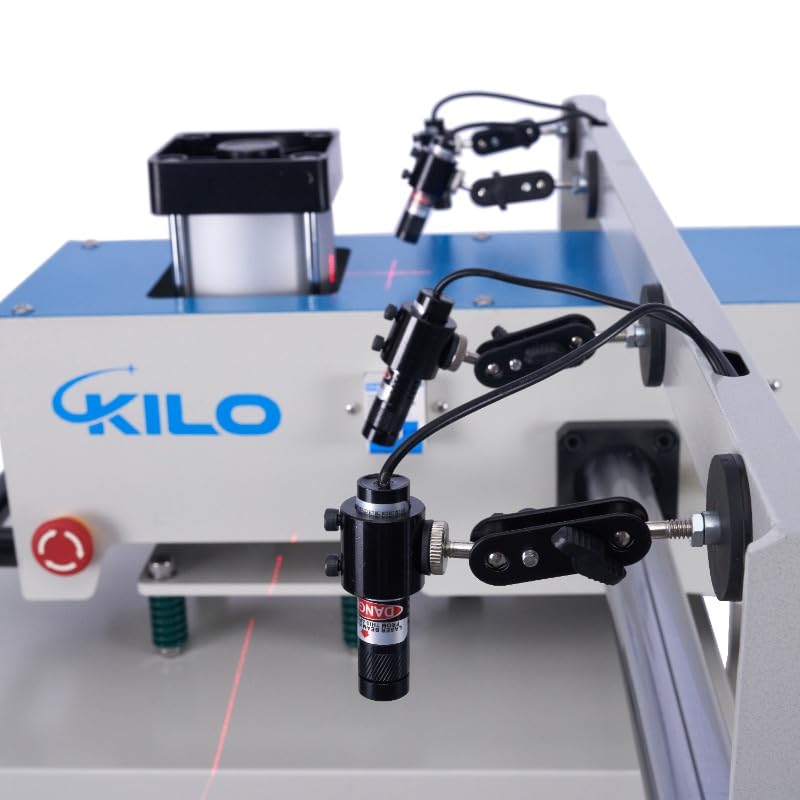

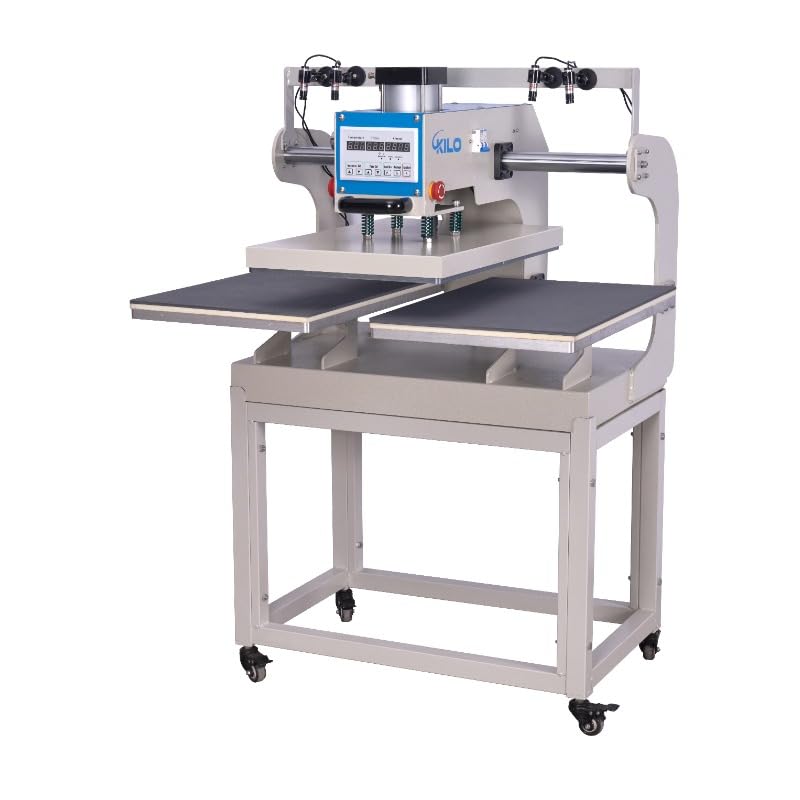

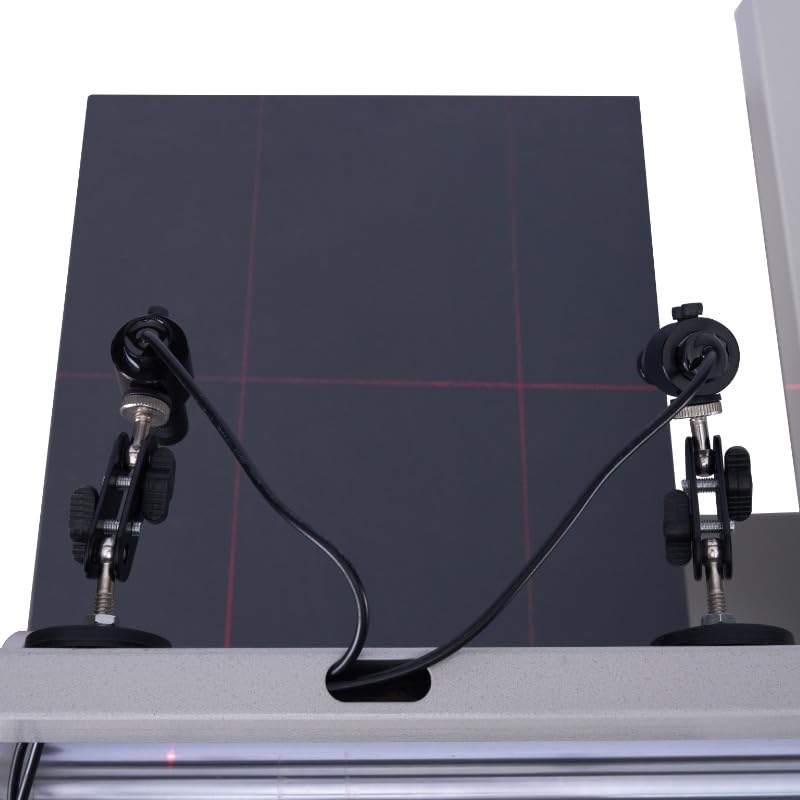

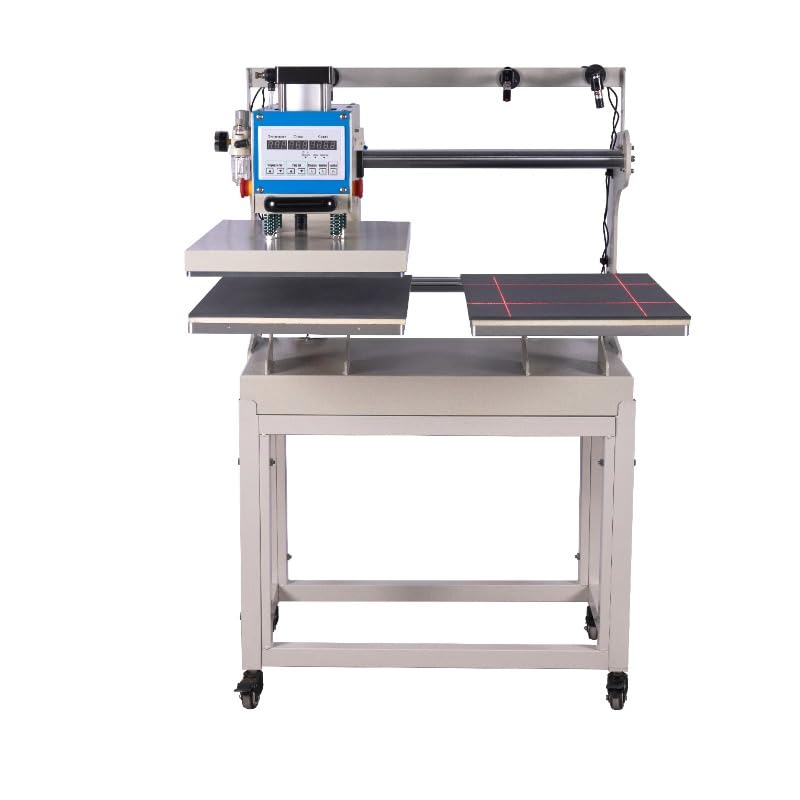

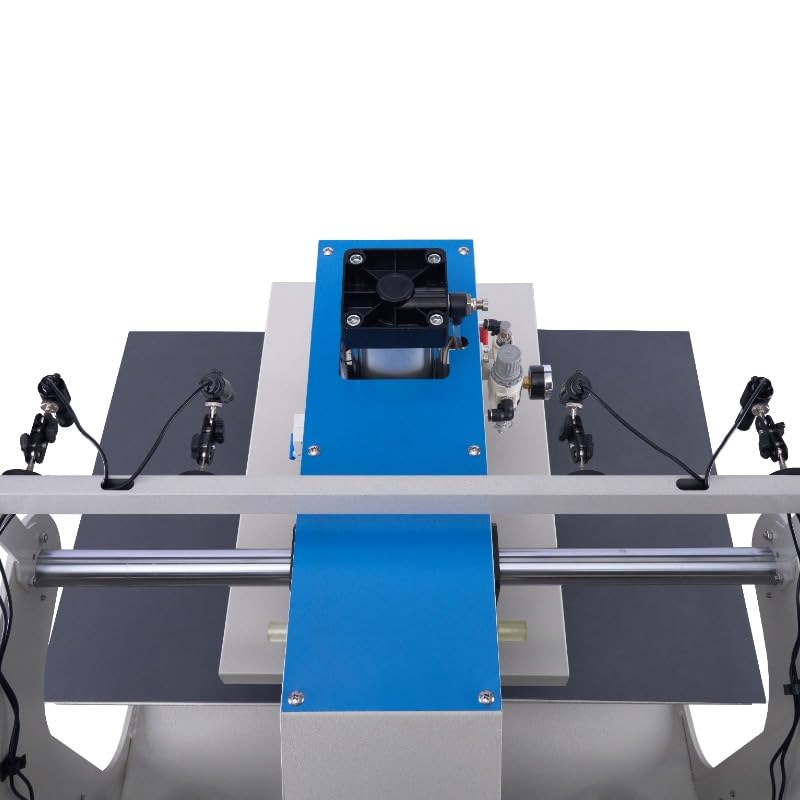

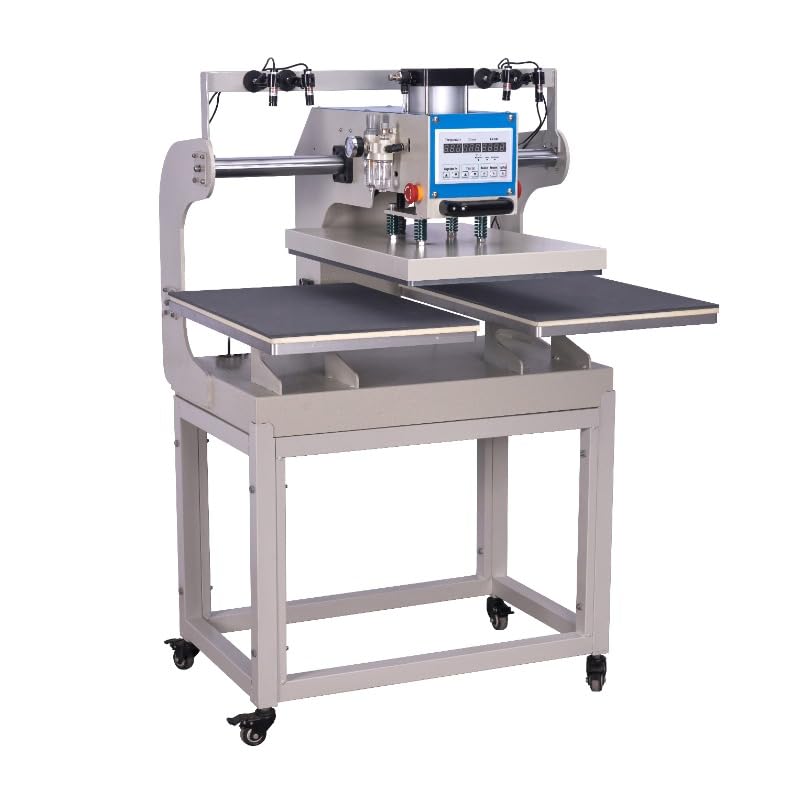

Heat Press Machine 16in x 24in Pneumatic Up Sliding Dual Platen Heat Press Machine with Infrared Positioning Pneumatic Heat Press Machine (White+Blue)

Brand: ccko

Color: White+Blue

Features:

• 【Up Sliding Dual Platen Heat Press Machine】The 16in x 24in up sliding dual platen heat press machine makes machine more convenient for printing and T-shirt printing machine is more accurate for small items printing. Heat press machine powered by an air compressor ( not included). Heat press machine lower aluminium plate with seperate stand makes it more convenient to set in finished clothes. Heat press machine with base frame for much stable printing and easy movement with the brake caster.
• 【Digital Control Board】The heat press machine is full digital integrated display control and high accuracy of signal indication when press process is completed. Heating tube and heating plate are integrated into a whole part, short heating time, safe and even temperature.
• 【High Efficiency】Heat press machine pressure can be adjusted up to 0.8Mpa, It adopts connected track which is stable and convenient for sliding, with high efficiency. Special high temperature cloth for hot stamping machine covered, lower plate covered with silicon mat and sponge to heat even heating pressure and heat press machine is automation print once backside inductive screw touched. Parallelly move the heat press machine. Generally pressure for 0.4Mpa-0.6Mpa heat printing.
• 【Big LCD Display Controlled】With Temperature, Time and Count Set Can save the labor and time cost with automatic counting.
• 【Range of Application】Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics.
• Additional Information: Different materials have different temperature requirements. If necessary, please check the long description of the product or contact customer service for related questions.

model number: 1

Part Number: 1

Details: Technical Details Technical features:
Voltage(V): 110V/60HZ Power(KW): 4.5 Temperature(℃): 0-299 Delaying time(S): 1-999 G.W.(LB): 209 Packing Size(in): 44'' X 35' X 33'' Accept Thickness: Max. 2.36'' Thick Items Range of Application: Pure Cotton, Polyester, Chemical Fiber, Pearl Board, Metal Pendant, Mousepad, Vitrolite, Ceramics Heat Plate Size: 16'' x 24'' (40 x 60cm)
Pure Cotton Time: 15s-25s Polyester Time: 40s Chemical Fiber Time: 10s-40s Pearl Board Time: 60s-100s Metal Pendant Time: 60s Mousepad Time: 50s Vitrolite Time: 180s Ceramics Time: 180s
Additional Information Temperature Requirements of Different Materials
Pure cotton 356℉-428℉ (180℃-220℃) Polyester 356℉ (180℃) Chemical fiber 302℉-356℉ (150℃-180℃) Pearl board 356℉ (180℃) Metal pendant 356℉ (180℃) Mousepad 374℉ (190℃) Vitrolite 392℉ (200℃) Key ring pendant 356℉ (180℃) Ceramics 356℉-428℉ (180℃-220℃)

Package Dimensions: 42.5 x 33.9 x 32.3 inches
