Description
Description
Brand: HiLetgo
Color: Red Blue
Features:

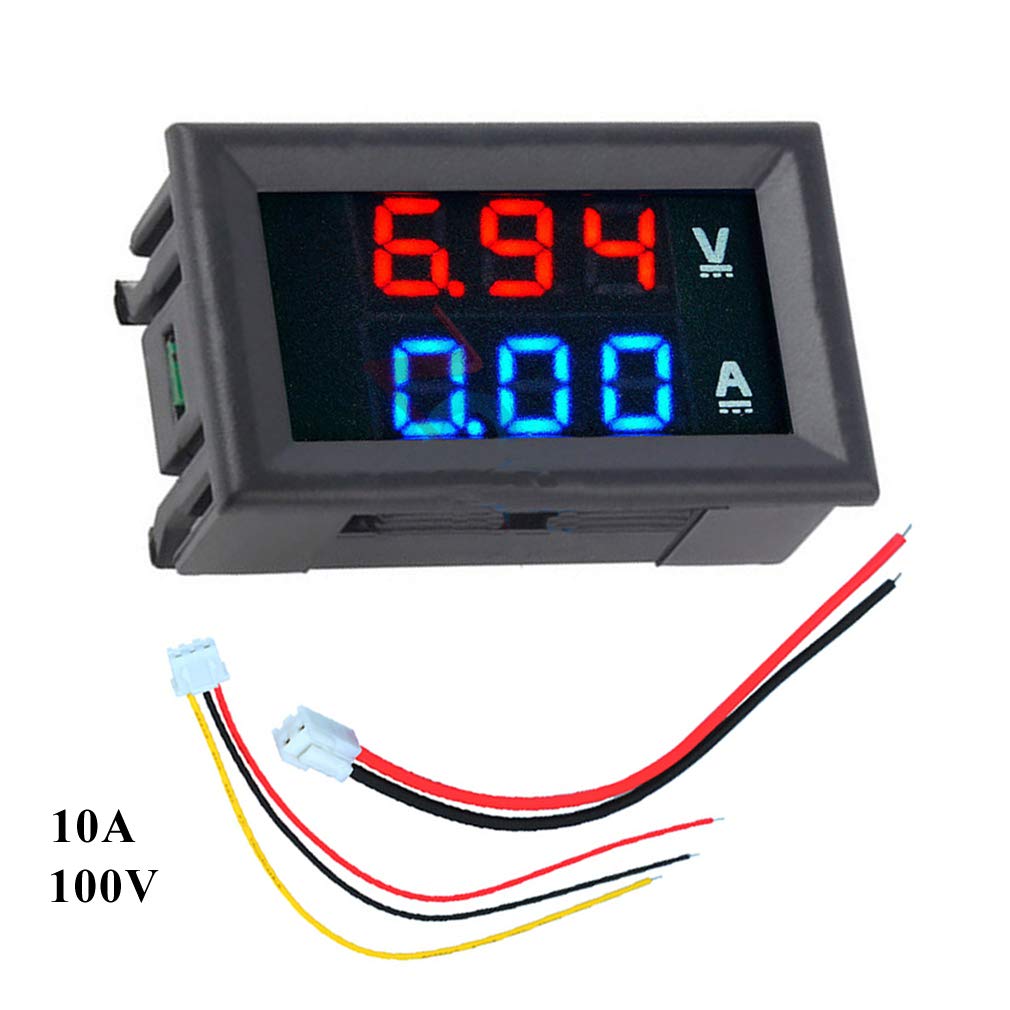

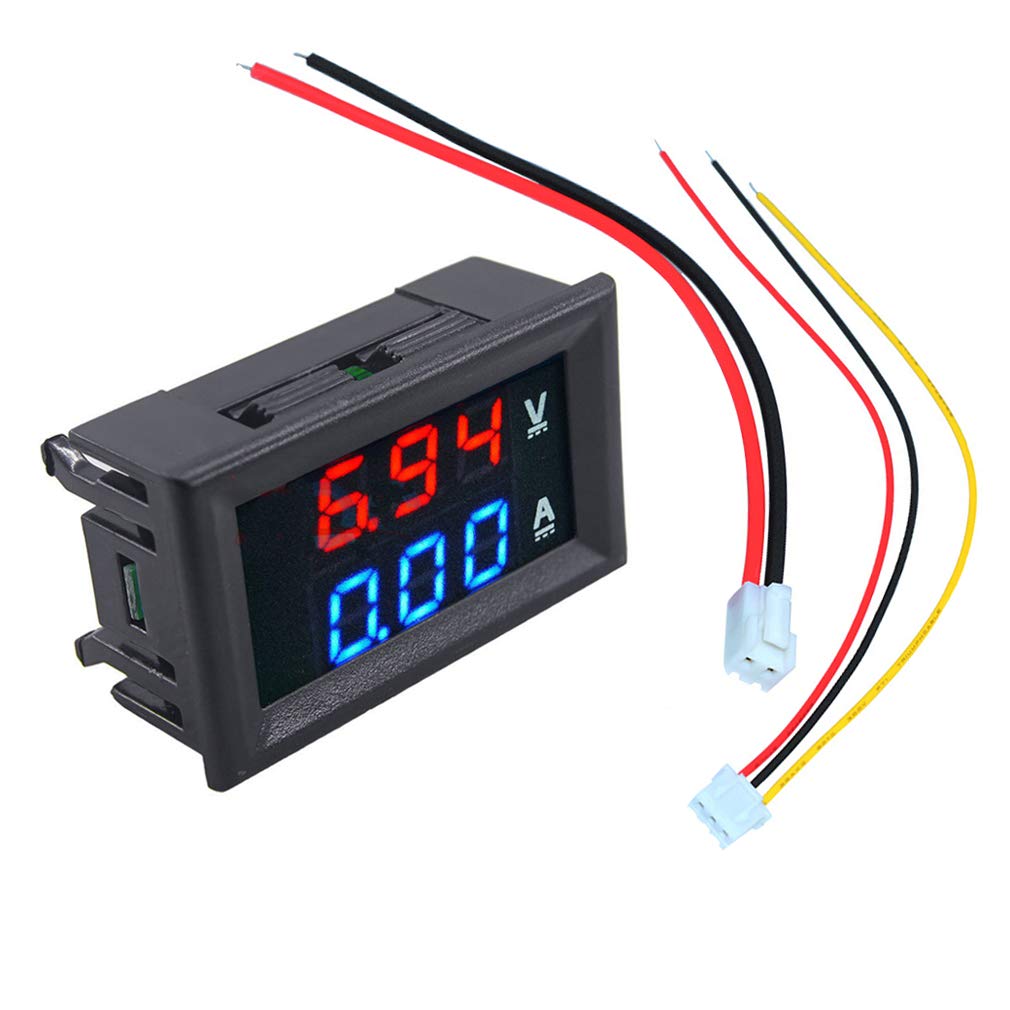

- 0.28" Digital Voltmeter Ammeter DC 100V 10A Blue + Red Dual LED Display
- 10A Amp Voltage Current Meter Tester with 3 Bits Blue + Red Dual LED Display
- Operating voltage: DC 4 ~ 30V; Measure voltage: DC 0 ~ 100V; Minimum resolution (V): 0.1V
- Operating Current: <20mA;Minimum resolution (A): 0.01A;Measure current: 10A
model number: 3-01-1407
Part Number: 3-01-1407
Details: Specifications:
Working voltage of Meter: DC 4 - 30V
Working current of Meter: ≤20mA
Voltage Measuring range: DC 0 - 100V
Current Measuring range: DC 0 - 10A
Voltage resolution (V): 0.1V
Current resolution (A): 0.01A
Measure accuracy: 1% (± 1 digit)
Display: 0.28" digital tube, Two color blue and red
Refresh rate: about 300mS / times

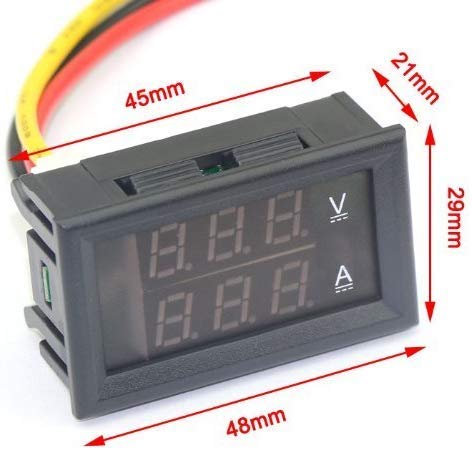

Dimensions: 48mm*29mm*21mm
Operation Temp: -10°-+65°
Note:
The maximum input voltage can not exceed 30V. Otherwise the meter will be burned out.
Package Included:

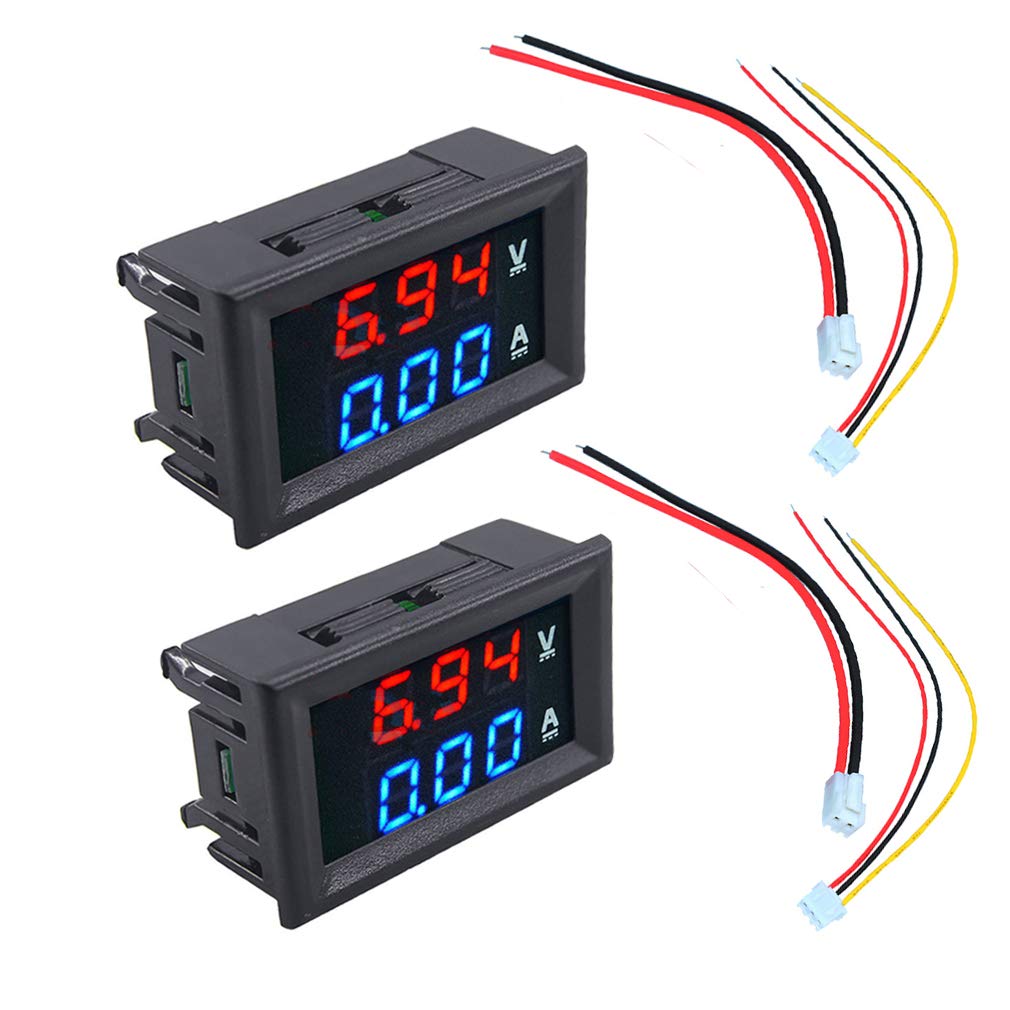

2* 0.28" Digital Voltmeter Ammeter DC 100V 10A Blue + Red Dual LED Display
2* Set of two wires
Package Dimensions: 5.6 x 3.3 x 1.3 inches
