HiLetgo AC Digital Multimeter 50-300V 100A PZEM-008 LCD Display Digital Current Voltage Active Power Energy Multimeter Ammeter Voltmeter AC Din Rail
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: HiLetgo
Features:
- Measure AC voltage, current, active power, energy and display with LCD.
- Voltage Measurement range: AC50～300V, Accuracy: ±1%
- Current Measurement range: 0～100A, Accuracy: ±1%
- Active Power Measurement range: 0～30kW, Accuracy: ±1%
- Energy Measurement range: 0～1999kWh, Accuracy: ±1%
Part Number: 3-01-1316

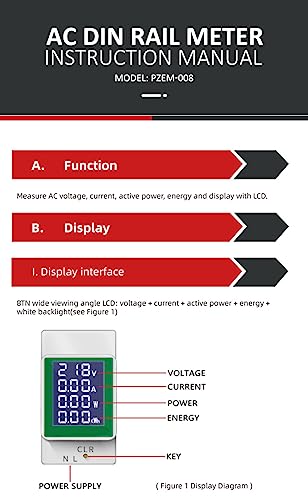

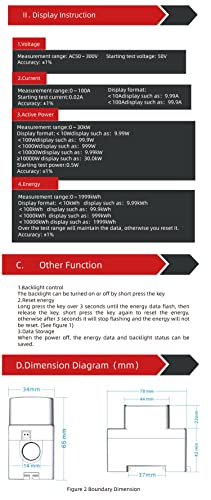

Details: Display Instruction
1. Voltage
Measurement range: AC50～300V
Starting test voltage: 50V
Accuracy: ±1%
2. Current
Measurement range: 0～100A
Display format: ＜10A display such as：9.99A
＜100A display such as：99.9A
Starting test current:0.02A
Accuracy: ±1%
3. Active Power
Measurement range: 0～30kW
Display format:＜10W display such as：9.99W
＜100W display such as：99.9W
＜1000W display such as：999W
＜10000W display such as：9.99kW
≥10000W display such as：30.0kW
Starting test power:0.5W
Accuracy: ±1%
4. Energy
Measurement range: 0～1999kWh
Display format: ＜10kWh display such as：9.99kWh
＜100kWh display such as：99.9kWh
＜1000kWh display such as：999kWh
＜10000kWh display such as：1999kWh
Over the test range will maintain the data, otherwise you reset it.
Accuracy: ±1%
Other Function
1. Backlight control
The backlight can be turned on or off by short press the key
2. Reset energy
Long press the key over 3 seconds until the energy data flash, then release the key, short press the key again to reset the energy, otherwise after 3 seconds it will stop flashing and the energy will not be reset.
3. Data Storage
When the power off, the energy data and backlight status can be saved.
Packing including:
1*AC Power Multimeter PZEM-008
Package Dimensions: 3.6 x 2.9 x 2.4 inches
