HiLetgo Digital Multimeter AC 80-260V 100A PZEM-061 LCD Display Digital Current Voltage Power Energy Multimeter Ammeter Voltmeter with Current
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: HiLetgo
Color: Black
Features:
- *The meter can only measure the active power(real power). It doesn't show Apparent power. If you measure power from a DC-AC inverter please make sure it's PURE SINE WAVE. Otherwise the meter can be burnt or melted.
- *Voltage test range: One-Phase 80~260V AC Power, 50/60HZ; Current test range: 0~100A; Inner diameter of the CT: 15mm/0.6''.
- *Overload alarm function (over power alarm threshold, backlight and power flickering prompt).
- *The backlight can be turned on or off by pressing the button briefly, and the backlight status is automatically saved after power-off; Store energy data when power off(can be reset).

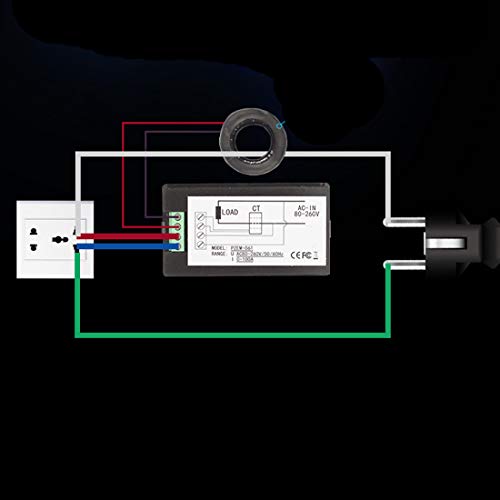

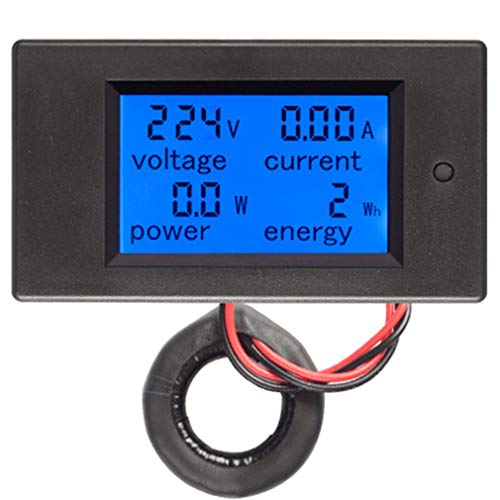

- *Great display (display voltage, current, active power, energy at the same time), easy to install, 2 wires for the ct clamp and 2 wires for the line 1 and line 2 voltage reading, checked voltage and amperage against a Fieldpiece meter and read spot on, can easily make a rectangular in drywall 1 13/16 x 3 5/16 in to recess the display nicely.
Binding: Tools & Home Improvement
Part Number: 3-01-1458
Details: Feature:
This meter can only be used with one-phase AC power. And it can only measure the active power(real power). It doesn't show Apparent power.

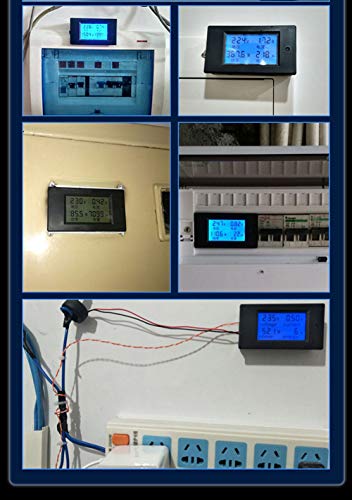

This product to monitor the power consumption of your electronics, it can even be hooked up (2 of them) in your electrical box for whole house monitoring.
It can be used as a more precise "watt-meter" by plugging/unplugging/turning on household items.
Wire this meter up in a 20 amp circuit feeding some of your power amps.
Specifications:
Working voltage: 80 ~ 260VAC
Working frequency: 50/60Hz
Measuring:Accuracy: 1%
Power Consumption: 0.2W
Measurement speed: 2 times/s
Store data when power off
The blue backlight can be turned on/off manually
Test Range and Display format:
1.Power: test range: 0~22kW
<1kW, display: 0.0~999.9W
1kW~10kW, display: 1000~9999W
> 10kW, display: 0.1~22.0kW
2.Energy: test range: 0~9999kWh
<10KWh, display: 0~9999Wh
>10kWh, display: 10~9999kWh
3.Voltage: test range: 80~260V(single-phase)
Display: 80~260V
4.Current: test range: 0~100A
Display: 0.00~99.99A
Precautions:
1. Please make sure the AC input is Pure Sine Wave.(Municipal electric power is pure sine wave). Please don't use the meter to measure AC power converterd from a DC-AC inverter UNLESS you can make sure the output from your DC-AC inverter is Pure Sine Wave. This is very importatnt.
2. Applied load should not exceed the rated power.
3. Wiring order can not be wrong.
4. This module is suitable for indoor, please do not use outdoor.
Packing including:
1*AC Power Multimeter
EAN: 6919608793761
Package Dimensions: 4.4 x 2.8 x 1.3 inches
