Hon&Guan 3 Inch Duct Fan, High Efficiency Inline Fan Mixed Flow Ventilation System Exhaust Air Fan for Bathroom, Kitchen, Grow Tent, 3D Printer (S
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Hon&Guan
Features:
- 3 Inch Bathroom Fan moves air at a rate of 76 CFM, perfect for your bathroom and utility rooms.
- Lightweight and durable. Radon fan long life ball bearing motor (up to 50,000 hours).
- Hon&Guan 3 inch exhaust fan sound at high speed operation is quiet.
- booster fan 2 connections ways for low speed or high speed.default setting is high speed
- 3 inch exhaust fan Easy to install, disassemble and clean when needed.
model number: HF-75S
Part Number: HF-75S

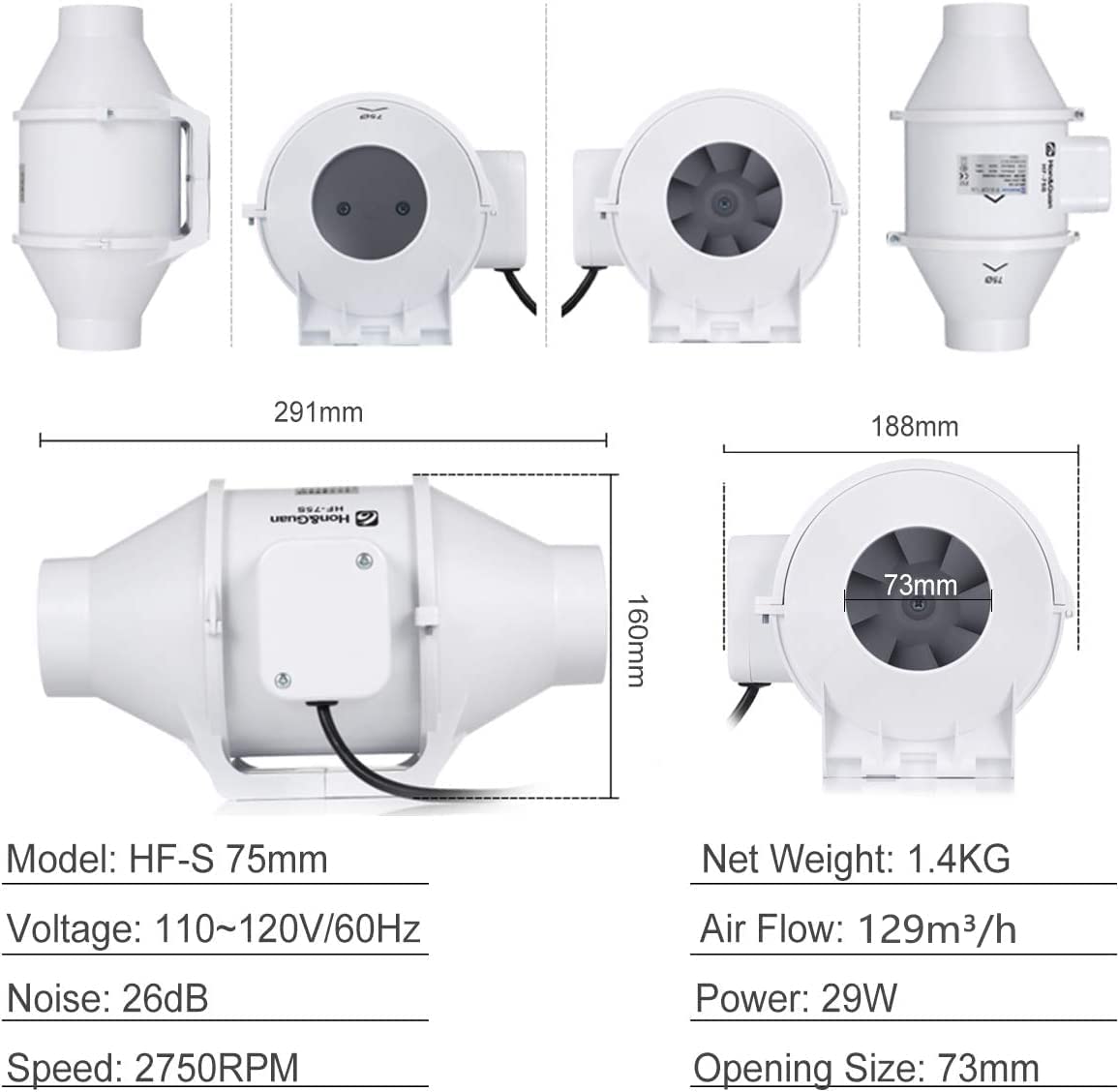

Details: HS-075S Parameters
- Double Speed: Low/High
- Voltage: 110-120 V
- Frequency: 60 Hz
- Power: 25/29 W
- Speed: 2550/2750 (RPM)
- Air Volume: 43-46 m³/h
- Air Pressure: 131/156 Pa
- Noise: 21/26 dB
- Life: Over 50000 Hours
- Weight: 1.4 KG
- Current (Amps): 0.42/0.50
- Electric Current Type: AC

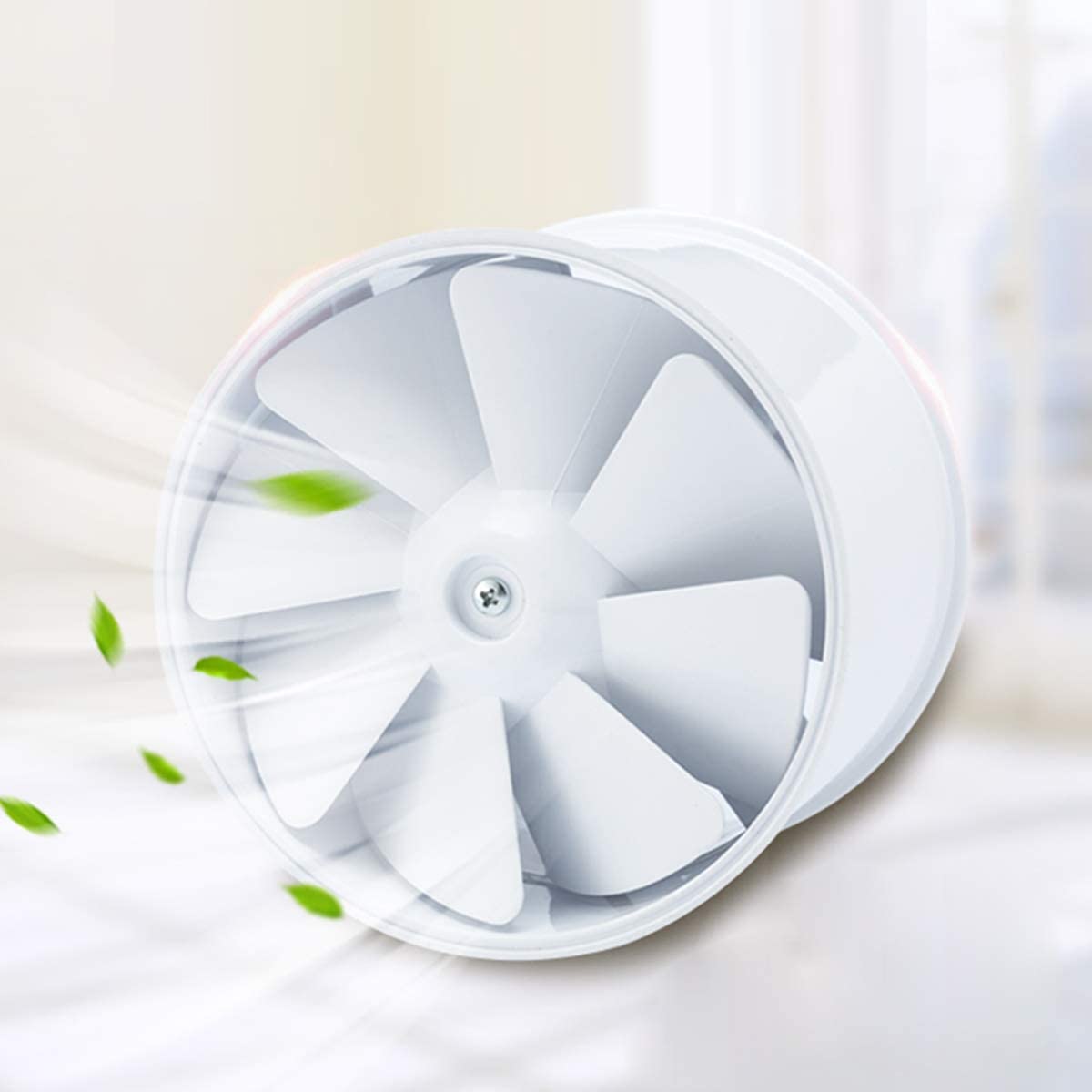

- Blade Material: ABS Plastic
- Item Dimensions: 11.6*5.5*6.5 Inch
- Diameter: 3 Inch
Application

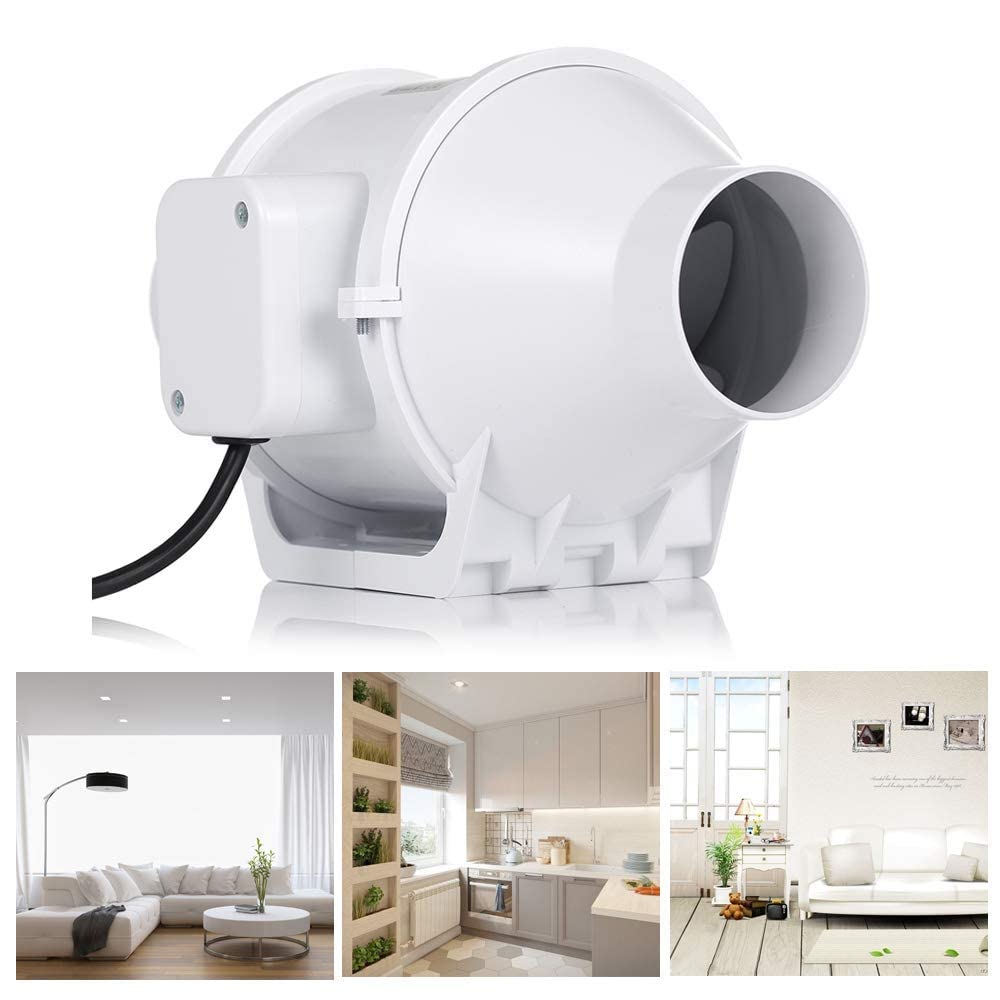

HF Mixed Flow Fan can be used for exhaust and supply ventilation systems that require high pressure, hige efficiency airflow and low noise levels. With a range Applications of sizes that include 75mm, 100mm, 125mm HS fan can be used with rigid and flexible ducting. The HS Mixed Flow Fan are the ideal solution for air exhaust systems for rooms with high humidity such as bathrooms and kitchen, as well as ventilation for apartments, house, shops, cafes, restaurant, cinemas etc.
Design

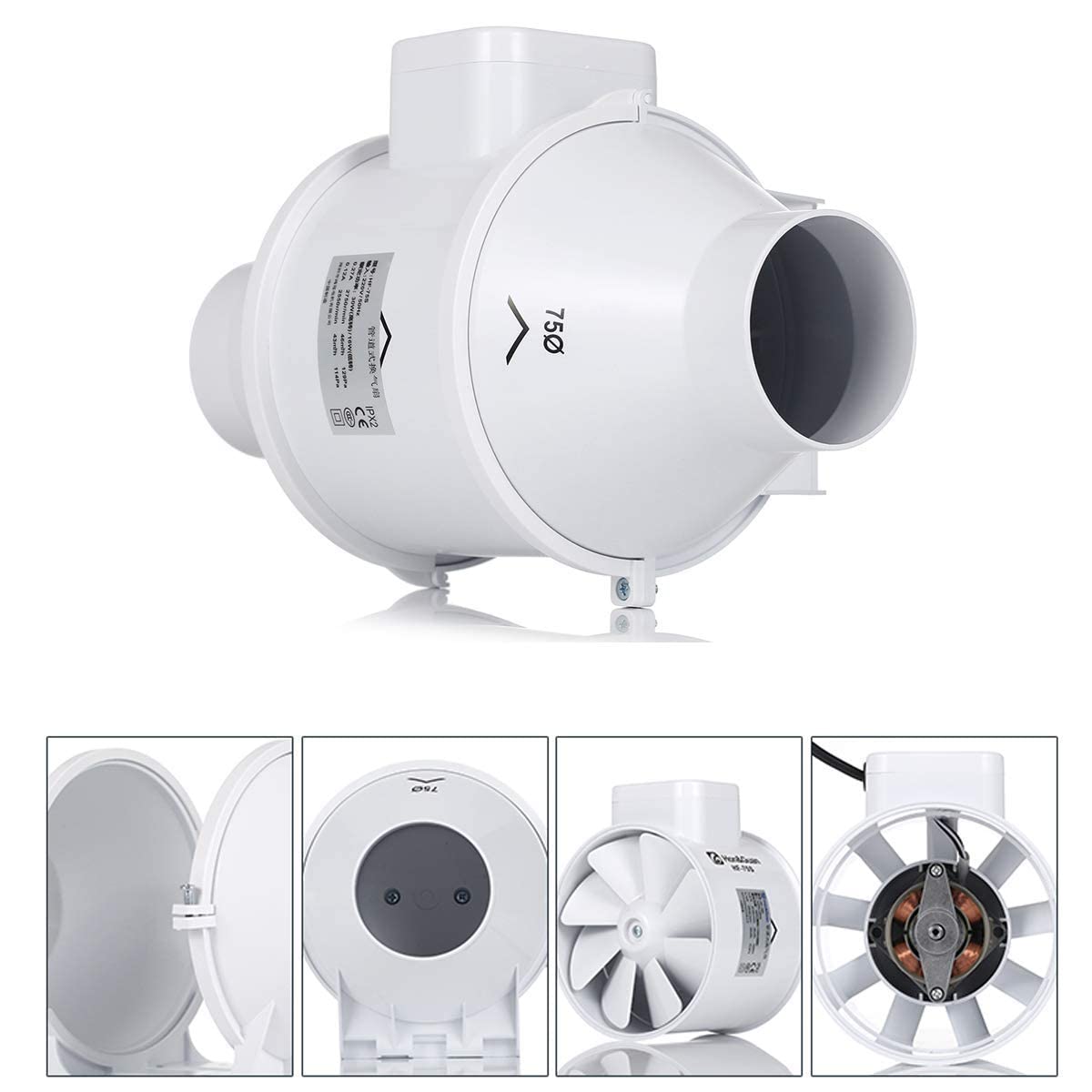

The motor is attached to the body of the fan by two quick release clips which enables the motor to rotate to provide connection for confined spaces and removal for maintenance without removing the whole fan or duct. All models have an option of standard which has a two speed motor or overrun timer option variable range of 1 to 30 minutes.
Motor

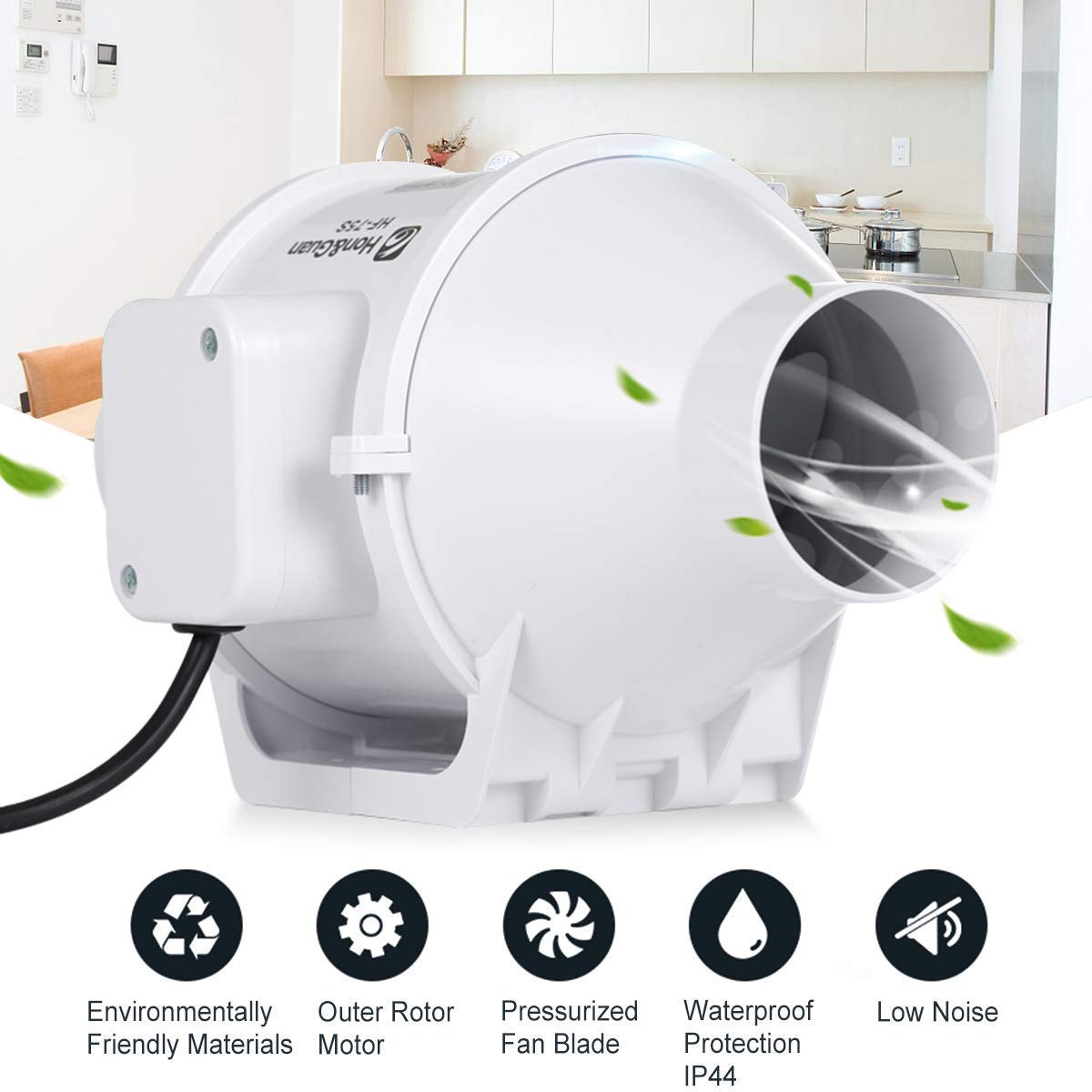

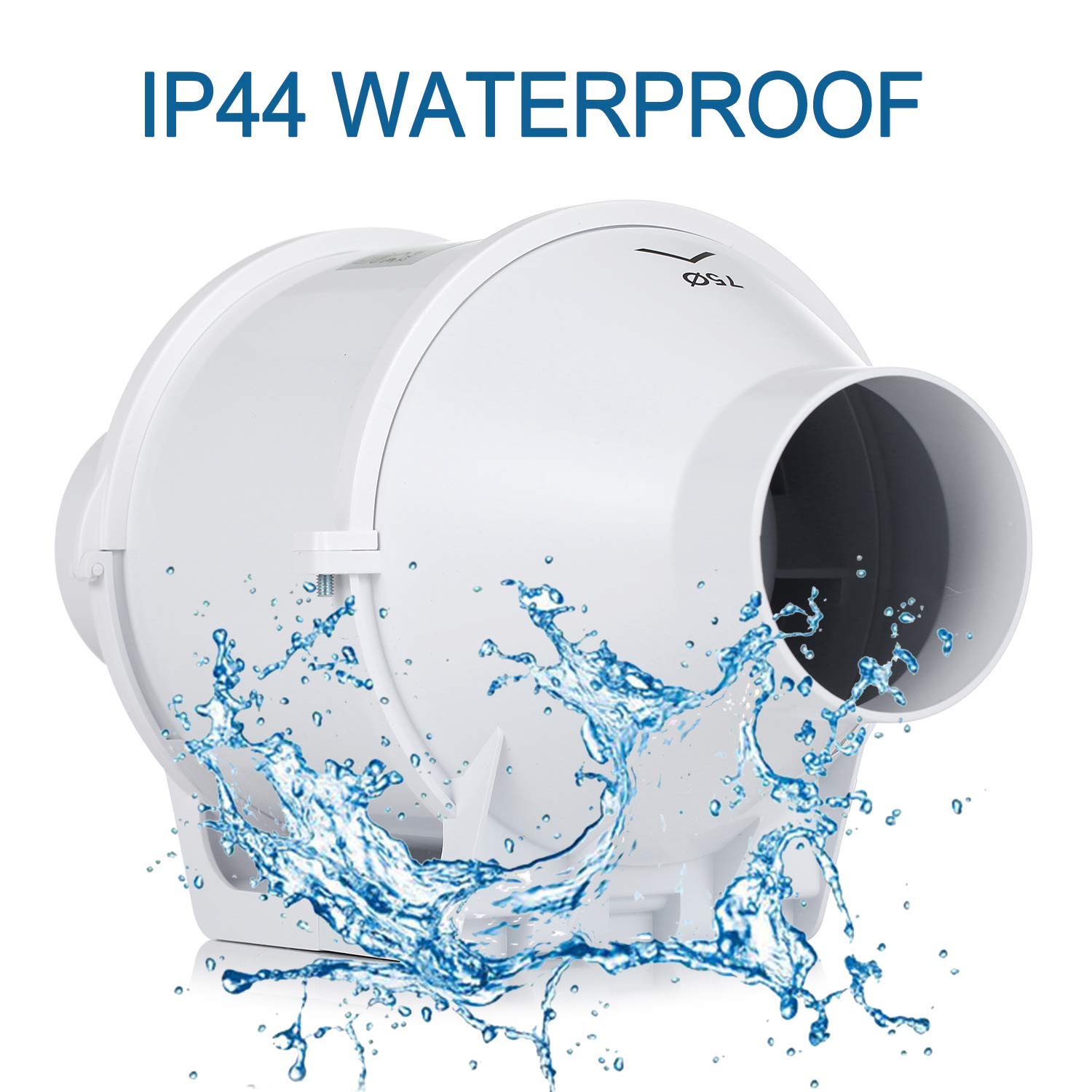

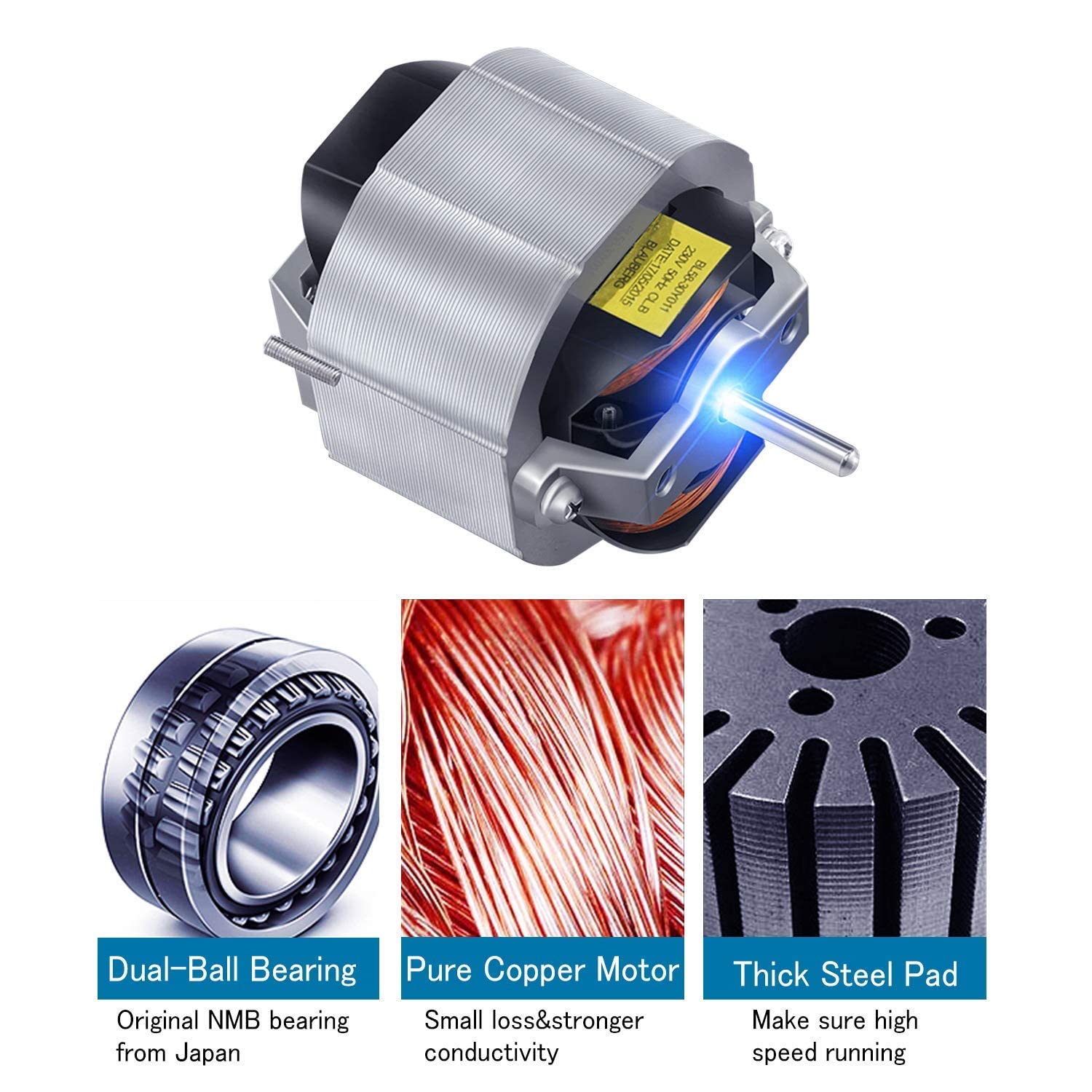

The single phase ball bearing motor has two speeds and is equipped with standard thermal overload protection (STOP) with automatic restart. Motor protection rating IP44 and are fully speed controllable.
Mounting
The fan can be mounted in line or at either and of the duct run and at any angle. Horizontally or vertically. All fans can be mounted in parallel to increase the volume of air or in series to increase the pressure. The casing is fitted with a mounting plate. The mounting box can be rotated to be installed in any position for easy installation and connection.
EAN: 0767550215499
Package Dimensions: 12.2 x 8.0 x 7.5 inches
