Hougen HMD130 Ultra Low Profile lightweight right angle drill with large capacity. Replaces HMD115 and HMD150
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Hougen
Color: Black Blue Grey
Features:

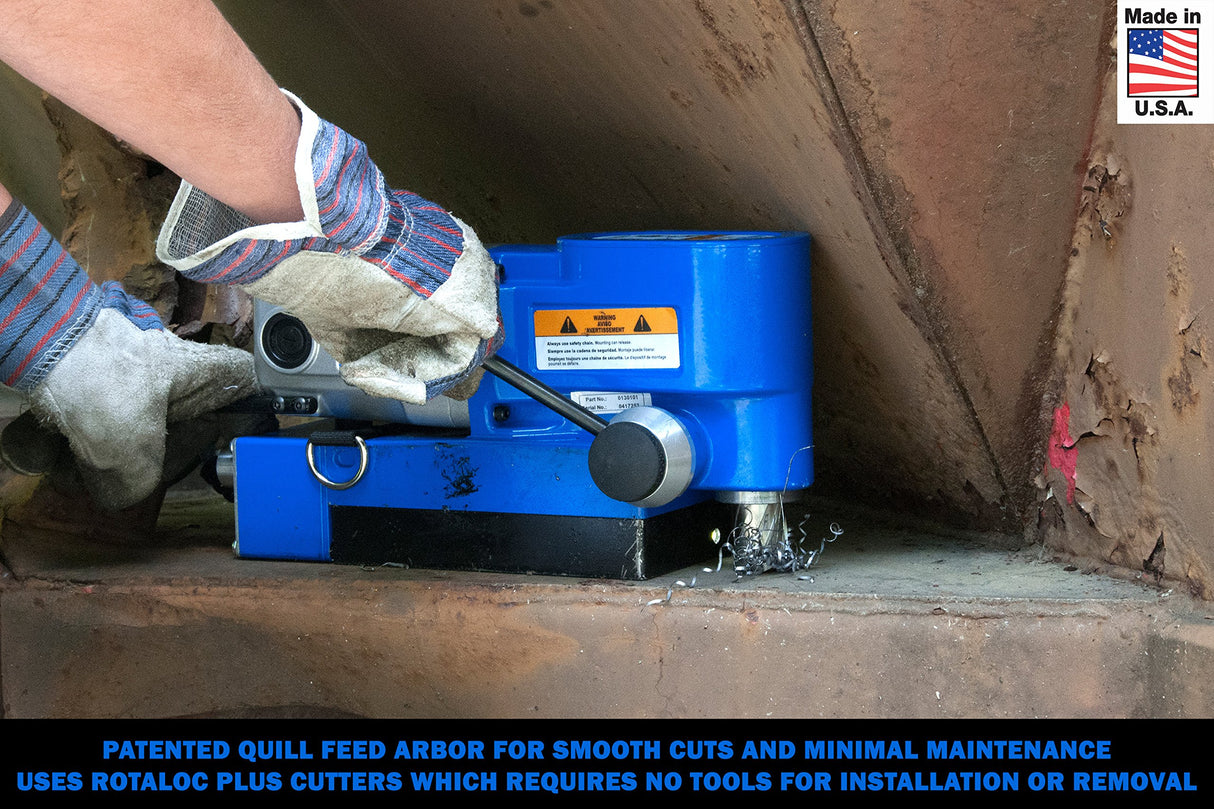

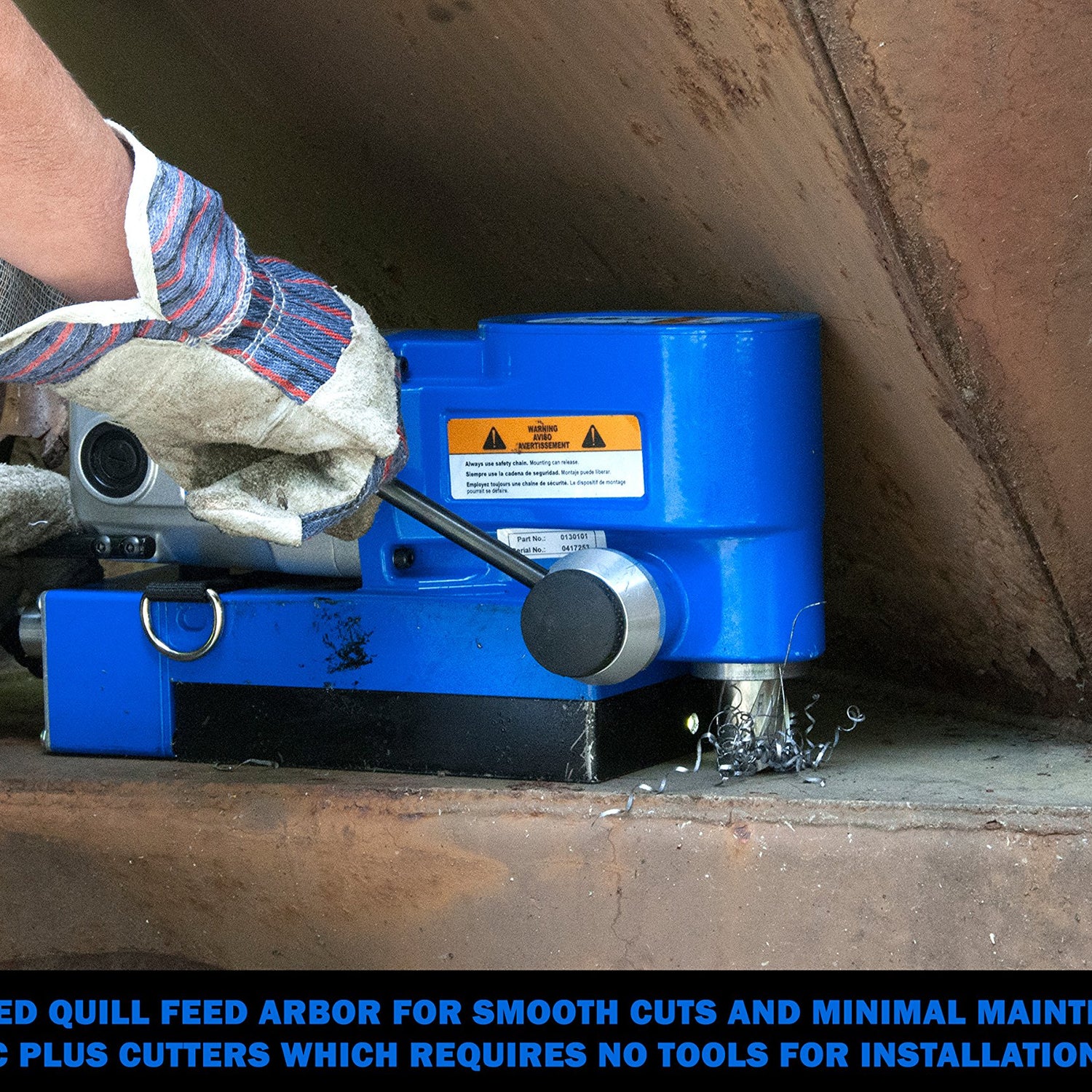

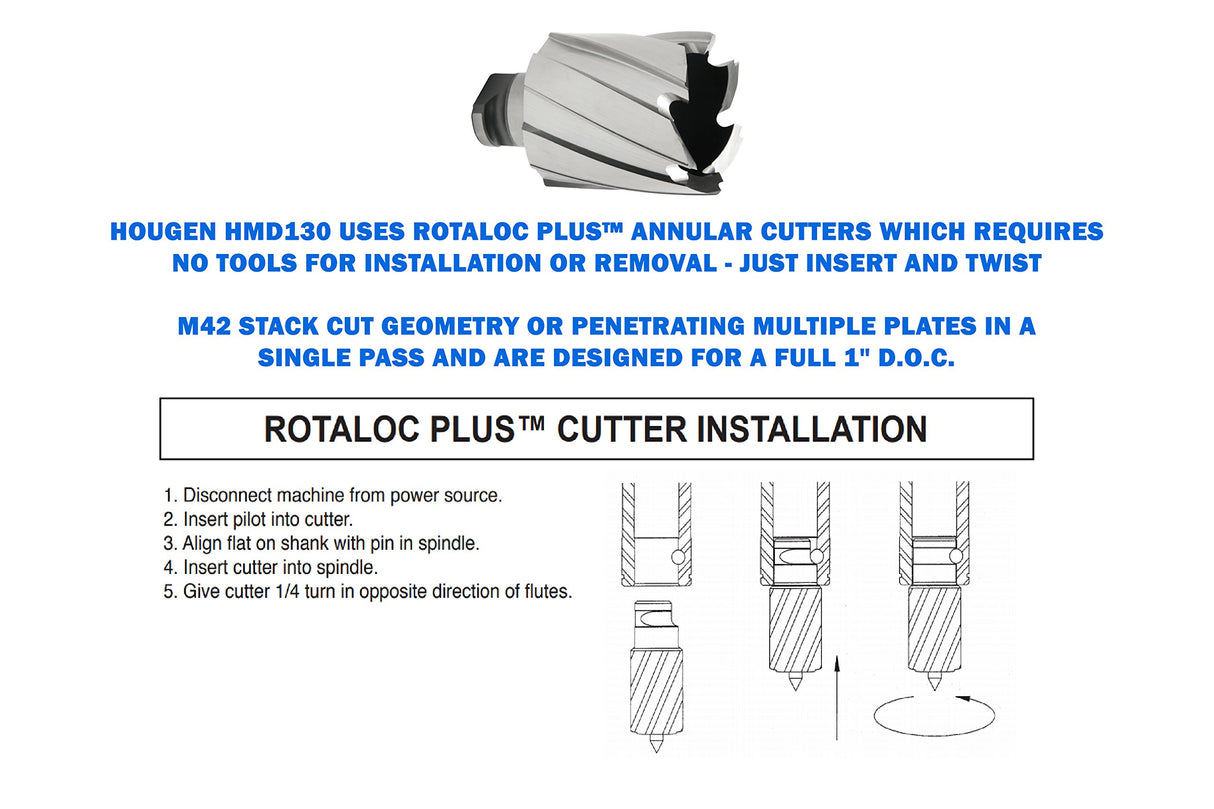

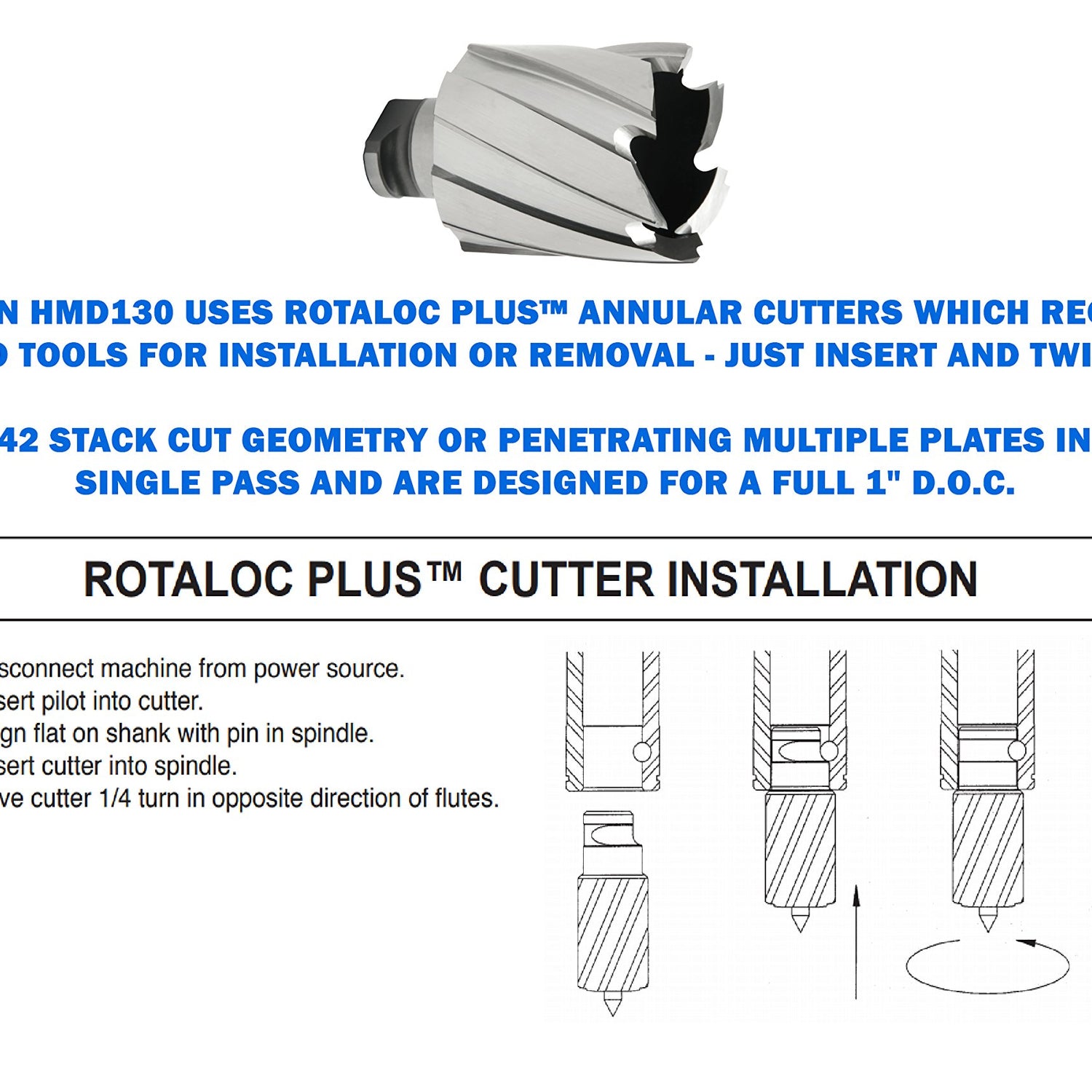

- The HMD130 weighs just 23.8 lbs and has an electric rating of 115V, 50/60 Hz and 9-Amps. The motor operates from any standard 115/120 volt power source and develops 450 no-load rpm's. Patented quill feed arbor for smooth cuts and minimal maintenance, Uses RotaLoc Plus annular cutters which requires no tools for installation or removal
- Positive slug ejection, High torque gearing, Lift detector safety system, Feed handle switches easily from side to side
- Ratchet can be used in place of feed handle, Rear mounted controls, Replaces of the HMD115 and HMD150
- Carrying handle, Carrying Case included, One year warranty - MADE IN USA
model number: HMD130
Part Number: 0130101

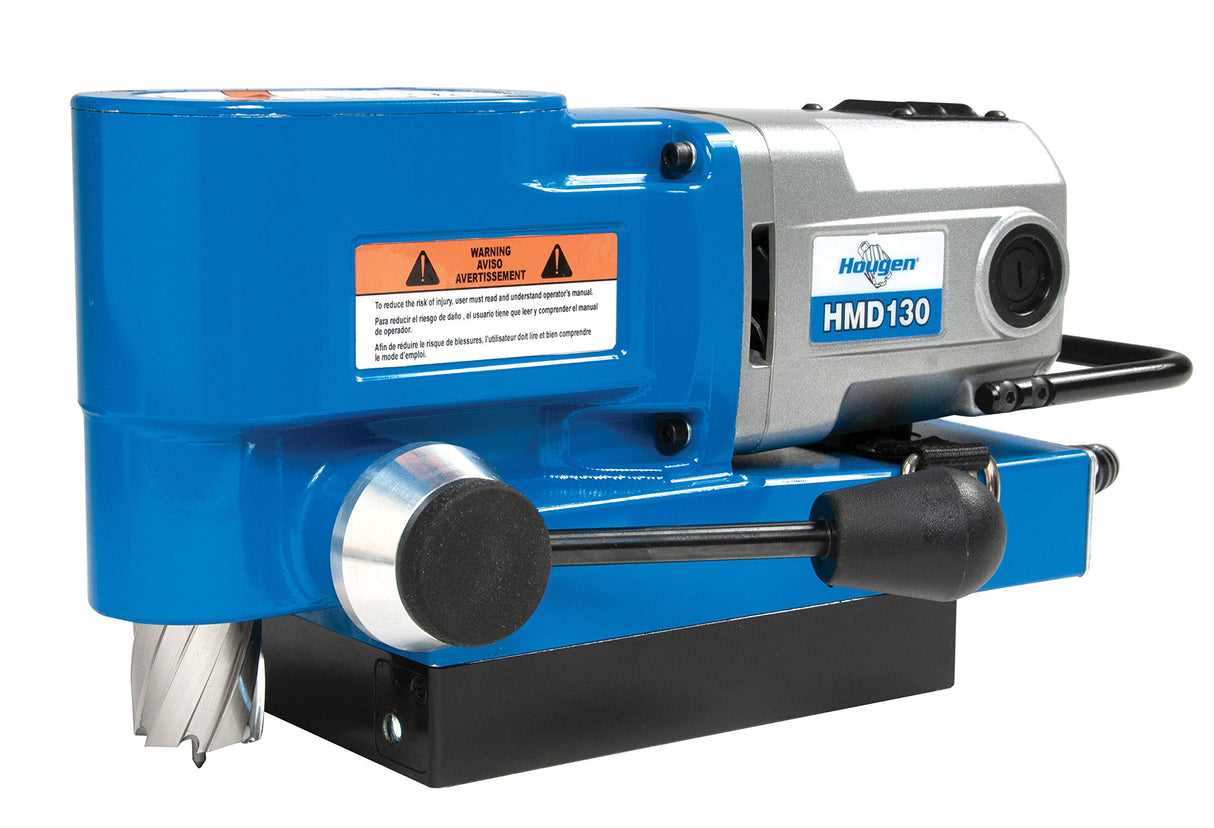

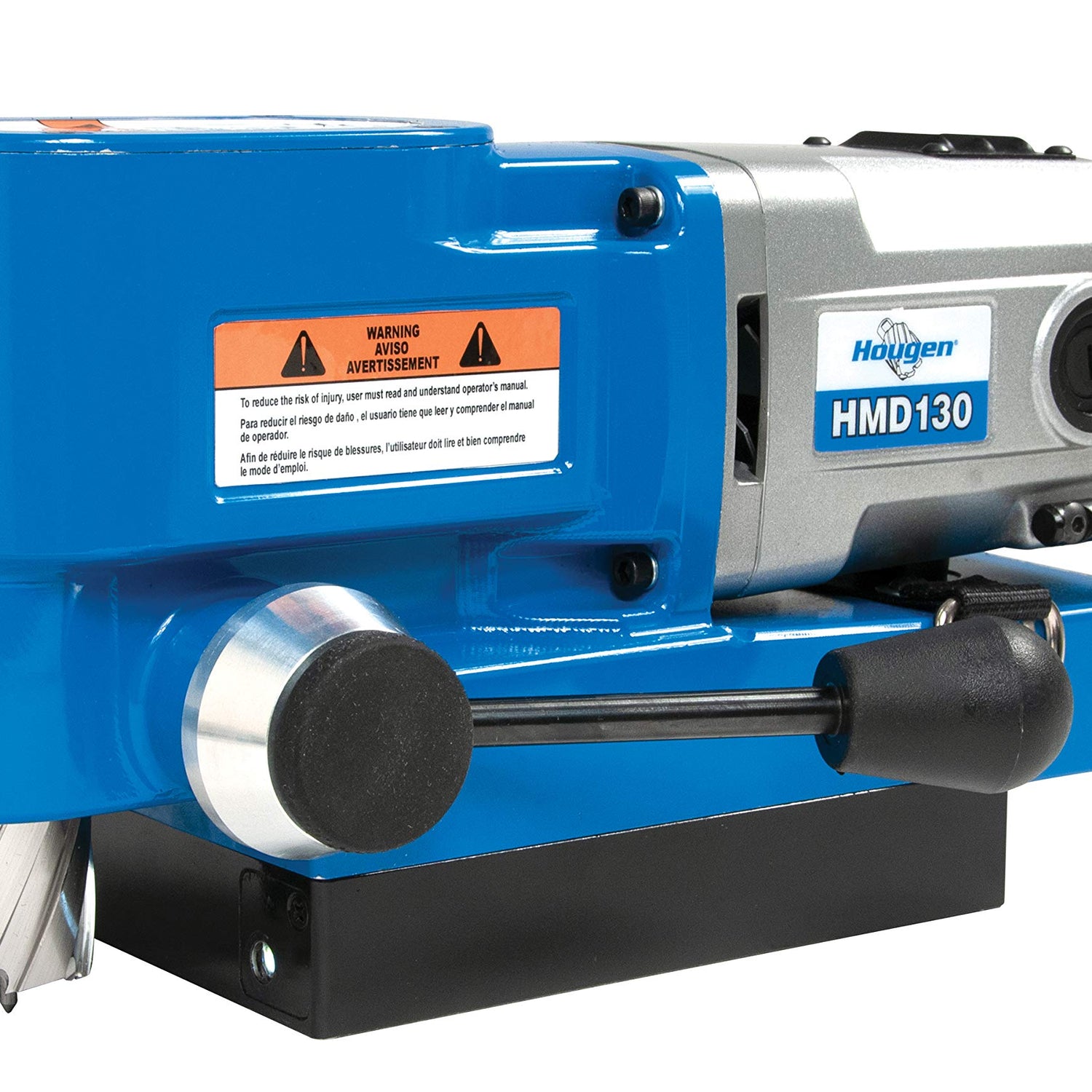

Details: Hougen HMD130 Ultra Low Profile Mag Drill. Made in USA
It's small enough to drill in places where even hand held electric drills can't go, yet with the power to cut holes up to 1-3/8" diameter thru materials up to 1" thick. It has a rigid quill feed arbor, which prevents tool vibration, eliminates gibs, slide/way adjustments.

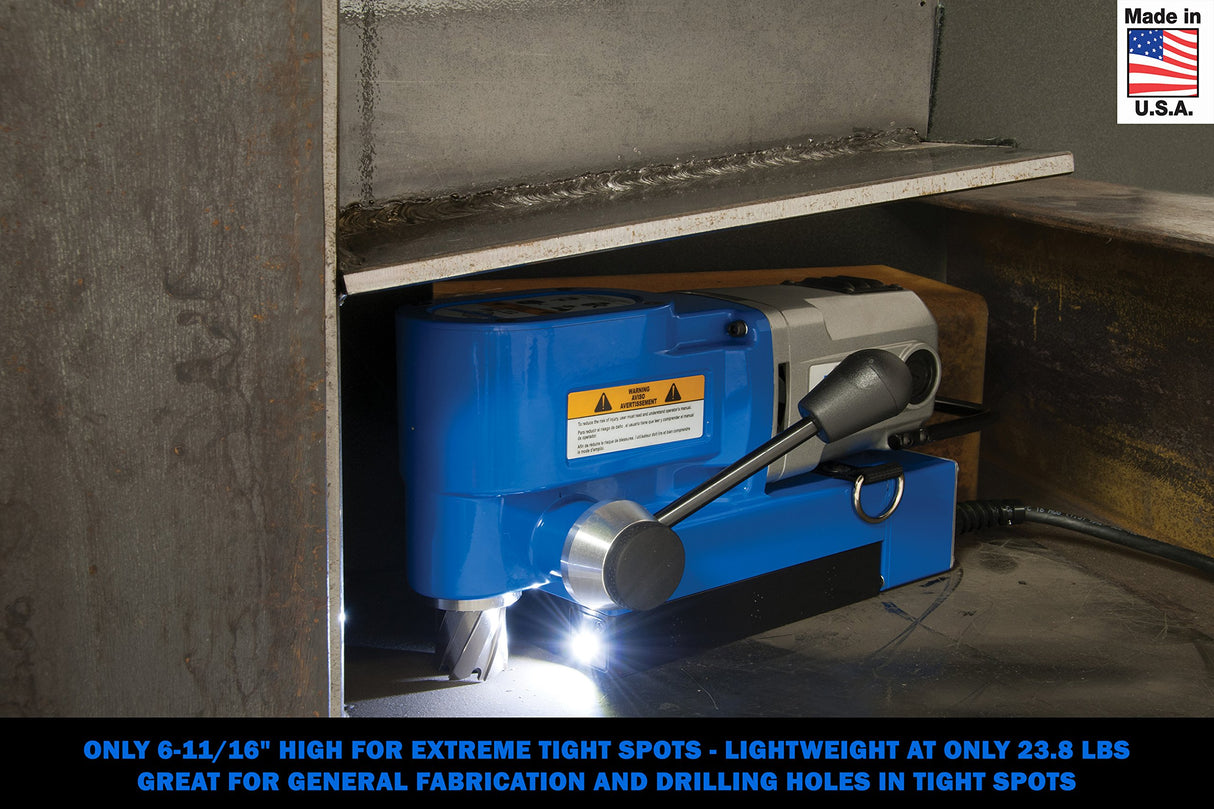

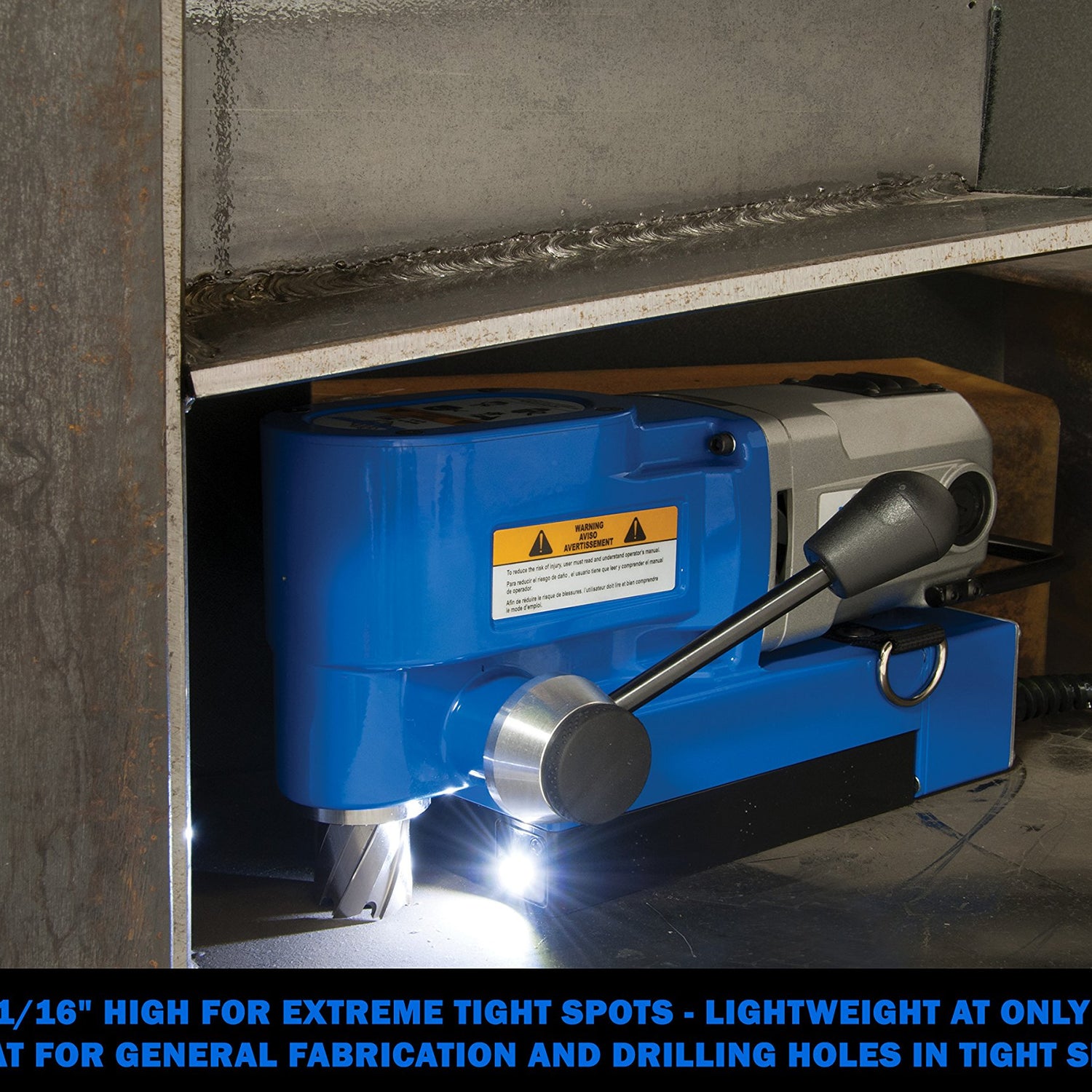

Featuring Hougen's bayonet-style twist and lock cutter mounting system and a height of just 6-11/16", the HMD130 Portable Magnetic Drill was designed for fast, efficient holemaking in confined spaces yet powerful enough for general steel fabrication.

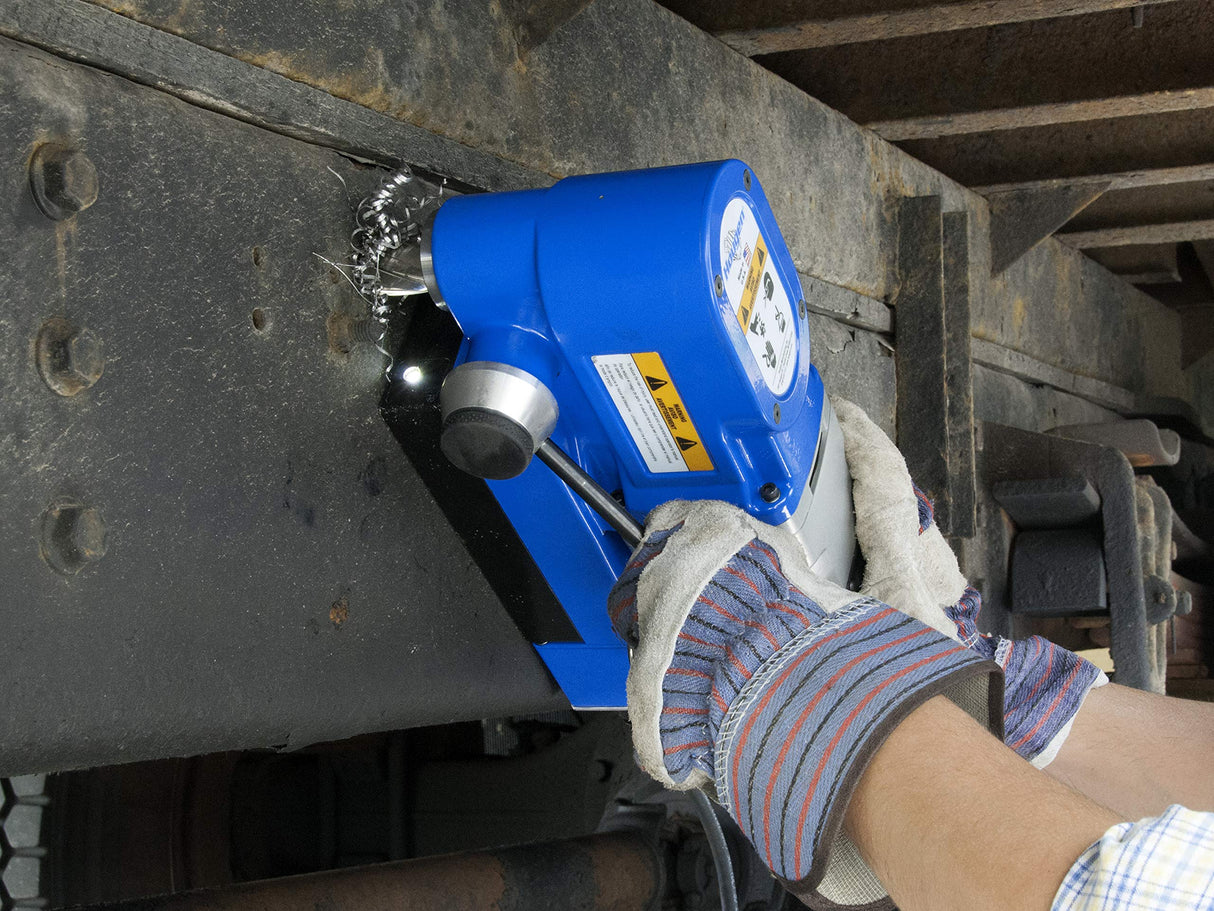

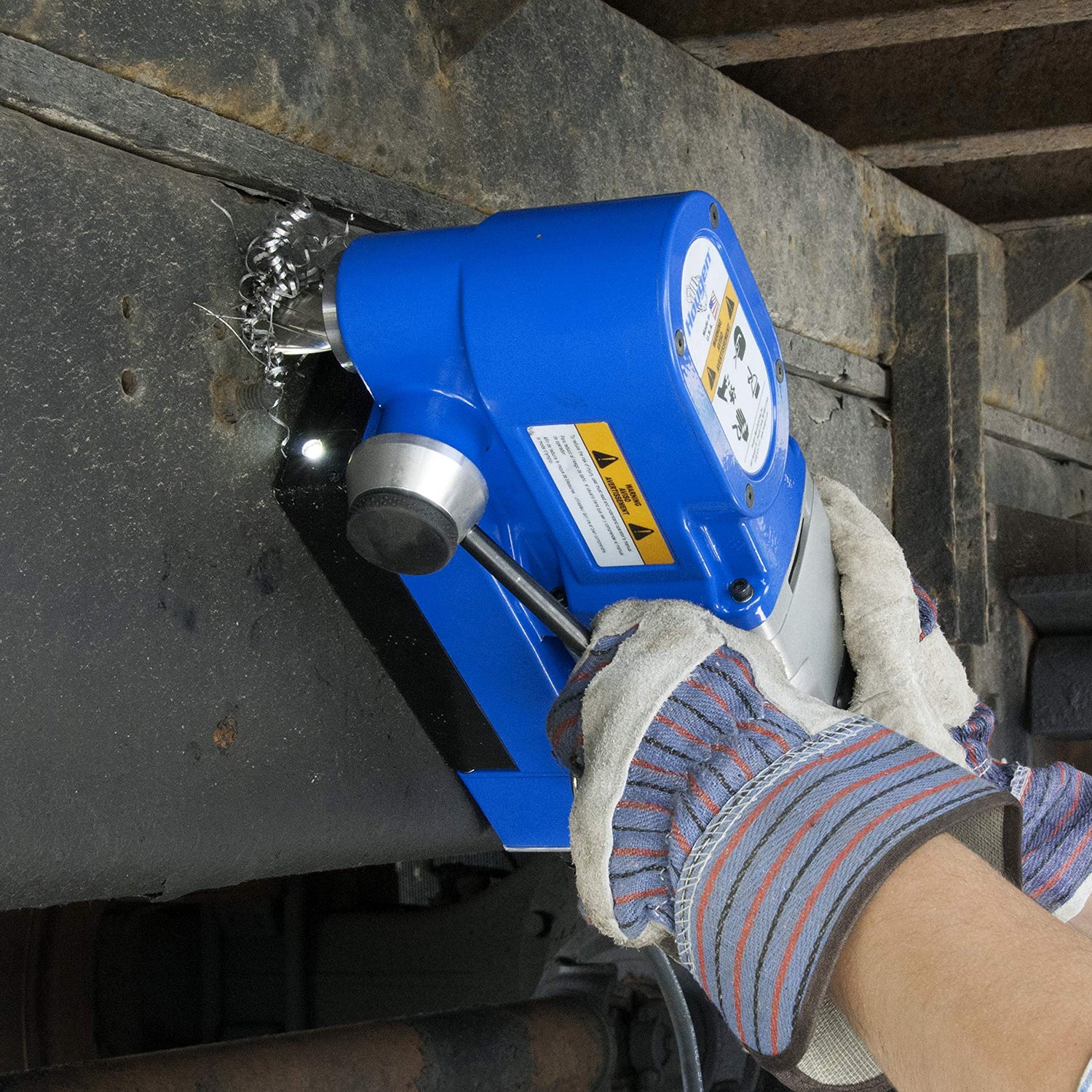

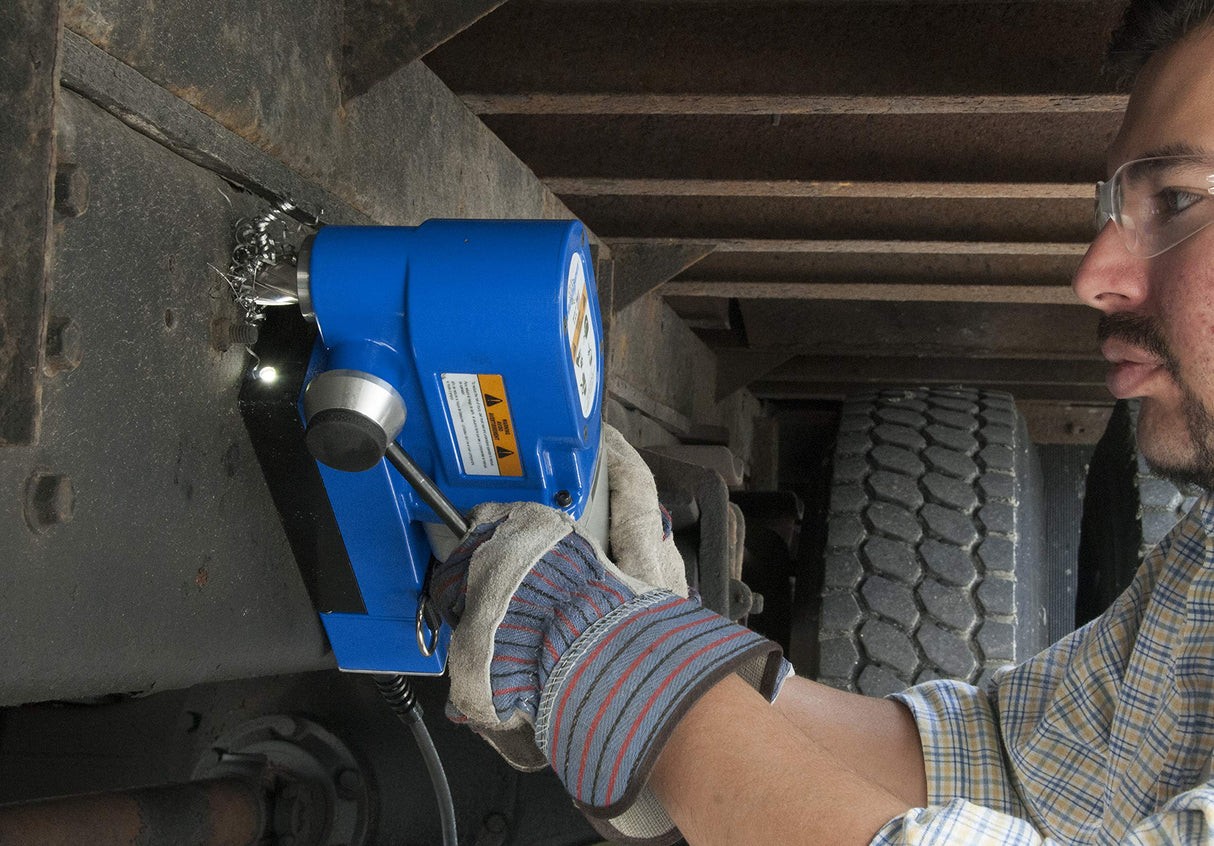

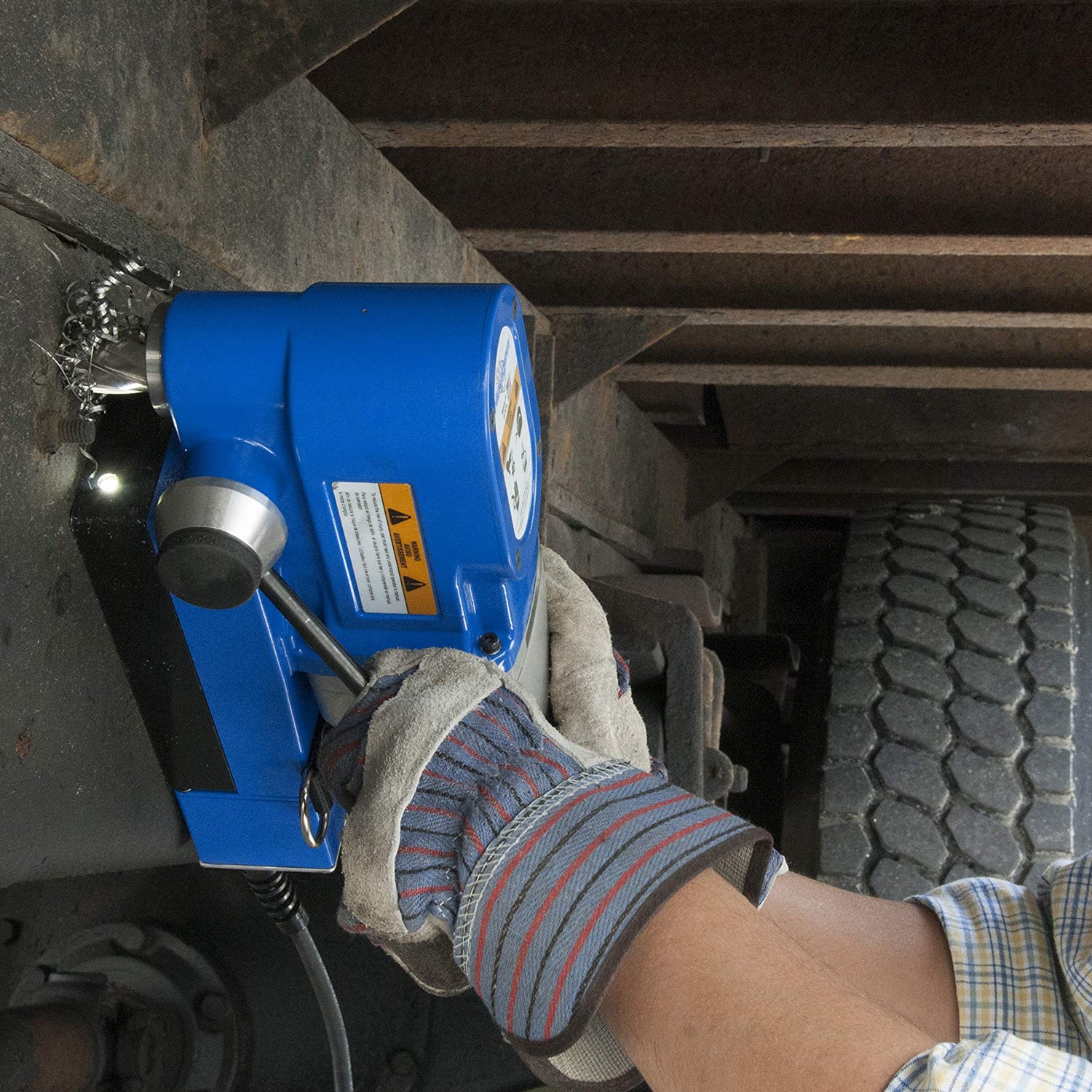

A powerful Hougen motor, heavy-duty, high-torque gearing along with the use of Hougen's RotaLoc Plus annular cutters combine to allow for a broad range of applications including general fabrication, truck frame modification, plant maintenance and on-site assembly and installation projects.
It weighs just 23.8 lbs and has an electric rating of 115V, 50/60 Hz and 9-Amps. The motor operates from any standard 115/120 volt power source and develops 450 no-load rpm's. The gearing ratio complements the motor's power for reliable RPMs and uniform SFM, allowing high feed rates even through long cuts, large diameter holes and tough materials.
The magnetic base has a powerful 1,200 lb. deadlift rating on 3/8" plate and 2165 lb. on 1" plate. Drill point breakaway limits are 500 lb. (3/8" plate) and 735 lb. (1" plate). It is equipped with a removable feed handle for ratcheting the feed in extremely close quarters.
For safety Hougen's exclusive features to insure a safe work environment including a no-adjustment safety switch, which shuts down the drill motor if lift of the magnetic base is detected plus an LED indicator that monitors this sensor and alerts if the switch is not engaged.
A two stage power-on switch prevents drill rotation unless the magnet has first been engaged, and, in the case of a power interruption.
EAN: 0662850023747
Package Dimensions: 20.1 x 17.4 x 8.8 inches
