HQHAOTWU Pneumatic Dust-free Hinge Boring Insertion Machine Single Head Hinge Boring Drill Press Machine Woodworking Hinge Drilling Processing Machine Adjustable Punching Depth

Brand: HQHAOTWU

Features:

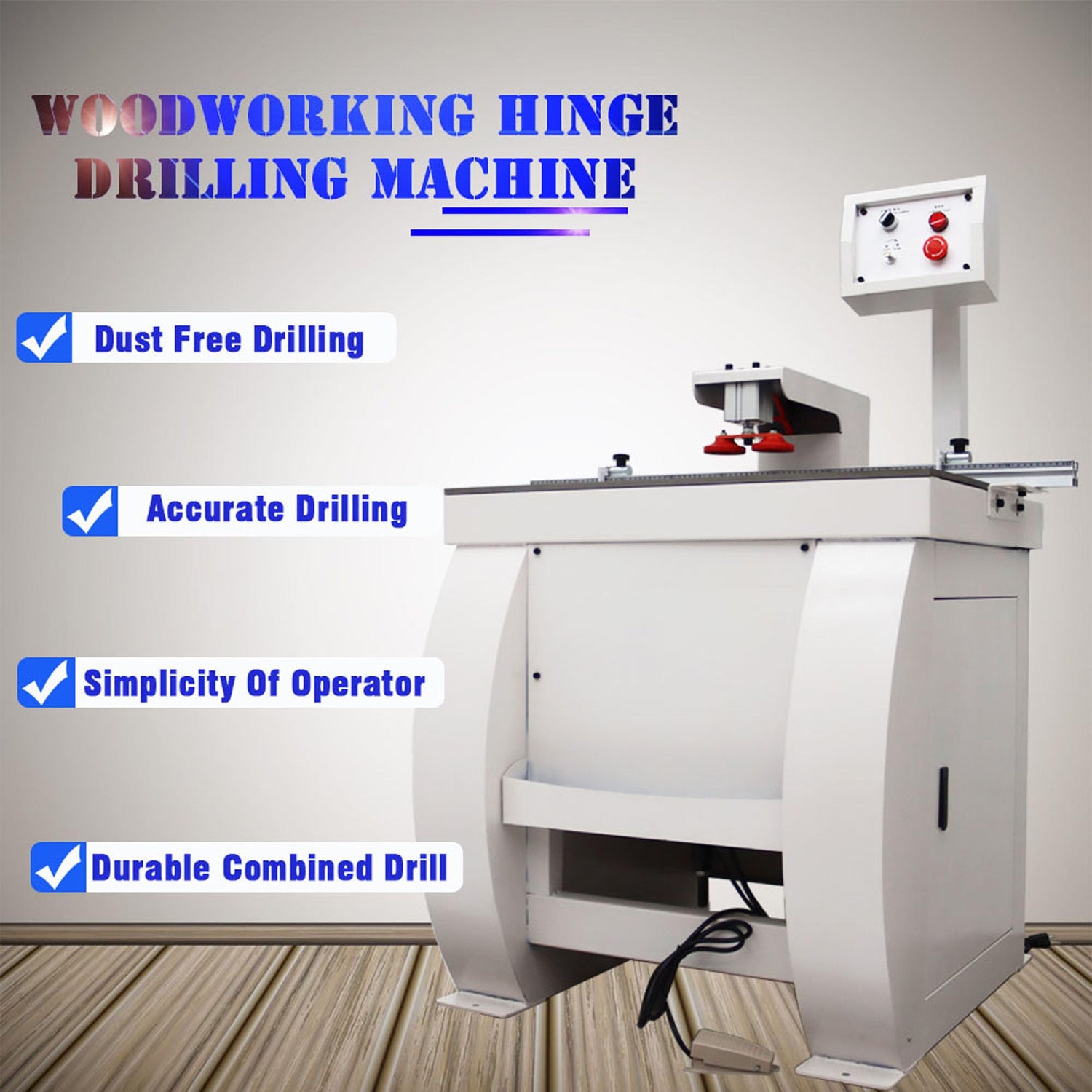

• 【Dust-free Hinge Drilling Machine】The dust-free hinge drill belongs to the bottom drilling design, and the debris generated during drilling is collected in the box to avoid dust flying.

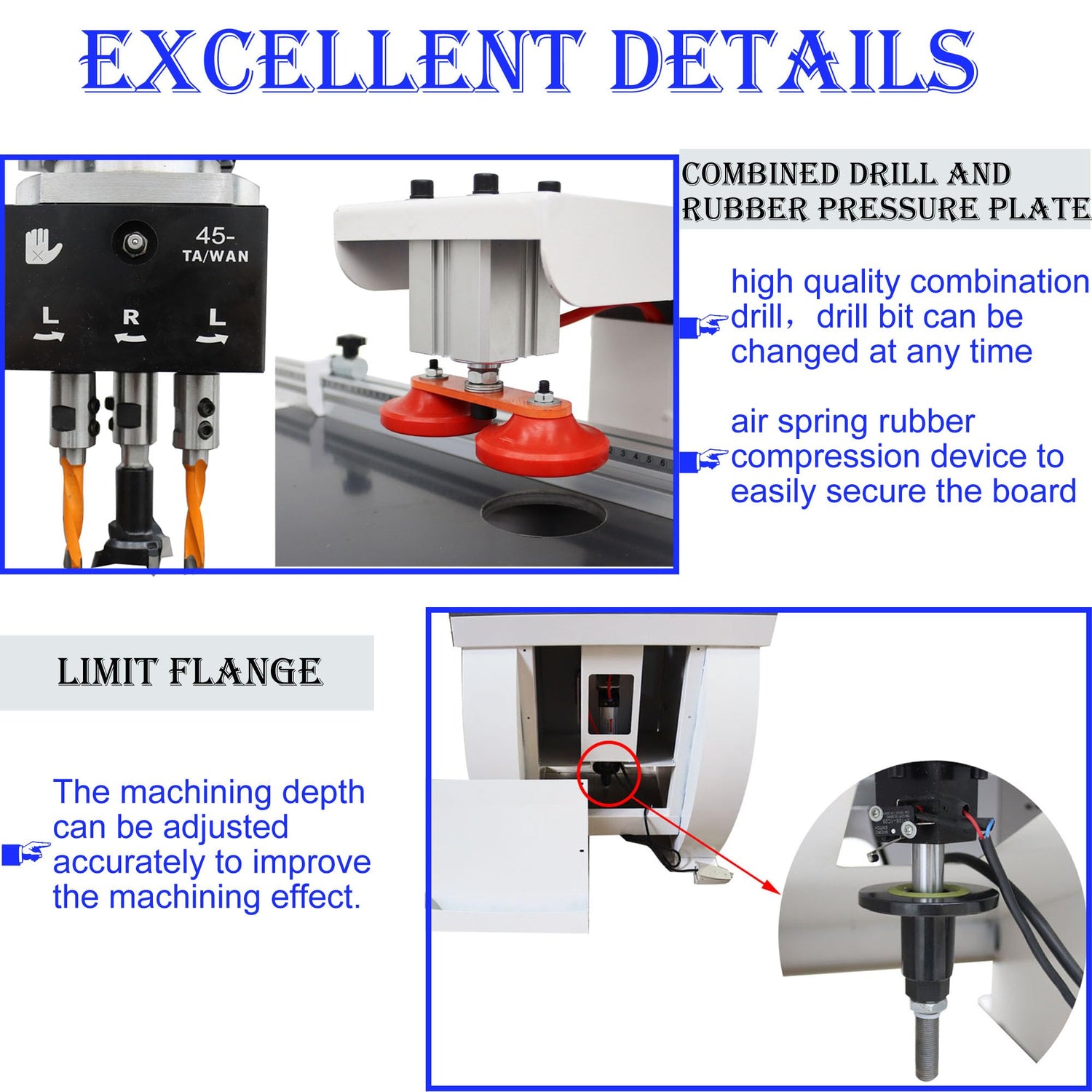

• 【Excellent Design】The machine has no tool calibration device, which can ensure the need of drilling depth. Three holes in the vertical position can be processed at one time, including one big hole for hinge head hole and two for assembly screw hole. Suitable for drilling various profiles.

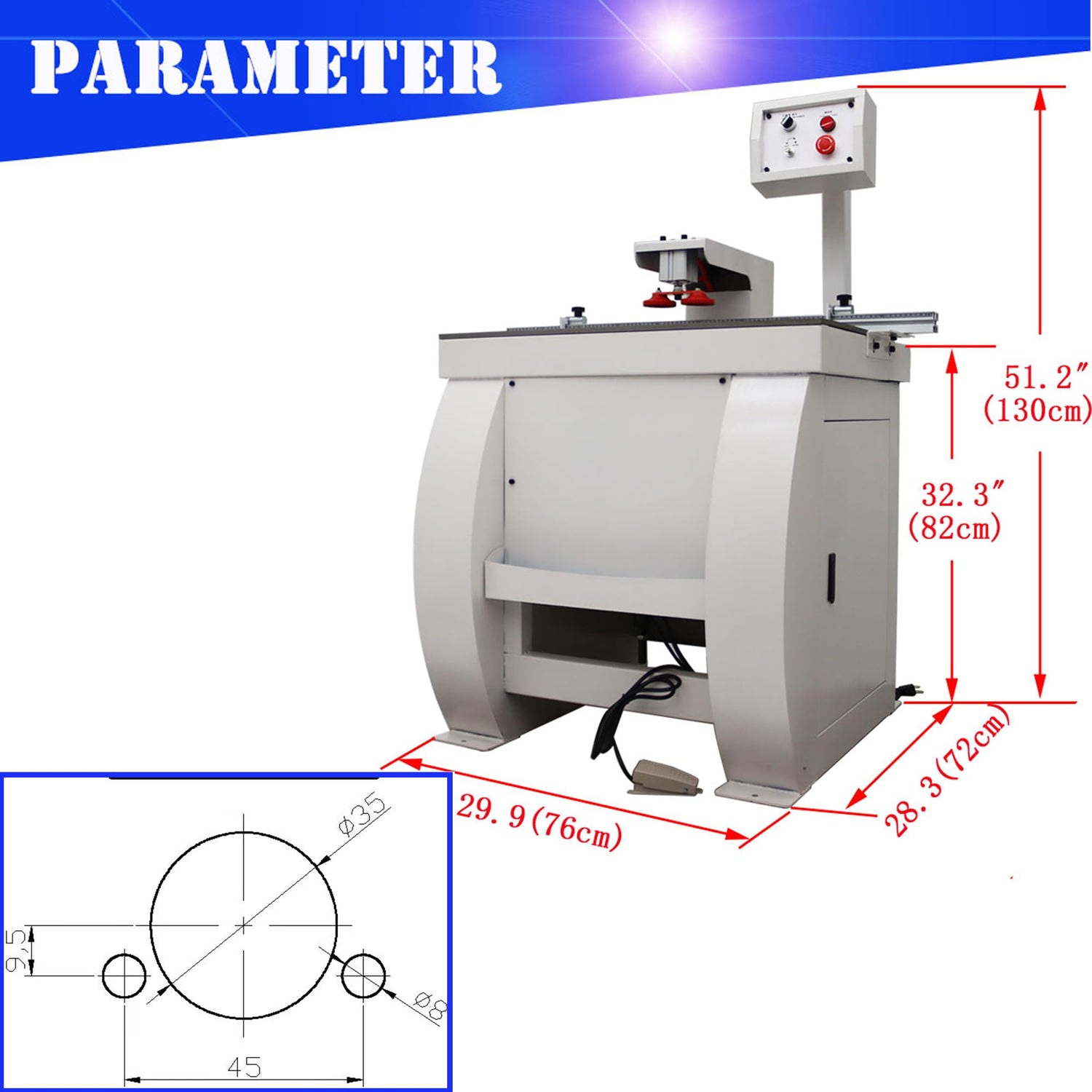

• 【Parameters】Maximum drilling diameter: 35mm; Maximum depth of hole: 30mm; Maximum work piece length: 1000mm; Speed of main shaft: 3440R/min; Air pressure: 0.6-0.8MPA; Motor power: 1.5KW. Combined Drill Model: 45-9.5.
• 【Powerful Motor】Adopt 1.5KW copper core motor, rotating speed of main shaft is up to 3400RPM, which is powerful and durable. Featured with flexible, stable and reliable drilling operation,high efficiency.
• 【Application】This machine is used for drilling processing of cabinets, wardrobes, door processing and manufacturing,it ​is mainly for loose leaf and hinge drilling, drilling can be adjusted horizontally and vertically, convenient and quick to meet the requirements of drilling processing, It is the ideal equipment for various door industry processing manufacturers.

EAN: 0840403763412

Part Number: DX027313
