HQMaster CNC Router Bits 1/8 Router Bit Straight Router Bit 1 8 Shank Straight Flute End Mill Cutter 2-Flute Milling Cutting Tungsten Steel 22mm

Brand: HQMaster

Features:

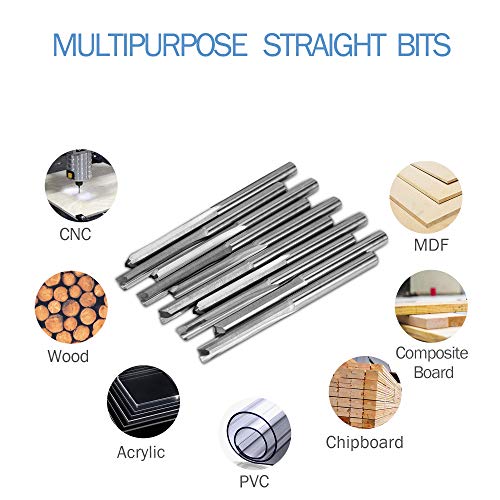

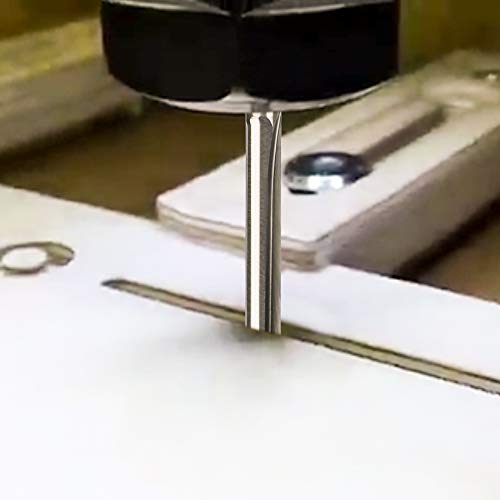

• Wide range of processing ---- for cutting/engraving/carving/grooving/slotting/drilling/hollowing/positioning/roughing /milling in materials like MDF, PVC, Acrylic, wood, solid wood, chipboard, composite board, organic board, core board, density board etc.

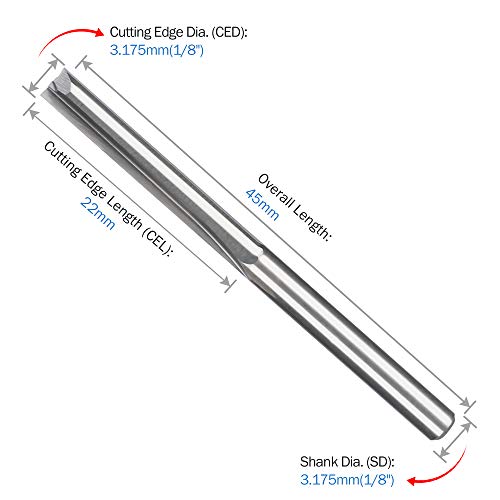

• Dimensions ---- shank diameter (SD): 1/8" (3.175mm); cutting edge diameter (CED): 1/8" (3.175mm); cutting edge length (CEL)/flute length: 22mm; overall length (OAL): 45mm

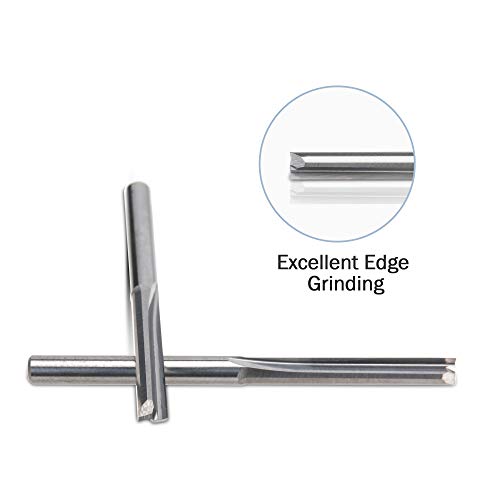

• High efficiency ---- these bits own sharp edge which is able for fast engraving that makes high efficiency; durable, high precision and not easy to break; it is smokeless and burr-free while processing

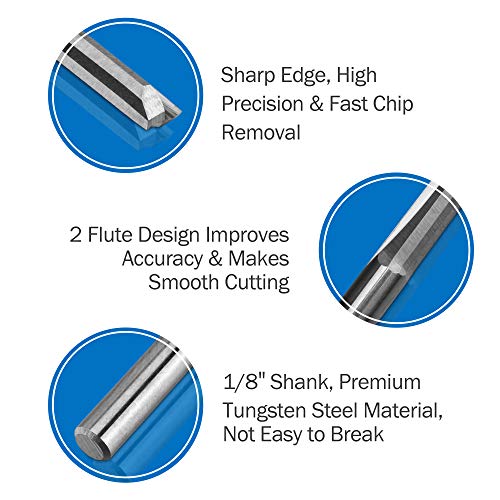

• Perfect cutting ---- the design of 2 flutes, mirror polishing, large chip space of CNC Router Bit makes non-stick crumbs, smooth cutting and fast chip-removal

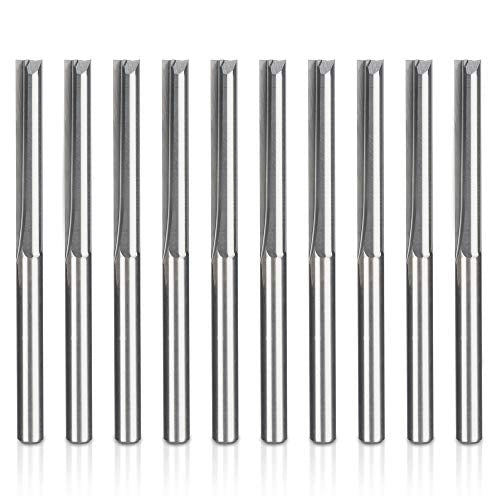

• Package contents ---- 10pcs 2-fluted tungsten steel straight bits assorted in portable storage case

model number: HQ-5373

Part Number: HQ-5373

Details: HQMaster 1/8"(3.175mm) Shank Dia. Double Edged Straight Router Bits Straight End Mill Milling Cutter Endmill 2-Flute CNC Cutting Tungsten Steel Straight Bit Flute Length 22mm, OAL 45mm, Pack of 10

Features:
* Rustless and anti-static
* Work perfect on milling or cutting machines
* Best performance with high precision
* High quality and durable

Specification:
Material: tungsten steel
Color: as shown in the picture
Total length/Overall length: 45mm
Cutting edge length(CEL)/Flute length/Working length: 22mm
Shank diameter (SD): 3.175mm (1/8")
Cutting edge diameter (CED): 3.175mm (1/8")

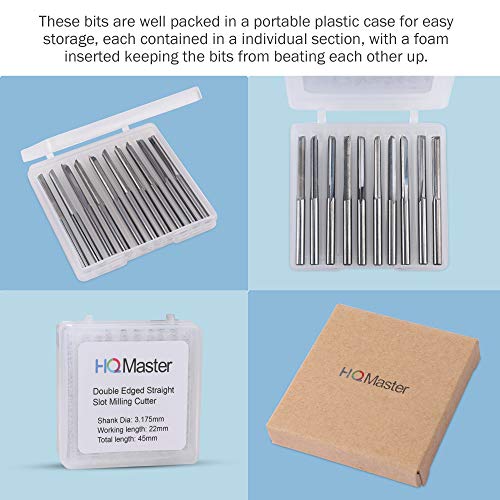

Storage case size: 55*51*9mm

Package contents:
10 x double edged straight slot milling cutter
1 x storage case

Package Dimensions: 2.3 x 2.3 x 0.4 inches
