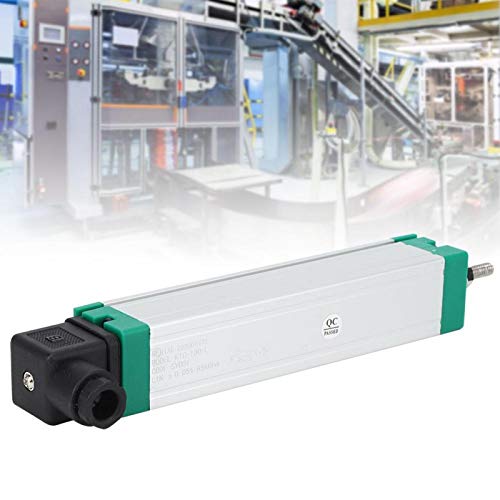

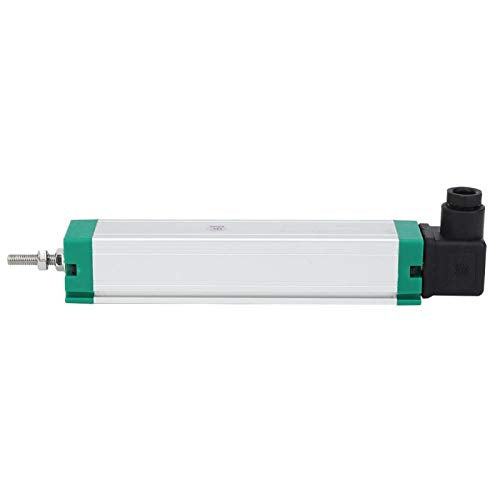

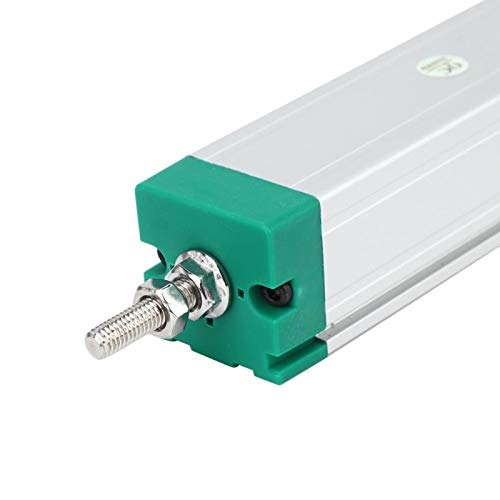

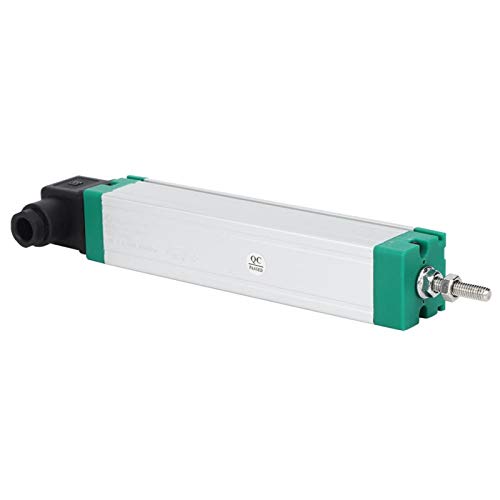

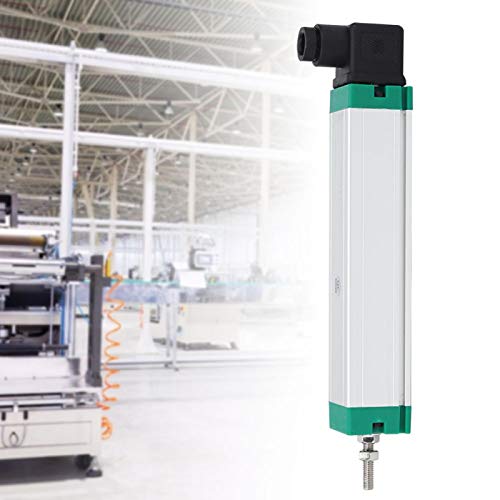

Injection Molding Electronic Ruler Pull Rod Displacement Sensor, IP67 Protection Level Stainless Steel Linear Position Sensor(KTC-100)
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Fafeicy
Features:
- 【Good Performance】The displacement sensor supports high-definition sound quality, compatible with all devices, which has strict performance requirements through the precise processes of many experts.

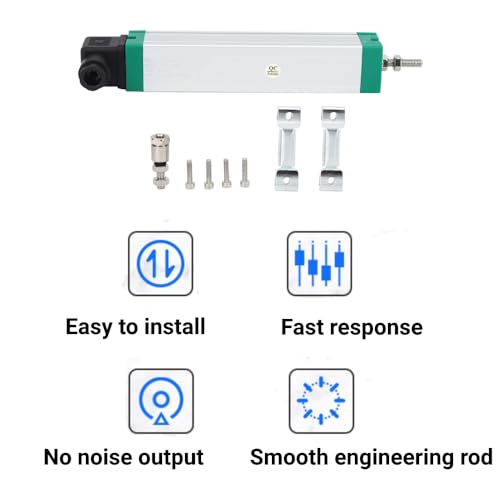

- 【Convenient】The electronic ruler adopts plug type, convenient and practical, no noise output, smooth engineering rod, resolution: Infinite uninterrupted analysis, repeatability: 0.01mm.
- 【Feature】The injection molding electronic ruler adopts plug for Hessman to resist oxidation, , and durability, with exquisite workmanship, which can reduce transmission loss.

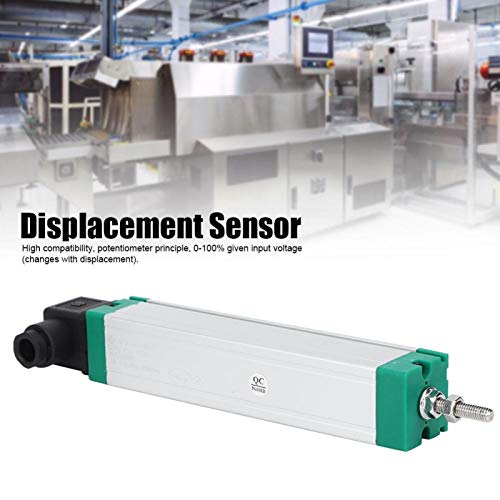

- 【Potentiometer Principle】The sensor has high compatibility, adopts the potentiometer principle, and will change with displacement when the given input voltage is 0-100%, with stable performance and fast response.
- 【Safety】The displacement sensor is made of stainless steel, not easy to rust, long service life, with the highest IP67 protection level, good protection effect, you are safe to use.
Part Number: Fafeicy6g3cz25wht-11

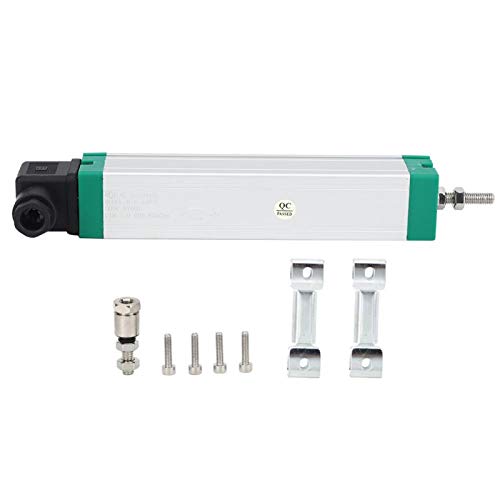

Details: Specification: Item Type: Displacement Sensor Optional Models: KTC-100, KTC-300 Material: Stainless steel Electrical Stroke: Range + 3mm Resolution / Resolution: Infinite uninterrupted analysis Repeatability: 0.01mm Normal Working Current Of Sliding Brush: ≤10μA The Maximum Current Of The Sliding Brush When Causing The Fault: 10mA Maximum Allowable Working Voltage: 42V Effective Temperature Coefficient Ratio Of Output Voltage To Input Voltage: Usually 5ppm / K Insulation Resistance (500VDC, 50Hz): ≥10MΩ Insulation Strength (500VAC, 50Hz): ≤100μA Shell Length (A): Range + 78.5mm Mechanical Stroke (B): Range + 8mm Maximum Load Of Pull Rod: 50KG Work Force: Horizontal direction <10N Vertical direction≤10N Vibration Resistance Standard: 5 ... 2000Hz, Amax = 0.8mm, amax = 20g Shock Resistance Standard: 50g, 11ms Operating Temperature Range: -60 ... + 150 ℃ Life: > 100 × 10 ^ 6 times Maximum Operating Speed: 10m / S, maximum operating acceleration 10m / s² Protection Level: Highest IP67 (DIN40500 / IEC529) Package List: 1 x Displacement Sensor 1 x Plug 3 x Accessories 4 x Screw
EAN: 8216764070995
Package Dimensions: 11.9 x 2.2 x 2.2 inches
