INPANOLS Pneumatic Pop Rivet Gun Hydraulic Air Rivet Tool Kit with 3/32-inch 1/8-inch 5/32-inch 3/16-inch Nosepieces

Brand: INPANOLS

Color: Blue

Features:

• Applicable Rivets: Aluminum/Iron/Stainless Steel Rivets; Aluminum/Iron Nail Capacity: 3/32in(2.4mm), 1/8in(3.2mm), 5/32in(4mm), 3/16in(4.8mm); Stainless Steel Nail Capacity: 3/32in(2.4mm), 1/8in(3.2mm), 5/32in(4mm); Air Pressure: 0.6-0.8MPA; Working Stroke: 18mm.
• [HIGH WORKING EFFICIENCY] Powerful short cylinder design with fast oil and gas circulation, allowing the cylinder to be quickly returned for high-speed assembly operations. The 18mm working stroke makes it possible to set one rivet in with just 1 pull of the trigger.
• [LIGHTWEIGHT BUT STRONG] The main body of this air rivet gun is made of aviation aluminum, which is sturdy and lightweight, making it easy to operate with one hand.

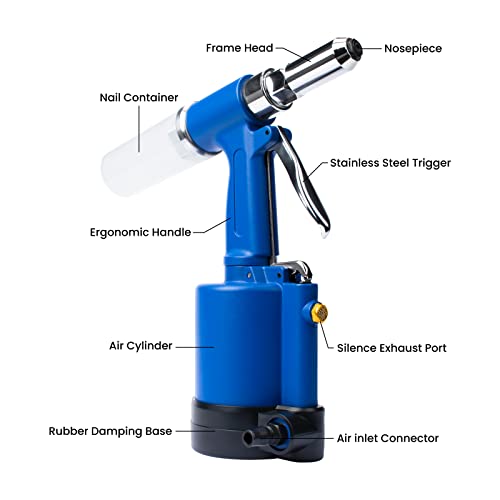

• [THOUGHTFUL DESIGN] Ergonomic handle for a more comfortable grip; vibration-free technology to reduce work errors; special muffler hole design to exhaust excess gas and reduce noise; compact design allows you to use it in tight spaces.
• [EASY MAINTENANCE] Manufactured from modular universal components, this air hydraulic riveter is simple in structure and easy to maintain.

model number: ‎ART-18-Blue

Part Number: ART-18-Blue

Details: The pneumatic rivet gun can significantly improve your efficiency in riveting work and make your work easier, no more tired hands due to riveting work.

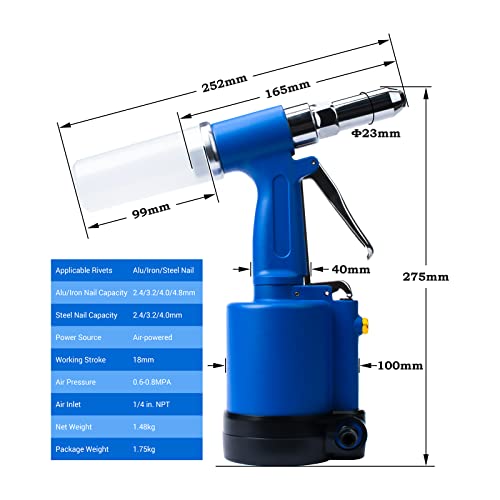

SPECIFICATION:
Applicable Rivets: Aluminum/Iron/Stainless Steel Rivets
Aluminum/Iron Nail Capacity: 3/32in(2.4mm), 1/8in(3.2mm), 5/32in(4mm), 3/16in(4.8mm)
Stainless Steel Nail Capacity: 3/32in(2.4mm), 1/8in(3.2mm), 5/32in(4mm)
Working Stroke: 18mm
Working Stroke Of Rivet: 12mm
Air Pressure: 0.6-0.8MPA
Air Inlet: 1/4 in. NPT (6.35mm)
Net Weight: 1.48kg
Package Weight: 1.75kg

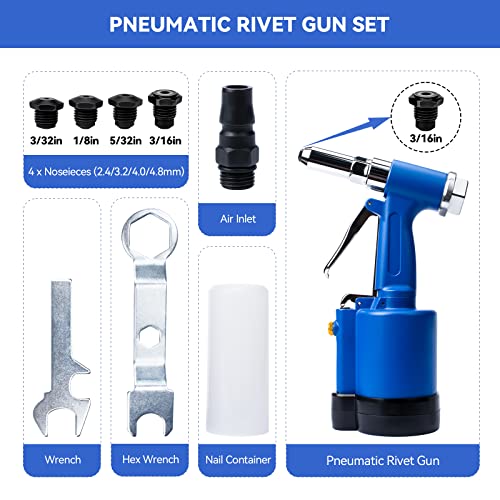

PACKAGE LIST:
1 x Pneumatic Rivet Gun
1 x Rivet Collection Bottle
1 x Air inlet Connector
1 x Wrench
1 x Hex Wrench
1 x English Manual
4 x Nosepieces: 3/16-inch(4.8mm), 5/32-inch(4mm), 1/8-inch(3.2mm), 3/32-inch(2.4mm).
Note: The 4.8mm nosepiece has been mounted on the tip of the air rivet gun.

Package Dimensions: 11.6 x 6.9 x 3.9 inches
