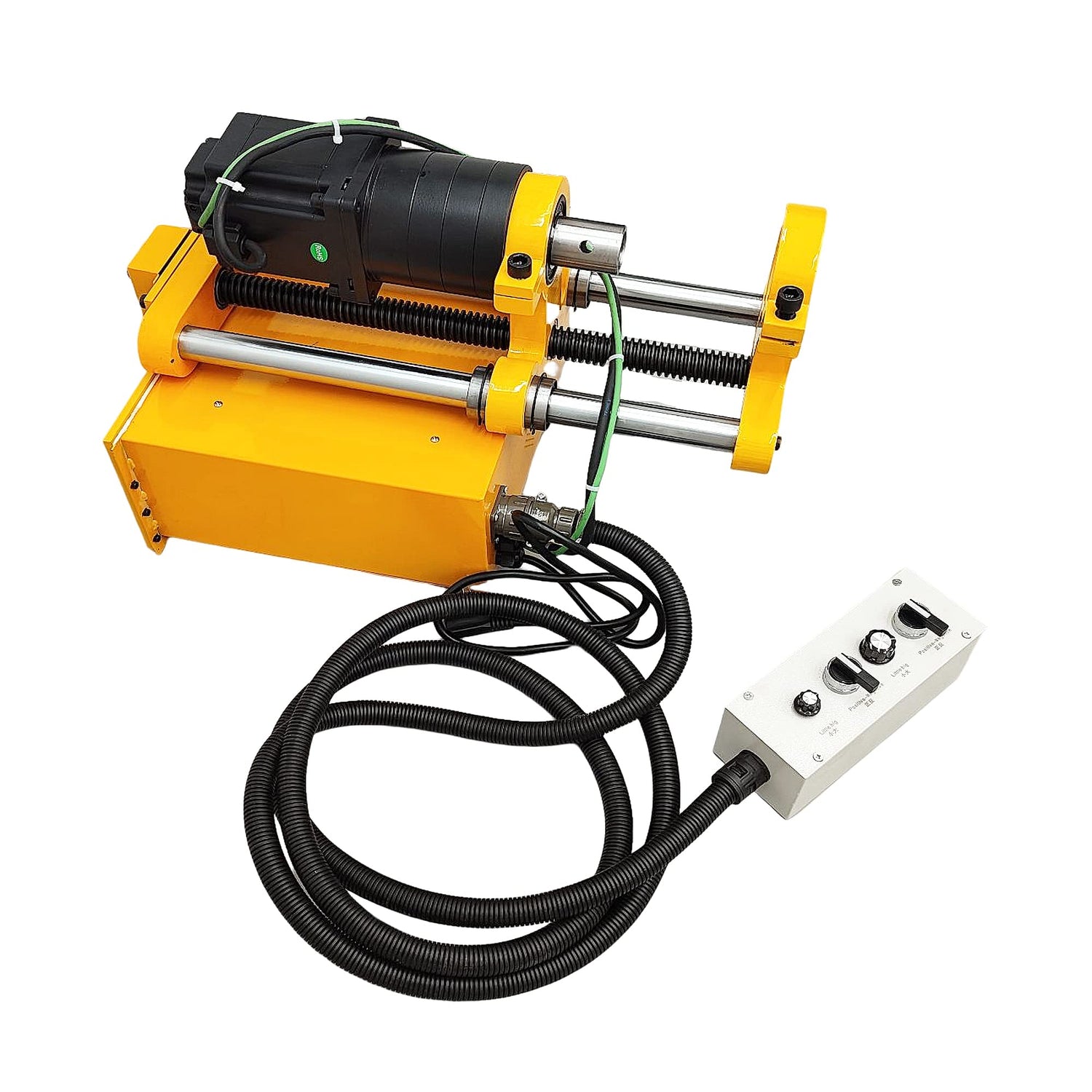

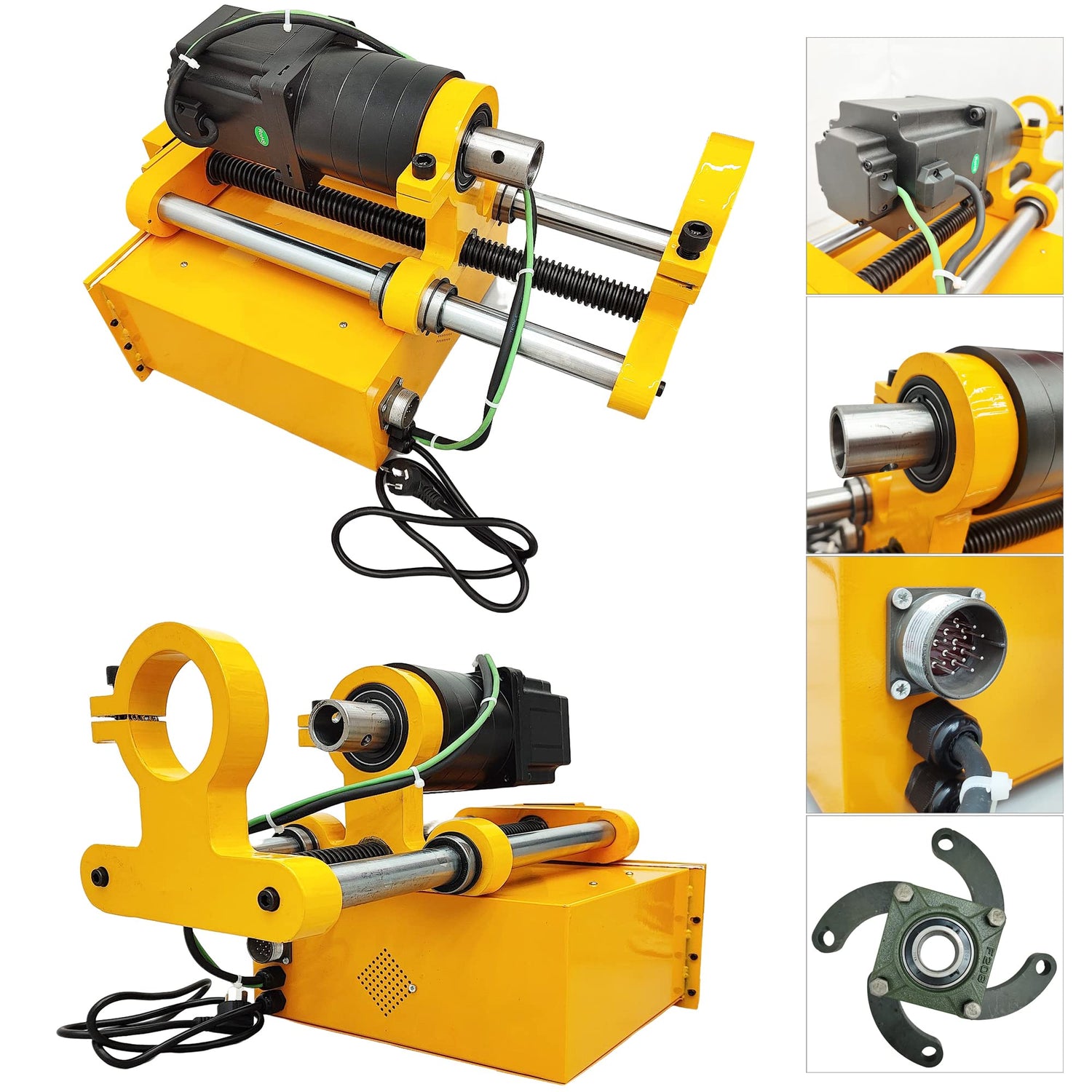

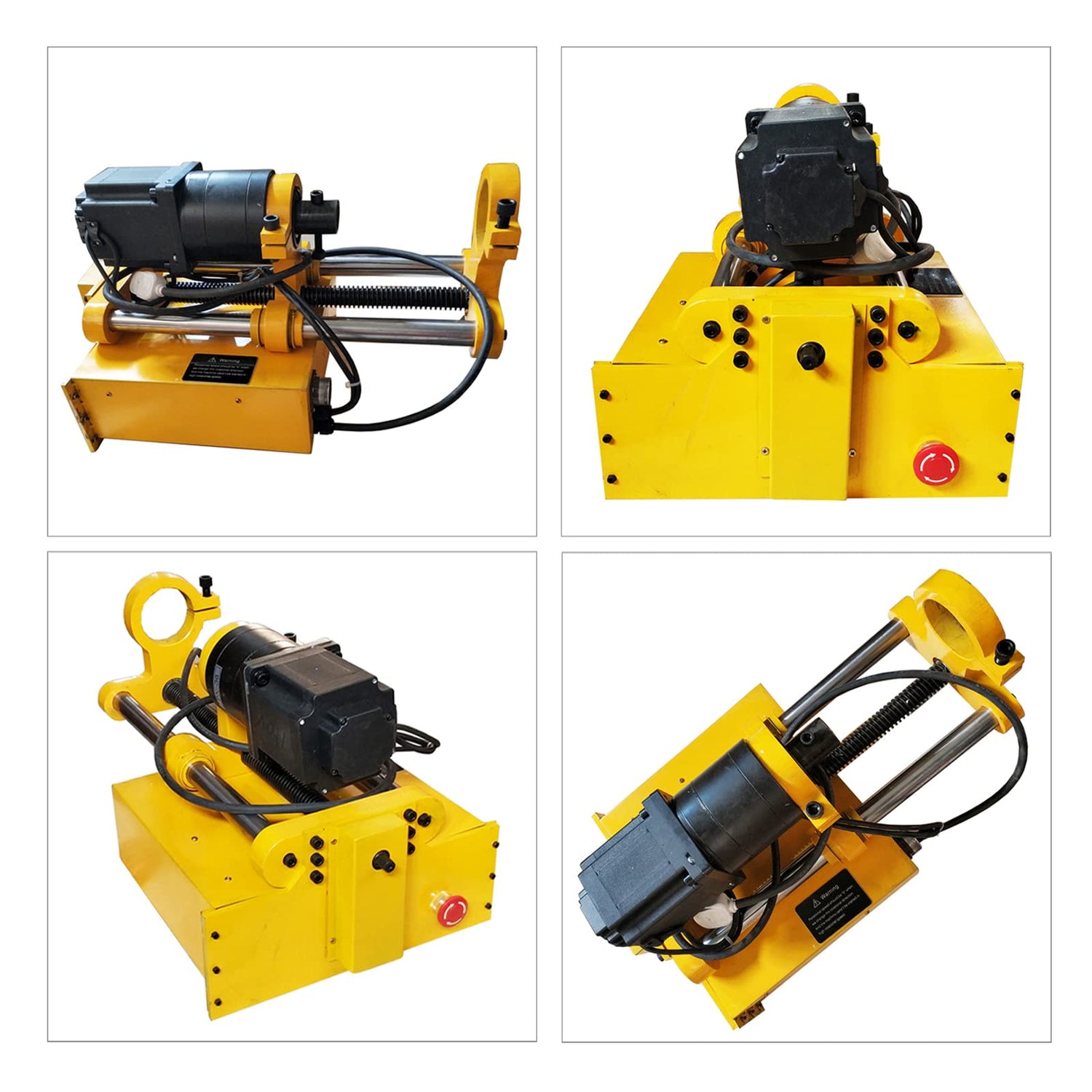

INTSUPERMAI Portable Line Boring Machine Hole Drilling Connecting Rod Boring Machine XDT40 with Handle Control for Engineering Machinery Repairing

Brand: INTSUPERMAI

Features:

• 1. DRIVING OF HOLE DRILLING MACHINE: √ By adopting 110V continuous current motor with characteristics of low-speed of revolution and high torque, this line boring machine can realize stationary machining in superior performance.

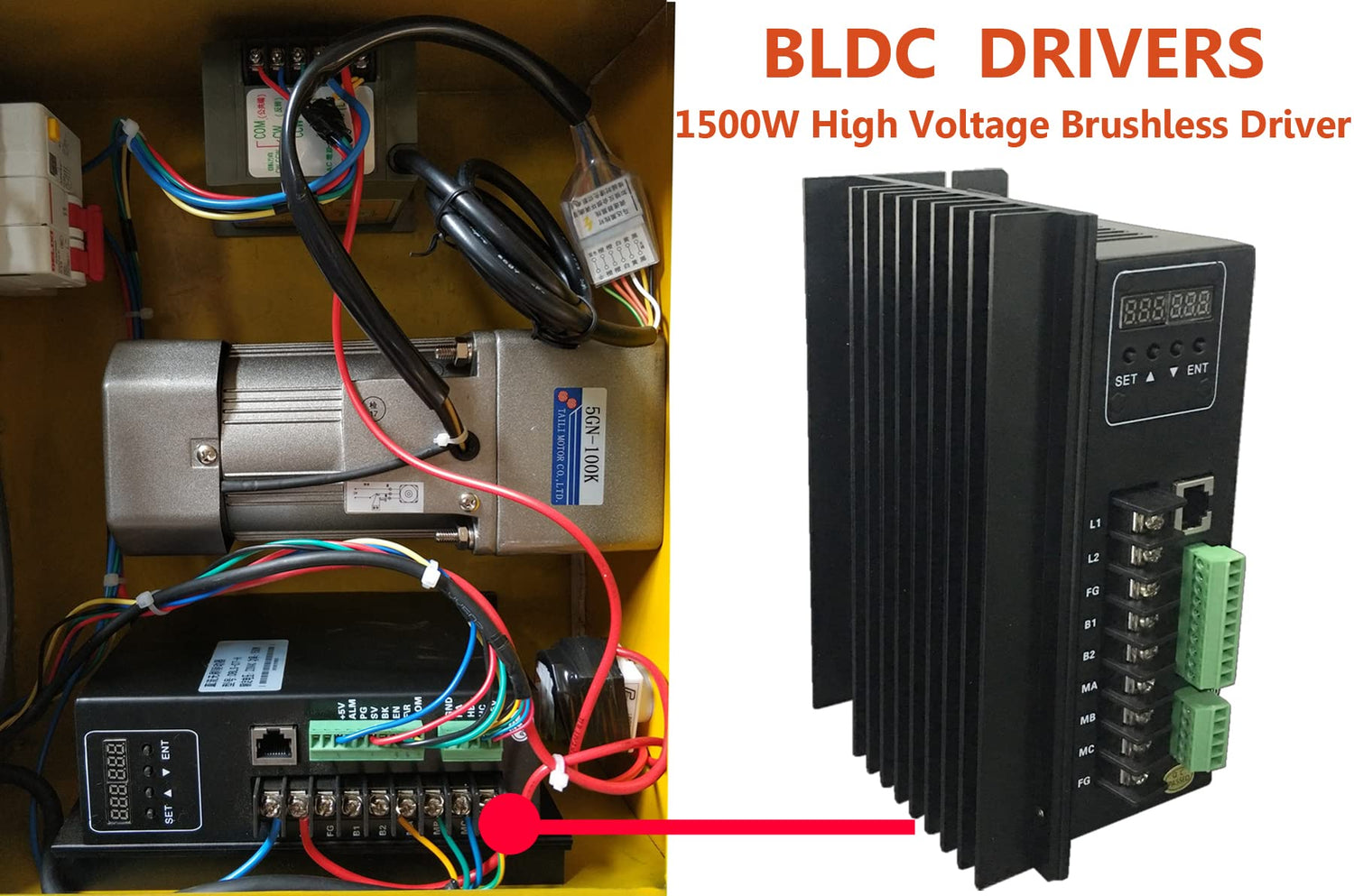

• 2. NO VIBRATION IN TRAVEL & CUTTING PROCESS: √ Electric motor controller is equipped with dynamic delay brake program to avoid vibration in shutdown.
• 3. ELECTRODELESS SPEED REGULATION: √ Feeding and processing can realize electrodeless speed regulation. Feeding process can be set according to demands, and processing can automatically stop after reaching the limit switch.

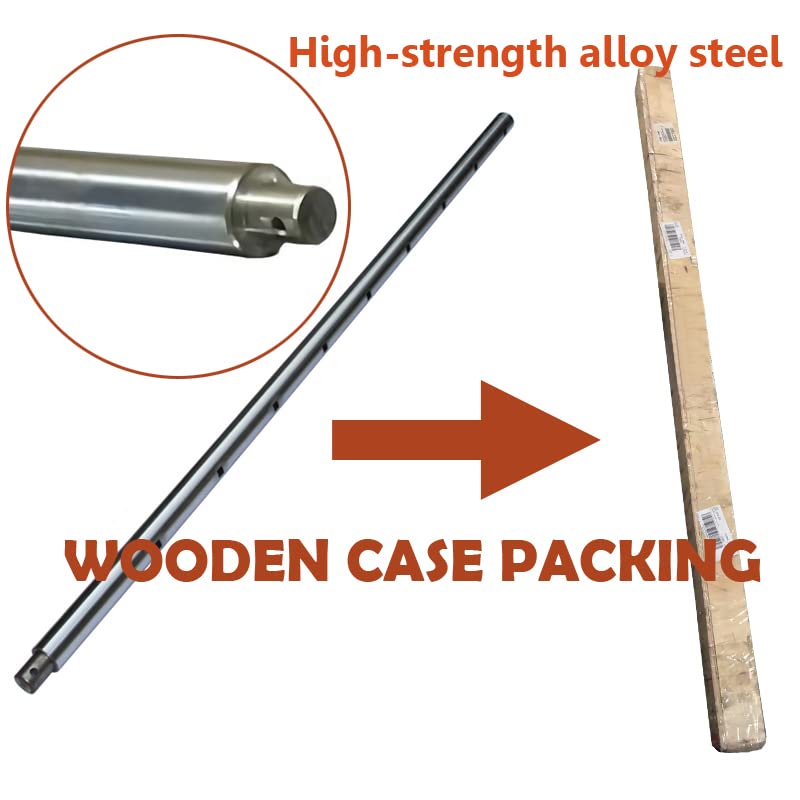

• 4. BORING BAR:√ Boring bar adopting high-strength alloy and structural steel is featured with high hardness, high accuracy, high tenacity, good abrasion resistance, etc. The boring bar can be disassembled separately to make installation convenient.

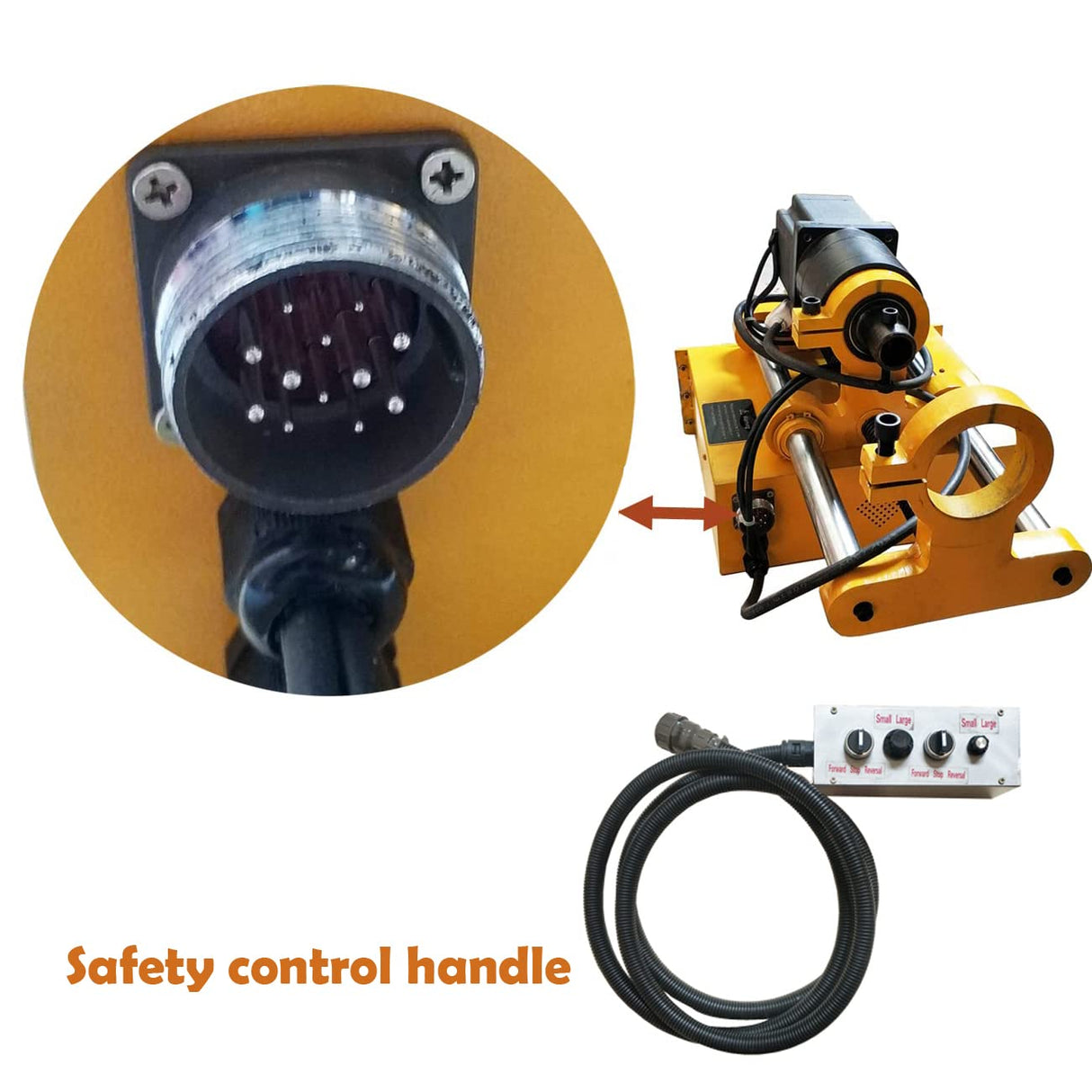

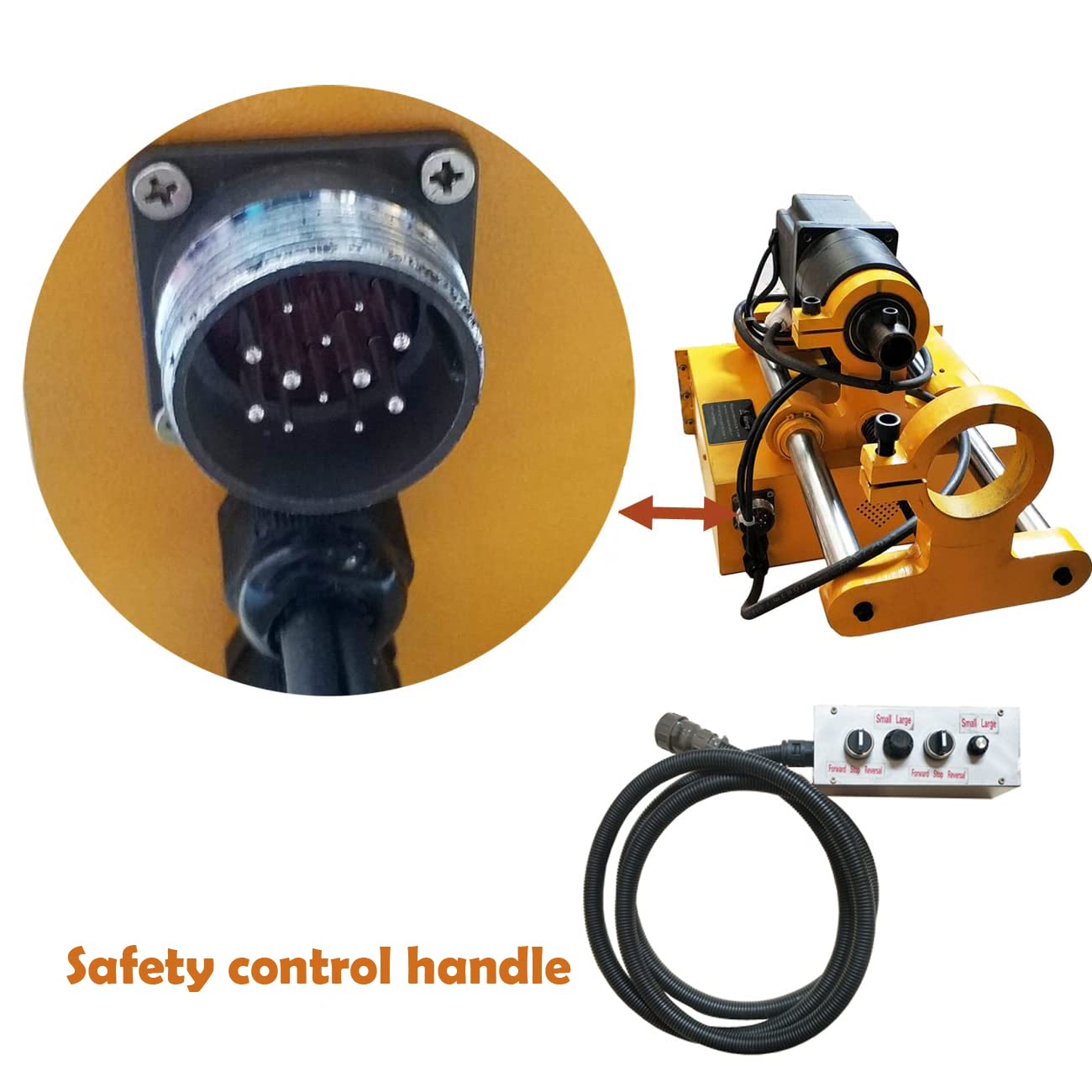

• 5. OPERATION SAFETY: √ In effective travel, the tool rest can be fixed at any position of boring bar. The control cabinet is installed below the main engine to be beneficial to safety operation.

Part Number: SY022087

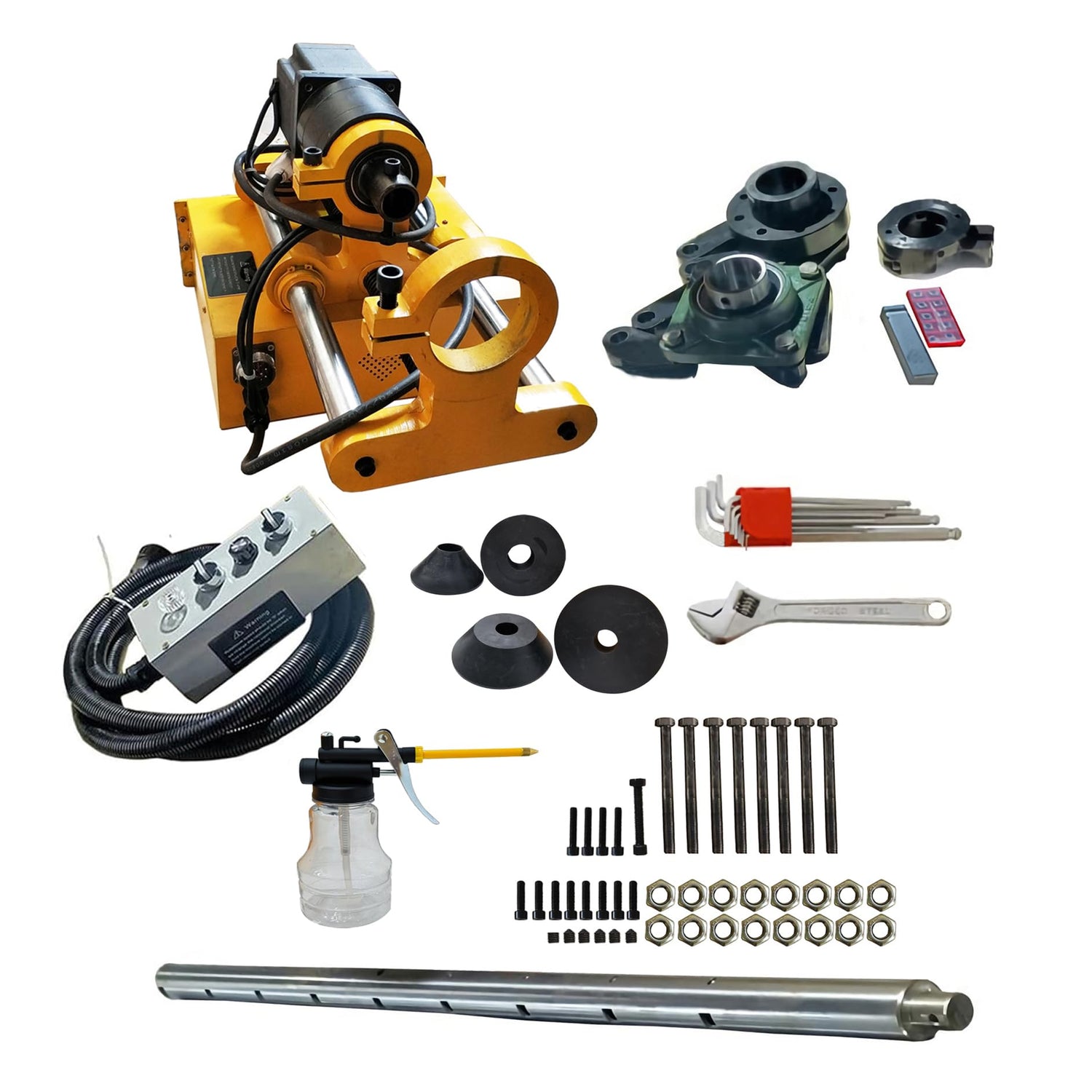

Details: Notice: Our machine is constantly improving, the actual received accessories and web images will be slightly different. Please take the actual parts as the standard when you receive the parts, but the parts we send can guarantee the normal use of boring. Attention: Machine is installed by fixed clamp and uses different tool rest according to different dia ranges. Please confirm the diameter of processing hole before use to select the appropriate tool rest. Slushing oil should be painted to boring bar and feed screw which are not used very often. Appropriate grease oil should be added to the feed box every half a year. Spindle box and feed box should be stored by sealing if these parts are not used for a long time. Appropriate grease oil should be added to guide post and screw before processing. Parameter: Type: XDT40 Portable Line Boring Machine Maximum processing hole diameter: Ф180mm Minimum processing hole diameter: Ф45mm Maximum processing travel: 380mm Maximum feed depth: 2mm on one side (A3 steel) Surface roughness: Ra3.2 Deviation from circular form≤0.02mm Rotate speed: 0-83RPM Boring bar: 40*1500MM Control Type: Handle Control Box Package Content #022087 1 x Line Boring Machine XDT40 1 x Boring bar 1 x Necessary accessories 2 x Wooden Package
