JET 15-Inch Mill/Drill Machine with R-8 Taper, 1 HP, 1Ph 115/230V (Model JMD-15)
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Jet
Color: Gray
Features:
- One-piece cast iron column for added support
- 360° head swivel
- Positive quick-stop knob and easy to read internal depth gauge

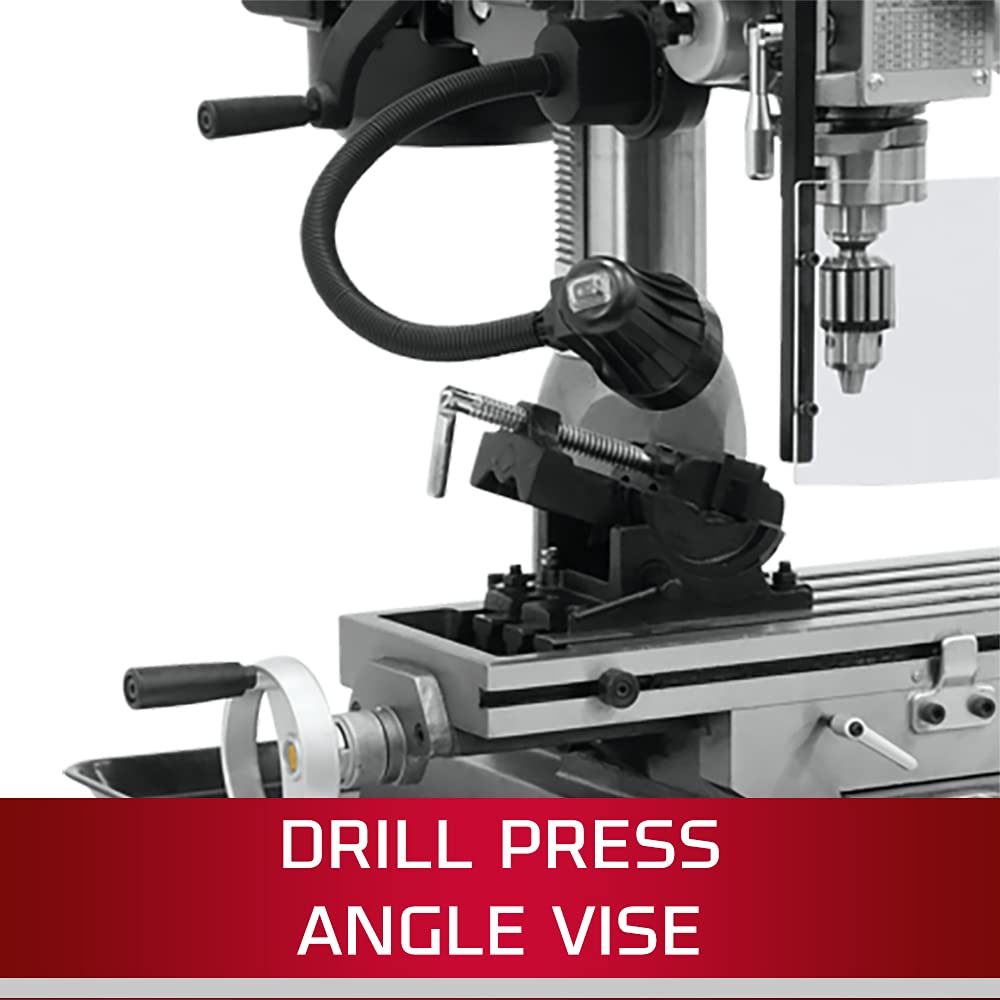

- Drill press angle vise
- 1/2" drill chuck, chuck arbor
- Backed by JET's industry-leading two-year warranty against manufacturing defects
Binding: Tools & Home Improvement
model number: JMD-15
Part Number: 350014
Details: Amazon.com

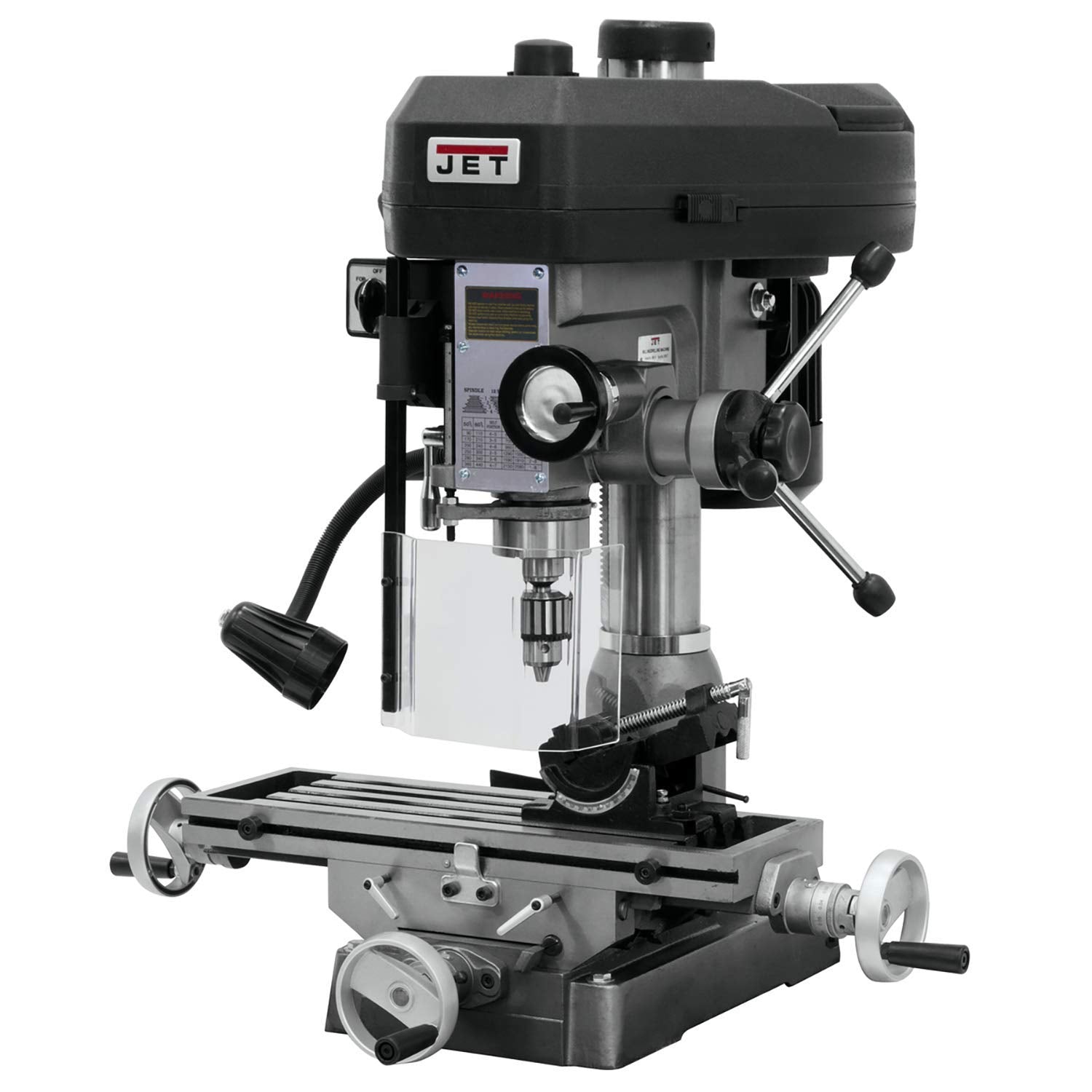

The JET JMD-15 milling/drilling machine (view larger).Guard detail (view larger). Precision Built and Designed to Last

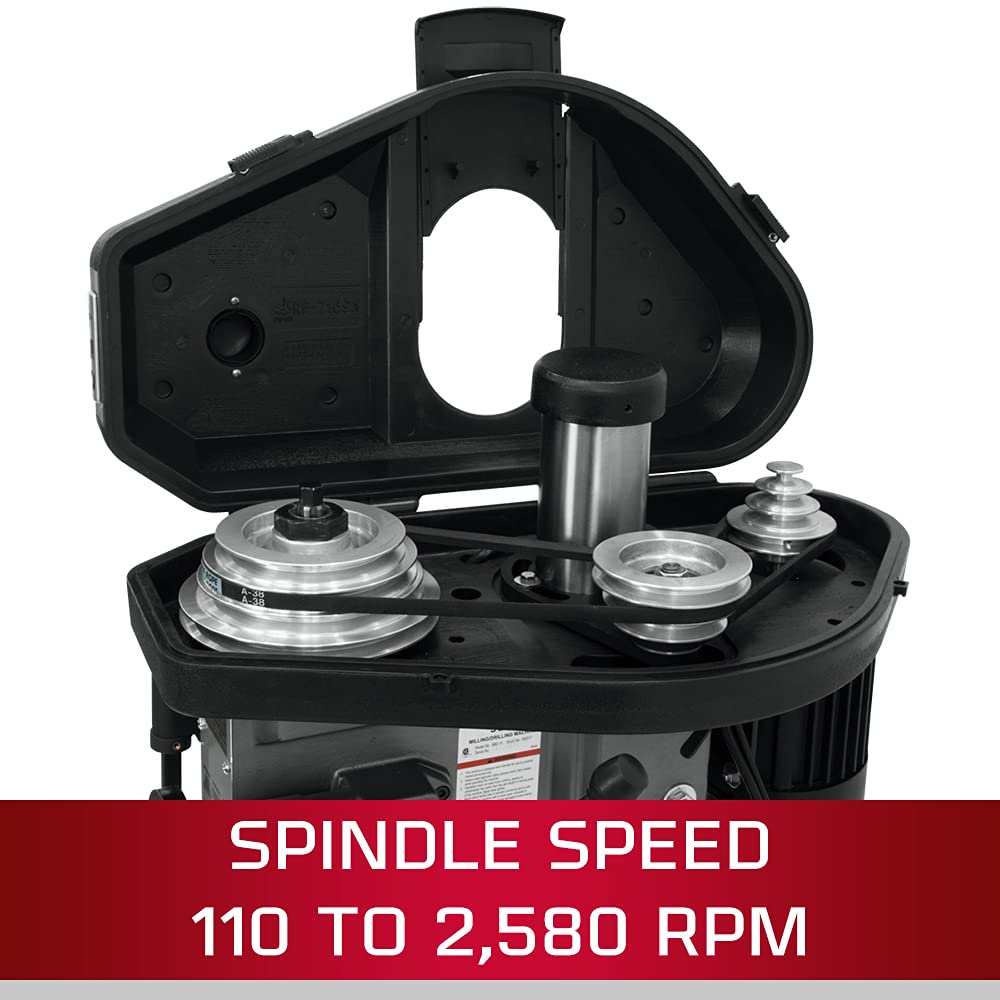

The JET JMD-15 milling/drilling machine has a one-piece cast iron column for support and features large hand wheel knobs, a large worktable, and a highly versatile 360-degree head swivel. Innovative base-taper allows for easier cleanup, and the belt cover has a quick slide latch that allows for faster belt adjustment to change spindle speeds. The heavy-duty tapered roller bearings support the spindle resulting in greater tolerance and more accurate drilling depth.
Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD milling/drilling machine possess the advantages of space-saving versatility, affordability, and light machining capability. The JET Advantage
Reliable, quality engineering and manufacturing goes into each and every JET machine. JET machines are built and tested to tight tolerance standards to insure consistent quality and precision operations. Professional user manuals help you put JET saws to work faster, safer and more efficiently. And because JET backs all its machines with the industry's top warranty, you can have confidence that your JET machines will continue providing superior cuts every time you flip the switch. JET also offers over 750 authorized service centers across the USA, so you can be assured a qualified local technician can help troubleshoot, order parts, and repair your equipment should a problem arise. Red Assurance 2-Year Warranty

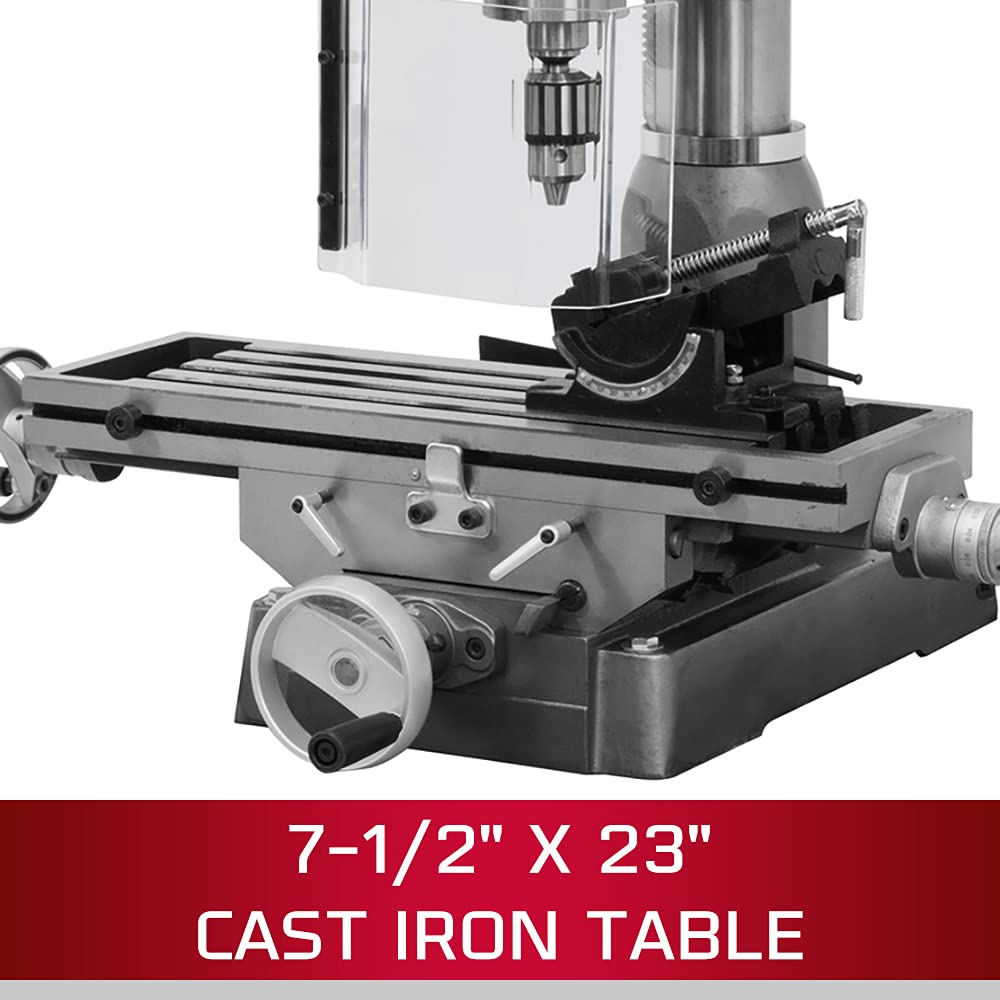

If your JET tool needs service or repair, one of our Authorized Service Centers located throughout the United States can give you quick service. In most cases, any of these Walter Meier Authorized Service Centers can authorize warranty repair, assist you in obtaining parts, or perform routine maintenance and major repair on your JET or Wilton tools. Specifications Drilling capacity1 inchFace mill capacity2-1/2 inchesEnd mill capacity1/2-inchSwing14-1/2 inchesMaximum distance, spindle to table15 inchesSpindle taperR-8Spindle travel, manual3-1/2 inchesSpindle travel, auton/aQuill diameter2-7/16 inchesColumn diameter3-5/8 inchesNumber of spindle speeds12, 110 to 2,580 RPMTable travel, maximum 14 inchesCross travel5-1/2 inchesTable working surface7-1/2 x 23 inchesT-slots4, 9/16-inchT-slot centers1-13/16 inchesBase dimensions12-1/2 x 19-3/4 inchesMotor1 HP, 1 phase, 115/230-volt, prewired 115-voltOverall dimensions38 x 37-1/2 x 42 inchesWeight370 pounds About JET

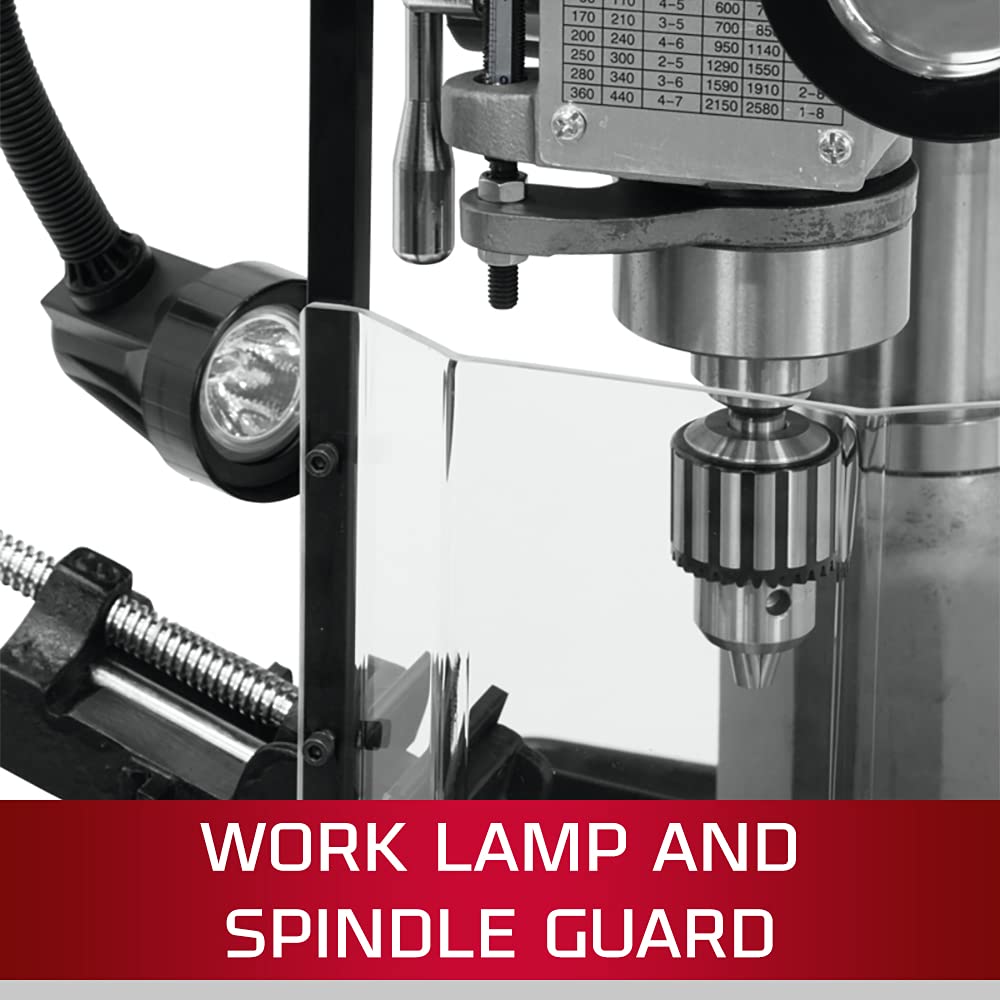

JET began as a small dealer of manual chain hoists and trolleys, sold from a single hardware store in Tacoma, Washington. Today, JET has an expert team of engineers both in the USA and overseas and a world-class supply chain ensuring prompt delivery of quality products. JET still carries the same message of quality product, with the best features and benefits in it's product class; all the while providing excellent service. JMD-15 Milling/Drilling Machine At a Glance One-piece cast iron column for added support New positive quick-stop knob and easy-to-read external depth gauge Belt cover — quick slide latch allows faster belt adjustment to change spindle speeds UL listed motor (1 horsepower, 1 phase, 115/230-volt; prewired 115-volt) Standard Equipment Worklamp Adjustable carbide facemill Drill press angle vise 1/2-inch drill chuck, chuck arbor Draw bar Drill chuck guard
Product Description
Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral f
EAN: 0410050000873
Package Dimensions: 43.7 x 30.0 x 29.0 inches
