Author: JET
Brand: Jet
Color: White
Features:

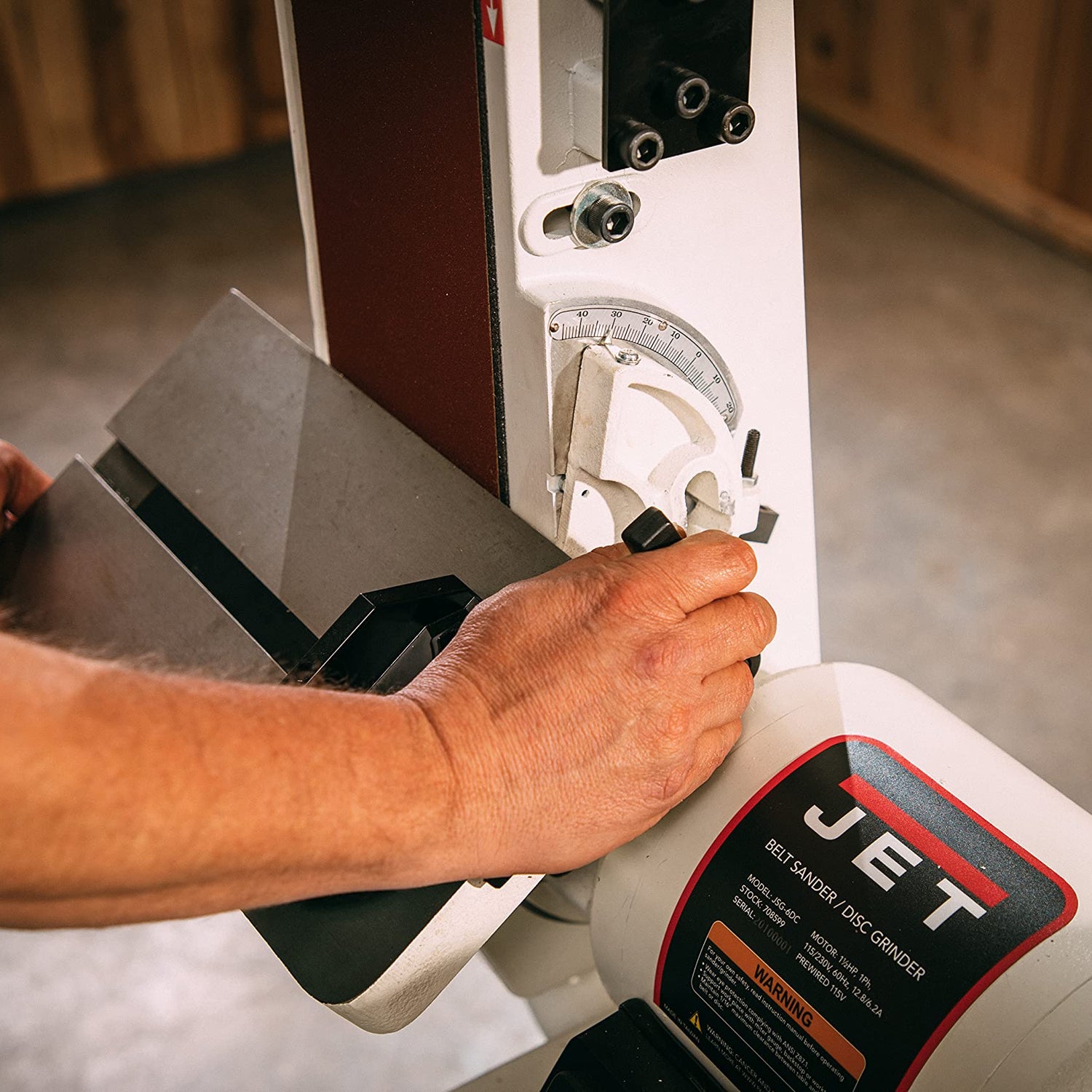

- Two precision-ground cast iron tables have positive stops at 90° and 45°

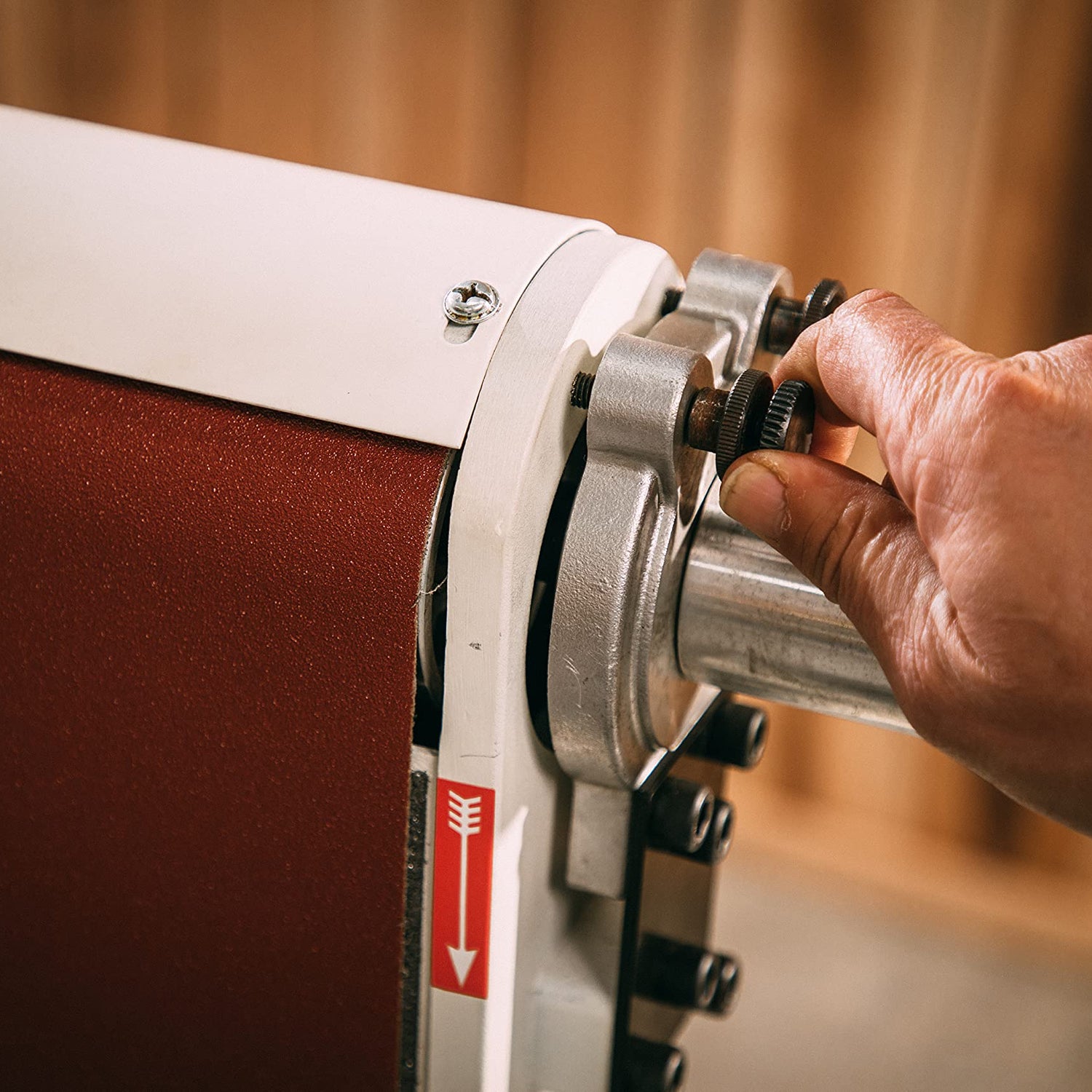

- Exclusive dual thumbscrew belt tracking adjustment locks to keep belt on track during use

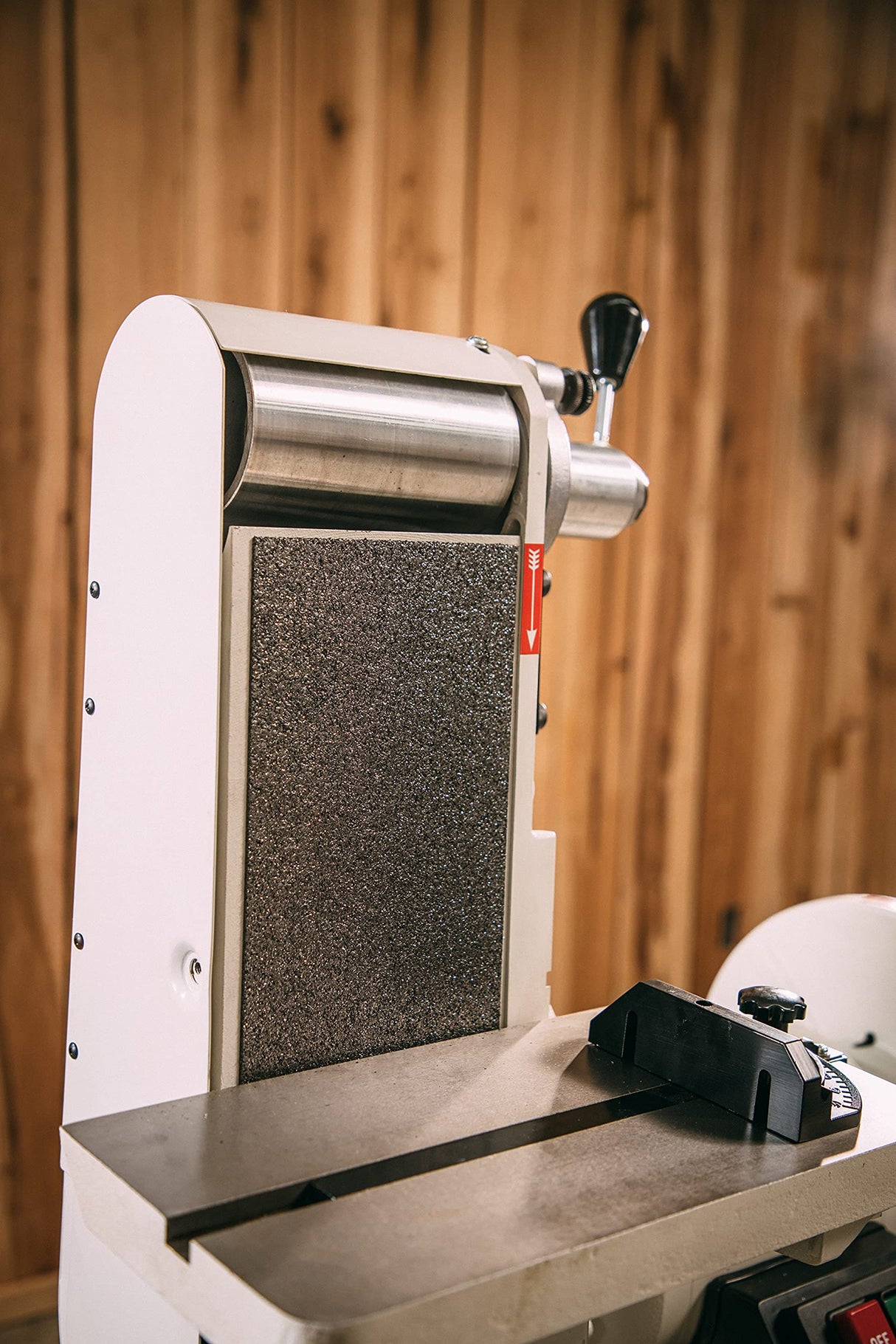

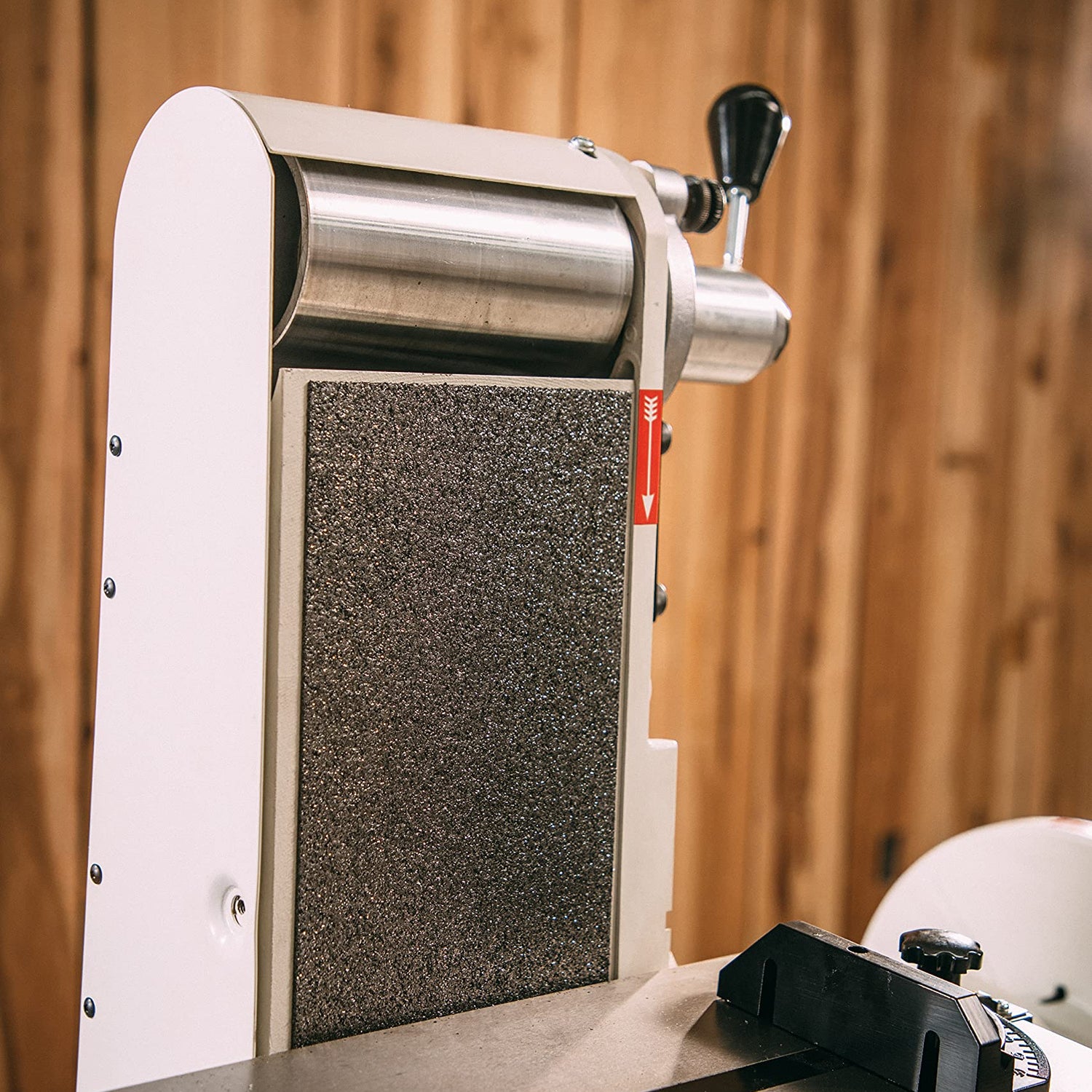

- Graphite-covered steel platen runs cooler, increasing machine and belt life
- Specially-designed belt guard allows full use of the 6" belt width and length
- Drive drum is rubber coated for a better grip on the sanding belt, resulting in less slippage

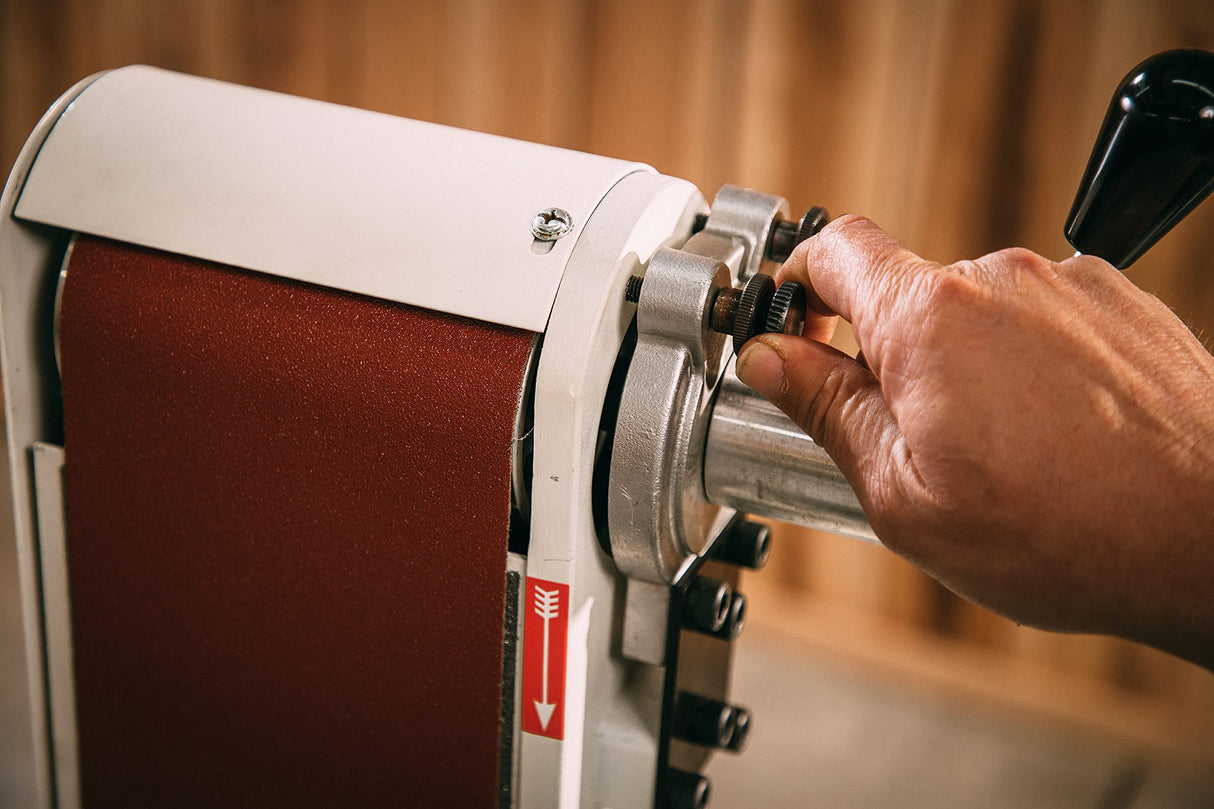

- Tracking adjustment knob with quick-lock handle keeps belt on track during use
- Quick-release belt tension lever makes belt changes fast and easy
Binding: Tools & Home Improvement
model number: 708598K
Part Number: 708598
Details: From the Manufacturer
Belt operates horizontally, vertically, or at any angle in between. Positive settings at 90 and 45 degrees. Quick- change belt tension lever facilitates fast belt changes. Belt tracking adjustments are easily made with exclusive dual thumb screws. Belt guard is designed to allow full use of the belt length. Two ground cast-iron tilting tables with miter gauge slots. Large 12-1/2-by-7-inch belt table and 16-1/2-by-10-inch disc table. Features 1-1/2 hp, 1-phase 115/230-volt motor, pre-wired 115-volt, produces 2,500 sfpm. Comes standard with back stop for horizontal mode, miter gauge, sanding belt, sanding disc, and 4-inch dust chute.
FEATURES

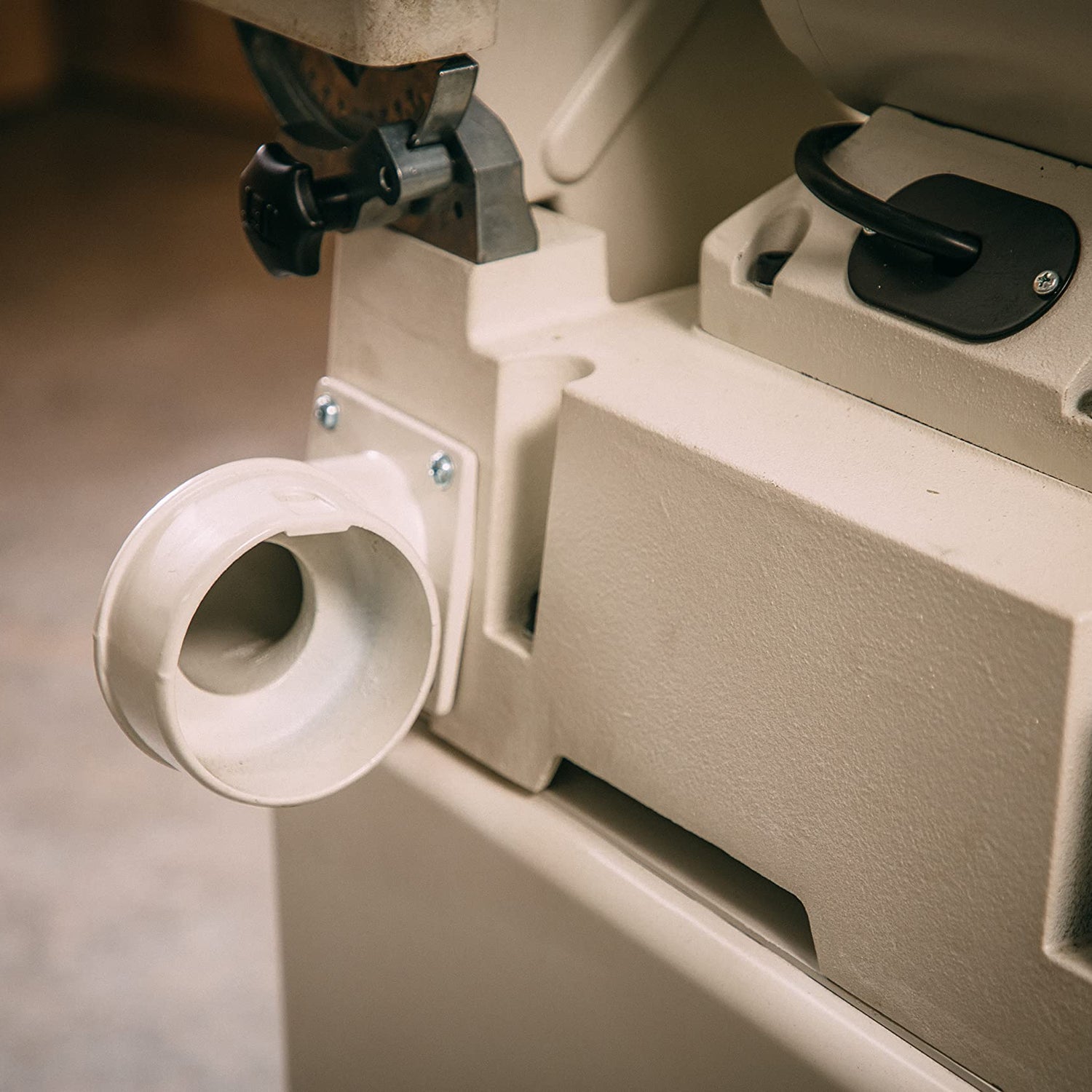

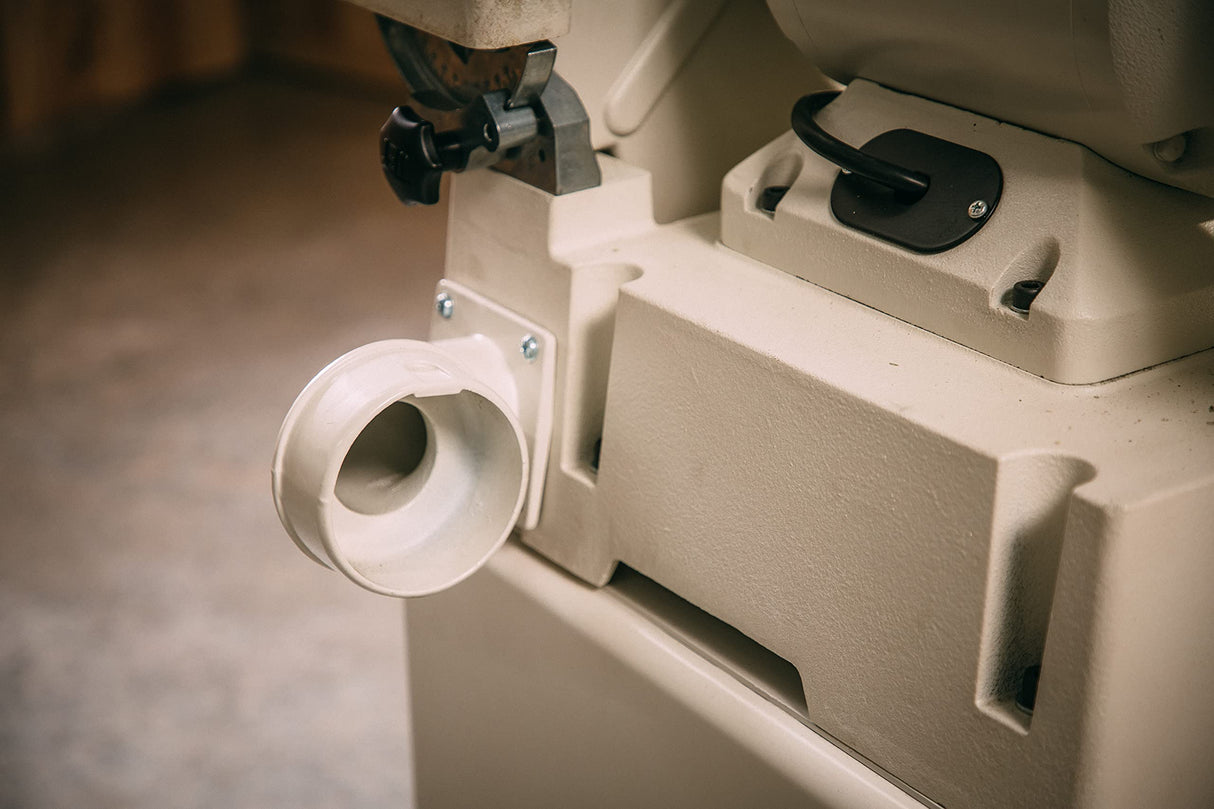

Belt sander operates horizontally and vertically and can be locked at any angle in between Both sanding tables have positional stops at 90 degrees and 45 degrees for quick reference Belt tracking adjustments are easily made with exclusive dual thumb screws The belt guard is designed to allow the full usage of the 6" belt width and length Two precision ground cast iron tables with mitre gauge slots Exclusive design single 4" dust port base which efficiently collects the majority of the dust produced by both sanders before it becomes airborne
STANDARD EQUIPMENT
Back stop for horizontal mode Mitre gauge Sanding belt Sanding disc 4" dust chute
SPECIFICATIONS
Sanding Belt (WxL/in): 6 x 48
Disc (Dia/in): 12

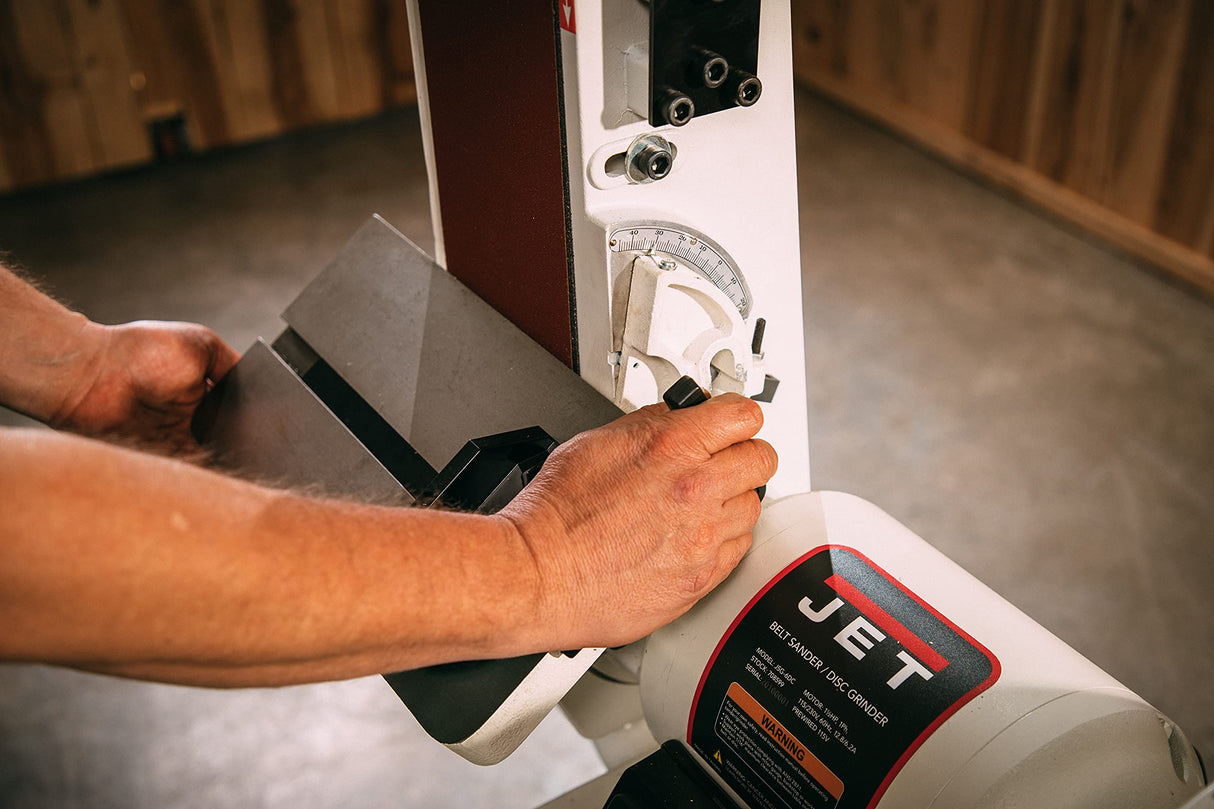

Belt Table Tilt (Down, Up): 45 degrees, 20 degrees

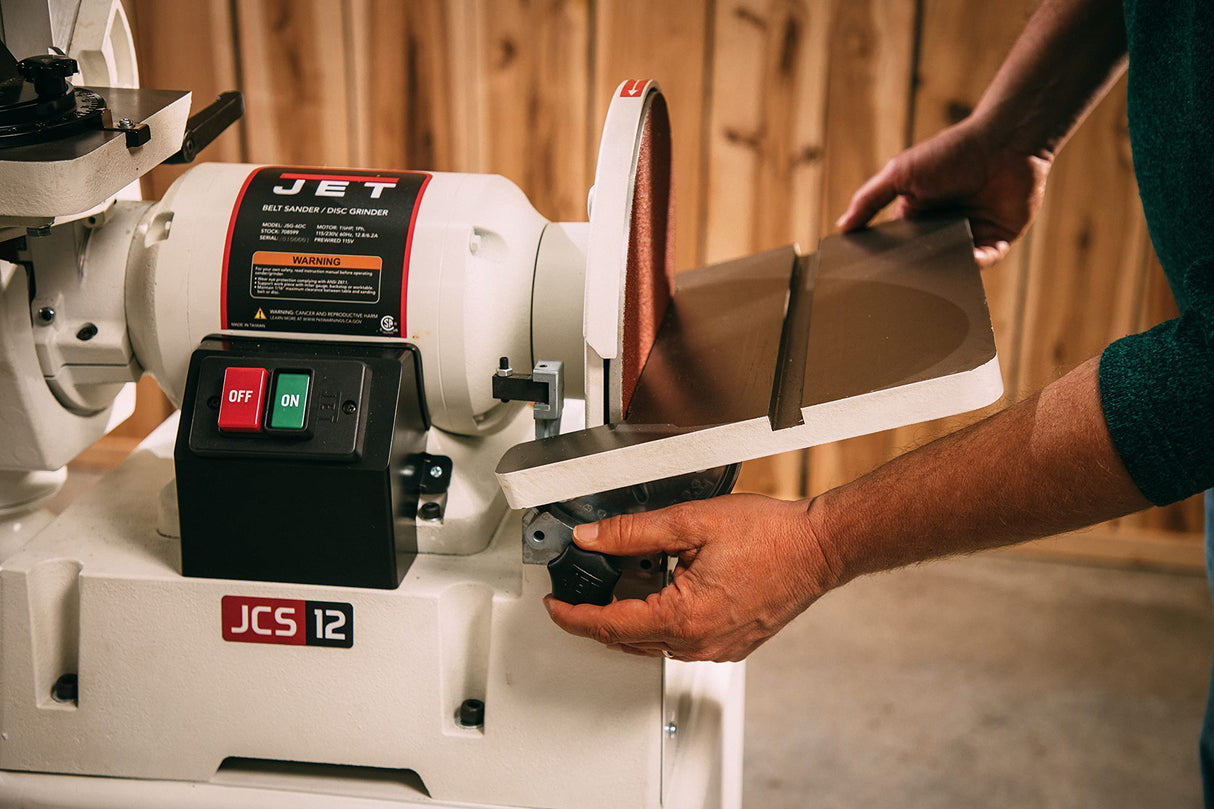

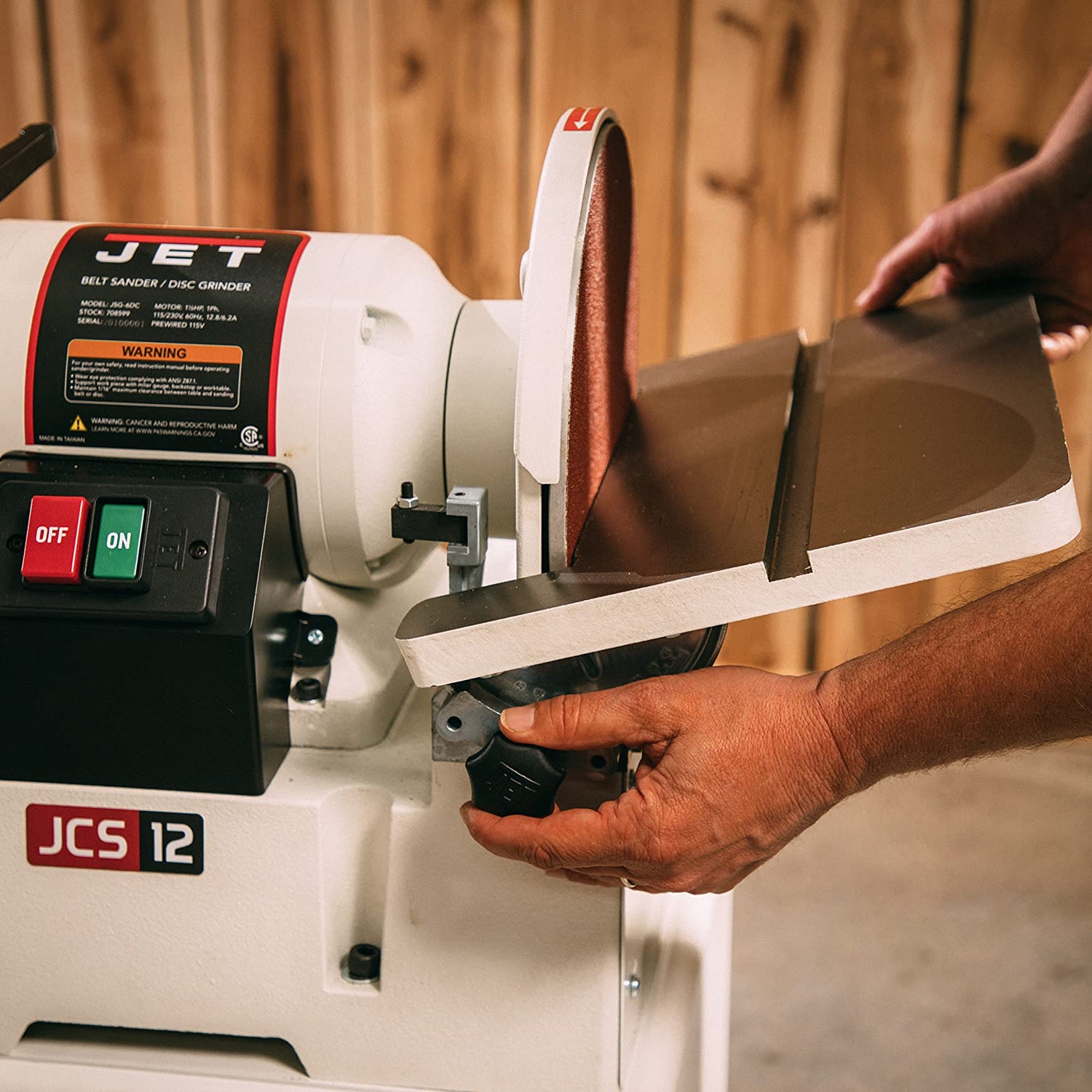

Disc Table Tilt: 45 degrees, 25 degrees
Motor: 1 1/2 HP, 1 Ph 115/230V Prewired 115V
Belt Speed (SFPM): 2,500
Net Weight (lbs): 210
Product Description

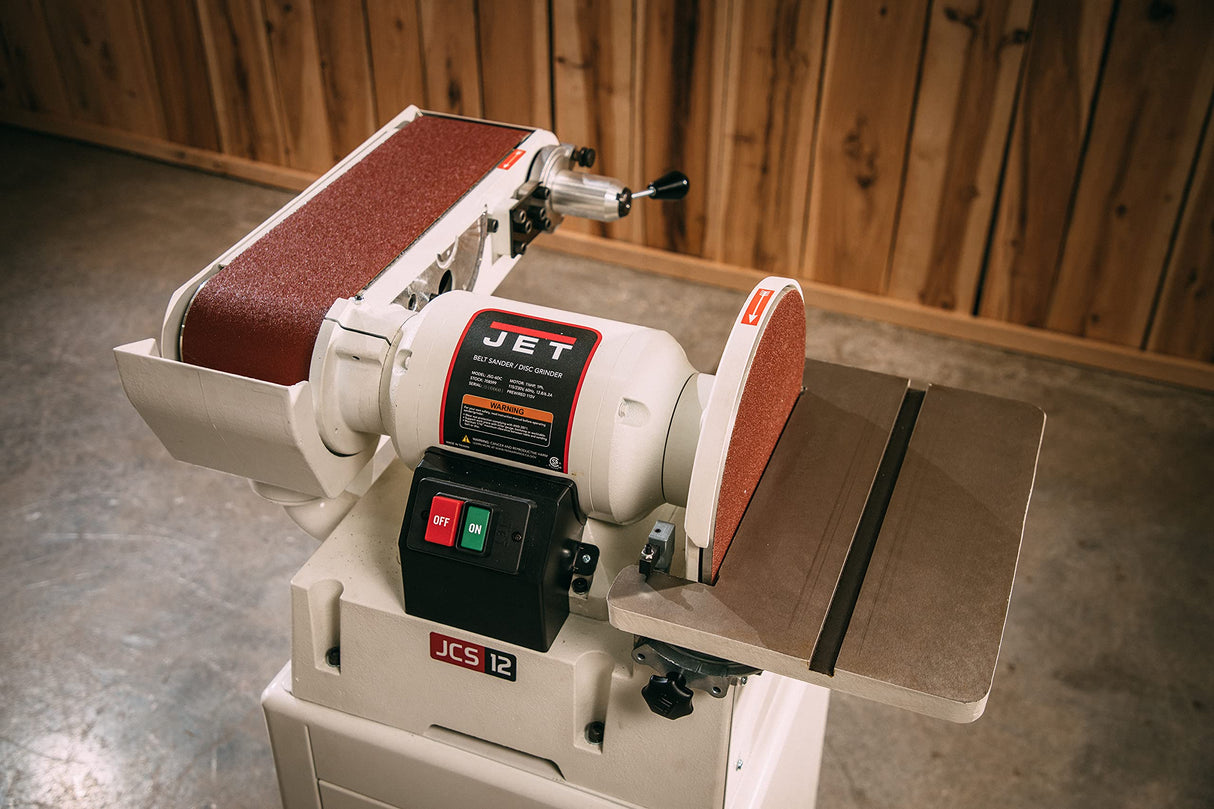

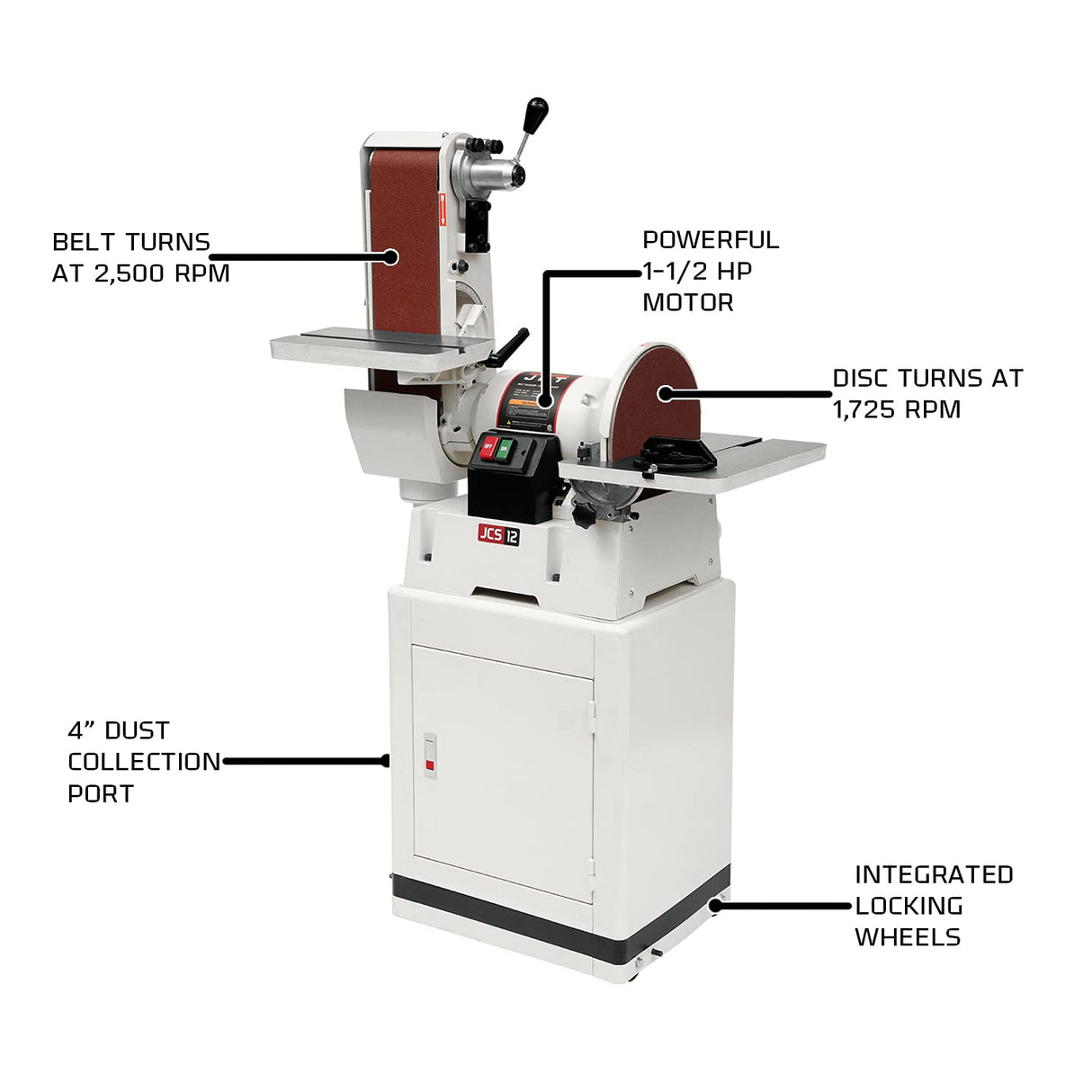

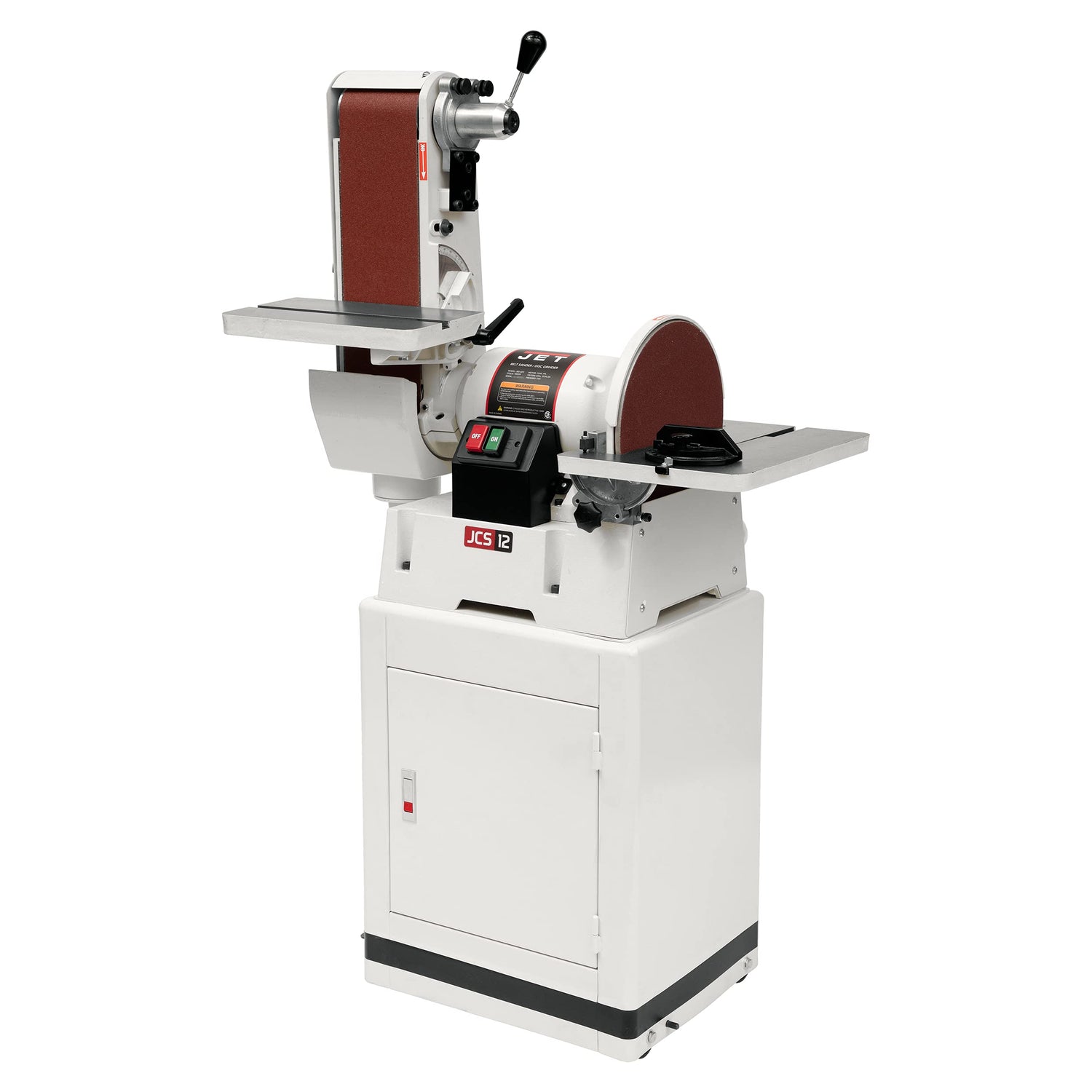

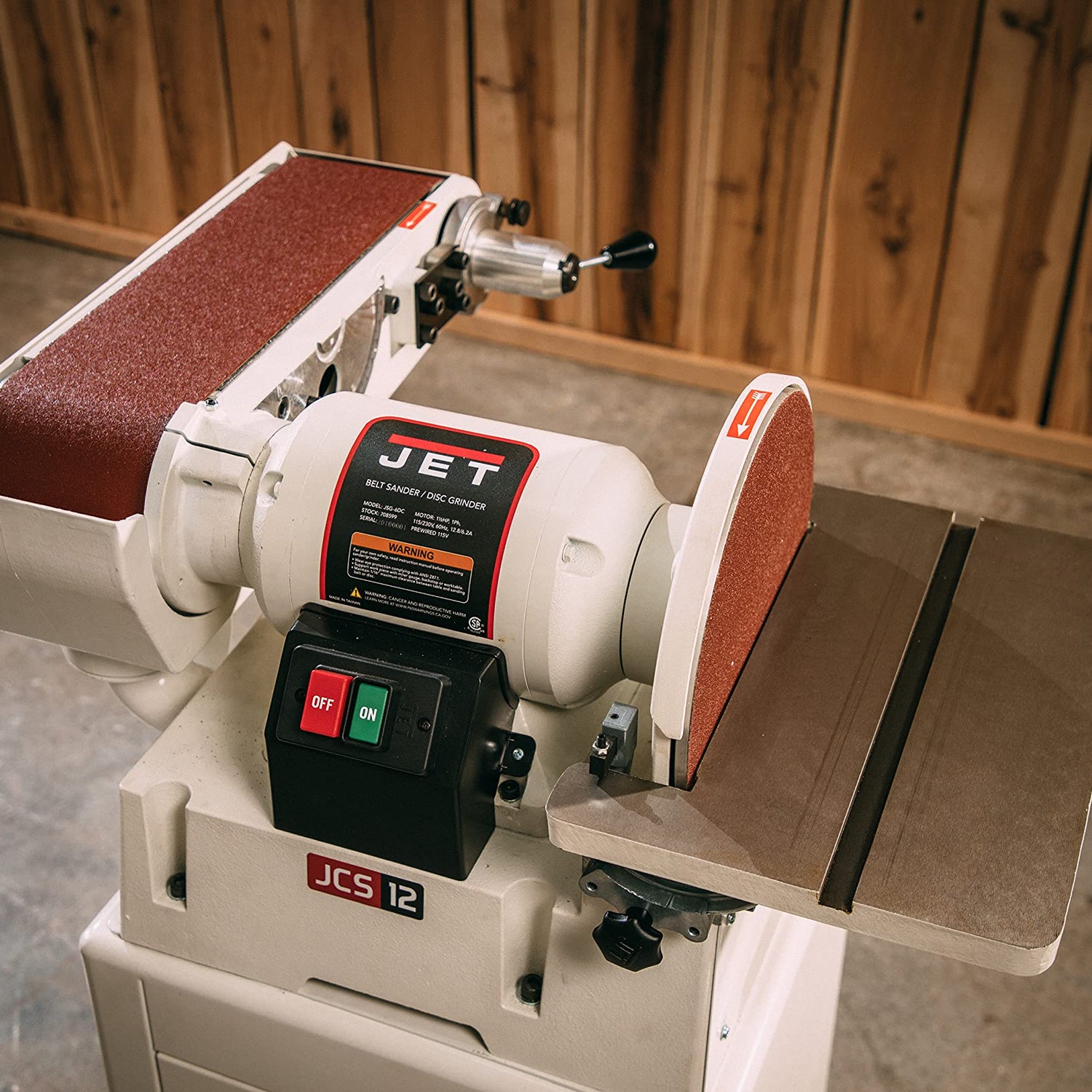

The JET JSG-6CS Sander combines a 12" disc and a 6" x 48" belt to provide raw industrial 1-1/2HP sanding power. The exclusive dual thumbscrew belt tracking adjustment locks to keep the belt on track while tackling any tough application. The sander boasts both a quick-release belt tension lever and a quick-lock dust cover for the disc. The built-in-handle allows for easy portability around the workshop while the included stand saves room on your workbench.
EAN: 0662755199899
Package Dimensions: 29.5 x 28.0 x 20.0 inches
