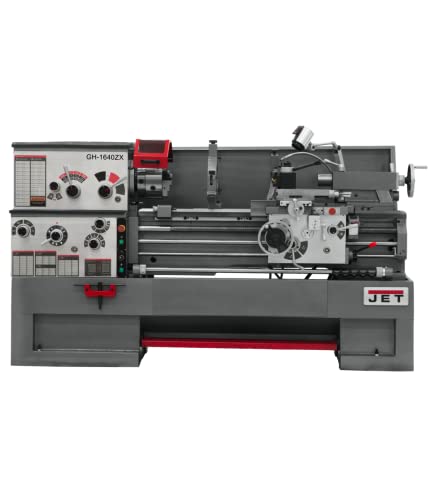

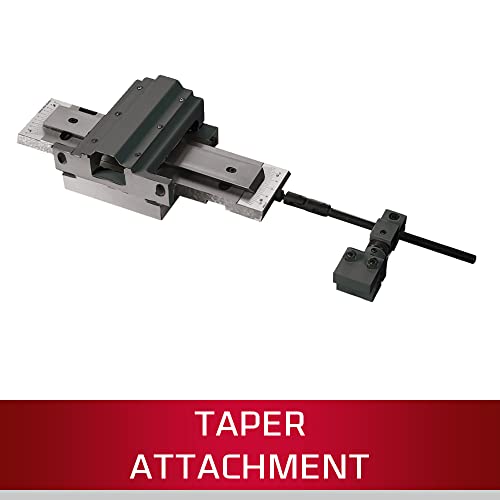

JET GH-1640ZX, 16" x 40" Geared Head Metal Lathe, Taper Attachment, 3Ph 230V (321474)

Brand: Jet

Color: Gray

Features:

• 3-1/8" Bore Spindle: Supported by two tapered and one ball bearing.
• Increased Productivity: Five-position automatic carriage stop.

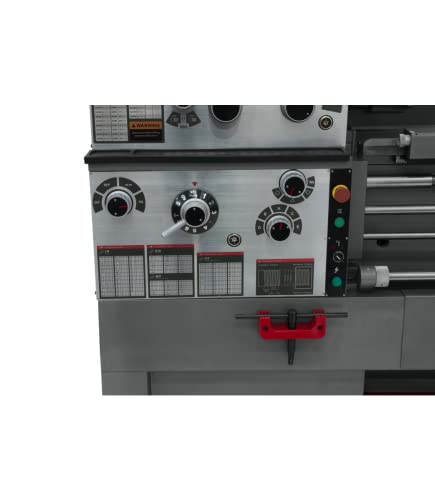

• Ease of Use: Centrally-located controls with jog button, and a large foot brake.
• No Gear Changes: Universal gearbox allows inch, metric, diametral, and module pitch threads.
• Added Safety: Fully-integrated coolant system features a full-length splash guard and coolant return.
• Minimal Vibration: One-piece cast iron base allows for heavier cuts and ensures accuracy.

Binding: Tools & Home Improvement

model number: 321474

Part Number: GH-1640ZX LATHE W/TAK-ZX

Details: Product Description

The JET ZX Series Large Spindle Bore Lathe provides power, precision, efficiency, and reliability to your metal shop. A one-piece cast iron base absorbs vibrations during operation to allow heavier cuts and ensure accuracy, while the universal gearbox eliminates the need to change gears. This lathe also features a 10" 3-jaw scroll chuck with top reversing jaws, and an e-stop on the carriage for increased operator safety. These are features you've come to expect in a JET Lathe, and are backed by an industry-leading JET two-year warranty.

From the Manufacturer

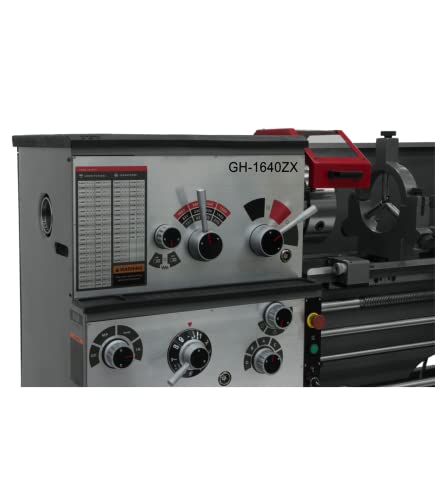

Our ZX series large spindle bore lathes are a JET exclusive!! The 3-1/8" spindle bore is supported by two tapered and one ball bearing, while the headstock gears are hardened, ground, shaved and composed of chrome molybdenum. The universal gearbox allows inch, metric, diametral, and module pitch threads with no change of gears required. The carriage features one-shot lubrication, Turcite-B on bed sliding surfaces, and five position automatic carriage stops to increase productivity. The T-slotted compound slide features a four-way tool post. A removable gap allows up to 23-5/8" diameter work. The high quality ANSI Class 50 wear-resistant cast iron bed ways are hardened and ground, while the one-piece cast iron base absorbs vibration allowing for heavier cuts. ISO 9001 certified manufacturer. Standard features include; 10" 3-jaw chuck with top reversing jaws, 12" 4-jaw chuck, 12" faceplate, follow rest, steady rest, coolant system w/splash guard, foot brake, work lamp, mounting pads and levers, spindle sleeve, dead & live centers, and tool box and tools.

EAN: 0662755515040

Package Dimensions: 98.0 x 48.0 x 40.0 inches
