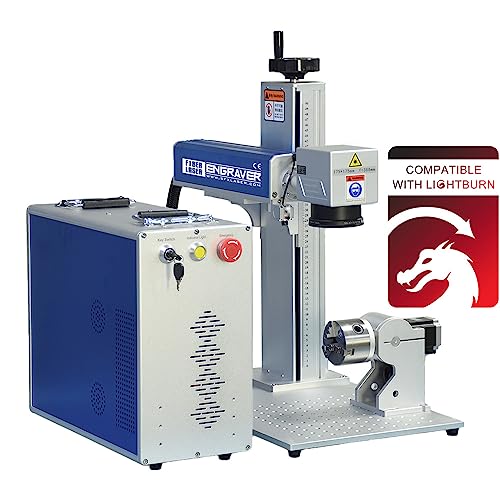

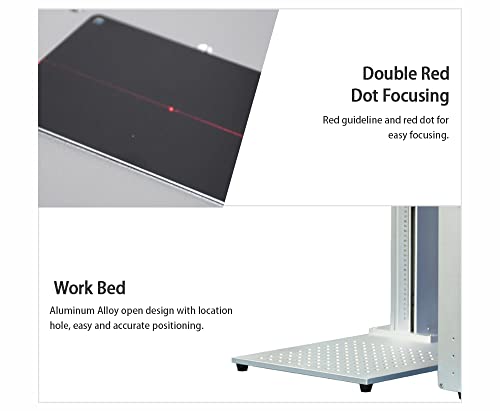

JPT Fiber Laser Marking Machine Fiber Laser Engraver 50W, 300×300mm with 80mm Rotary Axis and Hightened 800mm Tower Lightburn Compatible
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: SFX
Color: BY-50GS-JPT+80mm Rotary Axis
Features:
- Laser Class 4, 50,000mW Output Power.

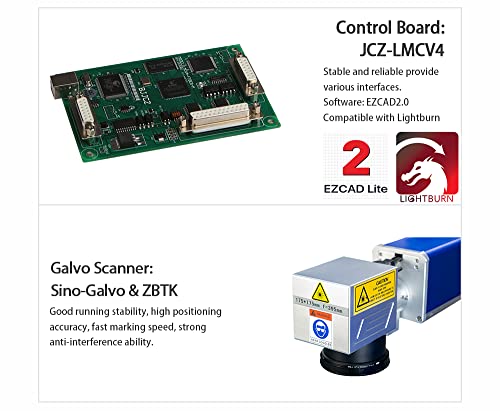

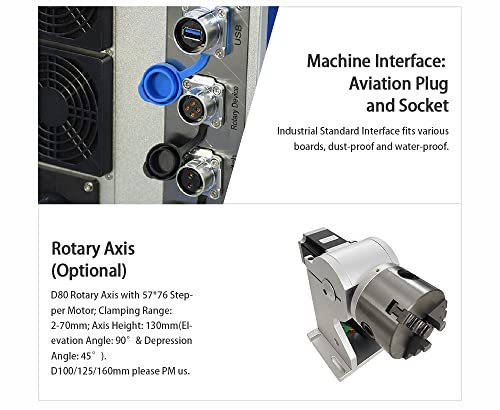

- Laser Power: 50W+Lens(Marking Area): 300*300mm+80mm Rotary Axis+EZCAD2(Compatible with Lightburn)+Heightened 800mm Tower

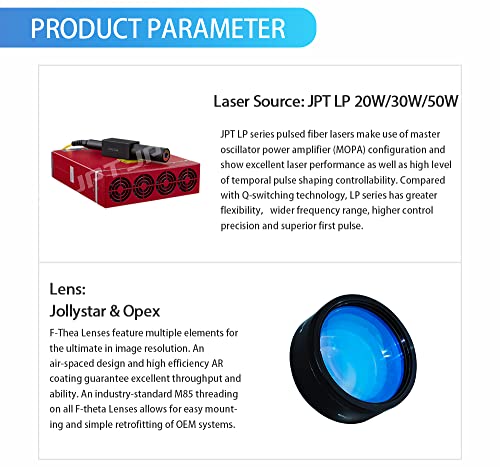

- Laser Source: JPT LP+; Repetition Rate Frequency: 1-600kHZ; Pulse Duration: 200ns
- Application Advantage: Silicone buttons -Metal Deep Carving -Stainless steel black -Metal Surface Treatment -High Frequency Line Processing. Marking on Metals like Aluminium Gold Silver Platinum Silver Titanium Brass Tungsten Carbide Nickel Stainless Steel Chrome Copper and non metals like ABS, PBT, Silicon, ABS, PS, Polymer and others.
- High-Rate of Electrical-Optical Conversion: up to 70%; Imported laser scanning system makes the marking speed up to 7m/s. Re-position precision is 0.002mm

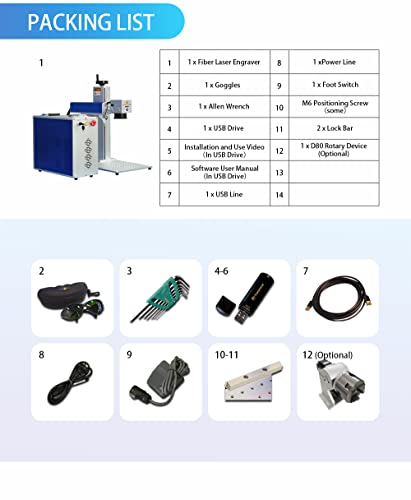

Details: Packing Details:
50W JPT Fiber Laser Engraver with 300*300mm Lens 80mm Rotary Axis

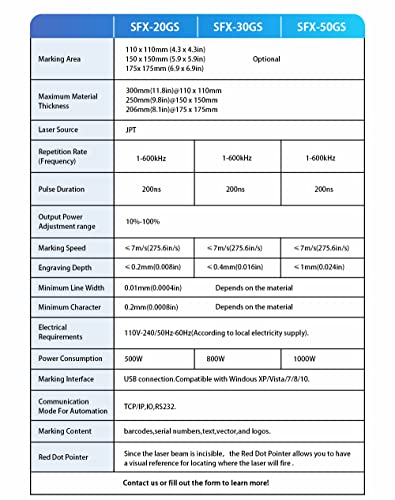

Technical Parameters:
Laser Power: 50W Marking Area: 300*300mm Laster Source: JPT LP+ Repetition Rate Frequency : 1-600kHZ@JPT Pulse Duration: 200ns Output power adjustment range 10%-100% Marking Speed: 7m/s Engraving Depth:≤1.0mm Min. Line Width: ≤0.01mm（Depends on the material) Min. Character: 0.2mm（Depends on the material) Input Voltage: 110V-240V/50-60Hz Complete Power Consumption: 1000W Communication Mode for Automation TCP/IP, IO,RS232
Application Advantages:

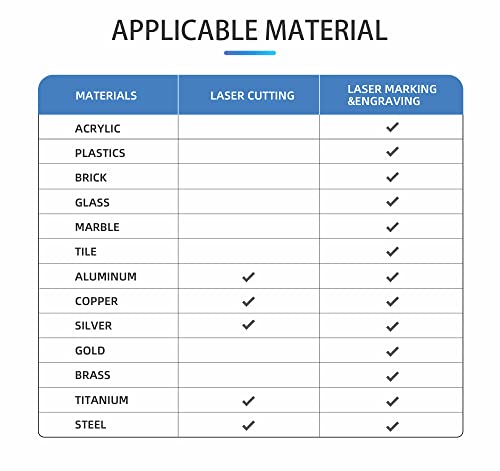

Silicone Keypad Marking Metal Deep Engraving Metal Surface Processing High Frequency Line Processing Communication Mode for Automation TCP/IP, IO,RS232 The machine can be compatible with software files such as Coredraw, AutoCAD, Photoshop;PLT,PCX,DXF,BMP,etc supported. Applicable Material: Aluminum, Stainless Steel, Brass, Copper,etc. Also some of nonmetal such as nylon, light button, ABS, PVC, PES,etc.
EAN: 0782902352103
Binding: Office Product
Part Number: BY-GS-JPT
