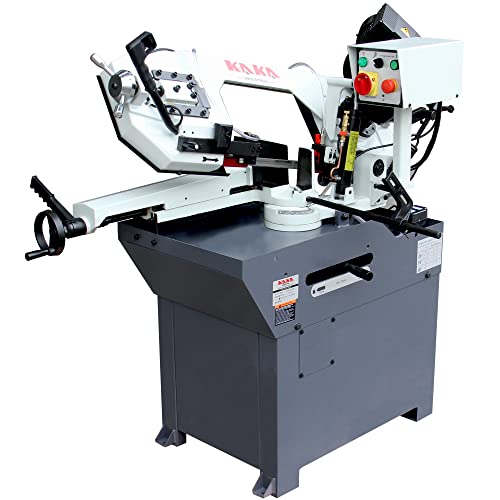

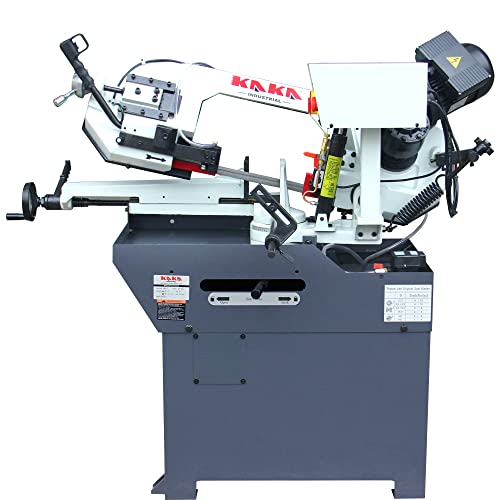

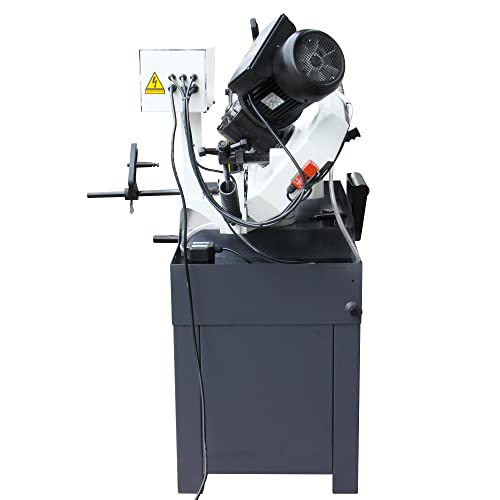

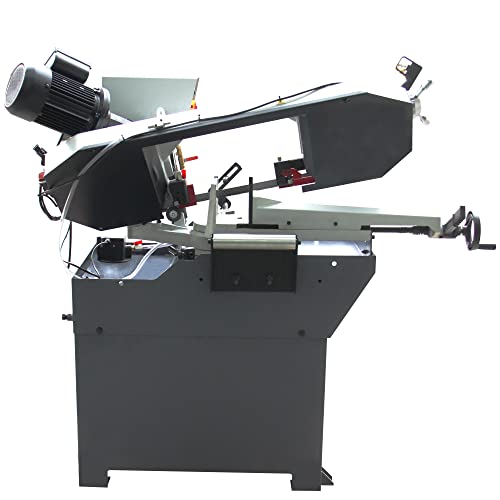

KAKA INDUSTRIAL BS-108G horizontal bandsaw, 10”x7.9" round metal stock at 90°. Swivel head miters up to 60°.Metal Cutting Band Saw Motor power 1.1kw

KAKA INDUSTRIAL BS-108G horizontal bandsaw, 10”x7.9" round metal stock at 90°. Swivel head miters up to 60°.Metal Cutting Band Saw Motor power 1.1kw

Hand Chosen Products
All Items are Highly Rated
Top Quality is Assured!

$1,999.99 USD

Sale Sold out

*** View Full Details & Shipping Info on Amazon***

Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.

Brand: KAKA INDUSTRIAL

Color: Grey

Features:

1、Runs on single phase motor, the saw could be used anywhere
2、Cut 9" round and 10"x7.9" rectangulear at 90 degrees
3、The saw frame max. miter 60° with angle indicator to show swivel angle
4、Quick act lock handle to fixed the swivel head 5、Directly gear drive bandsaw

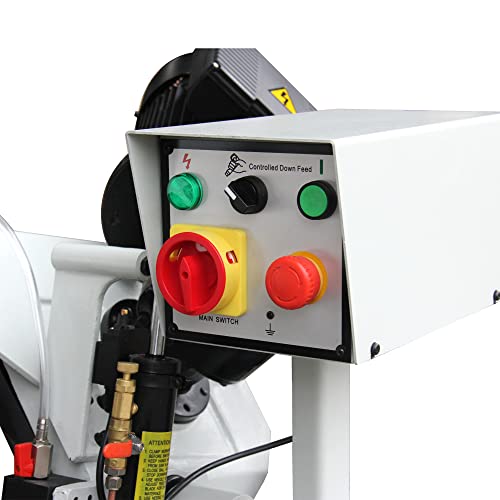

6、Hydraulic descent, start the machine from the operation panel, and will stop when cut ting completed 7、Material stop allows you make repeat cuts 8、Built in cooling system, cooling and lubricate keeps the blade clean and long term use

model number: 188017V115

Part Number: 188017V115

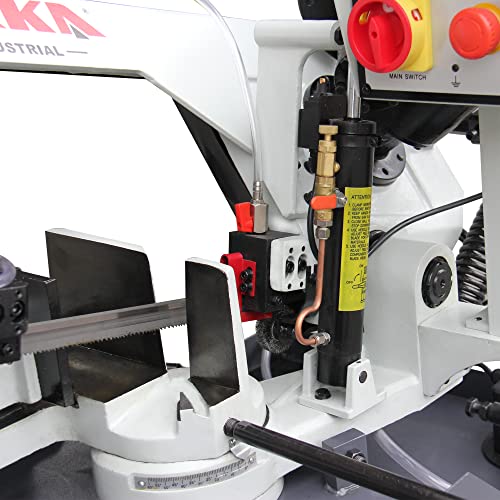

Details: Description Rigid cast-iron design with steel base serving as utility shelf Coolant pump ensures longer service life of saw blade and improve the precision of work piece Scale on the vise allows easy adjustments for angle cuts Quick adjusting vise for angular cuts—the saw frame swivels, not the material. Hydraulic cylinder for controlled descent Accident preventing devices on the fly wheel casing and on the blade Vertical rotation on bolt with adjustable tapered bearings without backlash Band stretching is obtained by electro-mechanical blade tension with micro switch European design, dovetail-type clamp movement and locking mechanism Worm gear box transmission structure The calibration of the jaw is convenient for adjustment and positioning at any angle (Scale on the vise allows easy adjustments for angle cuts) The falling speed of saw bow is controlled by hydraulic cylinder
Specification:
Item No.188017
Model:BS-108G
CapacityCircular @90°:9”
Rectangular @90°:10”x4.3”
Circular @60°(right)3.5”
Rectangular @60°(right)3.3”x3.3”
Circular @45° (right)6”
Rectangular @45°(right)5.9”x5”
Blade speed @ 60Hz4P, 36MPM 118 FPM
Blade size:1x0.035x96 in
Motor power:1.5HP (Single Phase)
Drive:Gear
Packing size (body)55x28x43 in
Packing size (body)Together with in body
N.W./G.W.418/579lbs
Standard accessories:

Blade
Electric coolant system
