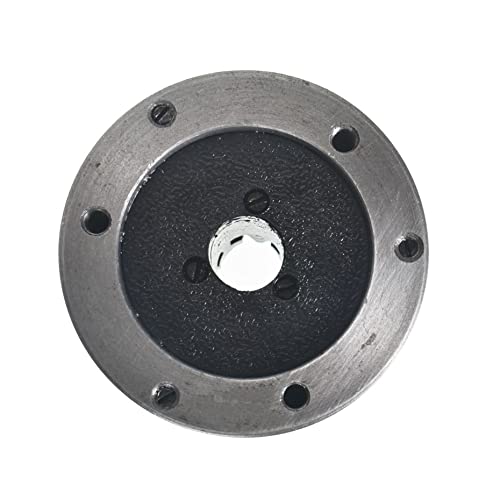

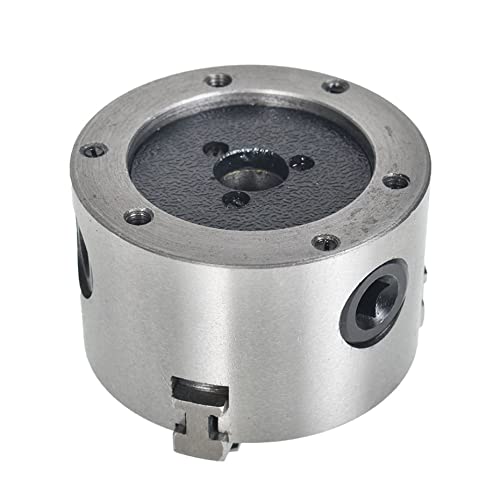

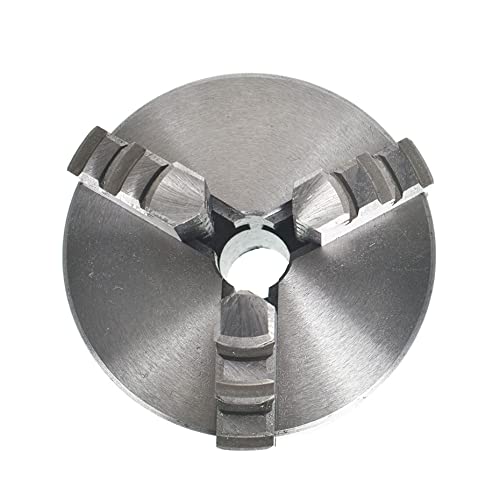

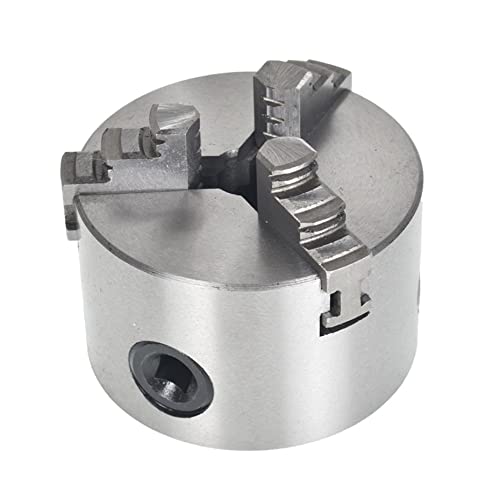

kimllier K11-80 3-Jaw Self Centering Lathe Chuck 80mm(3-Inch) Diameter Fit for CNC Drilling Milling Machine Wood Turning
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: kimllier
Features:
- Material: The centering chuck is made of high-quality steel and clamped firmly
- Overall display: 1 x internal jaws set, 1 x external jaws set, 1 x wrench and 3 x screws
- Long Service Life: Both sides of jaw teeth and guides are ground, wear-resistant and durable, could be used for a long period
- Main Parameter: 3 jaw self-centering design lathe chuck. Diameter: 80 mm (3.15inch), Internal clamping range: 2-22 mm (0.078-0.866inch), Jamming range: 25-70 mm (0.98-2.756inch), External clamping range: 22-63 mm (0.866-2.48inch)
- Applicable Range: The chuck is suitable for machine tools and accessories for general lathes, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories
Part Number: KM-1857118-570909-LR
Details: K11-80 3-Jaw self centering lathe chuck is widely used, with good clamping force and tight sealing performance.
Specification:
Model: K11-80
Jaw: 3 Jaw
High precision: ≤0.05mm
Color: Silver
Mounting Thread: 3-M6
Lathe Chuck:
Size: 80 mm (3.15")
Outside Diameter: 80 mm (3.15")
Bolt Circle Diameter: 66 mm (2.6")
Center Thru Hole Diameter: 16 mm (0.63")
Chuck Body Thickness: 50 mm (1.97")
Internal Jaw Clamping Range (A-A1): 2-22 mm (0.078"-0.866")
Internal Jaw Jamming Range (B-B1): 25-70 mm (0.98"-2.756")
External Jaw Clamping Range (C-C1): 22-63 mm (0.866"-2.48")
Accuracy: 0.002"
Features:
Made of high quality material, the chuck base is hardened and durable, could be used for a long period
The chuck is suitable for machine tools and accessories for general lathes, economical CNC lathes

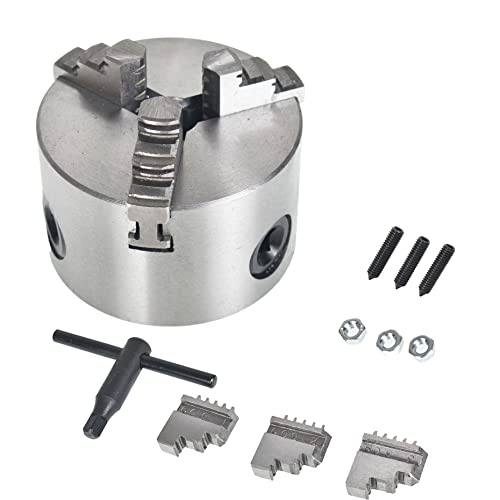

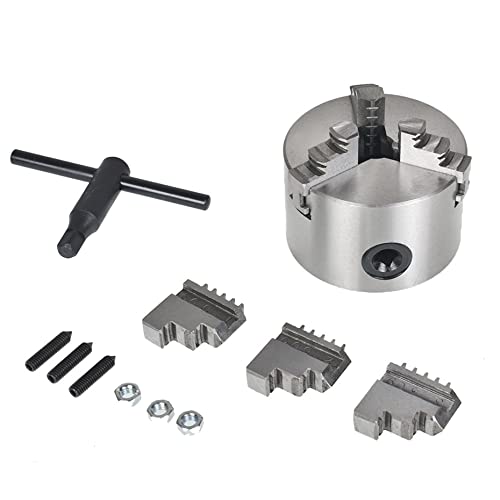

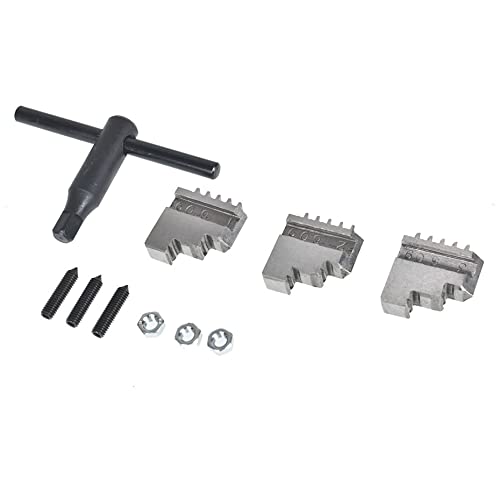

Package Includes:
1 x 80mm/3-Inch Lathe Chuck Body
1 x Internal Jaws Set
1 x External Jaws Set
3 x Mounting Bolts
1 x Chuck Key
Package Dimensions: 13.3 x 5.5 x 5.1 inches
