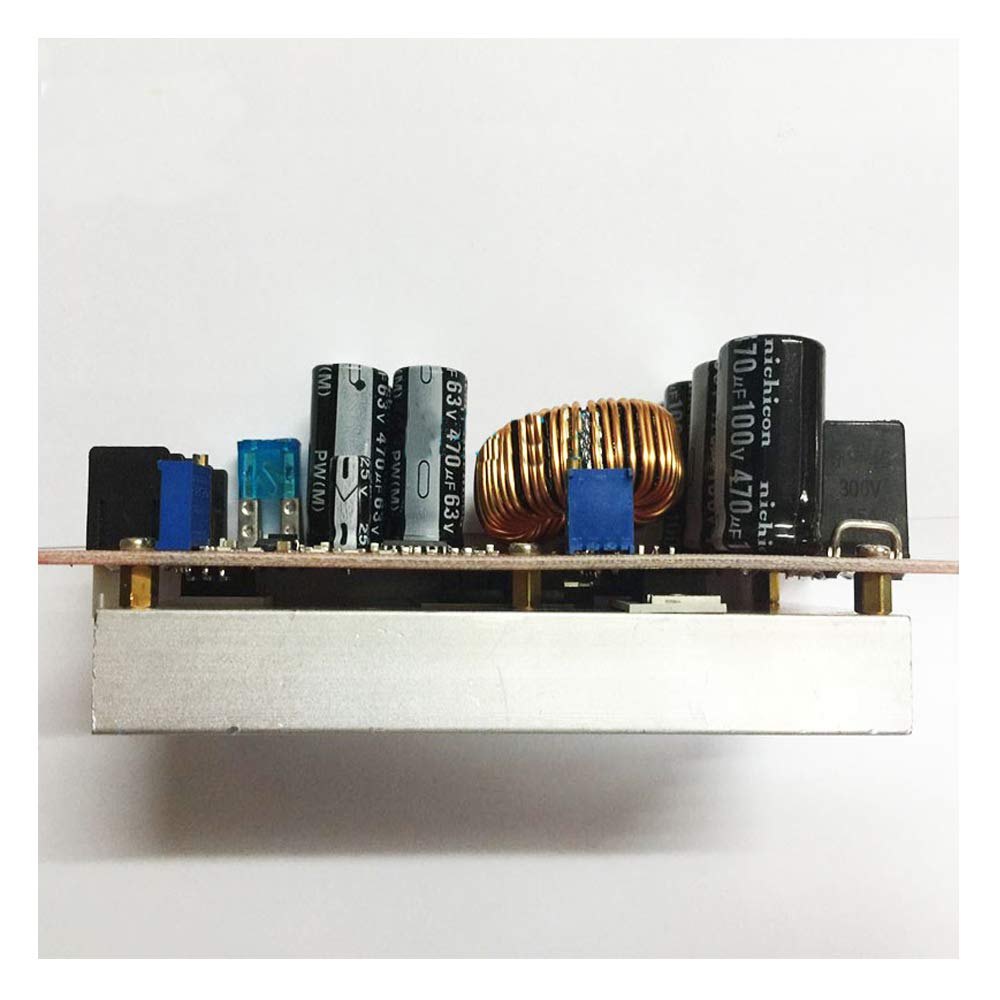

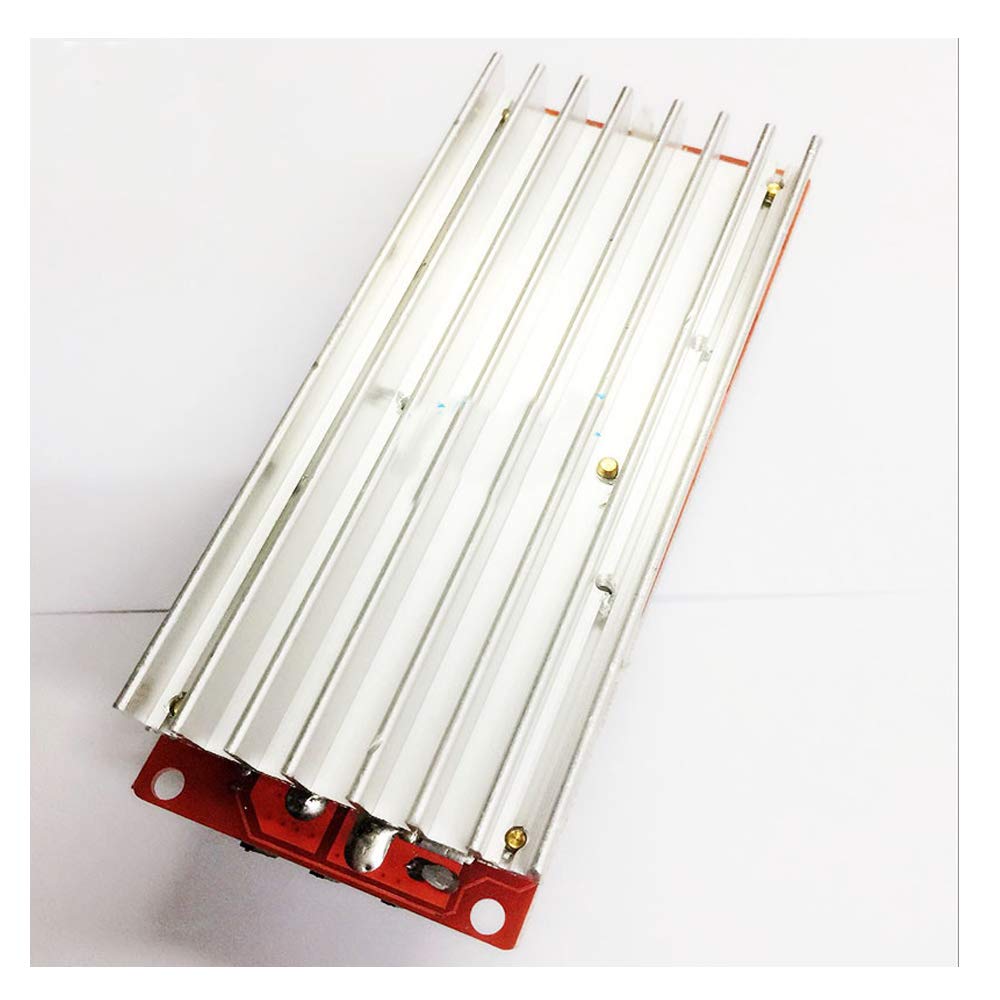

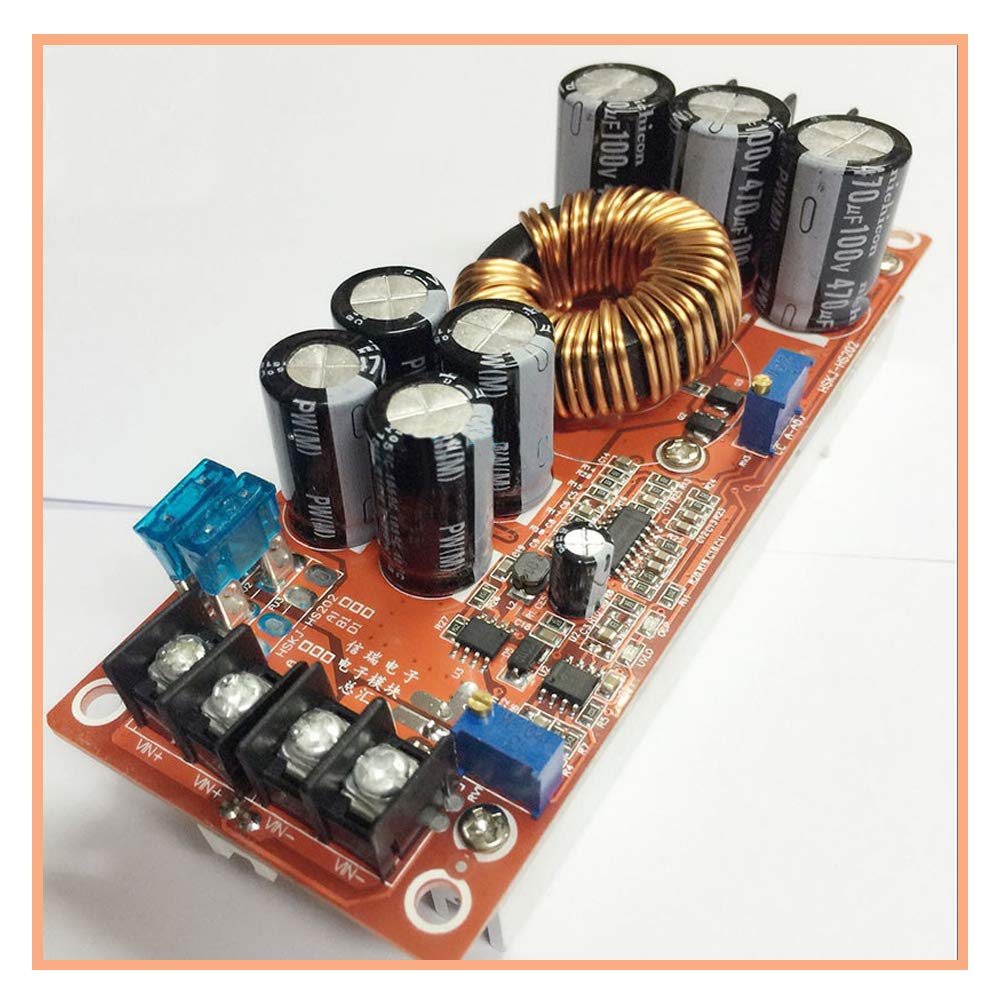

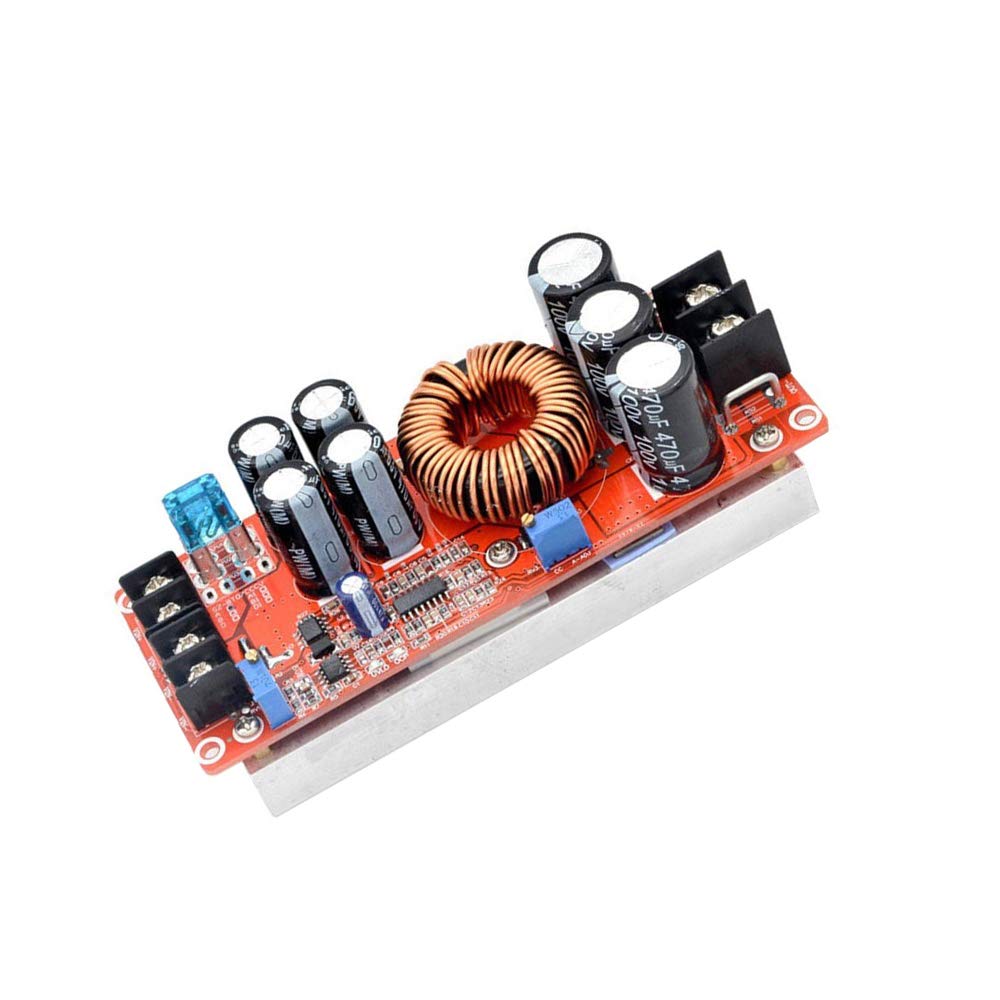

KOOBOOK 1Pcs 1200W 20A DC Car Step-up Power Supply Module Boost Converter Adjustable 10-60V to 12-83V

Brand: KOOBOOK

Features:

• It's a non-isolated boost power supply module,with input overcurrent protection,Short circuit protection,Input reverse connection protection and Low battery protection.
• When using battery power, if the battery loses power, it will not damage the power module and battery.
• Widely Application:DIY a regulated power supply, input 12V, the output can be adjusted 12-80V;DIY a high-power notebook mobile power;As a car power supply, power your laptop, PDA or a variety of digital products;
• Solar panel voltage regulator;Charge the battery, lithium battery, etc.;Drive high-power LED lights;
• Note:Never use a short-circuit output to adjust the current. The circuit structure of the boost module cannot be adjusted by short circuit.

Binding: Electronics

model number: KB259

Part Number: KB259

Details: Specifications:

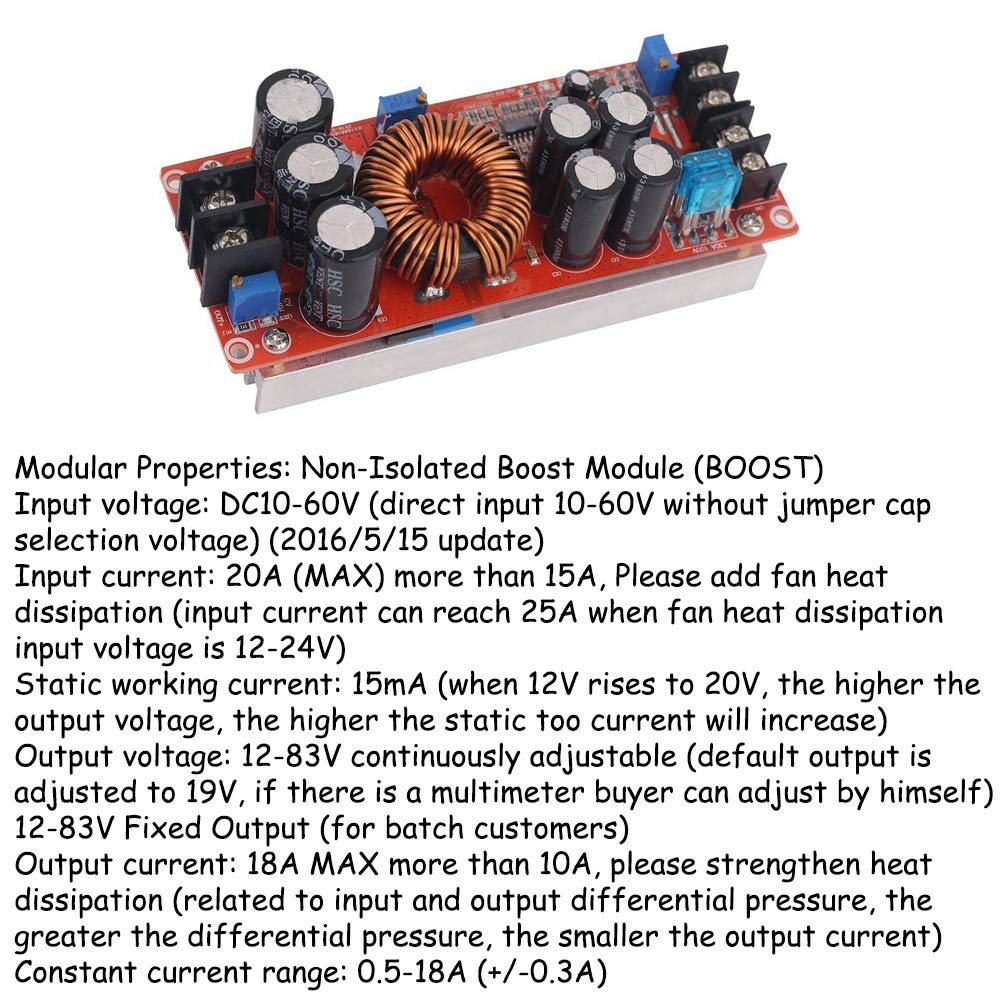

Input voltage: DC10-60V(direct input 10-60V without jumper cap selection voltage)
Input Current: 20A(MAX) exceed 15A, please add fan cooling,add fan input current can reach 25A when the fan input voltage is 12-24V)
Quiescent current: 15mA (12V liter 20V, the output voltage, the higher the current will increase too quiet)
Output voltage: 12-83V Continuously adjustable (default output 19V, buyers can use the multimeter to adjust itself)
Output Current: 18A MAX Over 10A, please enhance heat dissipation (input, output pressure related, the greater the pressure the smaller the output current)
Constant Range: 0.5-18A（+/-0.3A)
Input anti-reverse connection: Yes (150A power MOS anti-reverse)
Low battery protection: yes (9-50V adjustable)

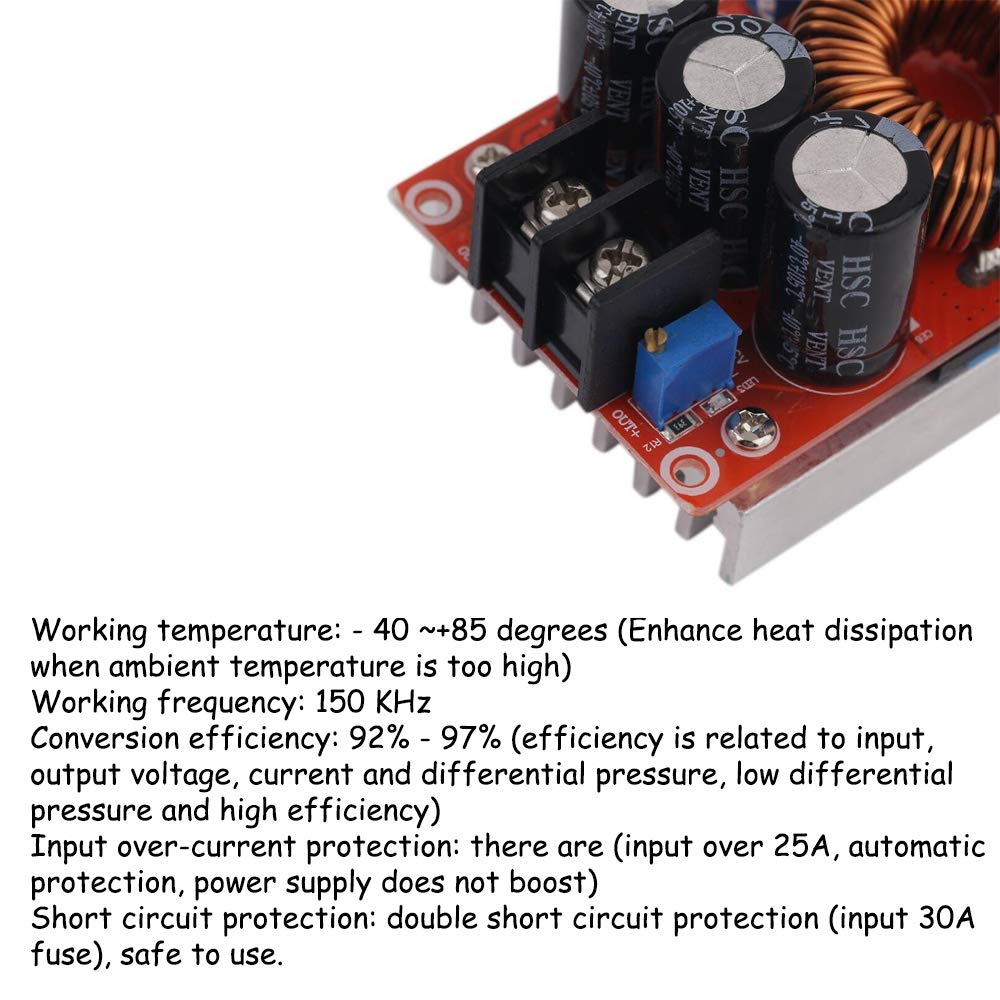

Working temperature: -40 to + 85 degrees (ambient temperature is too high, please enhance heat dissipation)
Operating frequency: 150KHz
Conversion efficiency: 92%-97% (efficiency and input and output voltage, current, pressure related)
Overcurrent protection: Yes (Input more than 25A, automatic protection, power does not boost)
Short circuit protection: Yes (input 30A fuse) double short circuit protection, the use of more security.
Input reverse polarity protection:Yes(150A power MOS tube anti-reverse. Can be reversed for a long time)
Installation: four 3mm copper columns
Connection: terminal block (please use high current pure copper wire)
Size:130x52x53mm
Weight: 300 g
Output Power:Input voltage * 20A, such as: input 12V * 20A = 240W, input 24V * 20A = 480W,Enter 36V * 20A = 720W（The above refers to the maximum power）

We highly appreciate all customers opinions to improve the selling, also if anything you unsatisfied, please contact us for probable best solution.

Package Includes: 1Pcs

EAN: 0682559867992

Package Dimensions: 6.0 x 6.0 x 2.2 inches
