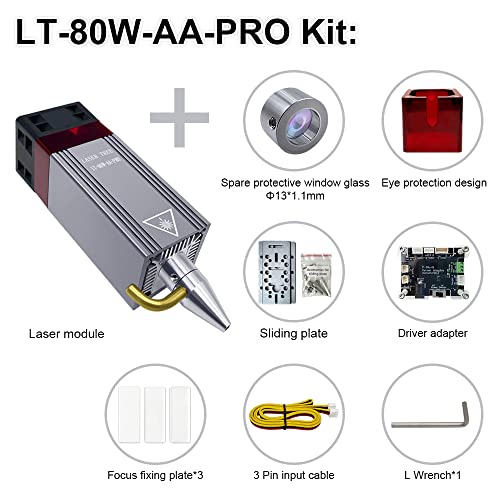

Laser Module with Air Assist, 80W Laser Engraving Cutting Module for Wood, 10W Output Power, Built in FAC, Compressed Spot CNC Carving DIY Laser

Brand: LASER TREE

Color: LT-80W-AA Pro 12V Kit

Features:

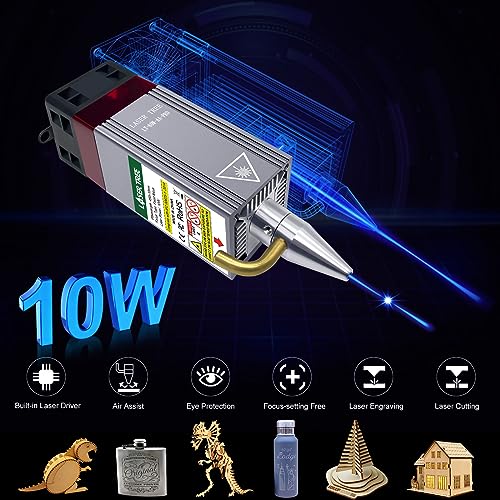

• 【POWERFUL LASER MODULE】The LASER TREE diode laser module has 80W machine power and 10W optical output laser power. Directly engraving mirror stainless steel: no need to paint black; Super fast engraving speed: 304 stainless steel, up to 300mm/s with 45mm focus length; And remarkable cutting ability: cutting through 8mm thickness plywood by one pass at a speed of 1.5mm/s with 45mm focus length.

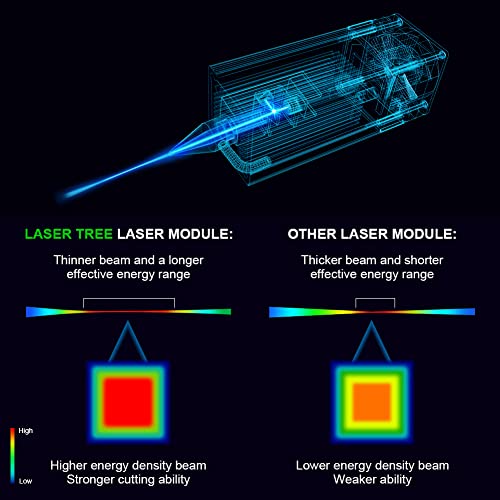

• 【Original diode with FAC】Original diode, high quality,20,000 hours lifetime! Built-in FAC to make the beam size much smaller at focus (0.08*0.08). Power adjustable: supports 5V PWM modulation; Laser wavelength: 450nm; Input: DC 12V 3.2A; Input: XH2.54-3P socket; Simple control line installation method: Pluggable. Excellent compatibility with 3D printer, DIY laser machine, laser engraver, laser cutter and CNC routers.

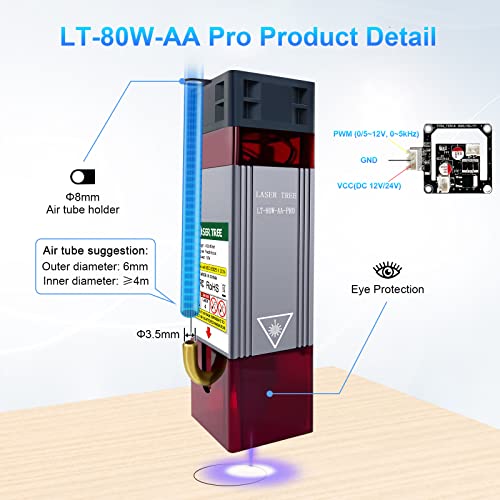

• 【UPGRADED LASER HEAD】a. The laser engraver module upgraded to a 6mm diameter bending air metal nozzle which better reduces air resistance. Cut faster deeper, and smooth cutting surface with fewer burn marks; b. The magnetically attached laser shield on the laser module filters 97% of UV rays to protect your eyes and those around you; c. The top of the laser module adds fan protection and an air tube holder 2-in-1 stainless steel piece; d. Laser module mounting bracket for easy installation.
• 【WIDE RANGE of APPLICATIONS】Widely used in plywood, Pine board, wood, stone, bamboo, coated glass, Brushed /Mirror stainless steel, black acrylic, plastic, leather, aluminum oxide, non-reflective electroplating layer, and lacquered metal, after blackening Utility knife etc. (Note: Unable to engrave blue/purple/white/transparent material and aluminum without oxide layer) You can create exquisite Christmas cards, commercial signs, Models cutting, greeting cards, engraved drawings, etc.

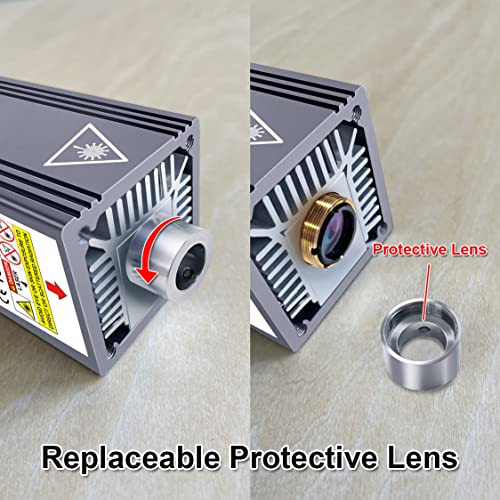

• 【COMPREHENSIVE & TRUSTTWORTHY AFTER-SALES SERVICE】Please choose the 12V or 24V laser module Kit according to the DC of your machine motherboard. Laser Module Protective Window Glass can't have Fingerprints, it will Affect the Cutting Ability and the Power Decreases of the Module. If You Need Pre-sale Consultation or Encounter any Problems,Please Feel Free to Contact us Directly.We have Professional Engineer Team will Troubleshoot and Solve the Problem for You!

Binding: Office Product

model number: LT-80W-AA Pro 12V

Part Number: LT-80W-AA Pro

Details: Laser Module LT-80W-AA 12V Description:

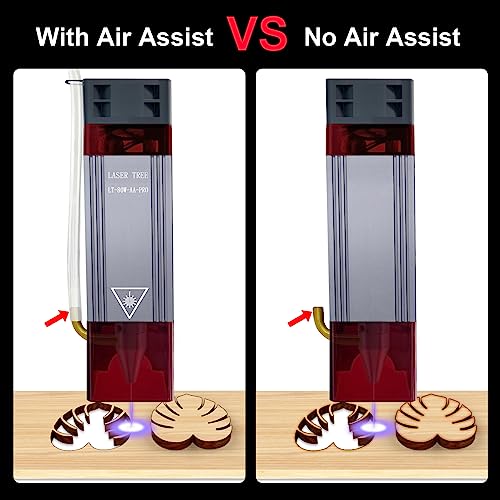

1. Laser module with Air-assist: Blowing through the air nozzle, which improves cutting performance and reduces burn marks.
2. Super fast engraving speed: 304 stainless steel, ultra-fast engraving on stainless steel-30mm/s.

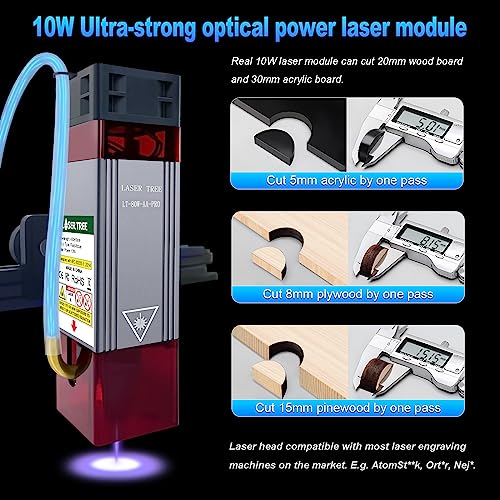

3. Remarkable cutting ability: Our laser cutting module cuts through 8-10mm thickness plywood by one pass at speed of 1.5mm/s.
4. Fixed focus laser head: suitable for three-axis engraving machine, easy to install.
5. Original diode: Original diode, high quality, 20,000 hours lifetime!
6. Strong compatibility: Suitable for various types of laser cutting machines and engraving machines.
7. Applicable Materials: Ceramics, Bone, MDF, Coated glass, Black acrylic, Plywood, Brushed stainless steel, Stone, Bamboo, Leather, Rubber, Alumina, Solid wood, etc.
[Precautions] Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.

Specifications:

Effect output power: 80W
Output optical power: 10W (±1W)
Material: aluminum alloy + plastic
Light color: blue
Wavelength: 450nm (±10nm)
Spot form: Punctiform, fixed focus
Electric power: 12V 3.2A(3A-3.5A)
Input port: XH2.54-3P socket
PWM Modulation: 0/5-12V 1-5kHz 1-5kHz TTL/PWM
Item size: 40*40*147mm
Laser module net weight: 250g
Air Trachea: φ8x6mm

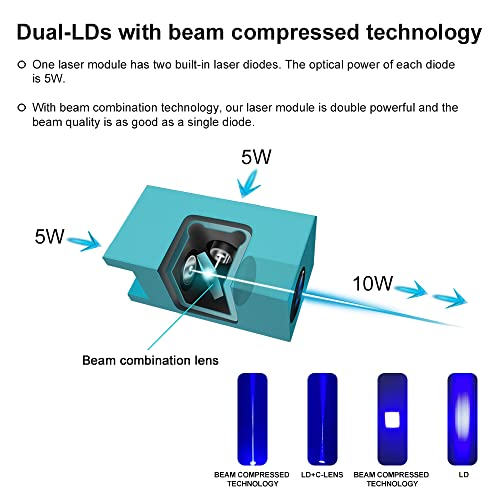

Dual-LDs with Beam Compressed Technology
One laser module has two built-in laser diodes. The optical power of each diode is 5W.

Package Dimensions: 7.6 x 4.5 x 2.9 inches
