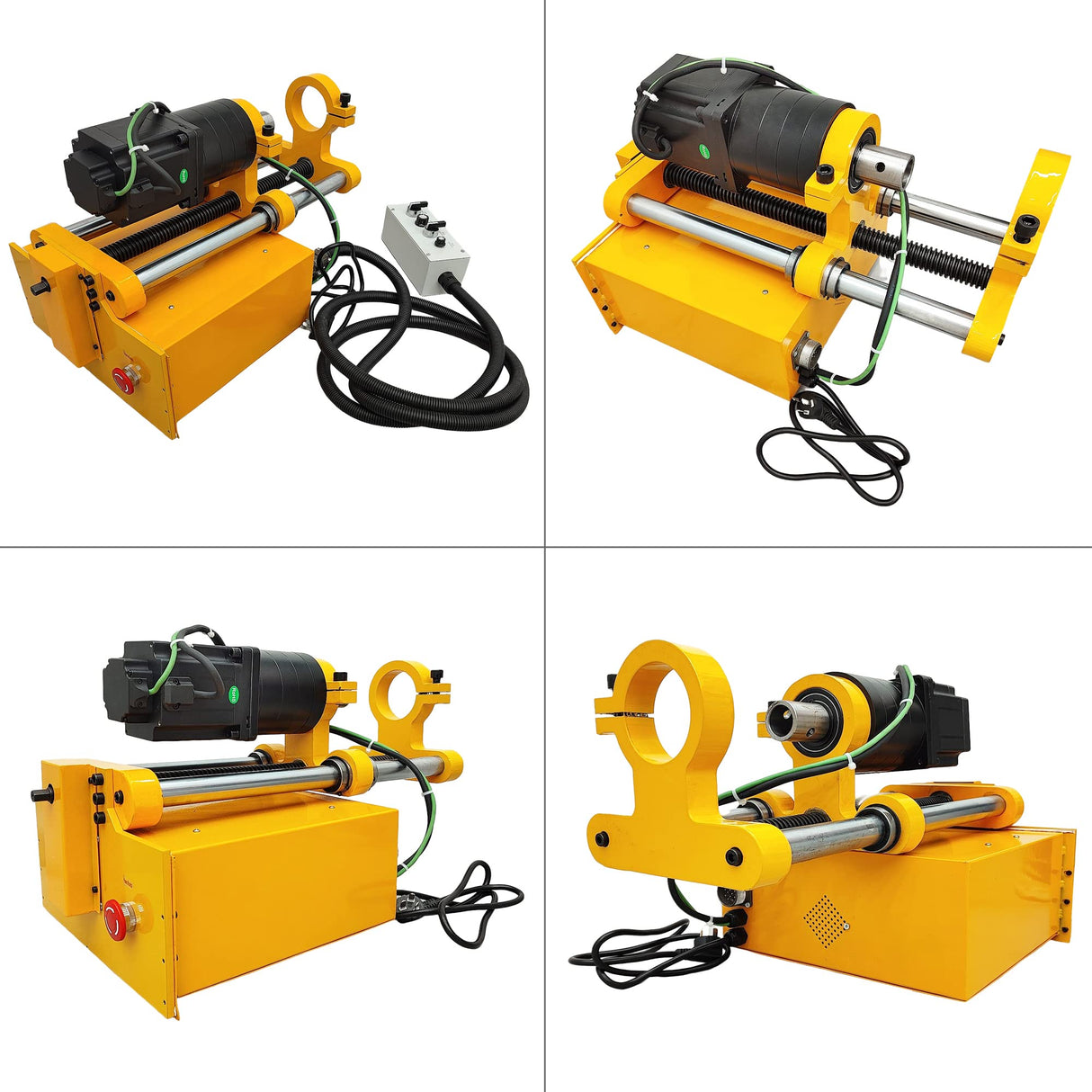

LGXEnzhuo Line Portable Boring Machine 110V XDT50 55-260MM Capacity Engineering Mechanical Hole Drilling Tool with 4.9ft Boring Bar and Accessories

Brand: LGXEnzhuo

Features:

• PARAMETERS-The maximum processing hole diameter: Ф260mm(10.24inch); The minimum processing hole diameter: Ф55mm(2.17inch); Boring bar: 50*1500MM(1.97*59.06inch); The maximum processing travel: 380mm; The maximum feed depth: 2mm on one side (A3 steel); Surface roughness: Ra3.2; Deviation from circular form≤0.02mm; Rotate speed: 0-83RPM
• 4.9FT BORING BAR-The boring bar is made of high-strength alloy and structural steel, which has the characteristics of high hardness, high precision, high toughness and good wear resistance. The boring bar can be disassembled separately for convenient installation.

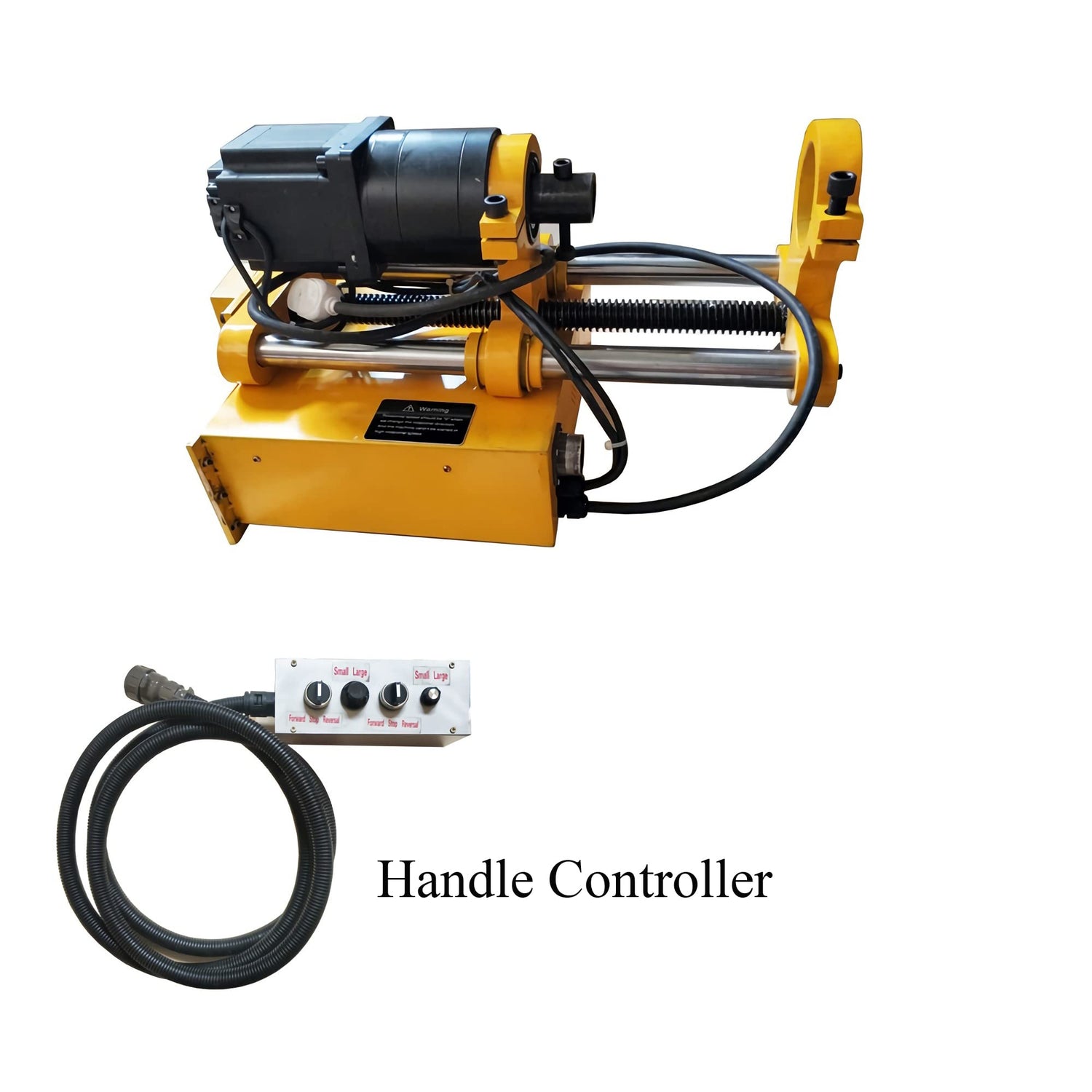

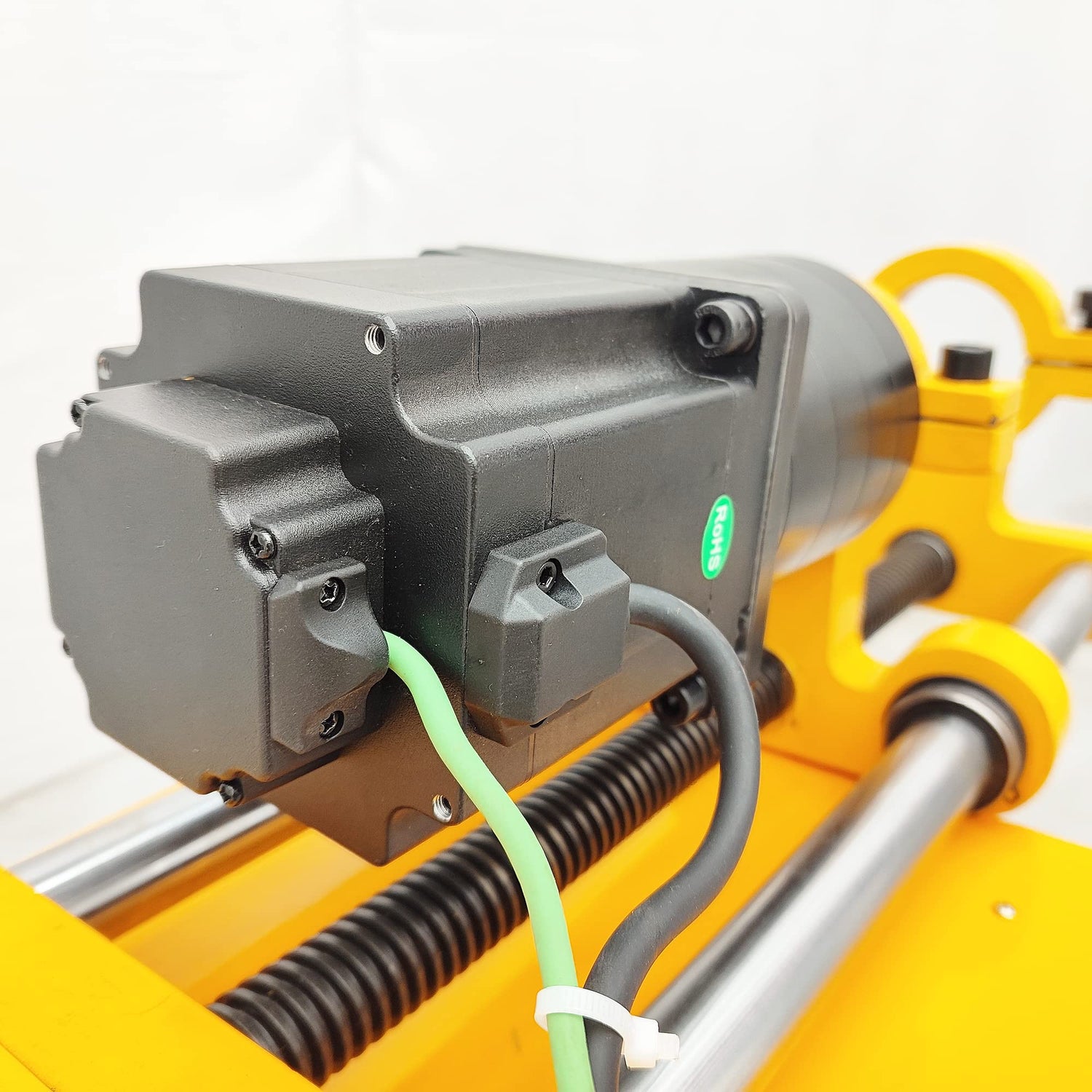

• MOTOR AND HANDLE CONTROLLER-The whole machine adopts 110V constant current motor with low speed and large torque, which can realize stable processing and superior performance. The motor controller is equipped with a dynamic delay braking program to avoid vibration during shutdown. After the machine is installed, the controller can be removed to control the machine and perform the drilling operation. The control cabinet is installed under the host, which is conducive to safe operation.
• STEPLESS SPEED REGULATION-Stepless speed regulation can be realized for feed processing. The feeding process can be set as required, and it will stop automatically after reaching the limit switch.
• APPLICATION-The drilling machine is a portable processing equipment developed for on-site service of construction machinery. It is mainly used for processing inner holes of small tubes and concentric cross holes. Widely used in excavators, cranes, loaders, cranes and other construction machinery.

Part Number: E022160

Details: Attention
Machine is installed by fixed clamp and uses different tool rest according to different dia ranges. Please confirm the diameter of processing hole before use to select the appropriate tool rest.
Slushing oil should be painted to boring bar and feed screw which are not used very often.
Appropriate grease oil should be added to the feed box every half a year.
Spindle box and feed box should be stored by sealing if these parts are not used for a long time.
Appropriate grease oil should be added to guide post and screw before processing.
Parameters
Type: XDT50 Portable Line Boring Machine
Maximum processing hole diameter: Ф260mm
Minimum processing hole diameter: Ф55mm
Maximum processing travel: 380mm
Maximum feed depth: 2mm on one side (A3 steel)
Surface roughness: Ra3.2
Deviation from circular form≤0.02mm
Rotate speed: 0-83RPM
Boring bar: 50*1500MM
Control Type: Handle Control Box

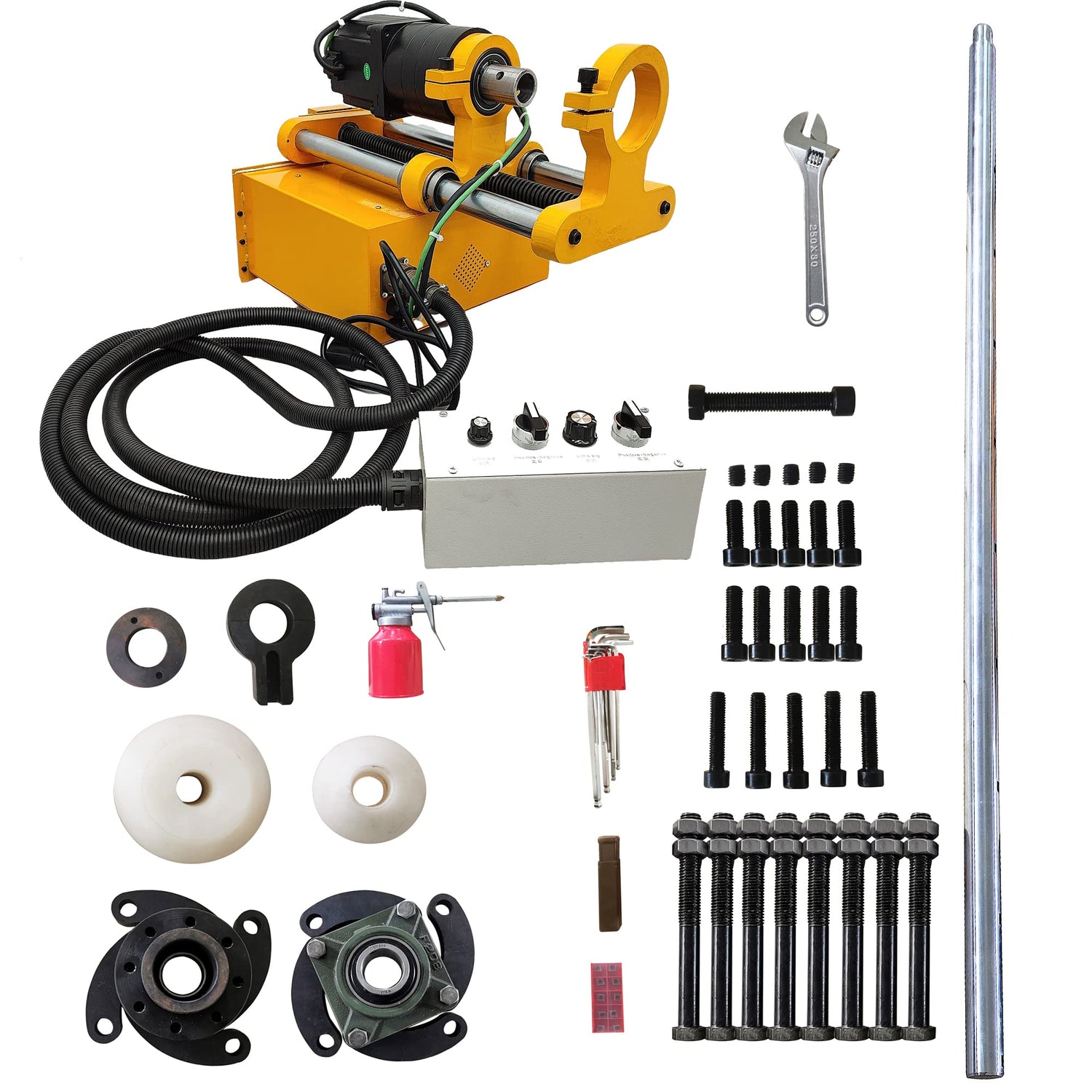

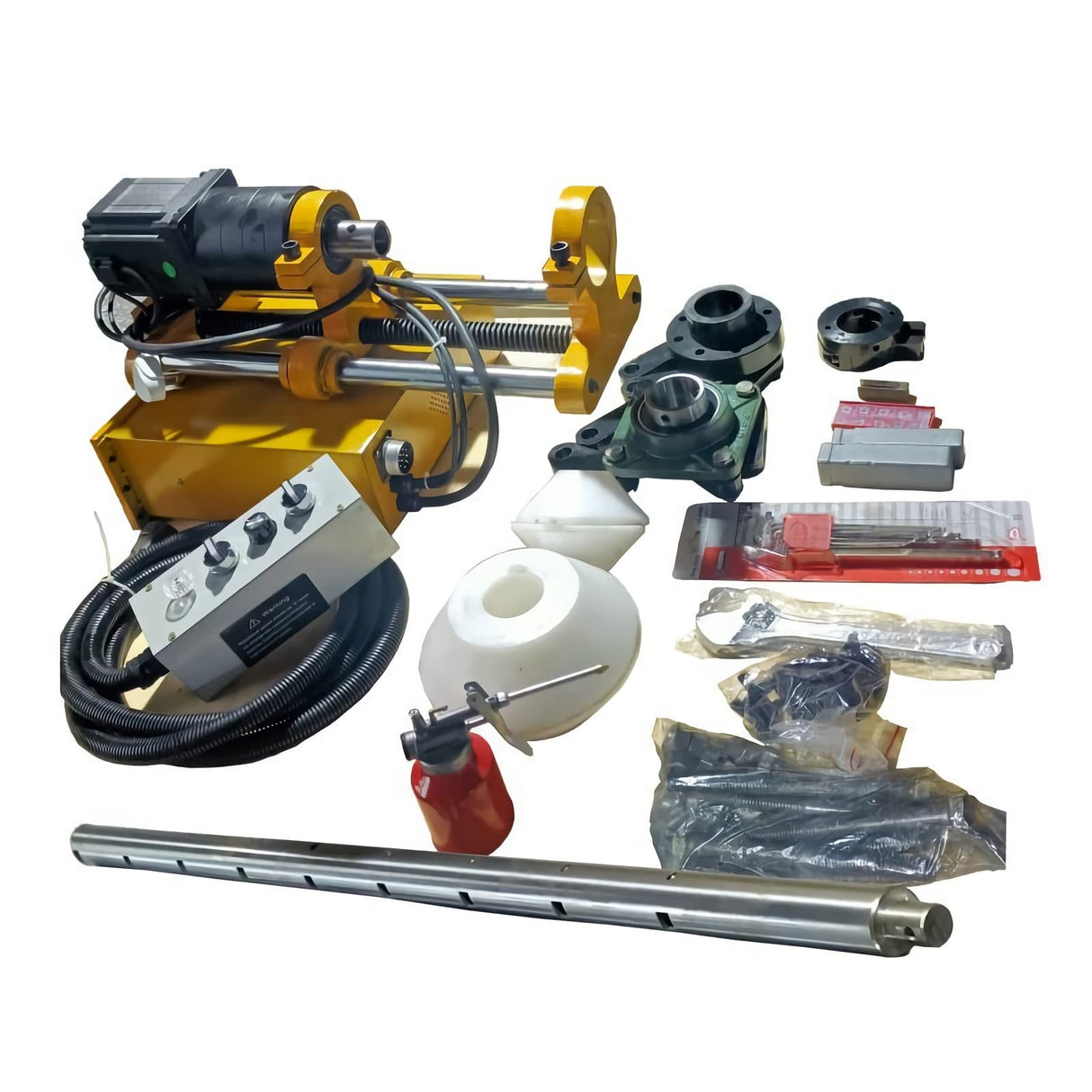

Package Includes 022160
1 x Line Boring Machine XDT50, pack in two boxes
1 x Boring bar
1 x Necessary accessories

EAN: 0785869956513

Package Dimensions: 29.5 x 22.8 x 17.7 inches
