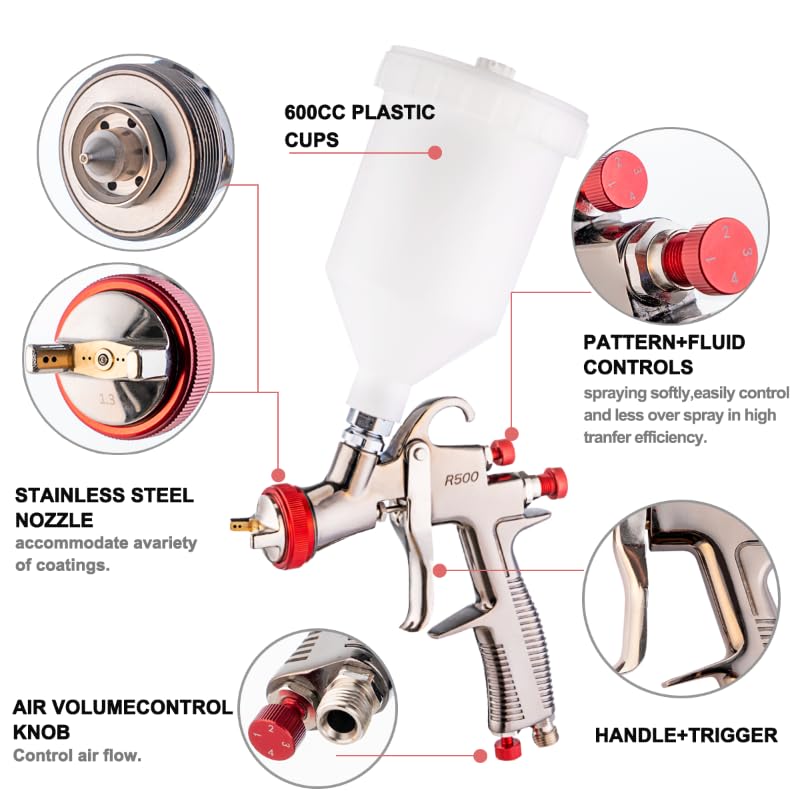

LVLP Spray Gun R500 with 1.3/1.5/1.7/2.0mm Nozzles,Air Regulator and 5 pcs Paint Filters,Automotive Air Paint Sprayer Gun for Painting Car,Furniture
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: DAXINYANG
Color: Silver
Features:

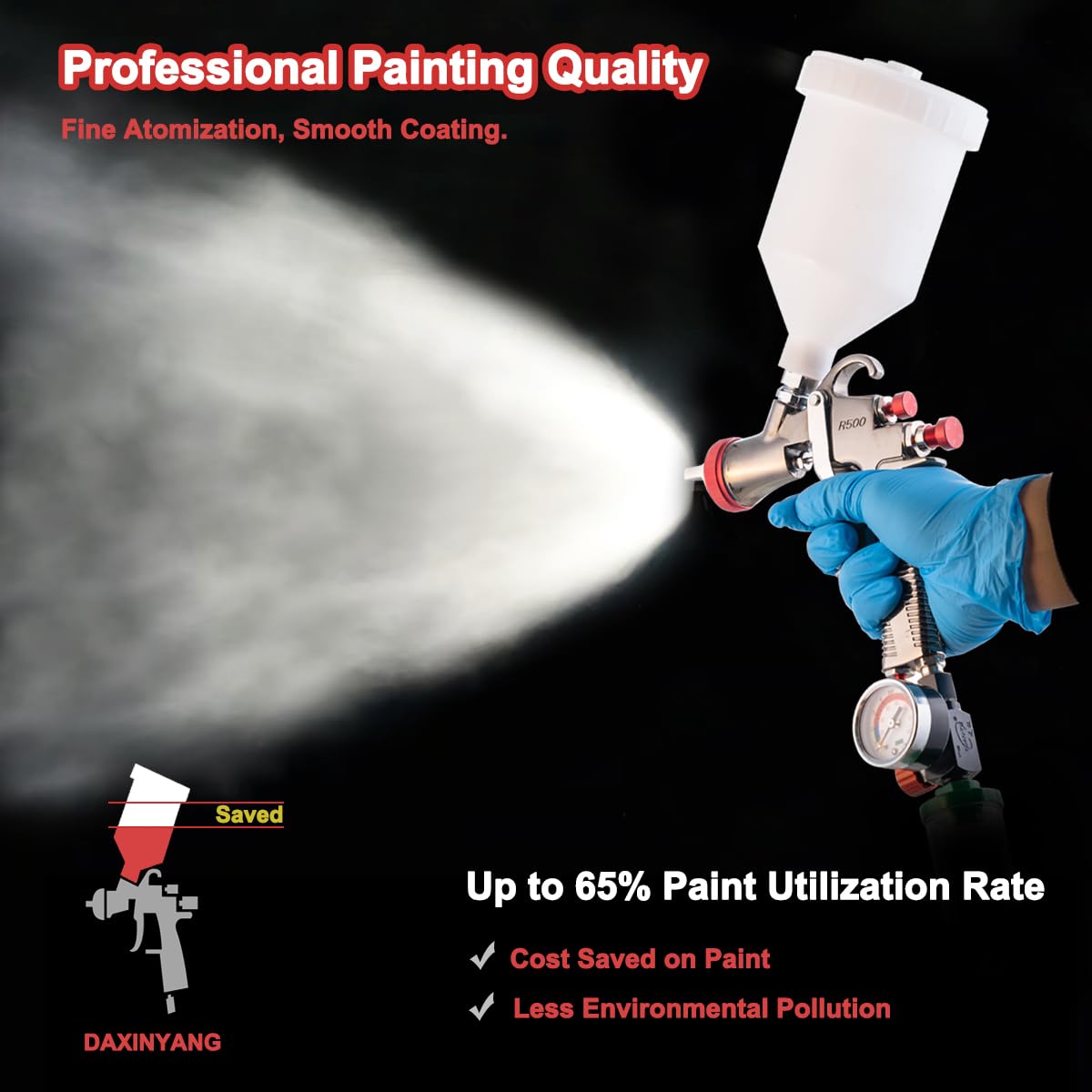

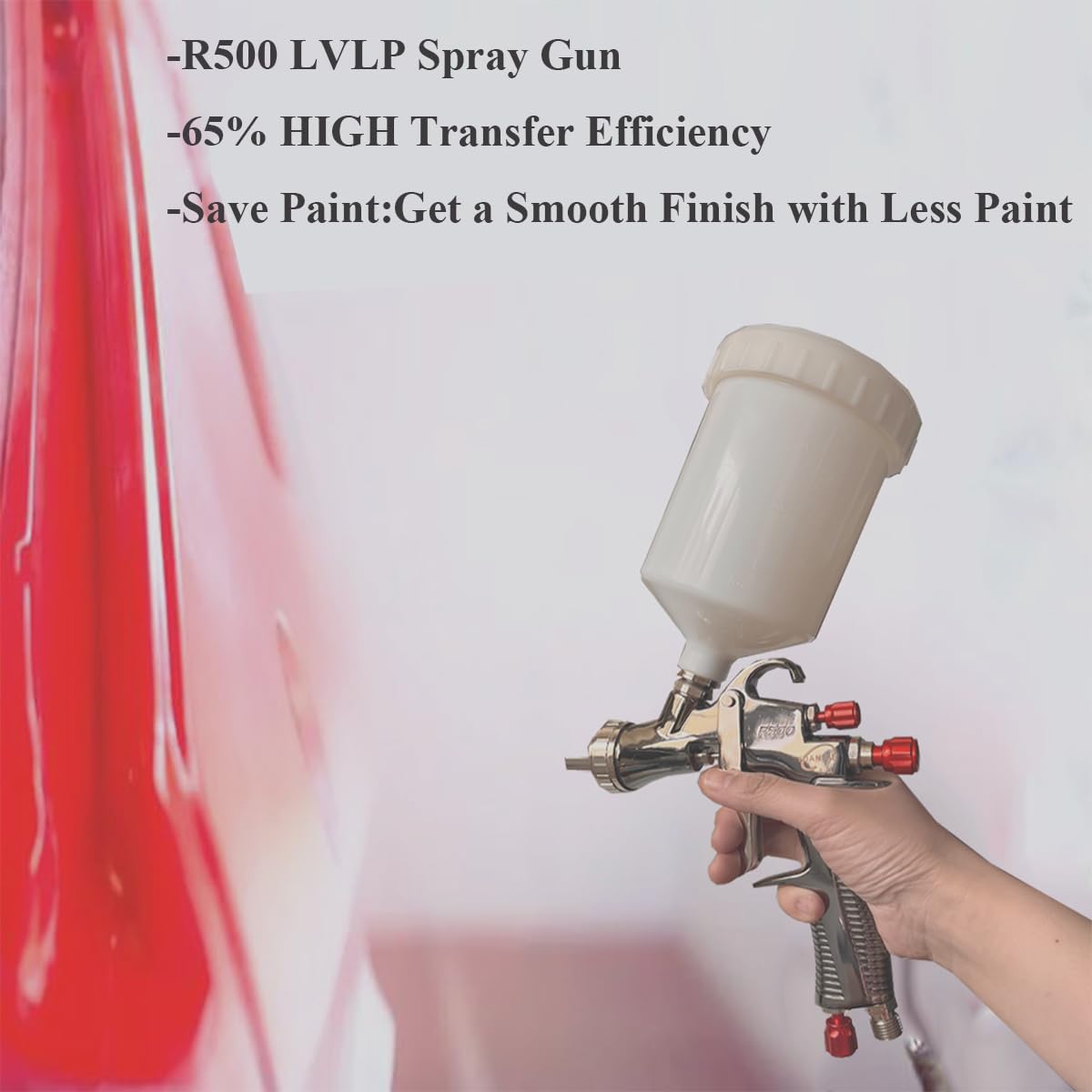

- 1.LVLP Spray Gun R500: Use the lower volume of air finely atomizes, provides a higher transfer ofmaterials while reducing bounce back and overspray of 65% high transferefficiency rate, saving your time and cost.
- 2. Heavy Duty& Design: One-piece all Stainless Steel gun body is plated with nickel, always bright like a new one, with brass nozzle for durability and longevity. Ergonomically designed handle for a comfortable grip, long-term operation is not easy to fatigue.
- 3. SPECIFICATIONS: Air consumption 3.0-3.9CFM, Operation pressure 28.8-51 PSI, Working pressure ＜10 PSI (HVLP), Pattern Width: 7.0''-10.9'', Air inlet 1/4 ", Paint ratio >= 65%V.
- 4.Fastly and Accuratly: 3 adjustable knobs bring in concise painting,fluid control (needle adjust knob) regulates amount of paint sprayed, pattern control adjusts the fanpattern size, and air adjustment valve provides versatility to adjust air flow.
- 5. MULTI-USE: R500 Paint Sprayer Gun better atomize waterborne paints and high flow sprays,great for both varnish and topcoat using, ideal for auto refinishing and household painting, like car,furniture, fence, locker, small equipment etc.

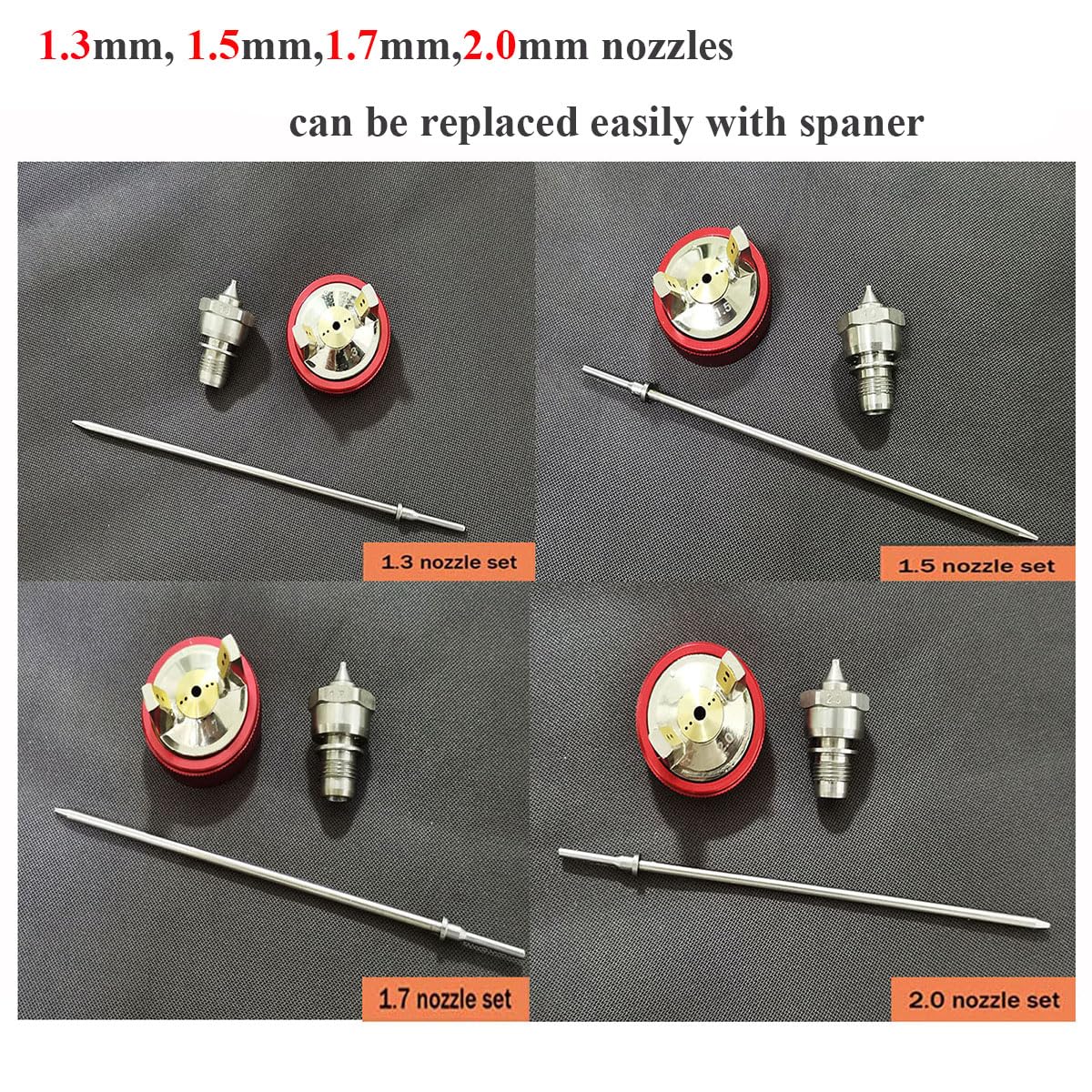

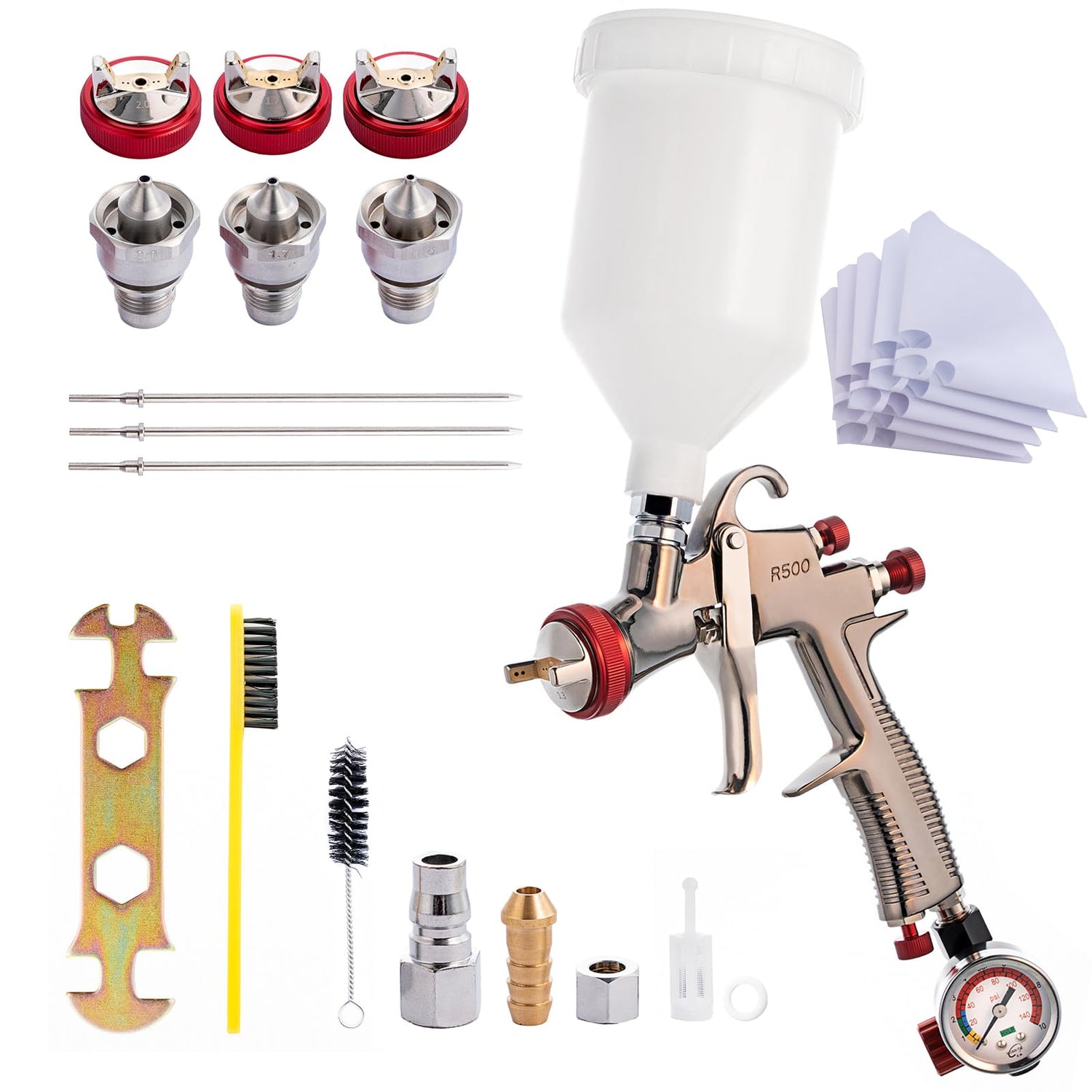

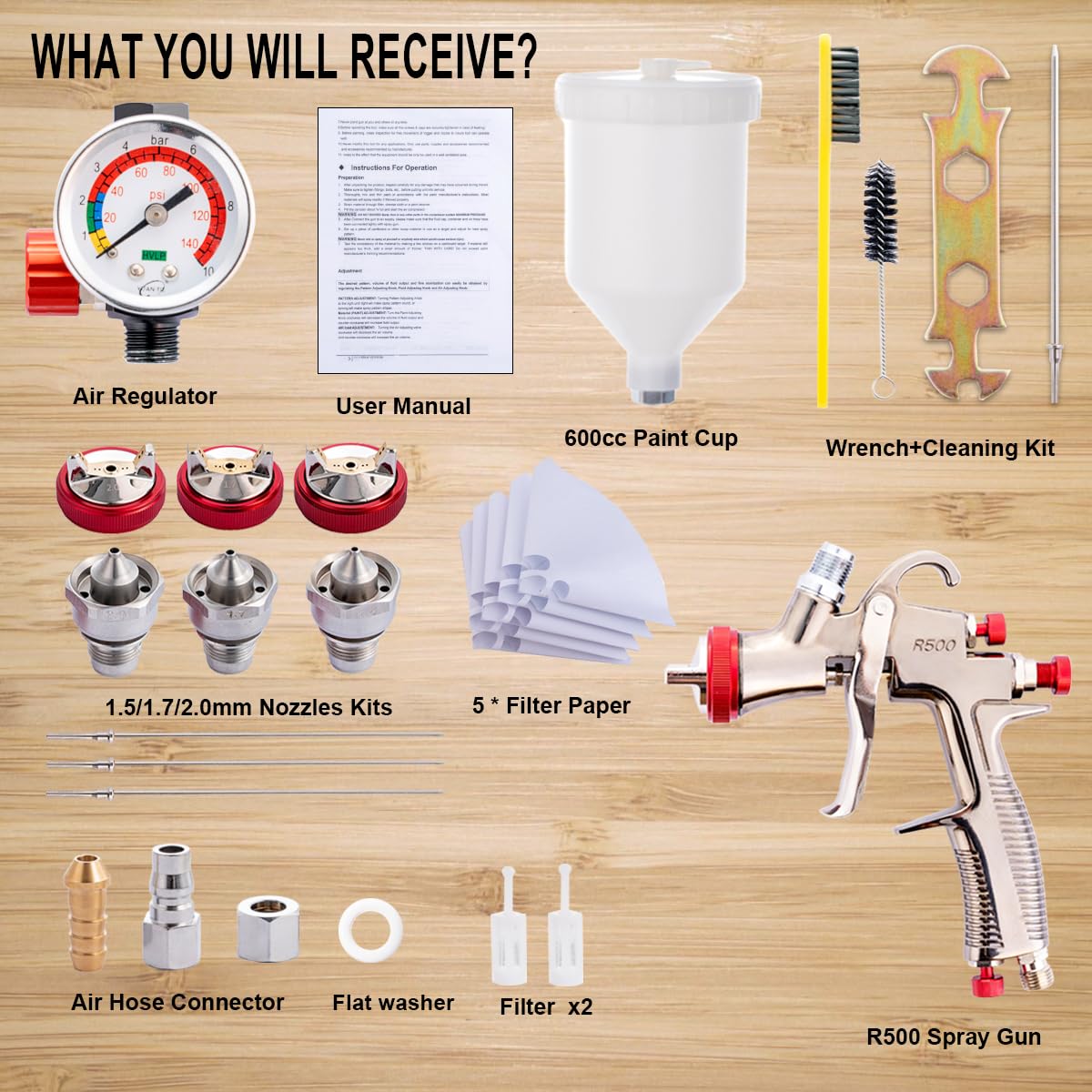

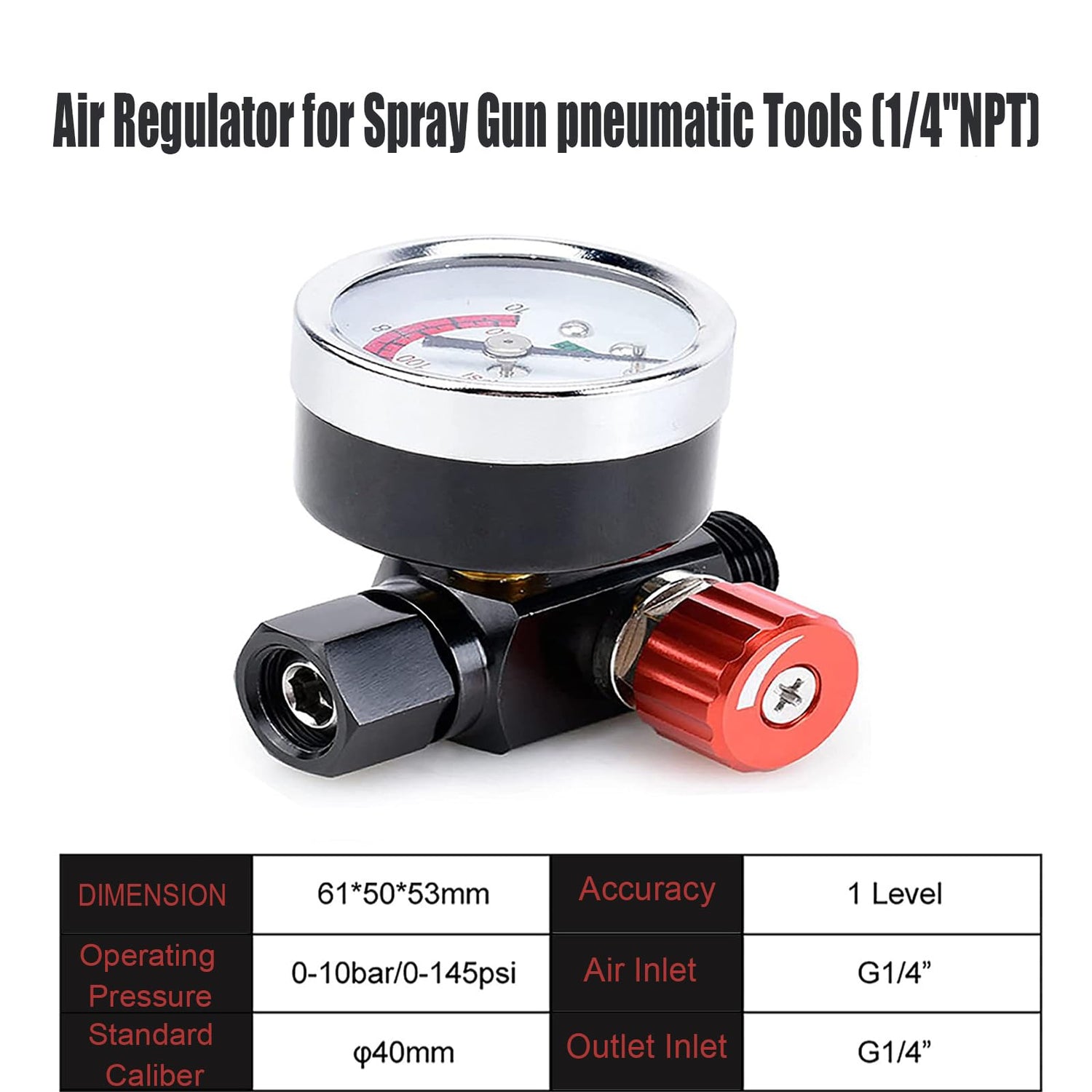

- 6. INCLUDES: A R500 Paint Gun,600cc (20.3 fl. oz) cup with lid, filter, cleaning brush and a multi-size spanner for assembly/disassembly, easy change for 1.3mm, 1.5mm.1.7mm, and 2.00mm nozzle, air regulator and 5 pcs paint filters.
- 7.Customer Service:We are readily available to assist you with any questions or concerns, so please feel free to contact us through amazon at any time.
- 8.Important Note: Please tighten the nozzle to prevent sputtering after cleaning. Our spray gun is preservative treated at the factory so it is flushed with solvent before use.
model number: R500
Part Number: 9744437-268-225
Details: Specification:
Item: LVLP Gravity Spray Paint Gun
Color: Silver
Material: Stainless Steel + Copper
Feed Type: Gravity Feed
Application: Paint Spray Gun
Type: LVLP(Low Volume Low Pressure)
Power Type: Pneumatic AIr
Nozzle Diameter: 1.3mm,1.5mm.1.7mm, 2.0mm
Air Consumption: 3.5-3.9cfm(84.1-109 L/min)
Fluid Output:140-190ml/minute
Working Pressure: 28.8-51 PSI (2-3.5bar)
Max.pressure of air: 100 PSI (6.8bar)
Spraying Distance: 200mm
Pattern width:7.0''-10.9''(180-280mm)
Inlet Interface: Standard 1/4"-19" BSP/NPT Thread
Cup Capacity: 600ml
Applicable compressor：5gallon (20L) or more
Spray Gun Weight: 0.35kg(0.77lbs)
Feature:
1. Stainless steel gun body is plated with nickel, beautiful and durable, easy to clean, and saves cleaning solvents
2. The air volume and paint volume control adopts double-headed thread design, which allows you to adjust the speed faster and more accurately, save paint and time

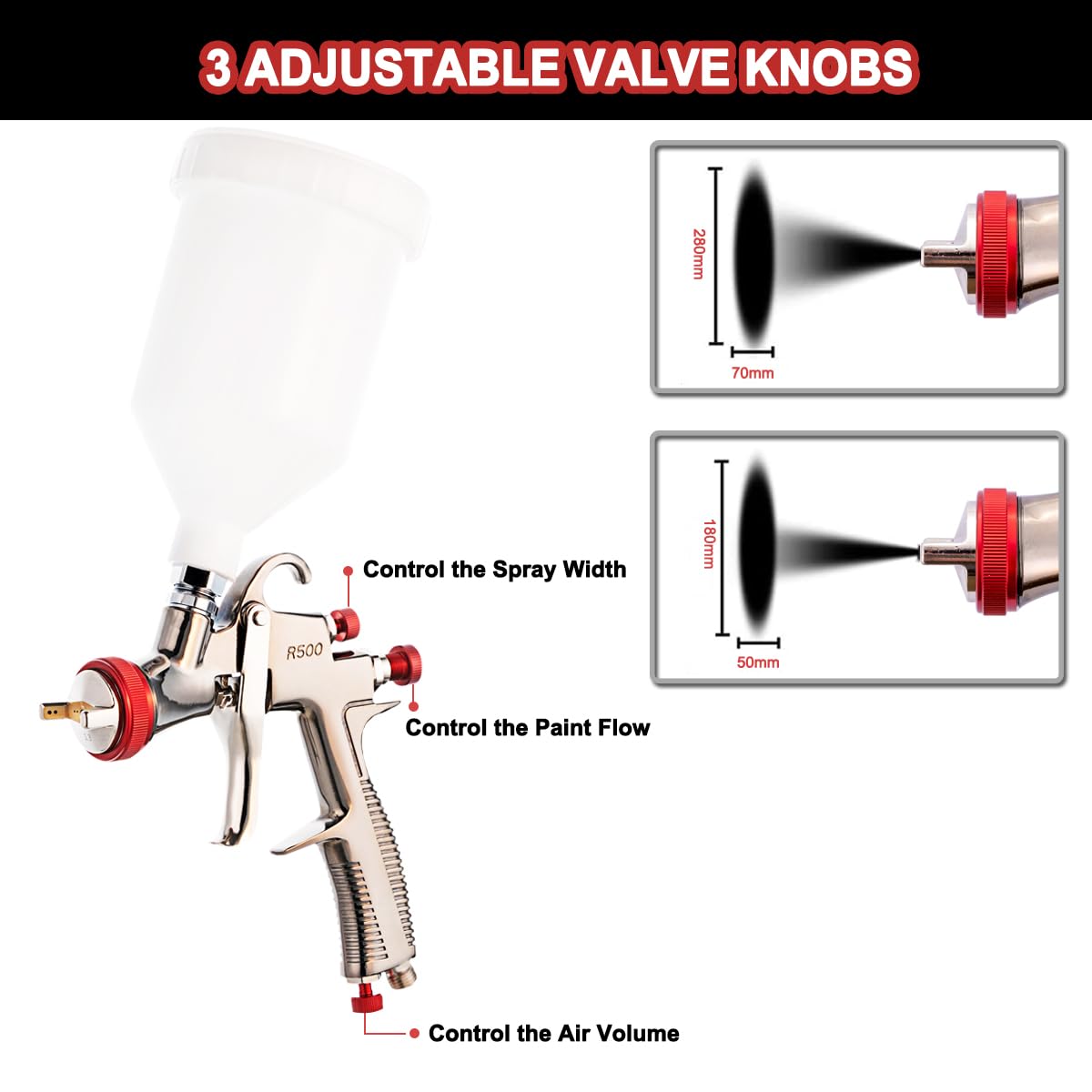

3. 3 ways of Adjustment - The desired pattern, volume of fluid output and fine atomization can easily be obtained by regulating the Pattern Adjusting Knob, Fluid Adjusting Knob and Air Adjusting Knob.
4. Good sealing - the needle seal design protects the nozzle from being polluted by paint mist

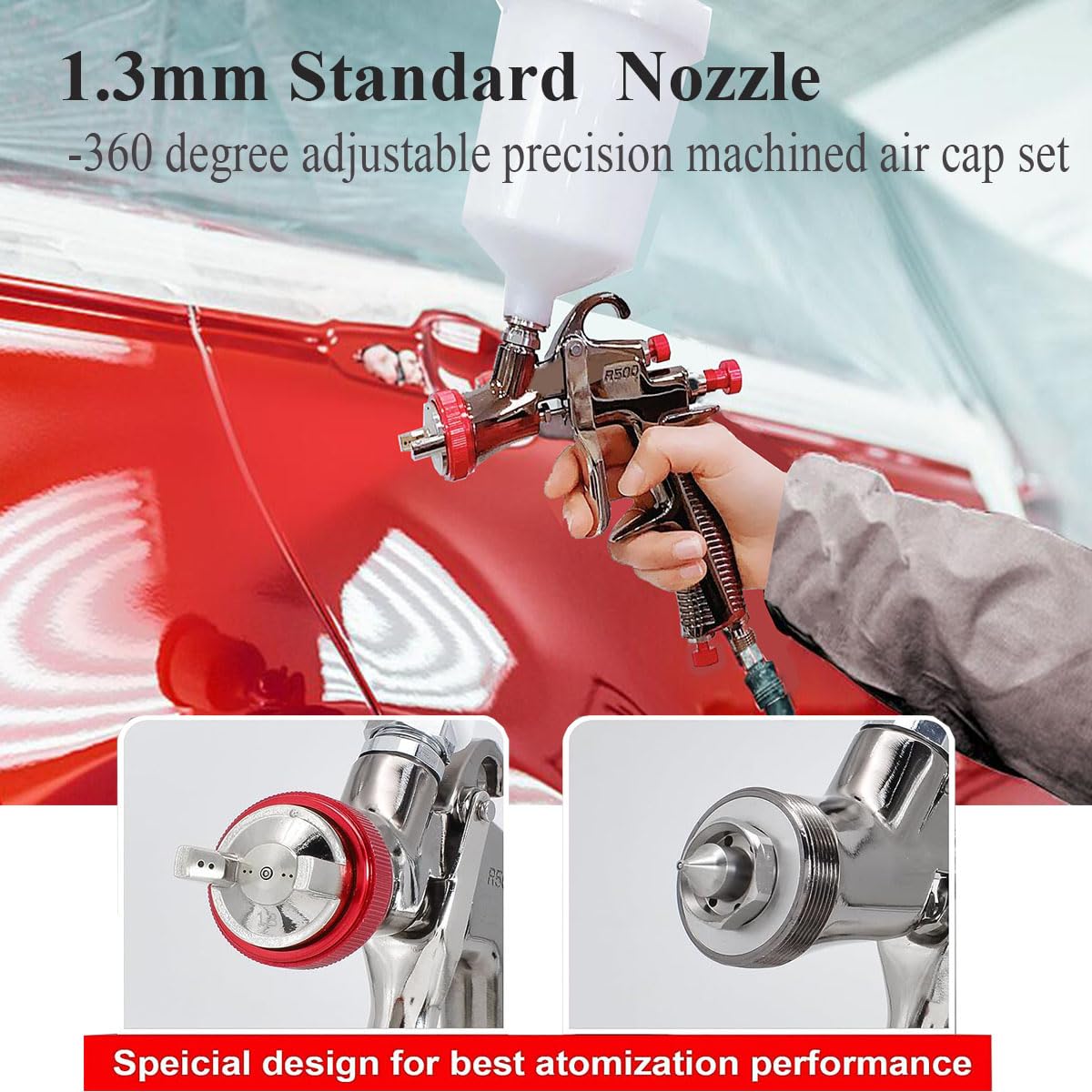

5. Better atomization: Precision machined air cap, give you a fully and exquisite atomized and consistent spray pattern for a smooth professional finish.
6. Environmental Protection & Paint Saving - LVLP guns are limited to 10 PSI at the air cap for high transfer efficiency to achieve a smooth finish, effectively reduces overspray.
NOTE: Our spray gun is preservative treated at the factory, pls flushed it with solvent before use.
Package Dimensions: 10.4 x 9.9 x 5.7 inches
