Description
Description
Brand: maXpeedingrods
Features:

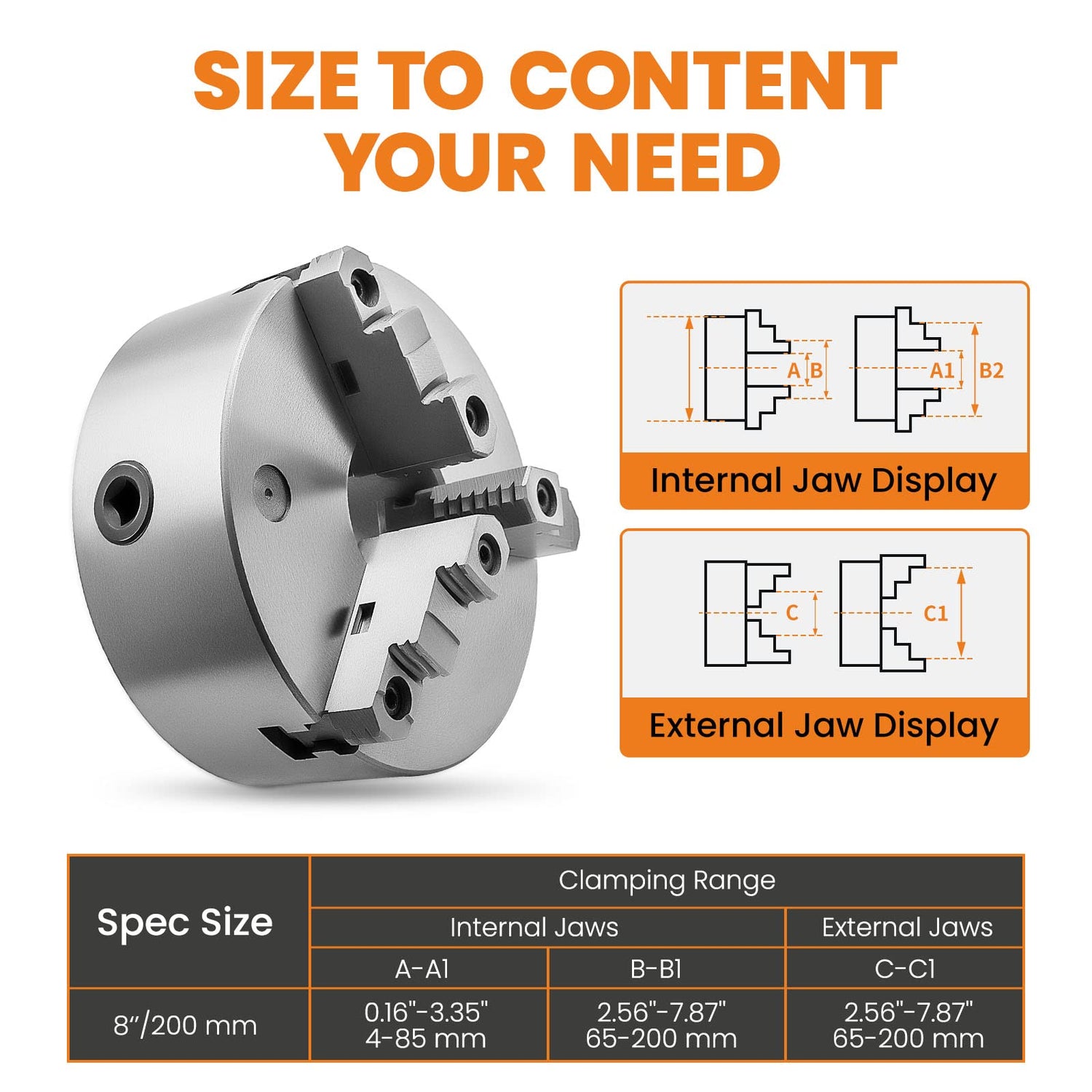

- 【Chuck Clamping Range】The clamping range of the 8 in lathe chuck is between 0.16" / 4 mm - 7.87" / 200 mm, the clamping range of inner jaws (A-A1): 4-85 mm (0.16"-3.35" ) Inner jaw interference range (B-B1): 65-200 mm (2.56"-7.87") Outer jaw clamping range (C-C1): 65-200 mm (2.56"-7.87")
- 【High Precision Double Jaw Chuck】Model: K11-200A. Jaws: 3 jaws (two tongue and groove reversibly hardened top and bottom jaws) positive L-shaped innernal jaw and inverted L-shaped external jaw allow the chuck to be more stably mounted on the lathe. The alignment accuracy is ≤0.002"/0.05mm, and the higher-precision design guarantees the accuracy of your operation

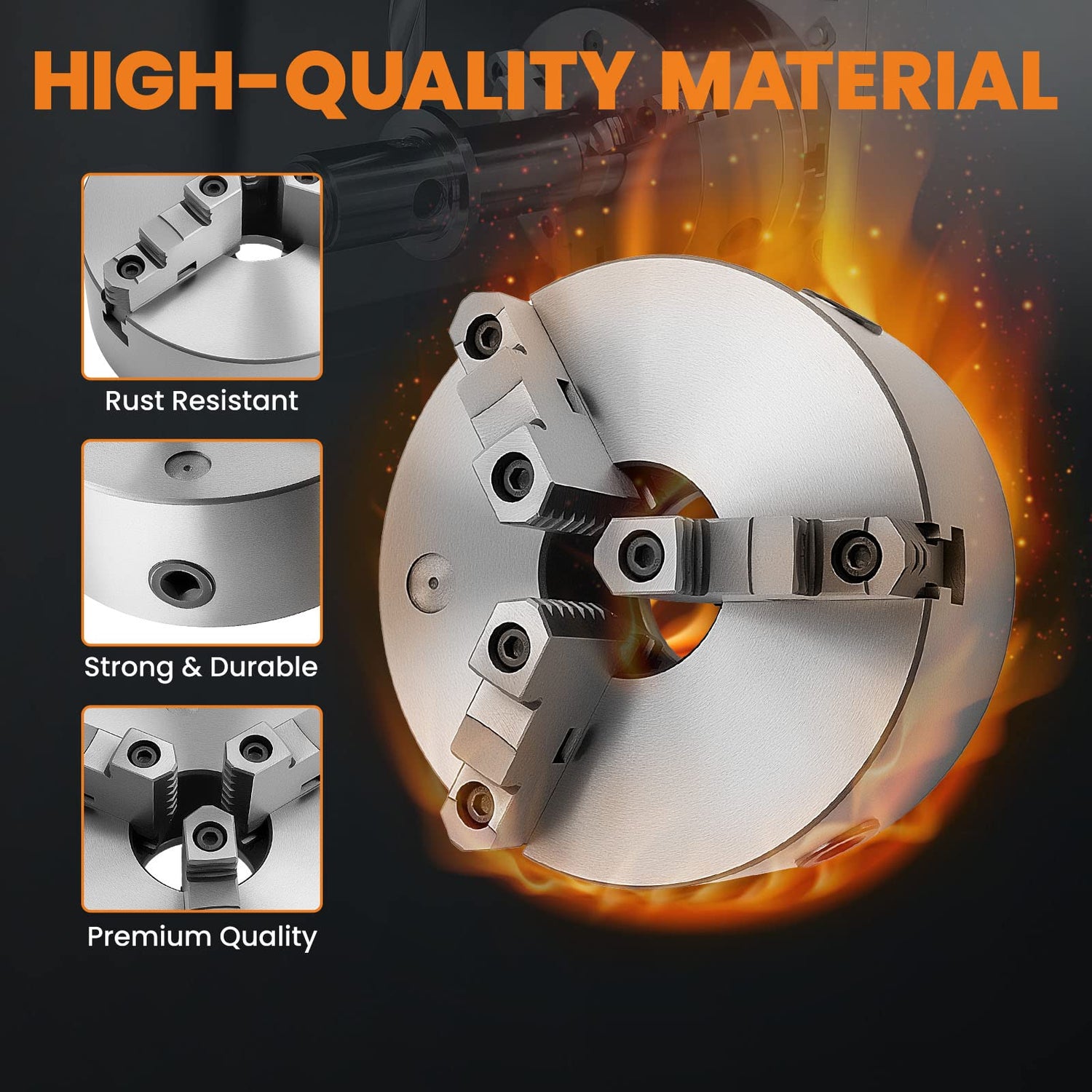

- 【High Quality Material】The 3 jaw lathe chuck is made of high-quality precision hardened steel, and the jaws are more compressive and durable than ordinary products.
- 【Widely Application】Suitable for mini lathes, ordinary lathes, economical CNC lathes, grinding machines, milling machines, drilling machines and machine tool accessories. The matching screws (Mounting thread: 3-M10) make the scroll chuck highly adaptable, whether it is used for clamping hanging shafts, discs, equilateral triangles or other various parts

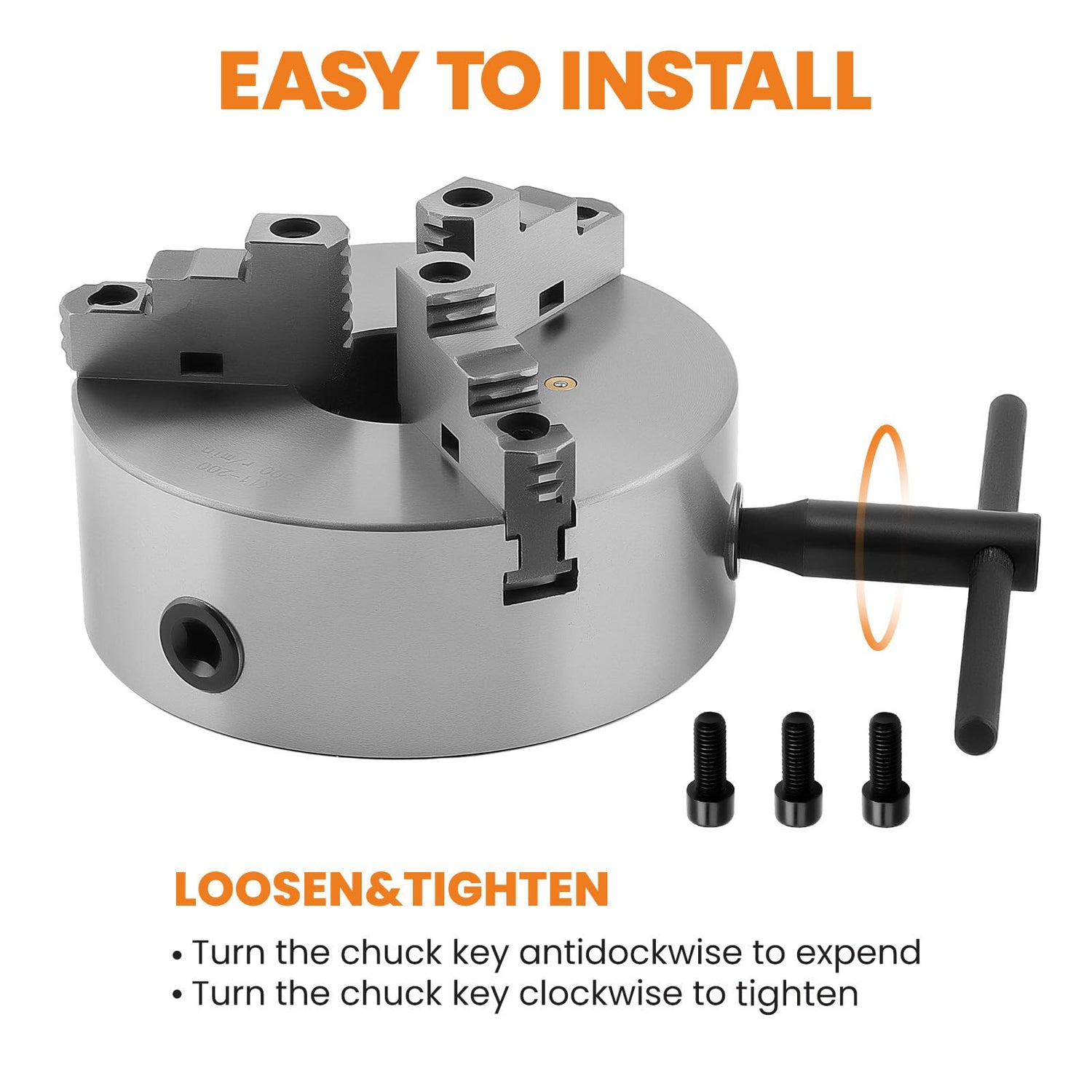

- 【Self Centering Chuck function】 The Self Centering Chuck function makes the replacement easier. Just follow the correct installation sequence to quickly and easily install the jaws on the lathe, saving you the time of repeated calibration
Binding: Tools & Hardware
Part Number: CV34

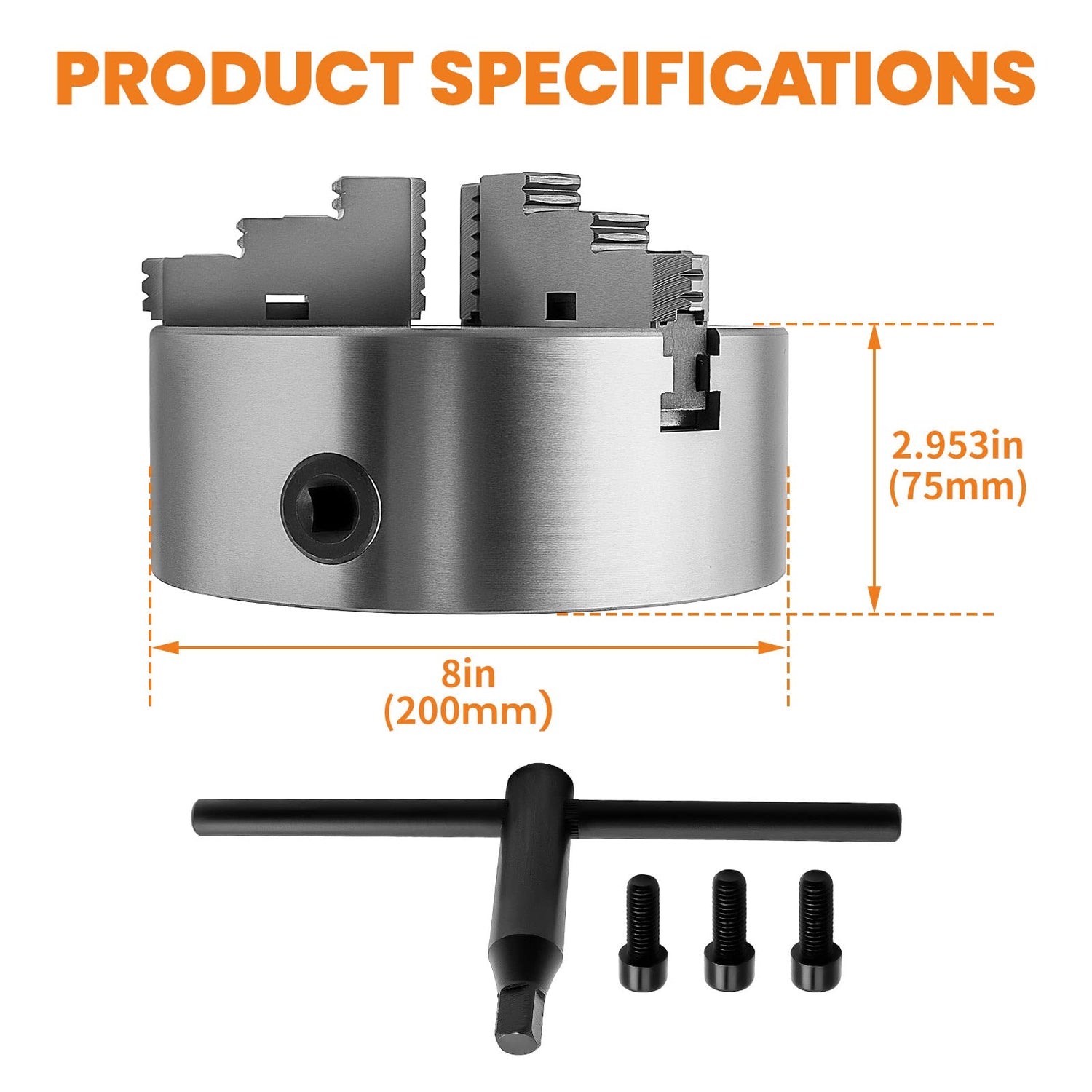

Details: Applications for general lathe, economical CNC lathes, grinding machines, milling machines, drilling and machine accessories Specifications Material: Hardened Steel Model: K11-200A Jaw: 3 Jaw High precision: ≤0.05mm Application: for CNC Drilling Milling Machine Lathe Chuck Specifications Size: 200 mm (7.9") Outside Diameter: 200 mm (7.9") Bolt Circle Diameter: 180 mm (7.08") Center Thru Hole Diameter: 65 mm (2.559") Chuck Body Thickness: 75 mm (2.95") Internal Jaw Clamping Range (A-A1): 4-85 mm (0.16"-3.35") Internal Jaw Jamming Range (B-B1): 65-200 mm (2.56"-7.87") External Jaw Clamping Range (C-C1): 65-200 mm (2.56"-7.87") Mounting Thread: 3-M10 Accuracy: 0.002" Package Contents 1 x Three Jaw Self Centering Chuck 3 x Bolts Circle 1 x Handle Notes * No instruction included and professional installation recommended
Package Dimensions: 10.8 x 10.6 x 7.6 inches
