Mini Metal Lathe Machine DIY Tool Benchtop Wood Lathe Woodworking for Hobby Sience Education Modelmaking, AC110V-240V50/60HZ

Brand: ele ELEOPTION

Color: Lathe

Features:

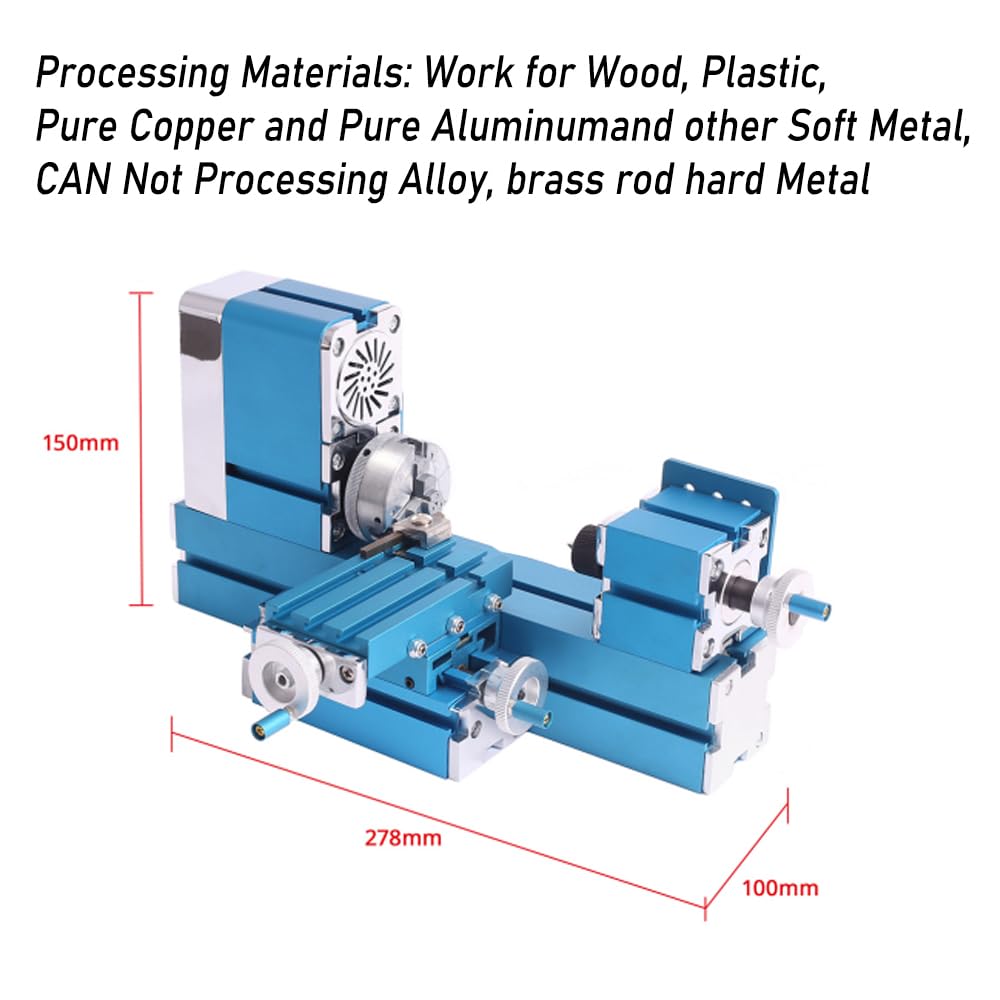

• 【Speed】This is a MINI metal lathe driven by a 12V DC transformer, The speed is fixed. Can not change the speed of the machine. Note: The machine defaults to use the high-speed motor. which can be used for turning, drilling, boring, threading and other processing.Lathe SIZE:length 10.94 x width3.94 x high5.91inch
• 【Processing】It can be used to form and cut a wide variety of materials including wood, plastic and soft metals (pure copper and pure aluminum), but not alloys. When processing harder materials, the feed rate should be smaller, which is slower than processing wood. we offer several shims for you to adjust the height of the turning tool.
• 【Application】 Ideal for use in juvenile activity centers, school technical rooms, science and technology activity rooms, DIY hobbyist workshops, and student science and technology creation in science museums.making it perfect for small projects or hobbyists.
• 【Durable】Made of advanced aluminum alloy, durable and non-deformable for usage. The Milling is suitable for mini drill and drill bracket series. It can withstand regular use without showing signs of wear and tear.

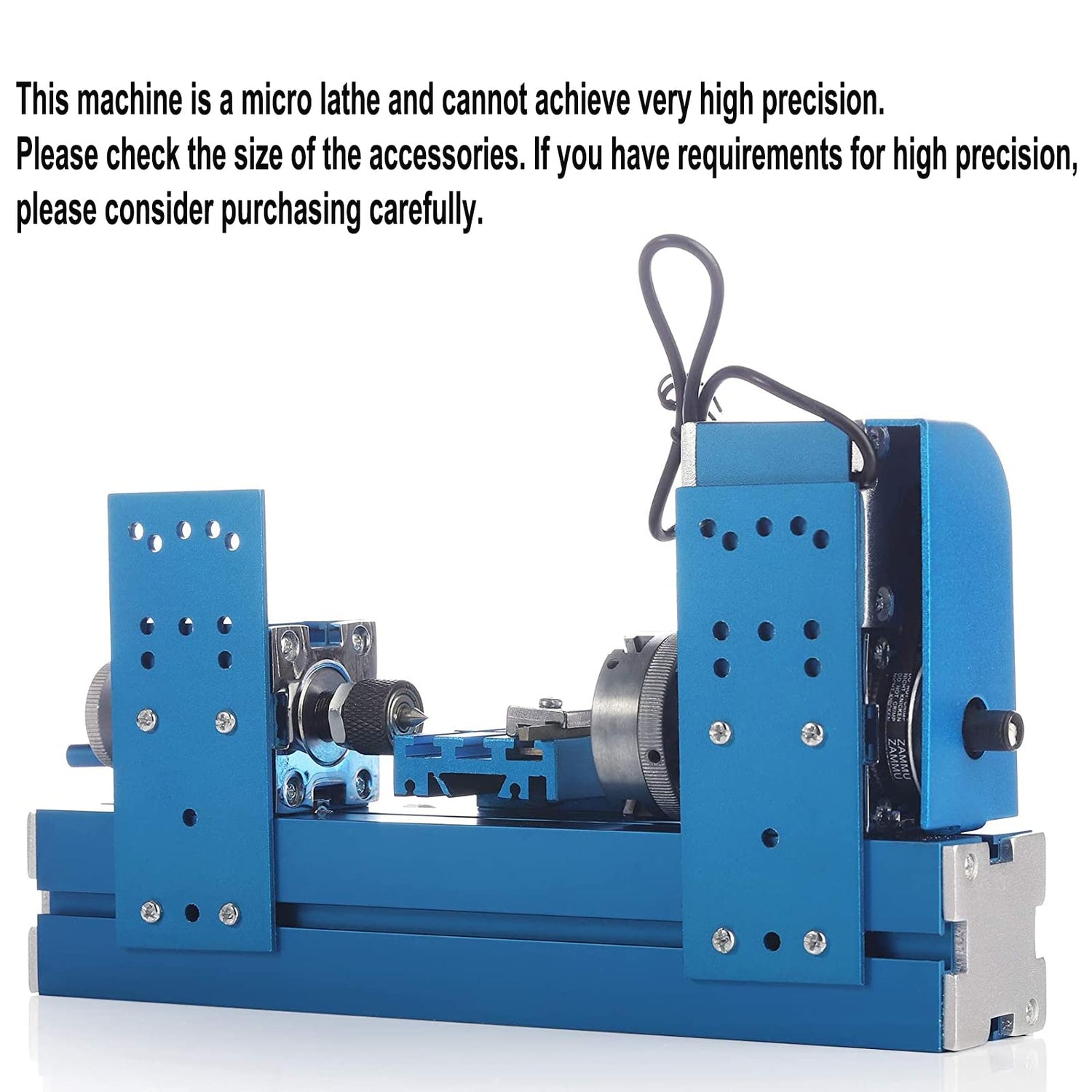

• 【Precision】This machine is a micro lathe and cannot achieve very high precision. Please check the size of the accessories. If you have requirements for high precision, please consider purchasing carefully.

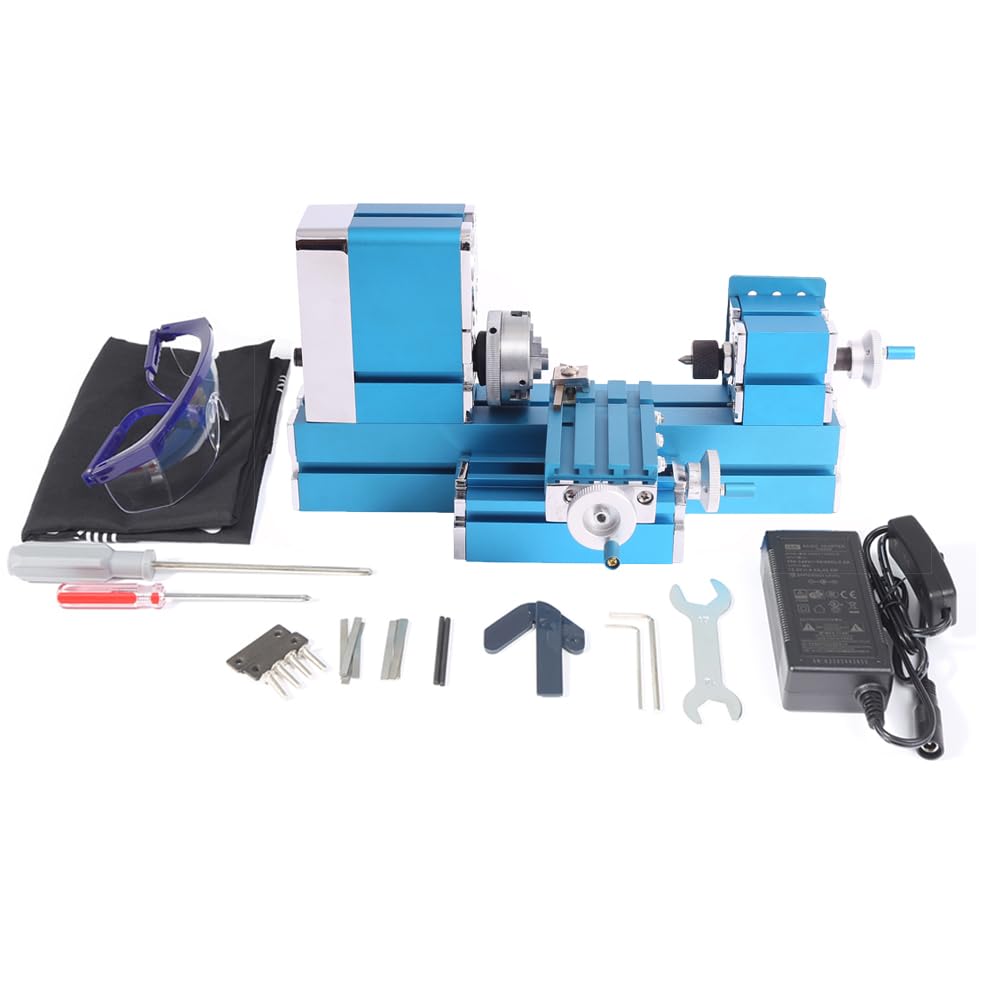

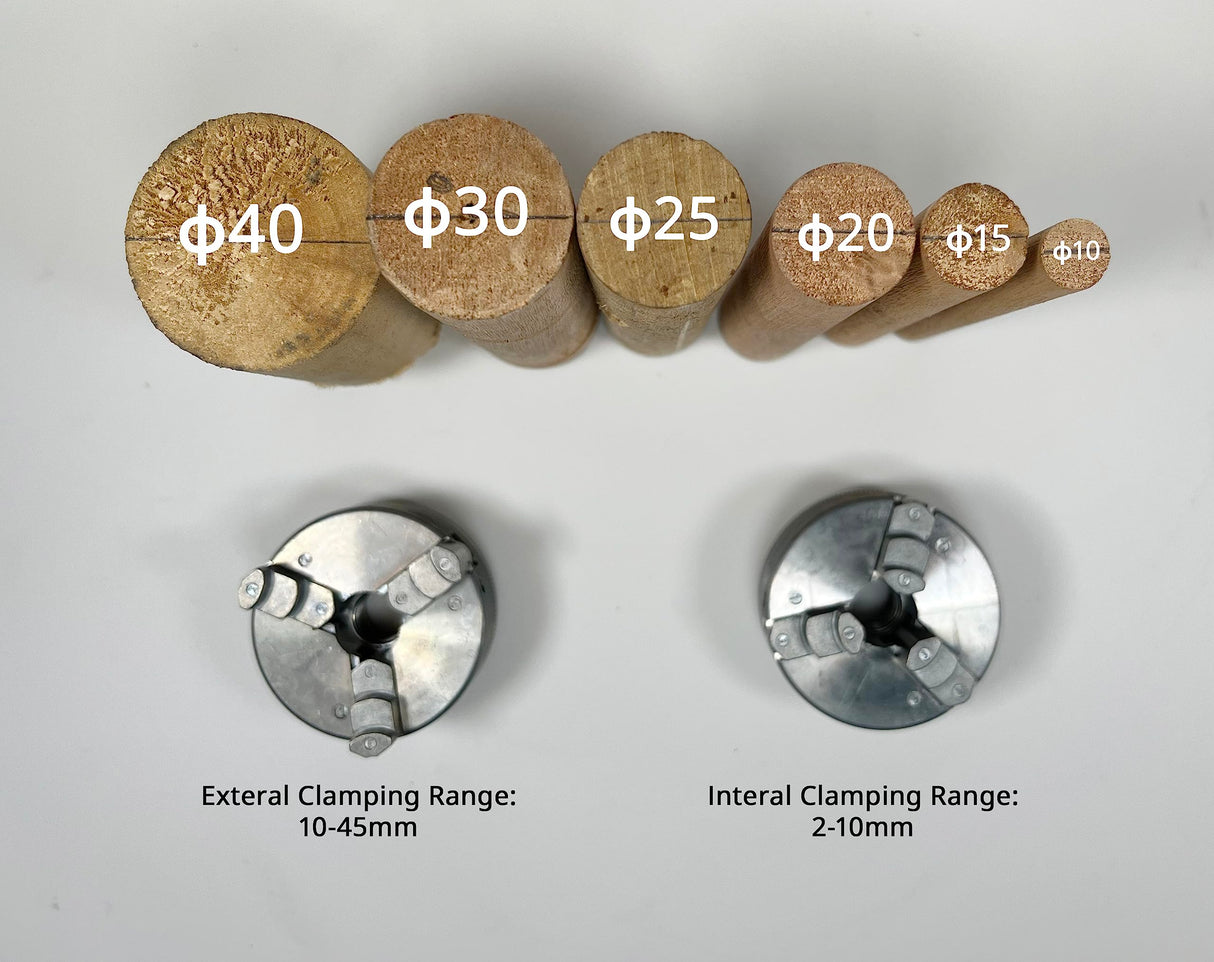

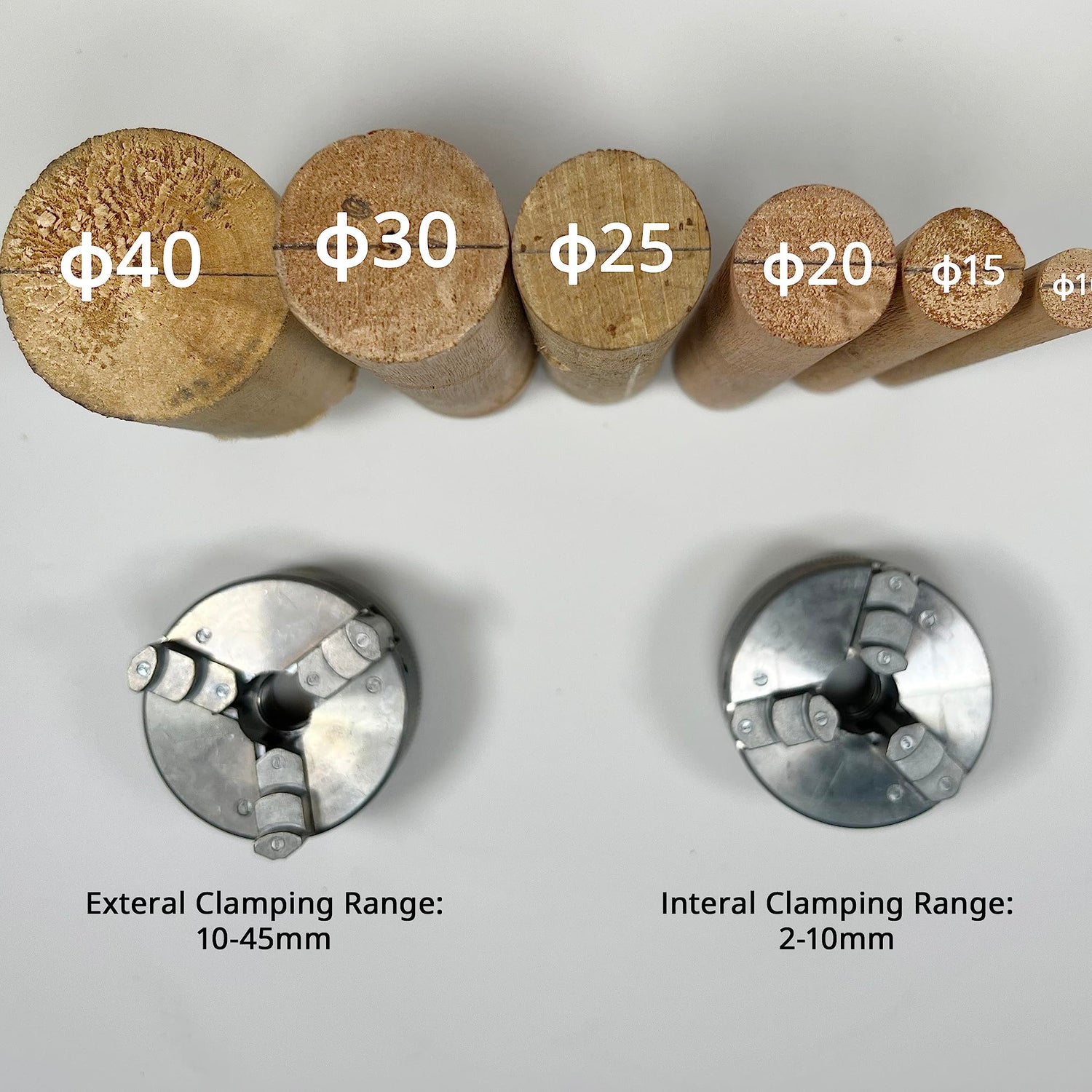

Details: Applications:  School General Technical Room, Science and Technology Activity Room Equipment, Science and Technology Museum Student Science. It is helpful for improving manual ability and independent thinking, thus effectively improving intelligence of children. So as to be a good didactical tool for children. Wear goggles when using. Children need to be guided by adults. Parameter: Input voltage: AC100V~240V 50/60HZ Output voltage : DC12V 3A/4A Motor rated power: 24W Motor speed: High speed motor 18000r/min±15% Low speed motor: 10000r/min±15% Spindle speed: high speed motor 3000r/min±15% Low speed motor: 1600r/min±15% Spindle jump: <0.1mm Large slider stroke（Z axis）: 45mm Small slider stroke（X axis）: 35mm Center height: 25mm Center distance: 110mm Turning tool size: 3.5*3.5mm Maximum processing diameter: 13mm positive claw, 45mm reverse claw Three-jaw chuck clamping diameter: 13mm claw, 45mm reverse claw Handle scale: 0.1mm/division Processing ability: It can process wood, plastic and soft metals (pure copper and pure aluminum). Package include： 1 x lathe  set of Accessories: 2x inner hexagon spanner 2pcs(S=2\3) 1x double-headed wrench (S=14\17) 1x cross screwdriver 1x turning tool (3.5*3.5mm), on machine5x shim(0.3mm)5x shim(0.4mm)1xcenter finder2x three-jaw chuck locking rod 2x two hole clamping plate 2xscrew(M4*16)1 x apron1 x gogglesQ&A1.Q: Can I change the speed of the machine?A: The speed is fixed. 2.Q: What can I process?A: You can process wood, plastic and soft metals (pure copper and pure aluminum).3.Q: What is the size of turning tool?A: The size of the turning tool is 3.5*3.5mm, material is high speed steel.4.Q: Is the machine manual or automatic?A: It’s a manual machine.5.Q: What is the max swing over bed?A: Max swing over bed is 50mm.

EAN: 6920837011649

Binding: Tools & Home Improvement

Part Number: W10003M

model number: Lathe Machine
