Mini Milling Machine Work Table Vise Portable Compound Bench X-Y 2 Axis Adjustive Cross Slide Table , for Bench Drill Press 12.2inches-3.54" (310mm

Brand: Drealin

Color: Multicolor

Features:

• Mini multifunctional working table is composed of several adjustable dovetail slot aluminum alloy composition.

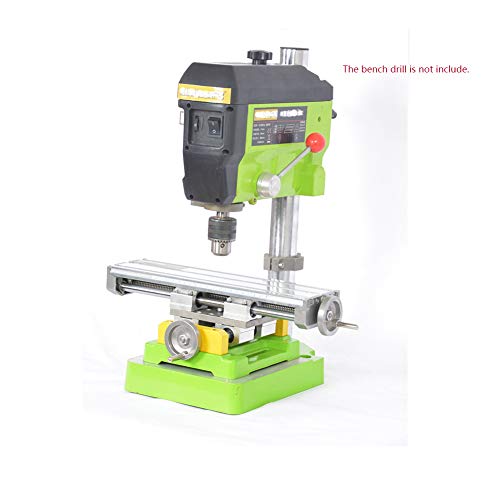

• The work table The table is suitable for mini drill and drill bracket series. It can also be applied to other suitable machines.
• Distance between grooves : 34mm Hand wheel with adjustable scale:A ring=1.25mm,A scale=0.05mm.

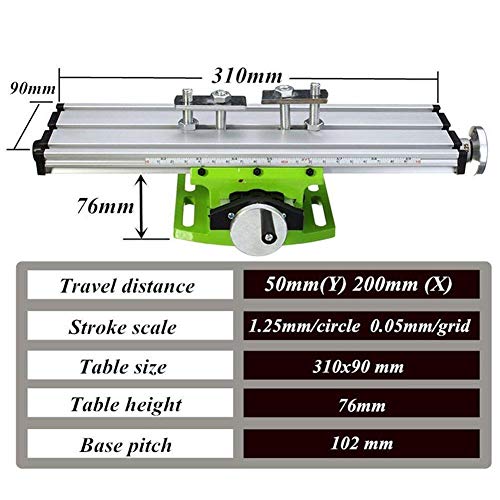

• Table size: 310 × 90mm.Height : 80mm(including two working clamp),standard size is 15x8x6mm.
• The miniature precision multifunction Milling Machine Bench drill Fixture worktable X Y-axis adjustment working table,which can be applied to mini drill and drill bracket series or other suitable machines.

Binding: Tools & Home Improvement

model number: 6300

Part Number: 6300

Details: Mini precision multifunction Milling Machine Bench drill Vise Fixture worktable X Y-axis adjustment Coordinate table
T solt : have three t solts
Solt size: 15mmx8mmx6mm
Mounting hole distance : two holes 93mm away from the nearest is the middle is 98mm,the distance is 112mm

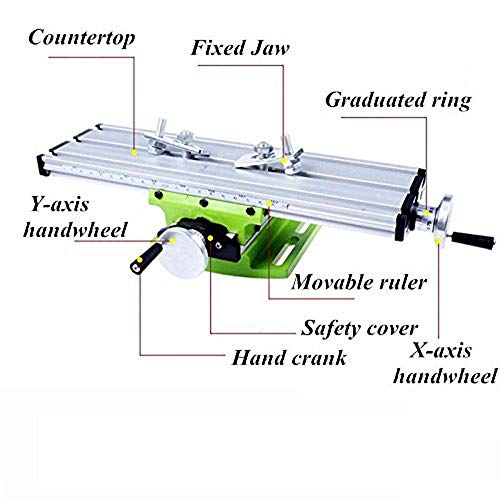

Zero adjustment handwheel rotates a circle : 1.25mm.one lattice equal is 0.05mm

EAN: 0762360028192

Package Dimensions: 14.0 x 8.0 x 3.4 inches
