MKS DLC32 V2.1 32 Bit ESP32 WiFi GRBL TFT Engraver DIY Universal Main Board 32-bit Processor WiFi Module TMC2209 Stepper Motor App Control High
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Hyuduo
Features:
- [APP CONTROL] - Achieve fast carving, webpage control, and mobile app control. Compatible with MKS DLC and other PC software.
- [BASIC PARAMETERS] - 32 bit STM32 processor, expandable WIFI module, power outage relay module, material outage detection switch, and external card slot.
- [FINE WORKMANSHIP] - Embedded with dual-core 32-bit high-speed MCU and powerful WIFI and modules. Equipped with 8MB flash storage chip for effective protection.
- [GOOD ACCURACY WORK] - Engraver touch screen for coordinated and accurate printing operations.
- [TMC2209 STEPPER MOTOR DRIVER] - Ultra quiet and designed to prevent overheating. for easy grip and control.
model number: Hyuduo3o1yc9ksxz
Part Number: Hyuduo3o1yc9ksxz
Details: Specification:
Item Type: Engraver Mainboard
Main Board Parameters
Mode: MKSDLC32
Material: PCB
Voltage: 12-24V DC ( less than 10A)
Single Chip Computer: ESP32 WROOM 32U (32 bit)
MCU Frequency: 240MHz
Flash Memory: 8192KBytes
Memory: 520KBytes
Speed: Less than 8000mm/min
Offline Display: MKS TS24 R, TS35 R
Firmware: GRBL
Serial Driver: USB
Axes WIFI Onboard: 4 (X, Y1, Y2, Z)
Website: Support
APP: Support
Storage Card: Supported
MKS Tool: Support
Available Machines: CNC engraving machine
Stepper Driver: A4988, DRV8825, TMC2208, 2209, 2225 (Nema17 motor)
Additional Driver: TB6600, TMC2160 (applicable to Nema23 motor)
: Below 20W (greater than 20W, external power supply)
Compatible Software: For Grbl, for Xloader, for GrblController, for benbox, for mDraw, for LightBurn
Main Board Introduction: The MKS DLC32 main board is an offline engraving control board developed specifically for desktop engraving machines. The hardware is equipped with a 32 bit high speed ESP32 module, integrated with WIFI function, and directly drives a 2.4, 3.5 inch touch color screen; It can achieve functions such as fast carving and webpage control, as well as mobile app control. The installation holes and circuit board size of MKS DLC32 are compatible with for MKS DLC and can also be used with for GRB and for LightBurn PC software.
TMC2209 Driver Parameters
Maximum Output Current: 2.5A
Default Current: 1.25A
Micro Step: Up to 1/256
Configuration: STEP DIR or UART
Load Driving Voltage Range: 5.5-28V
IC Logic Working Voltage: 3.3V 5V
How to Use:

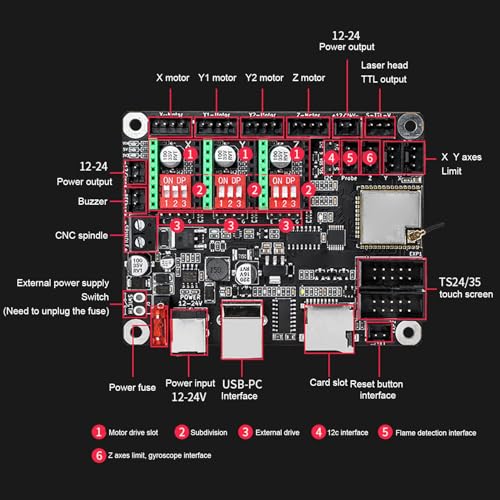

Introduce usage based on the selling point diagram.
PackageList:
1 x Main Board
1 x USB Cable
3 x Driver
3 x Heat Sink
Package Dimensions: 5.5 x 4.7 x 2.8 inches
