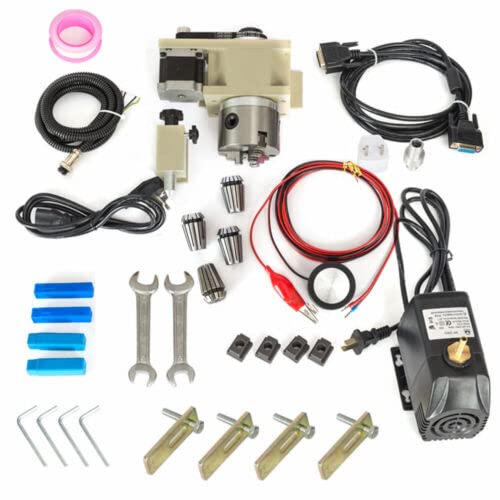

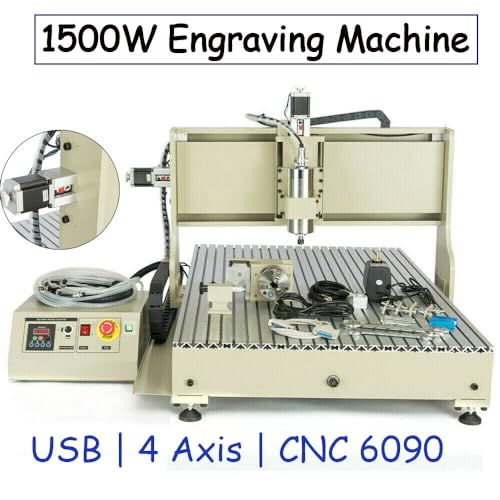

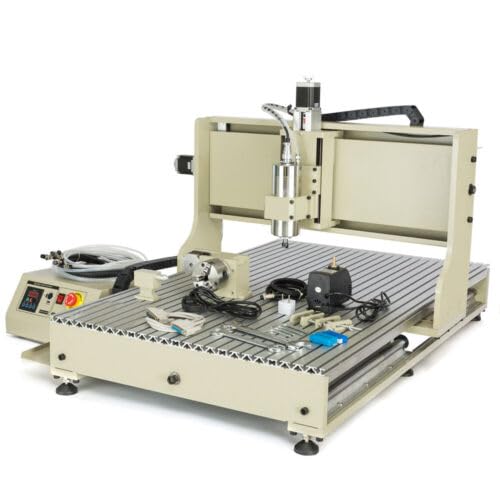

MOCHAG USB CNC 6090 Router Machine Kit MACH Control, 4 Axis 1.5 KW VFD Water-Cooling Spindle Motor+ 3D Milling Engraving Machine, Engraver Milling 3D Cutting Machine w/Control Box, Handwheel
Regular price
$1,579.99
Unit price
/
Unavailable
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
đĽ Newsletter đĽ
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: MOCHAG
Color: Metal Color
Features:
- đĄăEngraver Parameteră: Dimensions:1150*970*650mm(L*W*H); Working platform size:1045*720mm(L*W); Frame material: The whole machine adopts 6061 aluminum profile; Maximum feeding height:â¤140mm(Zaxis base to platform); X, Y, Z work Area:900(Y)*600(X)*140mm(Z).
- đĄăHigh Performancă: 1500W high-speed variable frequency spindle motor, ER11 chuck,with 6mm collet. 57 two-phase 3A (with handwheels) stepping motor, water-cooled VFD can run for a long time, enhancing the processing capacity of the machine. Maximum idle speed: 1500mm/m, working speed: 50-1500mm/min.
- đĄăAccurate & Durableă: The 1.5KW water-cooled VFD is available operating for long time, which can reinforced the processing abilty of the machine and can be used toprocess aluminum alloy and hard wood.High quality accurate ball Screws drive make the engrving more precision.Anti-blackflash, high precision, long life circle, water cooling spindle works more stable and durable.

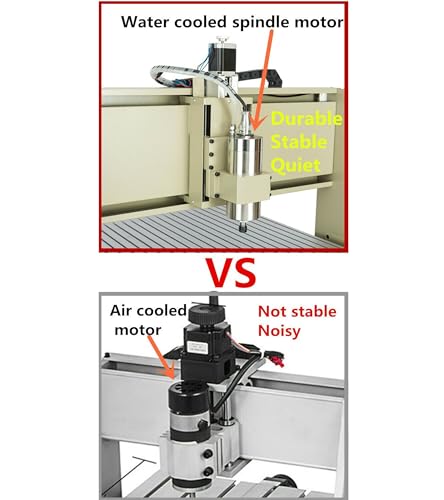

- đĄăWide Applicationă: It can work with various materials(metallic & non-metallic), such as: wood, pmma or other plastic, MDF board, native wood, PVC, Acrylic, wood, composite board plywood. and soft metal .like aluminum, copper and silver to engrave them into 3D/2D works etc. Water cooled spindle motor can work longer time than air cooled motor.
- đĄăFriendly ReminderăThe engraving machine recognizes the G code, so need convert the picture to be processed into the G code to be able to identify the product. The format of the code is nc ncc tap. These formats can be recognized.We have tried the USB model, win10 can be, but not 100% sure. Generally speaking, win7 winxp 32-bit is used.
model number: 1500W-6090T1-USB-B-YLL
EAN: 0758439332857
