Brand: Monport
Color: Grey Black
Features:

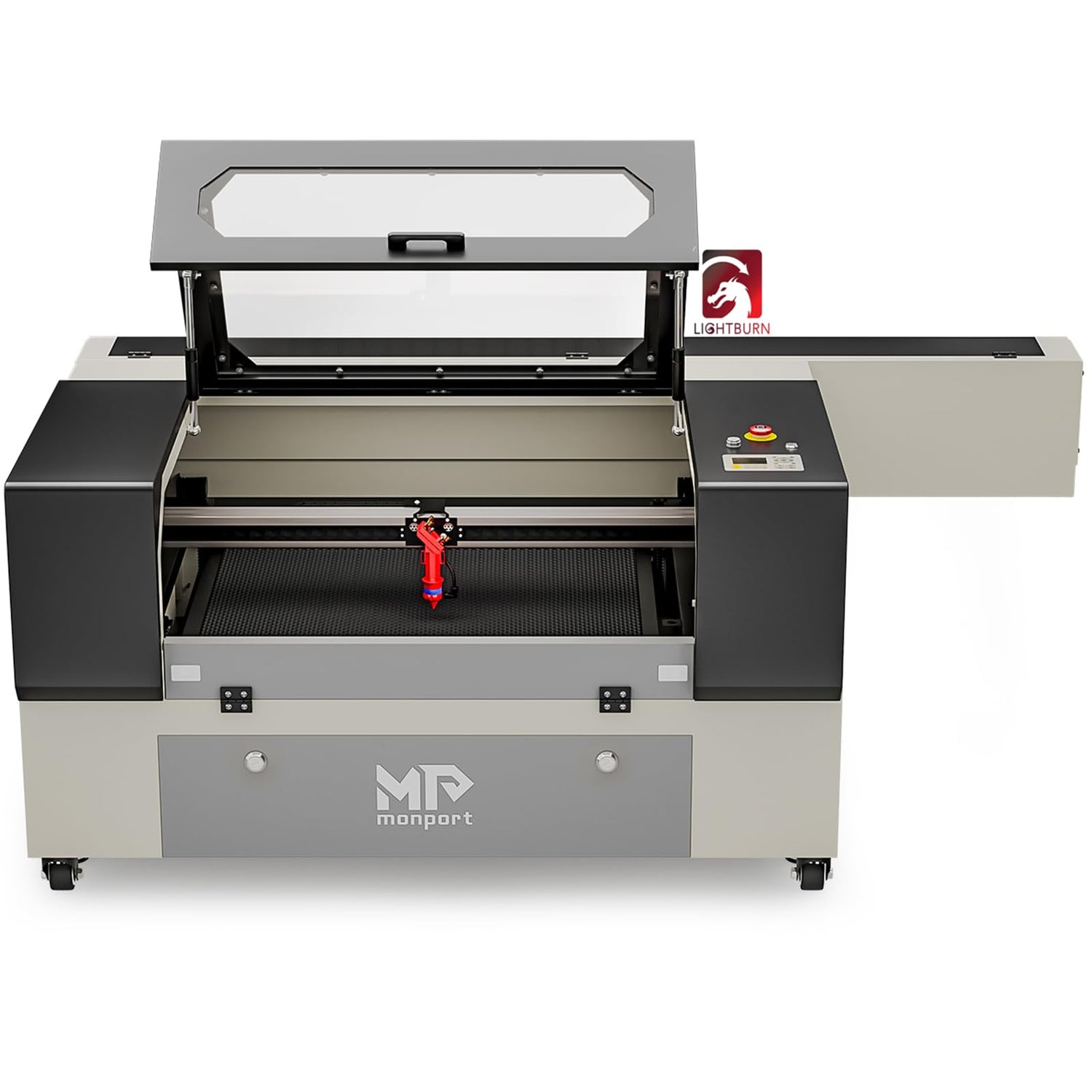

- 【Great Compatibility】Monport 100W CO2 laser engraver is compatible with Windows and Mac, supporting RDWorks and LightBurn. Whether for DIY or commercial use, users can attain precise control and engravings on various nonmetallic surfaces, such as wood, glass, acrylic, leather, with a depth of 0.59'' and speeds up to 800mm/s.

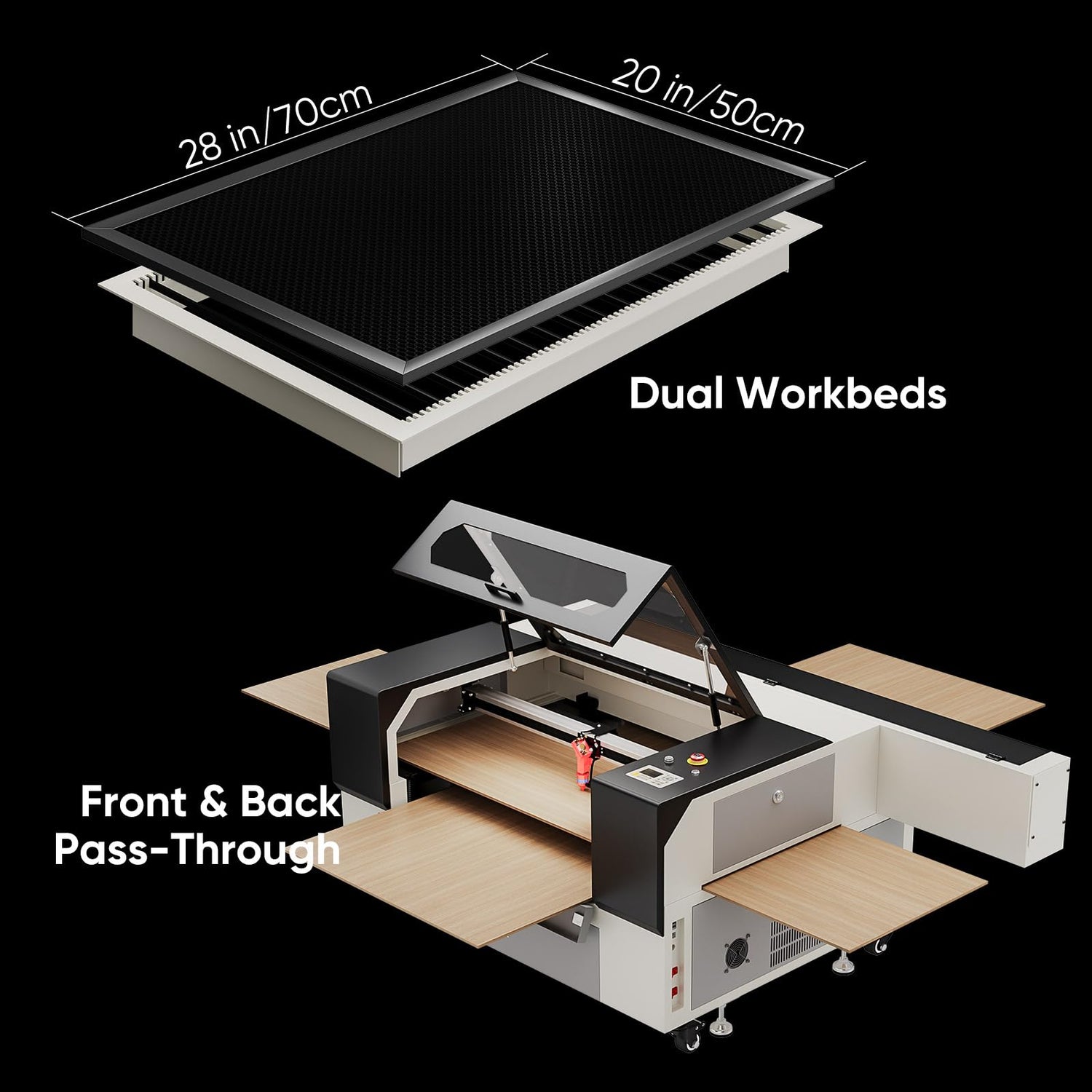

- 【For Larger Engraving Projects】With a spacious 20*28’’ work bed, and four-way pass-through for items extending the workbed, this engraving tool is designed for big projects. The high-quality metal honeycomb board and aluminum panel provide double protection, and it's moveable for thicker materials, ensuring a secure and stable environment for your work pieces.

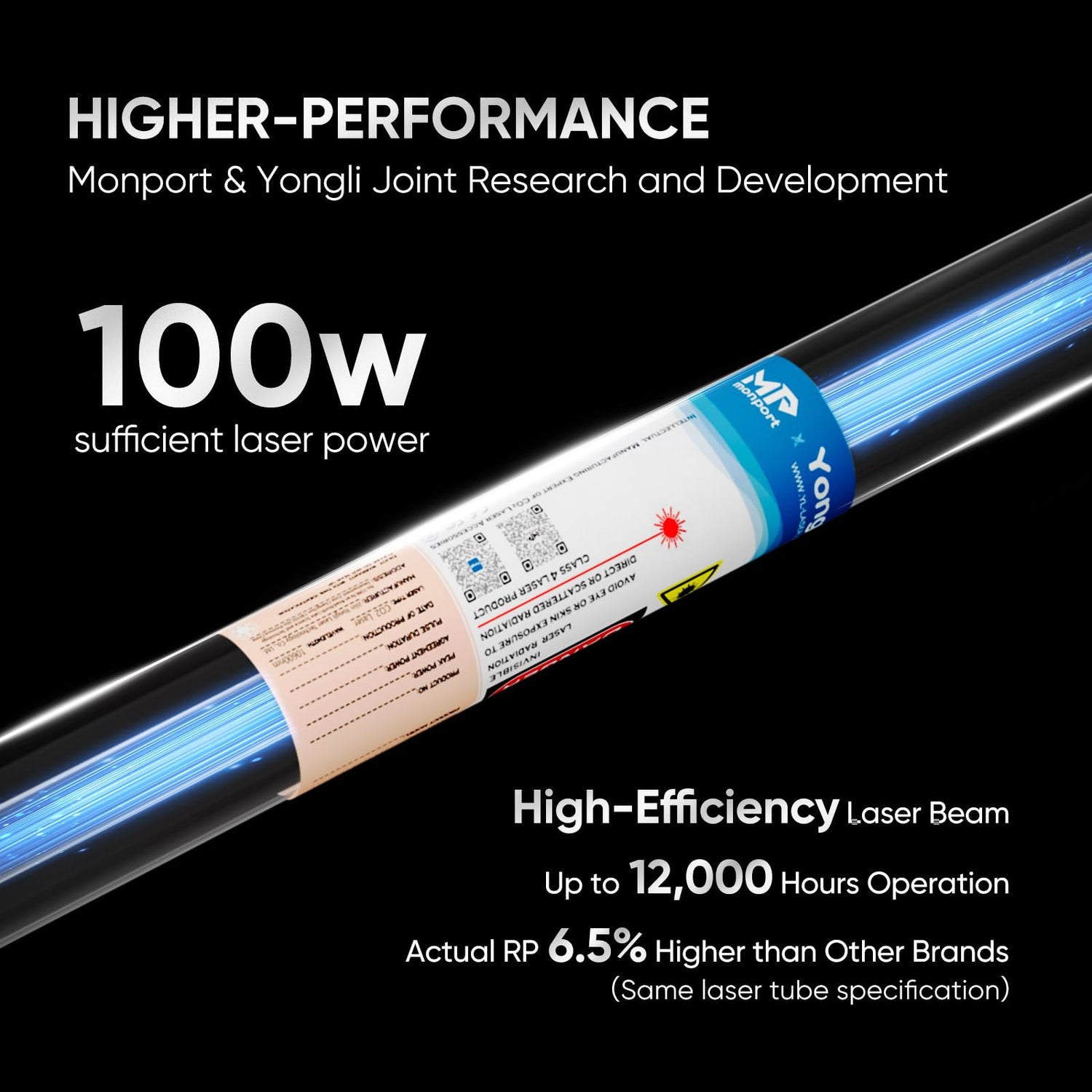

- 【High-Performance Laser Beam】Monport & Yongli's joint research and development have produced a high-efficiency laser beam for this laser cutter, yielding up to 12,000 hours of operation. It delivers an outstanding 6.5% higher actual RP compared to competitors with identical laser tube specifications.

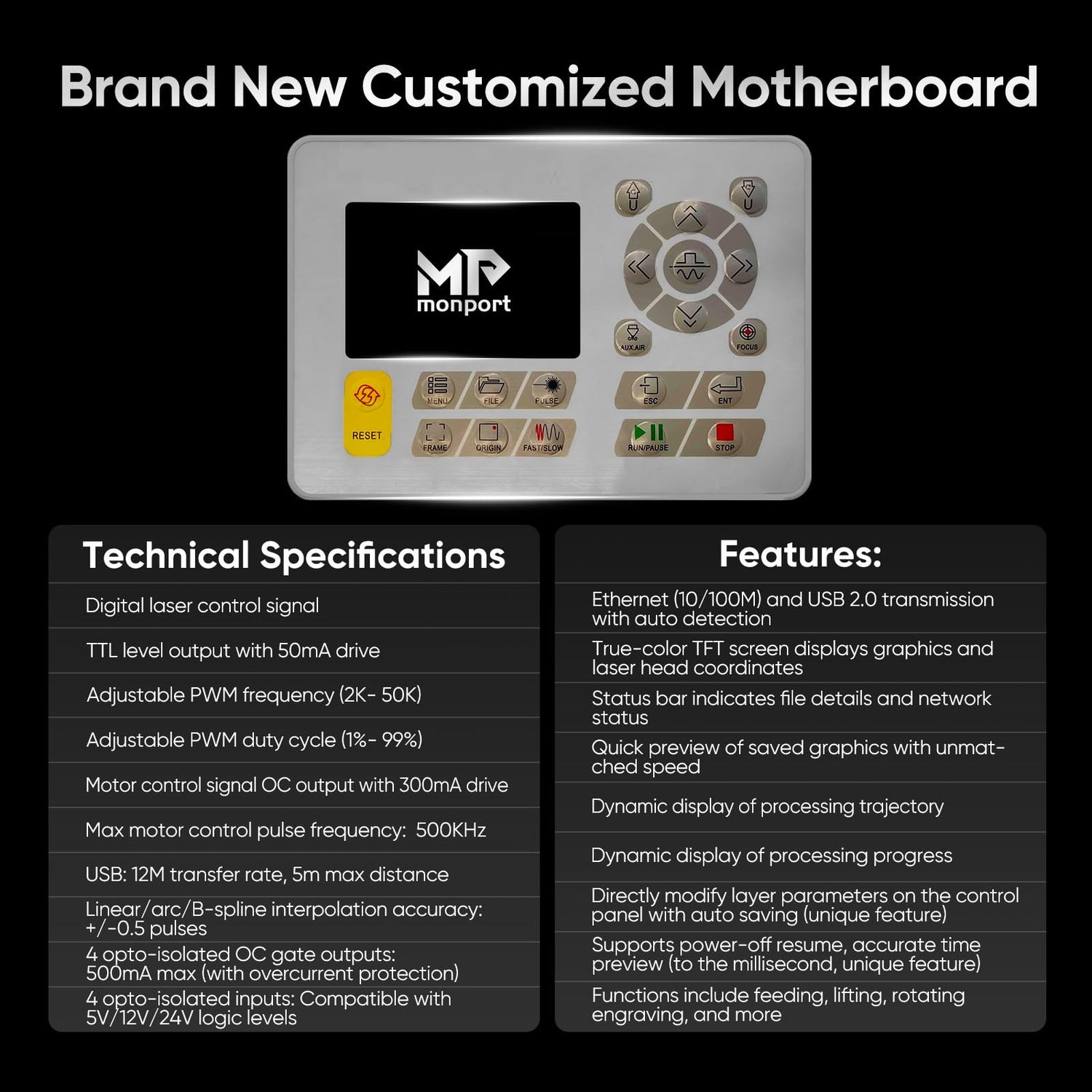

- 【Intelligent Control Panel】Driven by Ruisin KT332N motherboard, our laser engraving machine offers direct control of auto-focusing, Z-axis movement, and air assistance. Dynamic display of processing trajectory & progress enables users to modify layer parameters on control panel with auto saving. More uniquely, the system supports power-off resume, and accurate work time preview to the millisecond.

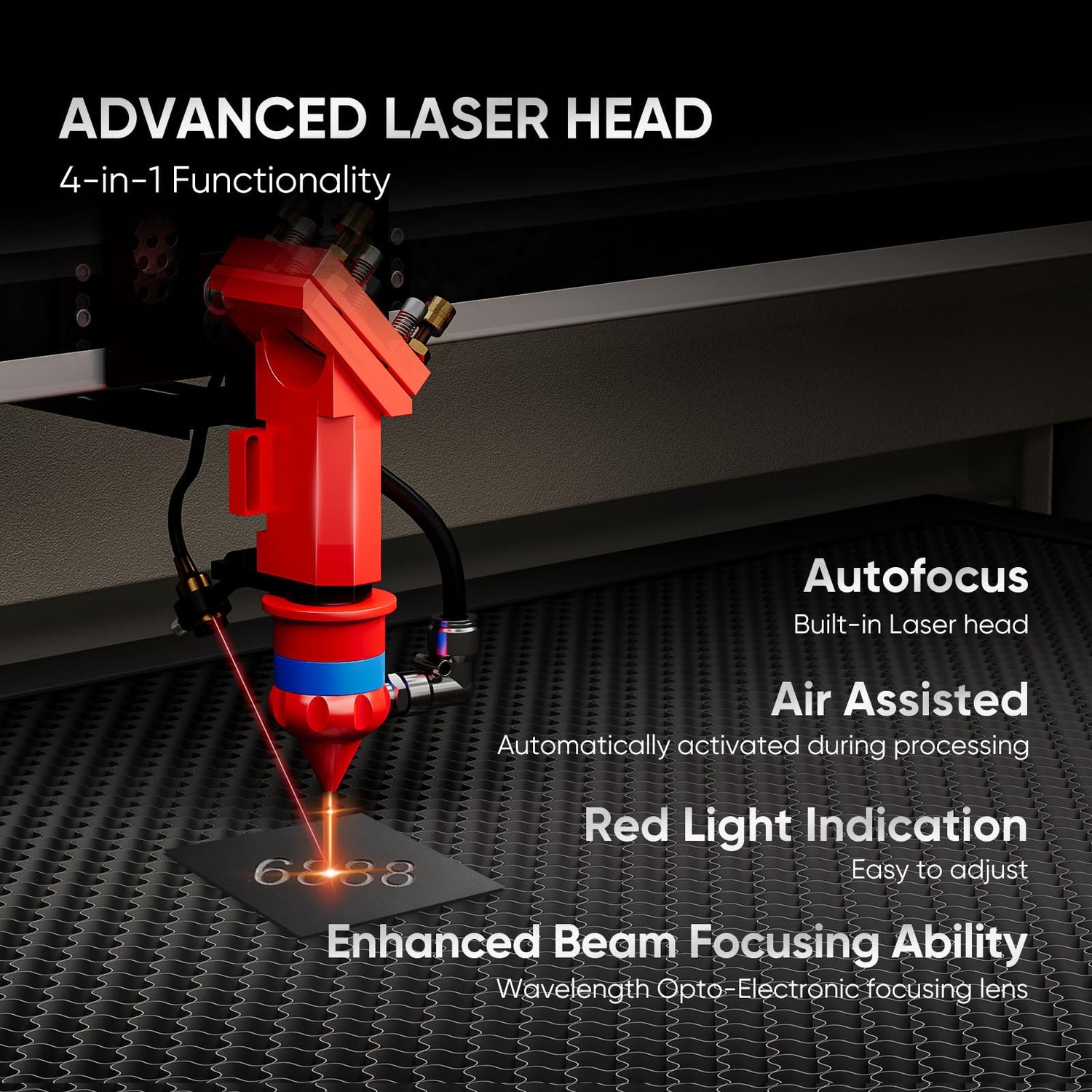

- 【Advanced 4-in-1 Laser Head】Monport combines four functions on one laser head, including laser emission, autofocus, air assist, and red light indication. More importantly, we choose high specification focusing lenses (produced by wavelength optoelectronics).The above will give you an unprecedented carving and cutting experience and streamline your engraving process with convenience and efficiency.
- 【Comprehensive Safety Features】Our engraving machine ensures user safety with features like an emergency stop button for fast power shutdown, independent laser control with a dedicated key, cover protection to halt operation when opened, and auto-stop for low water or high temperature.The fireproof window allows observation, while built-in ventilation ensures instant smoke removal.
- Laser Class 4, 100000 mW output power. Model:YX570
Details: Descriptions:
Elevate Your Craftsmanship with Monport's Cutting-Edge Laser Engraving System
Experience Precision and Speed with Remarkable Features:

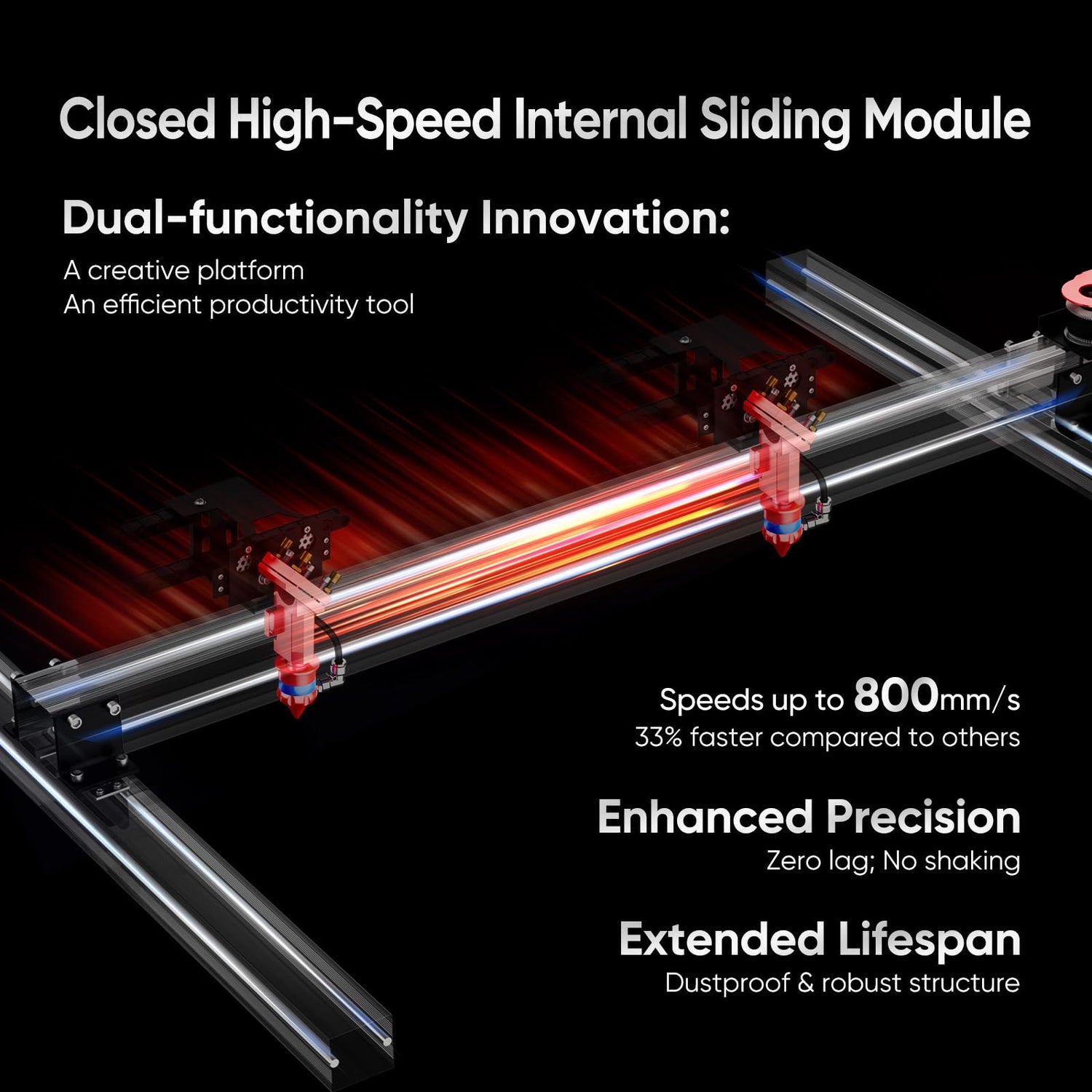

High-Speed Performance: Unleash creativity at remarkable speeds of up to 800mm/s with the high-speed internal sliding module
Safe Observation: Craft confidently with a window crafted from special fire-resistant polyester and iron frames, ensuring safe observation without fear of material burning or fire hazards
Two-way Pass-Through: Handle larger workpieces effortlessly with front-to-back pass-through
User-Friendly Control System: Navigate the Ruisin KT332N motherboard via the 3.5" TFT color screen., experience dynamic displays of processing trajectories, modify layer parameters with ease, and enjoy the convenience of auto-save, power-off resume and accurate work time previews to the millisecond
Dual Working Platforms: The dual-layered defense of the high-quality metal honeycomb board and aluminum panel enables safety with using flexibility
Pioneering Laser: Collaborative efforts by Monport & Yongli bring you a high-efficiency laser beam, designed for an impressive operational life of up to 12,000 hours
Optimized Laser Head: The 4 in 1 laser head comes with built-in autofocus for enhanced precision
Imported Focus Lens: The use of high-quality imported focus lens improves beam quality, cutting capabilities, and engraving finesse, resulting in finer details and increased precision
Upgrade your engraving experience with Monport's state-of-the-art technology, designed to bring efficiency and precision to the forefront of your craftsmanship.
Binding: Office Product
Part Number: 100W-AF570
model number: Monport CO2 Laser Engraver
