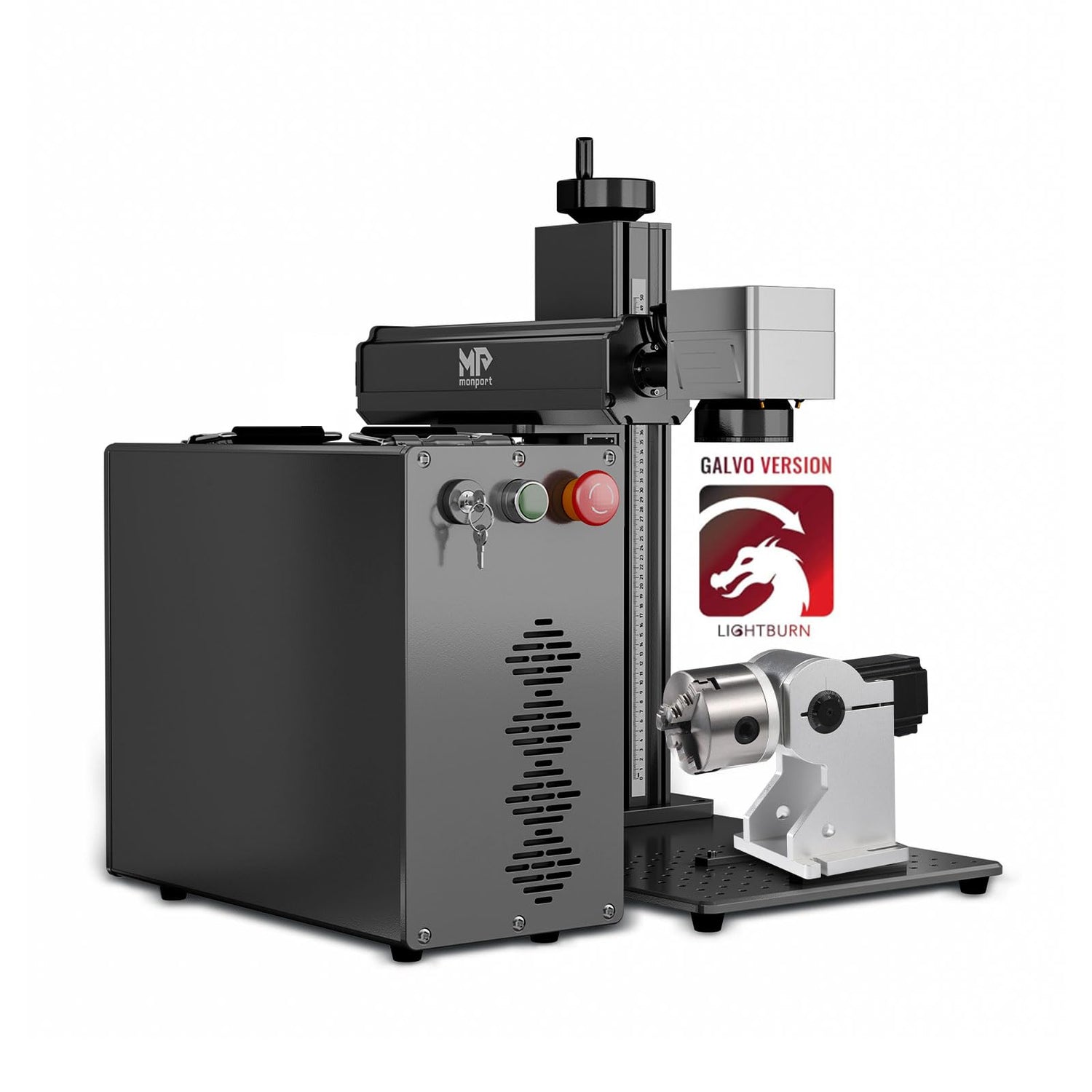

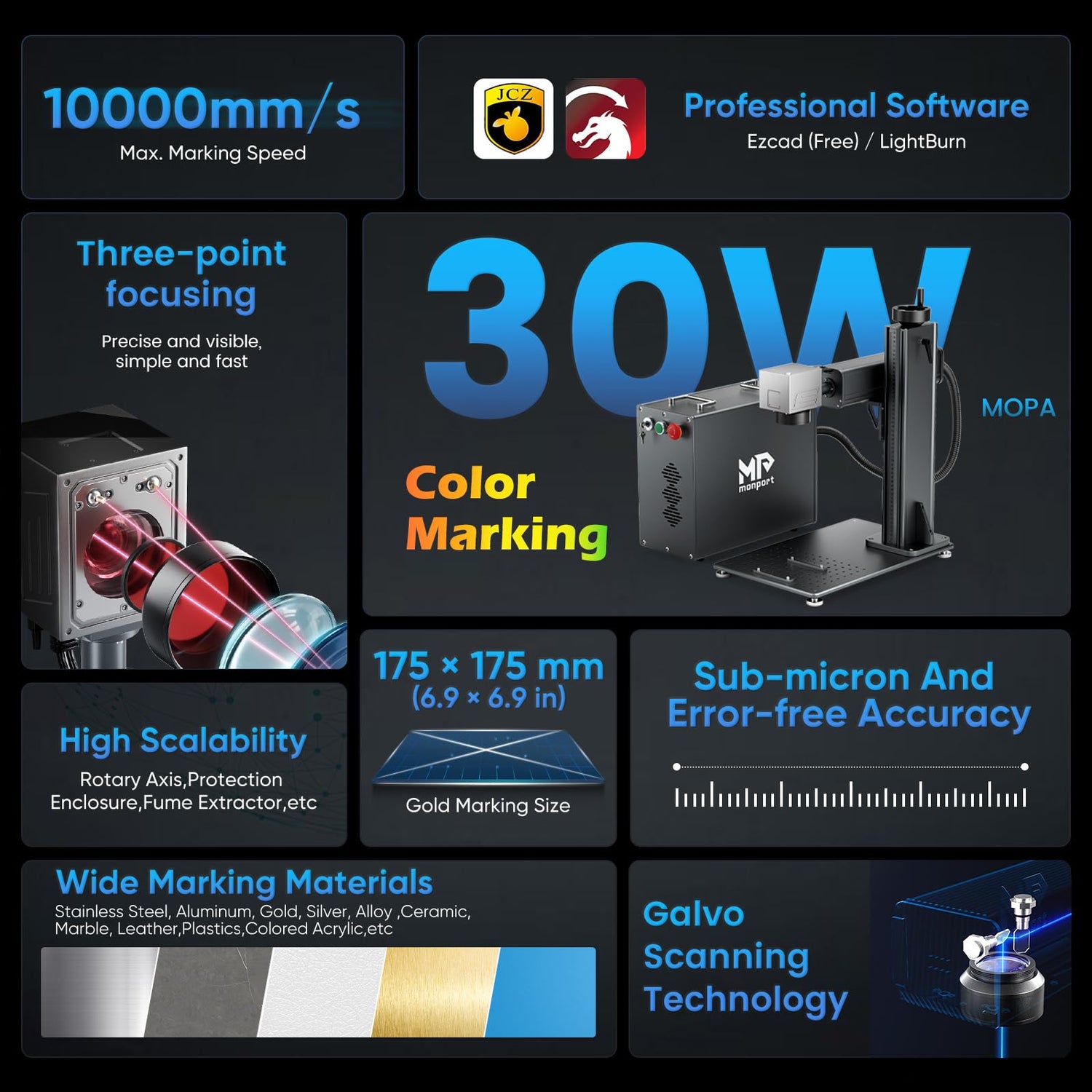

Monport 30W Fiber Laser Engraver＆Rotary Axis with Lightburn,MOPA Laser Marking Machine with 6.9" x 6.9" Lens Red Dot Guide for Metal Color Marking for Aluminum Gold Steel More
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Monport
Color: Dark Gray
Features:
- 【Powerful Laser Core & High-Performance Marking Controller】:Monport's 30W fiber laser marking machine, equipped with the JCZ marking controller, ensures powerful performance and precision, removing limitations on your creativity and processing capabilities.
- 【Versatile Laser Marking Capabilities】:Our fiber laser engraver, with adjustable frequency (1-3000kHz) and pulse width (2-500ns), enables vibrant stainless steel markings, anodized aluminum black engraving, precise cutting, drilling, and intricate designs on plastic buttons. Experience rich and precise visual effects with ease.

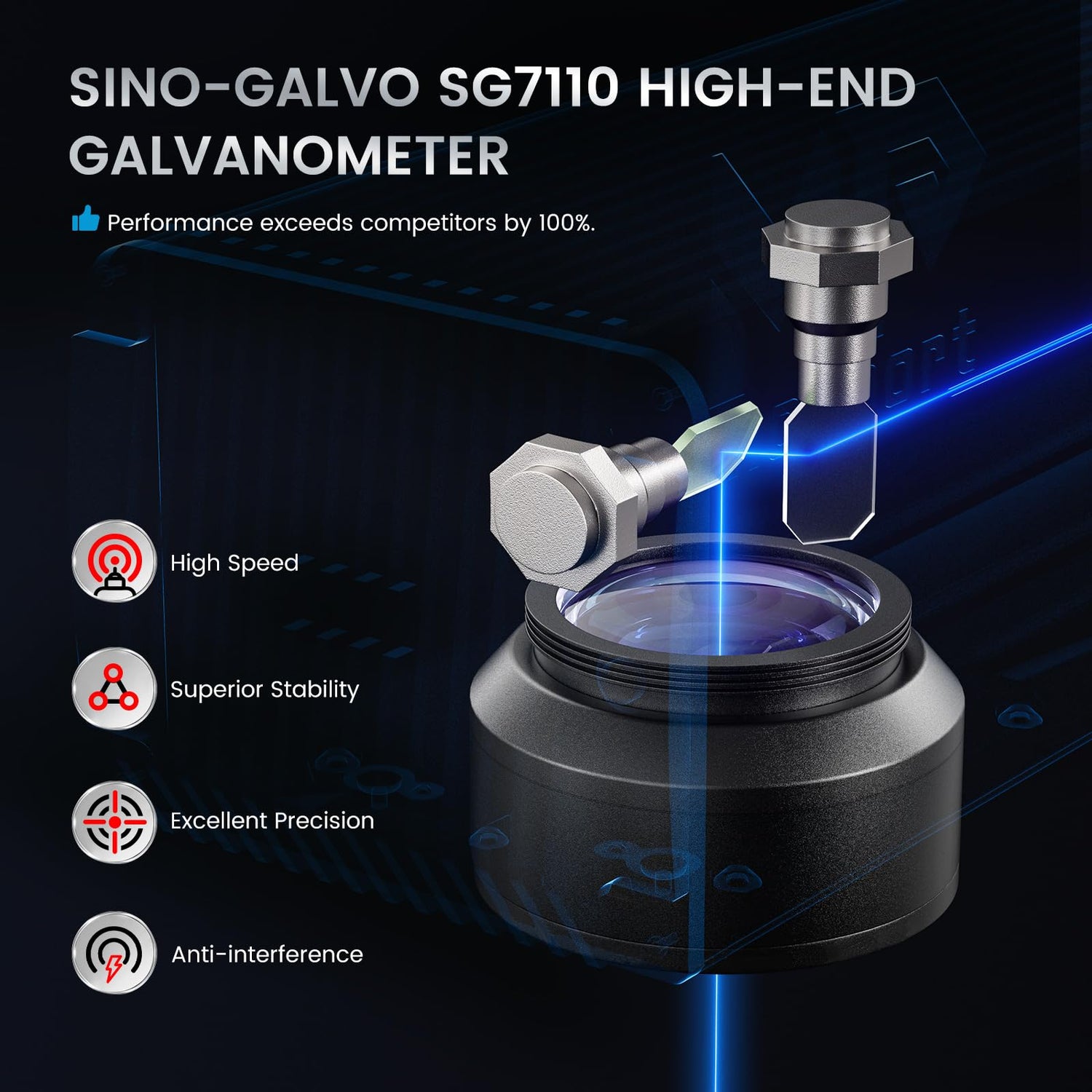

- 【Premium Galvanometer】:A superior fiber laser demands a top-notch galvanometer. Monport opts for the high-end Sino-Galvo SG7110 galvanometer for exceptional stability, precise positioning, rapid marking speed, and robust anti-interference capabilities. The overall performance surpasses other brands by 100%.

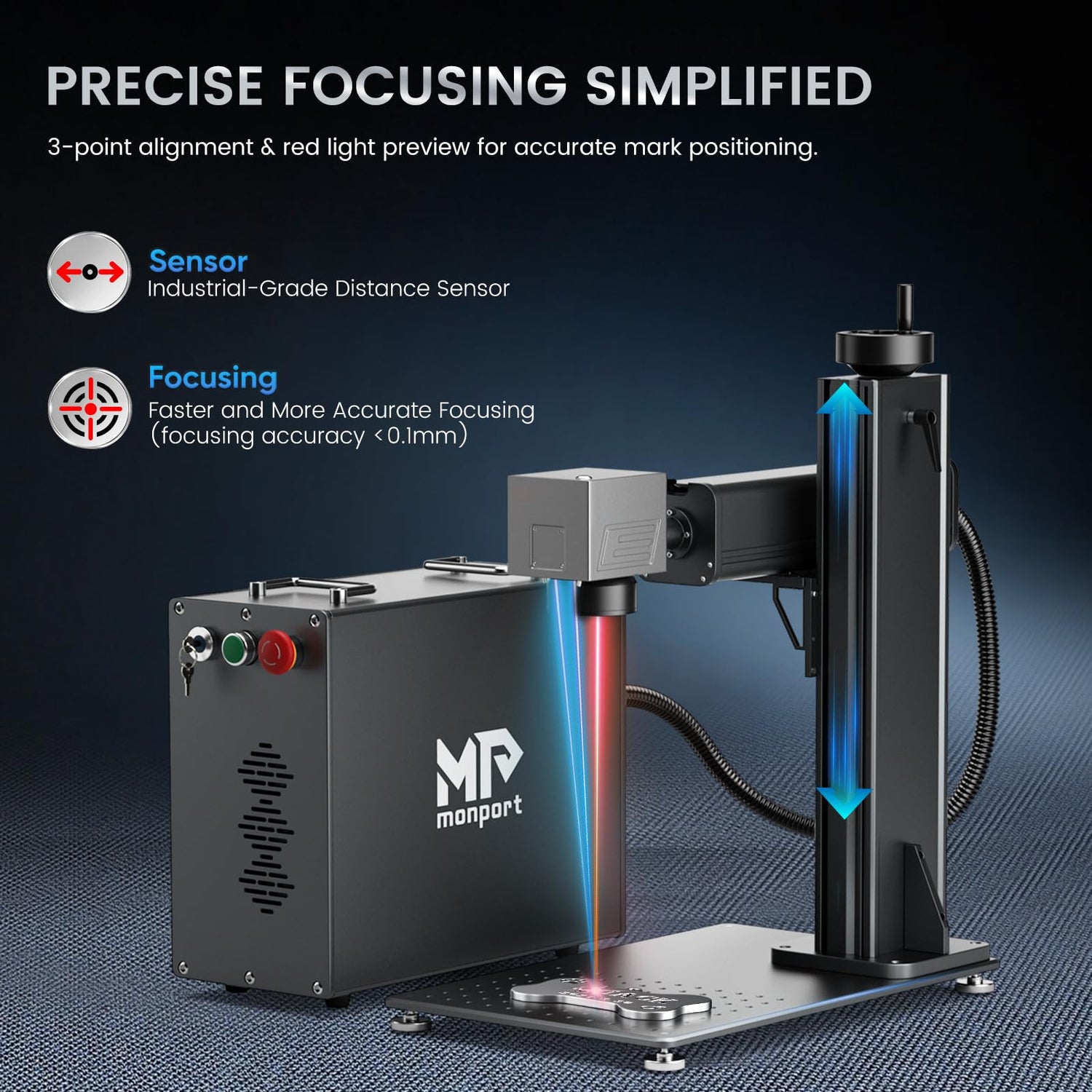

- 【Easy Focus with Precision】:Our laser engraver machine features three-point red light alignment for easy focusing and allows for red light preview. Preview the marking area through the red light, swiftly confirming your marking positions with precision.
- 【Enhanced Security Features】:We've adopted the access key to prevent any unauthorized laser use, while the large E-stop button is readily available for emergencies, ensuring high levels of safety.

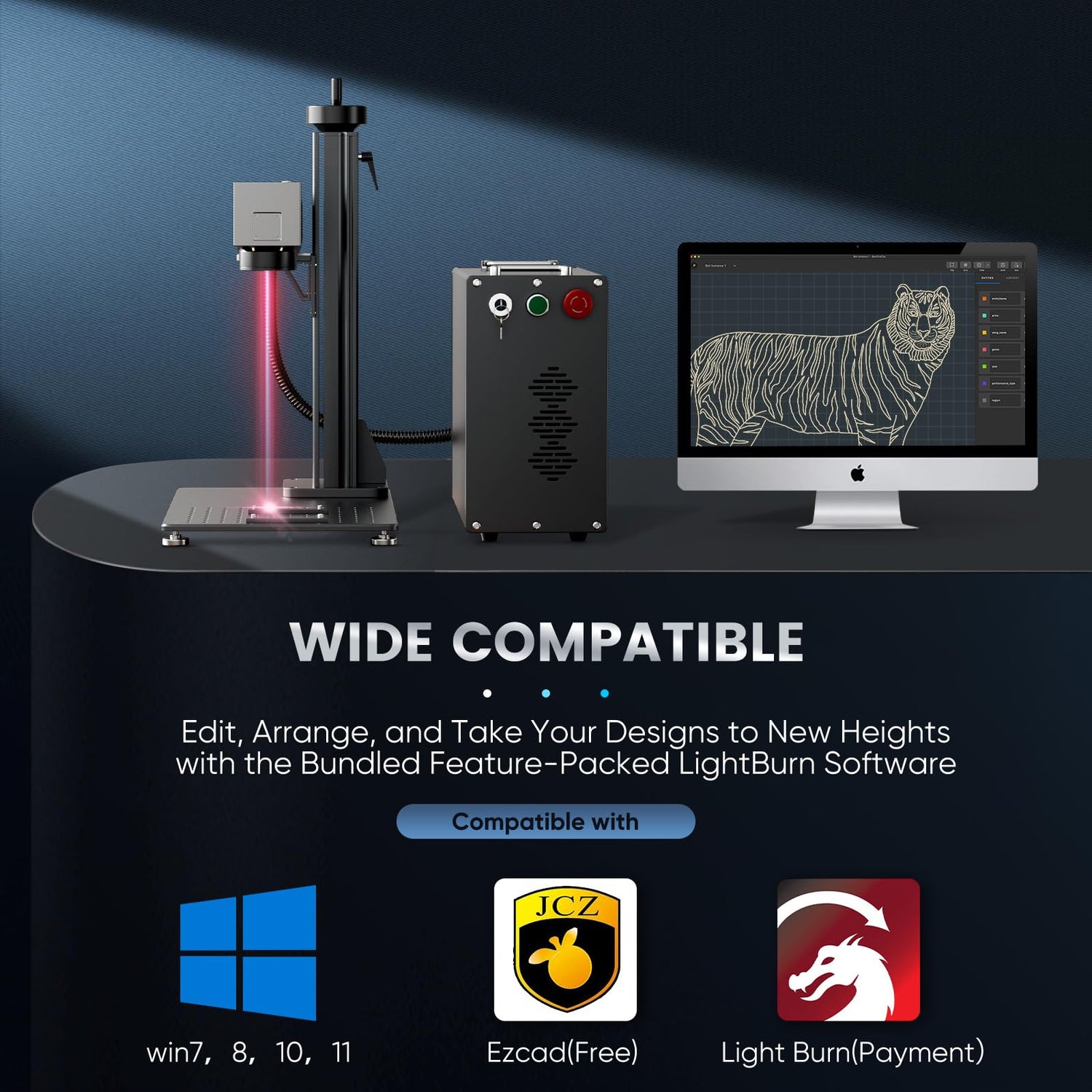

- 【Versatile Operating Software】:Monport's fiber laser marker is compatible with EzCad2 for seamless operation, catering to both Windows and Mac systems. Note that LightBurn is exclusively available for use on Mac systems.
model number: Mopa＆Rotary Axis
Part Number: Split MOPA＆Roatary Axis

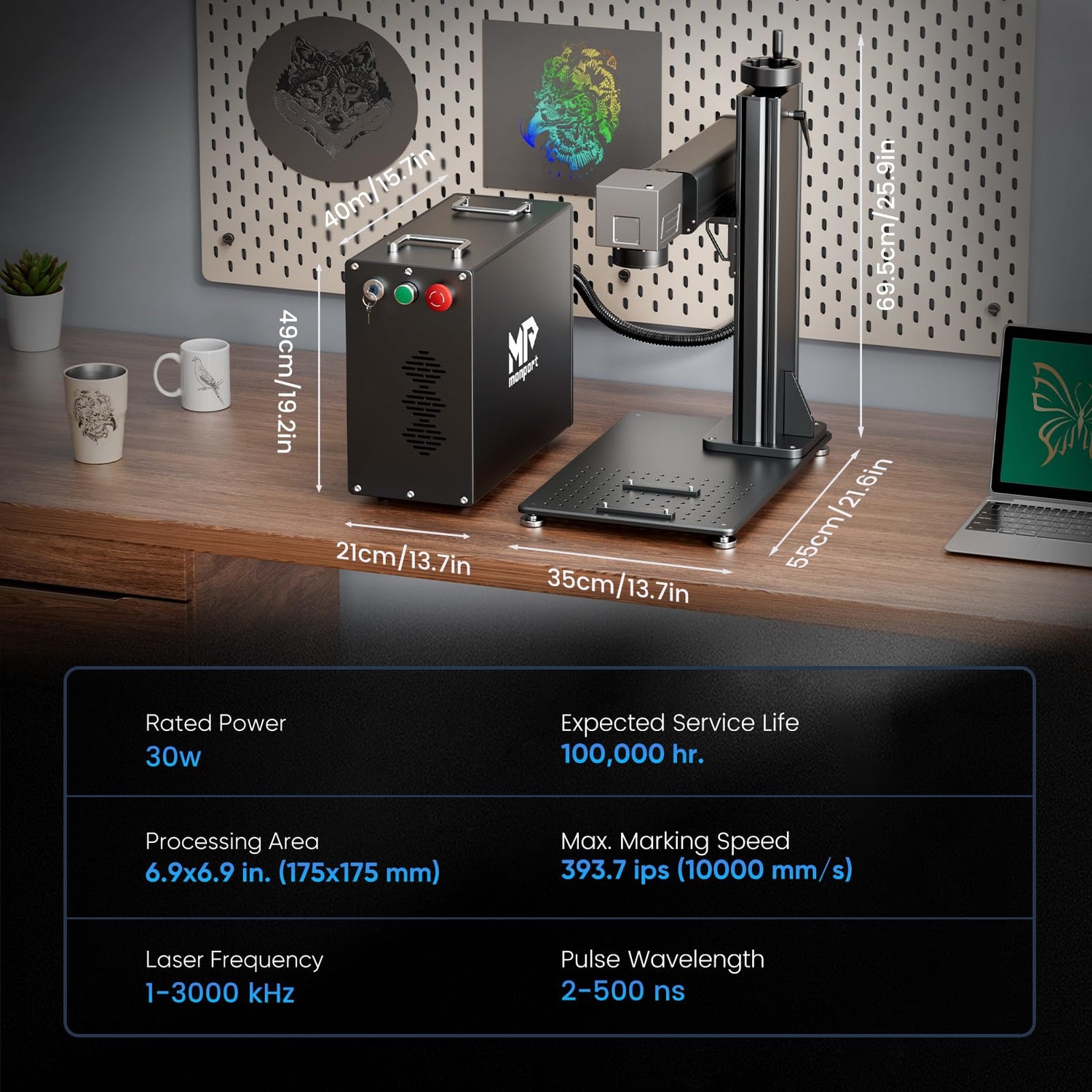

Details: Description
Model:JL-F 30-100W
Input Power:110-120V 60Hz
Rated Power: 30-100W
Expected Service Life:100,000 hr.
Central Wavelength:1060-1080 nm
Laser Frequency:1-3000 kHz
Pulse Width:2-500 ns
Beam Diameter:7±1 mm
Beam Quality M2:＜1.8
Maximum Pulse Energy:1.5
Processing Area:6.9×6.9 in.(175×175 mm)

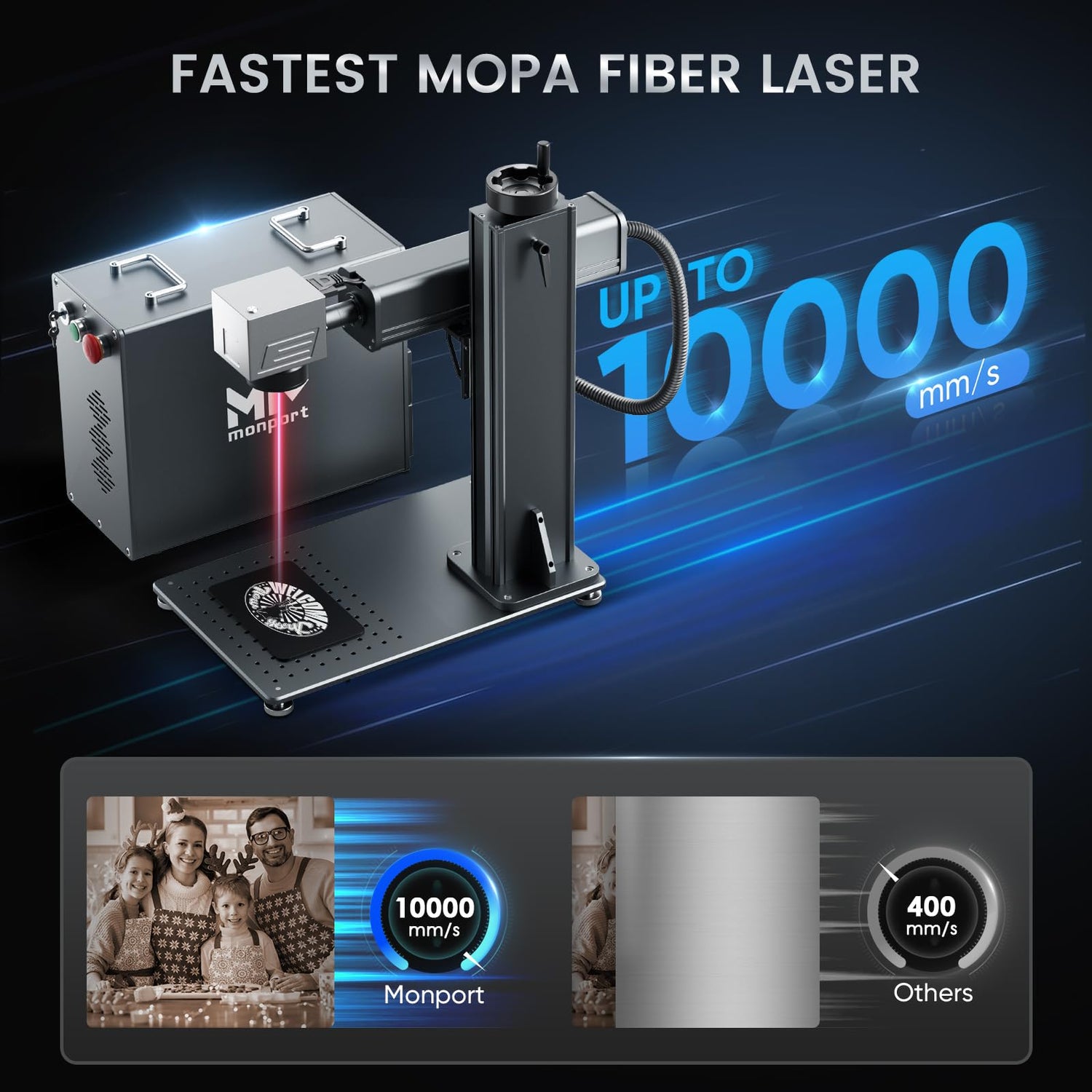

Max. Marking Speed:275.6 ips(7000 mm/s)
Min. Marking Depth:0.0002 in.(0.005 mm)
Max. Marking Depthon a Single Pass:0.003 in.(0.07 mm)
Min. Line Width:0.006 in.(0.15 mm)
Precision:±0.1 µm
Required OperatingEnvironment Max. Humidity:<70%
Temp. Range:40–95°F(5–35°C)
Provided Operating Software:EZCad
