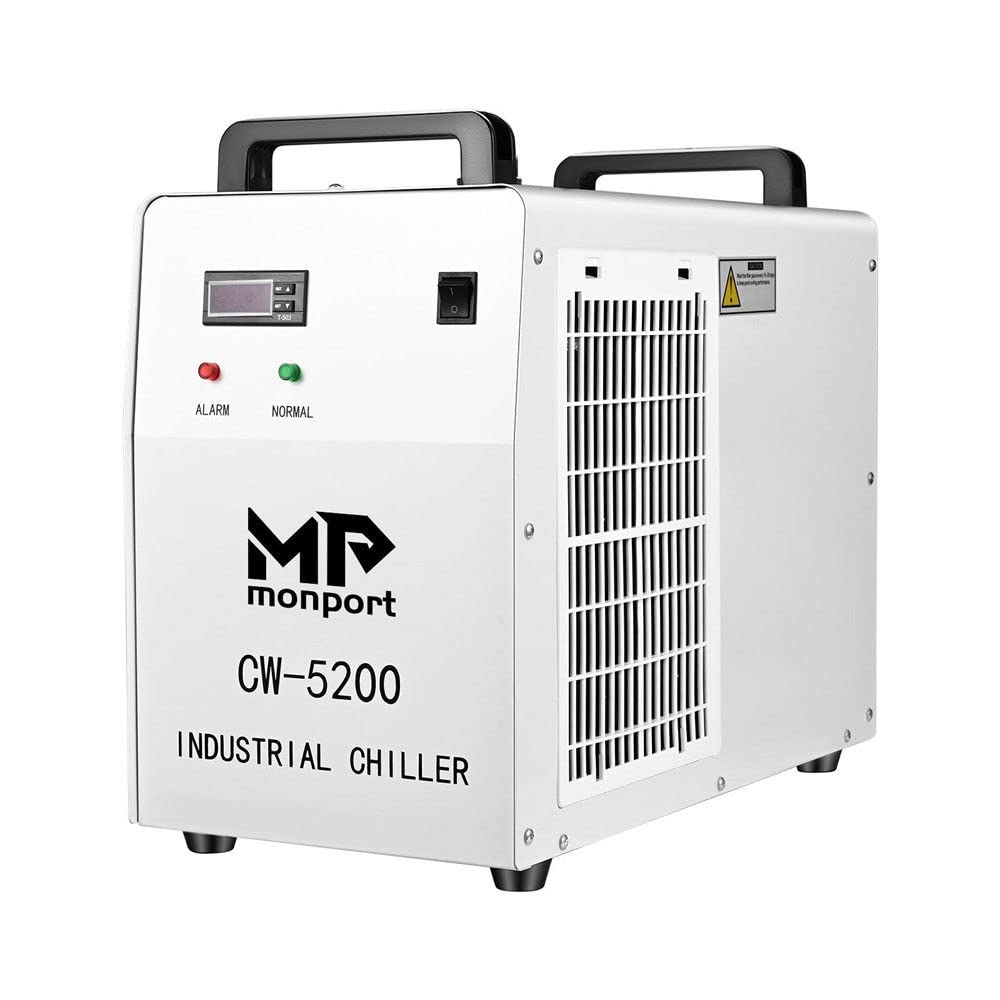

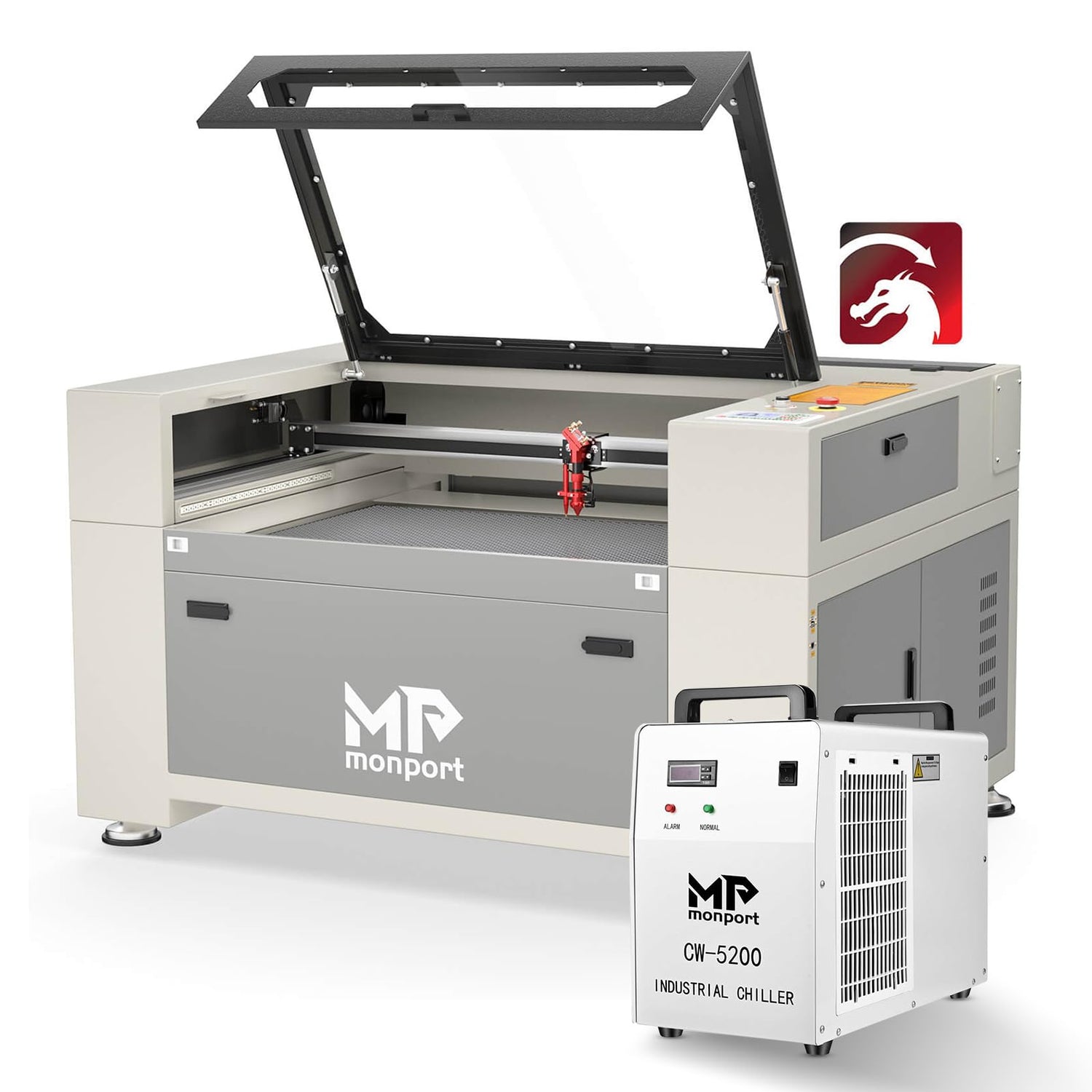

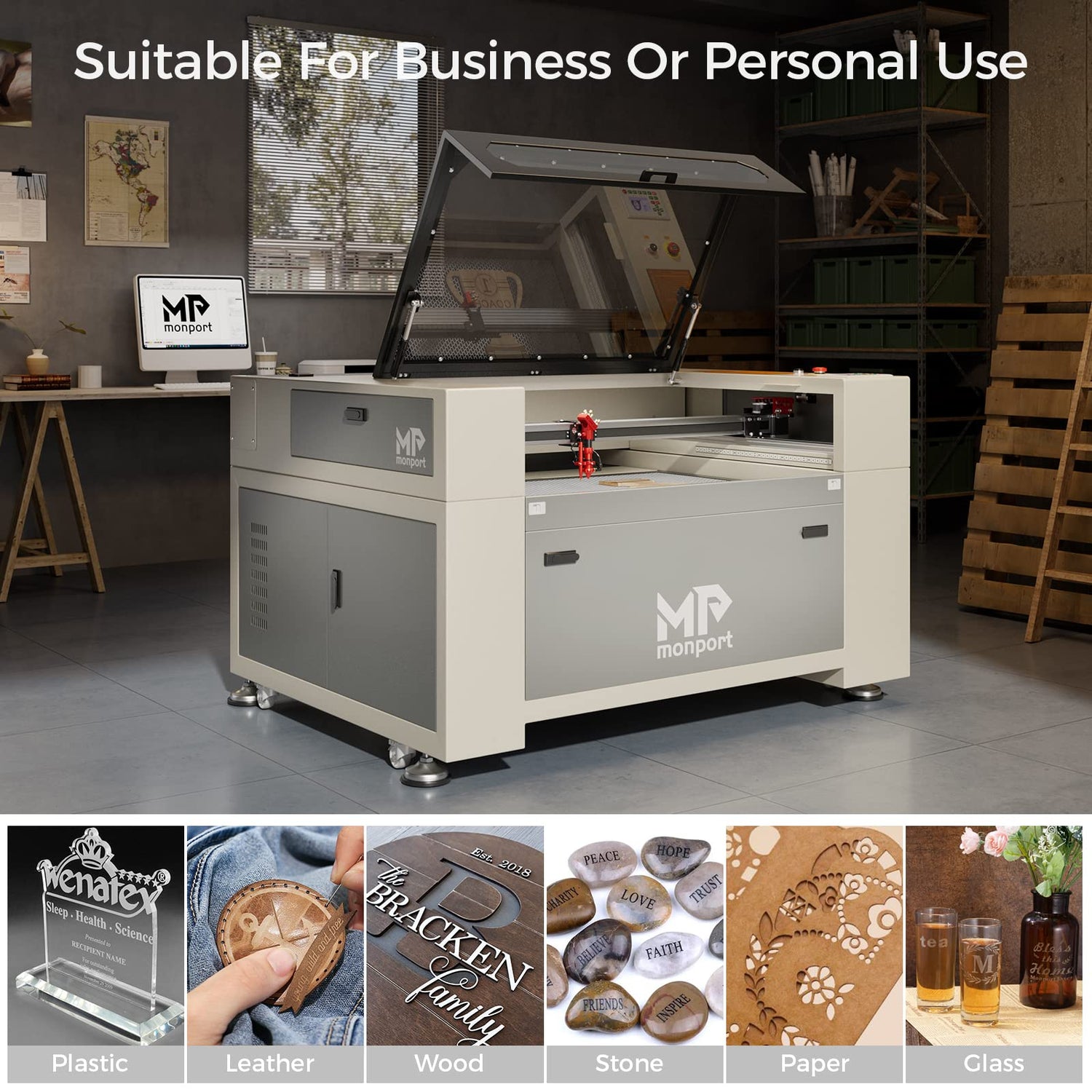

Monport Upgraded Fireproof Auto Focus 100W CO2 Laser Engraver & Cutter with Large Working Area (24" x 40"),with 6L CW-5200 Industrial Water Chiller

Brand: Monport

Color: White

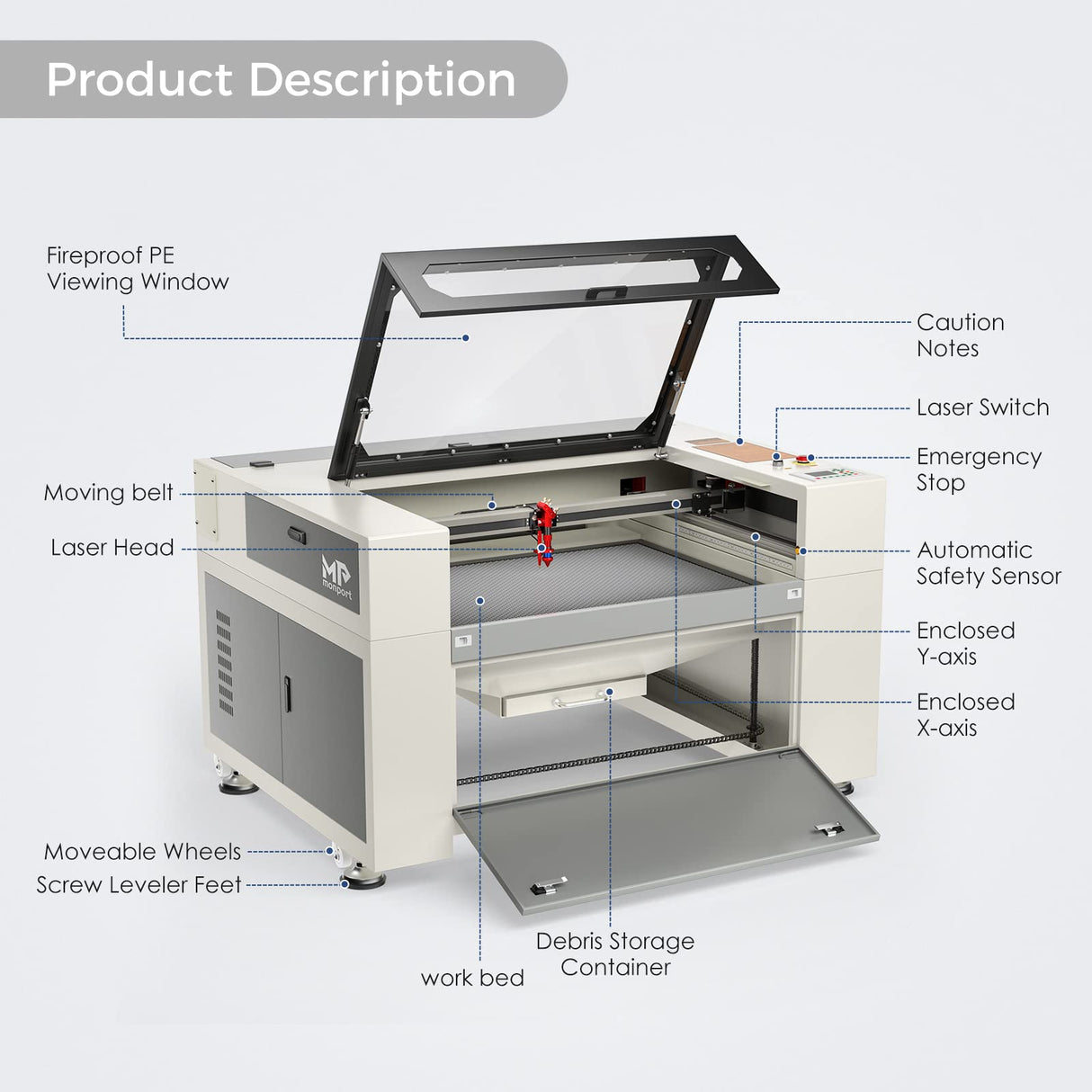

Features:

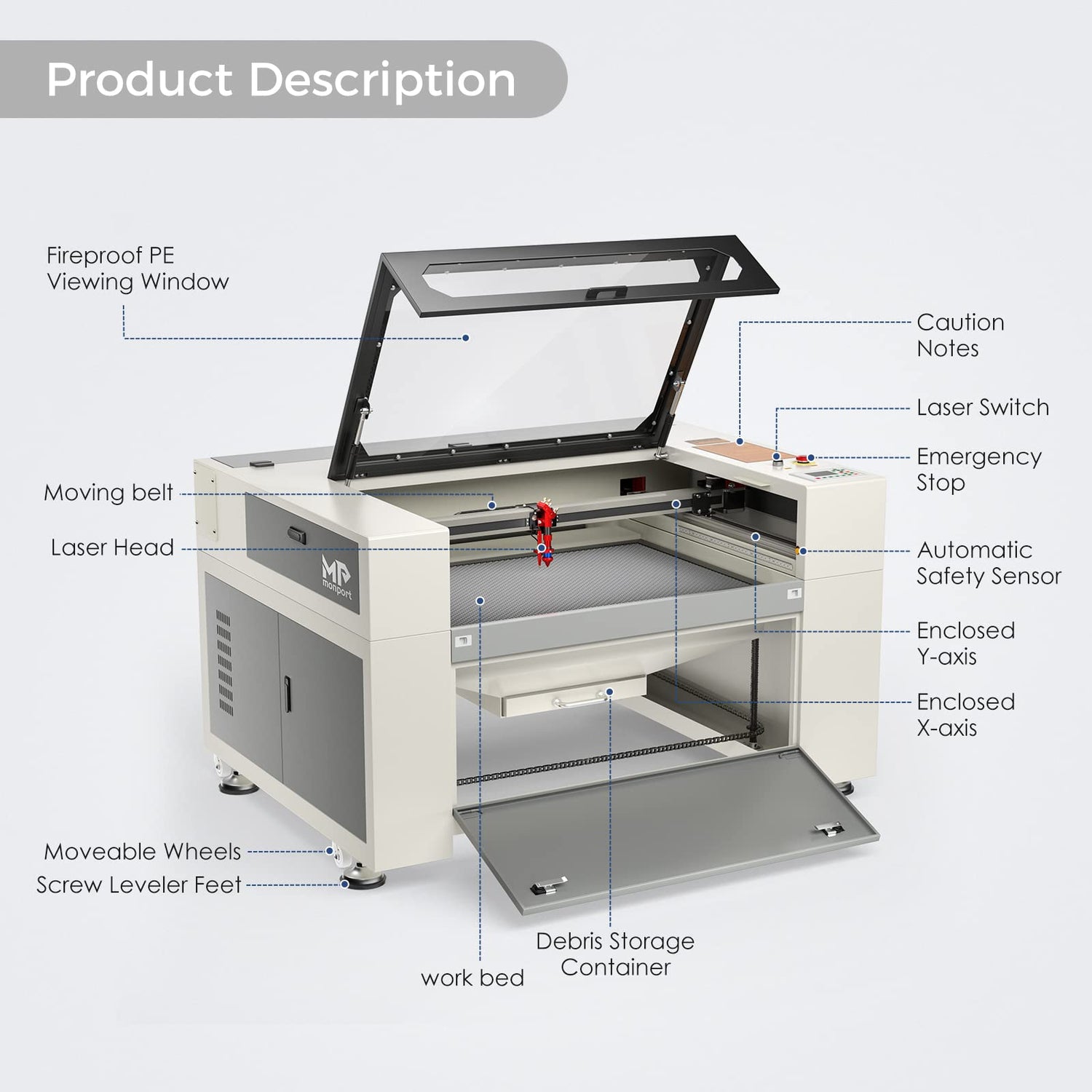

• 【Fireproof Viewing Window】This viewing window is made from special fire-resistant polyester with iron frames. The melting point of this polyester ranges from 432° to 488° and the ignition temperature of it is over 1000°, which can dramatically decrease the possibility of fire accidents caused by the heat of laser burning the materials.
• 【Enclosed Aeronautical Aluminum Rail】Equipped with X and Y stepper motors, this rail features efficient power transmission with high precision. The enclosed rail is designed to avoid smoke and debris and prolong the service time of rail units.
• 【Laser Protective Glasses for Free】Lasers emit radiation in the invisible form of light. This pair of laser protective glasses is certified to protect your eyes against radiation damage by looking at the class 4 laser in any way (directly, indirectly, or even looking at the laser dot on a surface can damage your eyes).
• 【Ruida Digital Controller】Whether your chosen software is LightBurn, RDworks, AutoCAD, or CorelDRAW, this Ruida digital controller can support the given platform. The Ruida Controller with a digital display can control the laser head, start or stop projects, adjust laser power and speed settings and so on.
• 【Built-in Air Assist】A built-in air assist system guides a pressurized air stream through the laser head nozzle to displace debris, heat, and combustible gases from the engraving surface and laser beam path, keeping engravings more precise.

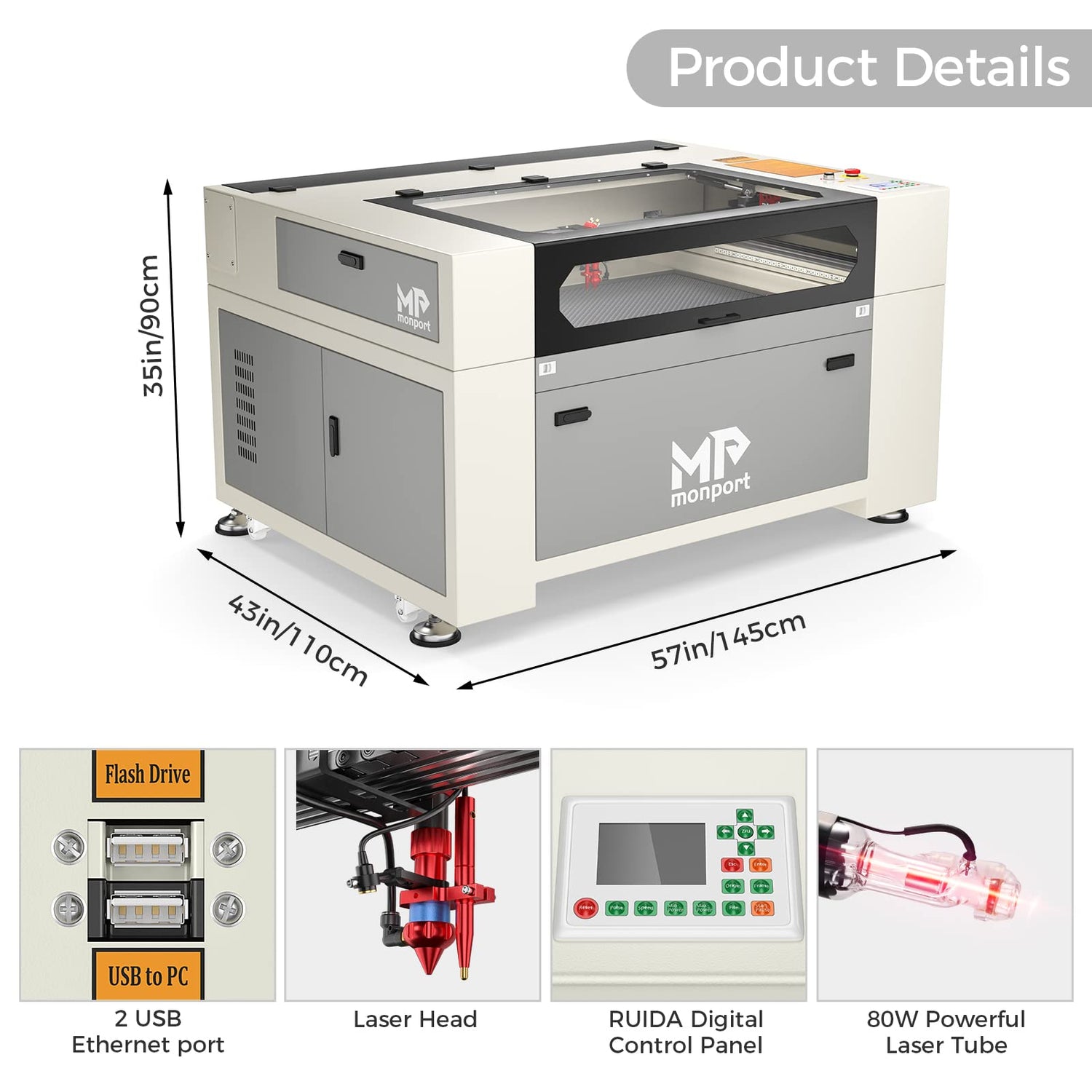

• 【3-ways to Connect with PC End】Two USB ports provide options including flash drive connectivity and a USB-to-USB PC connection. In addition, one ethernet port is also available for connection.

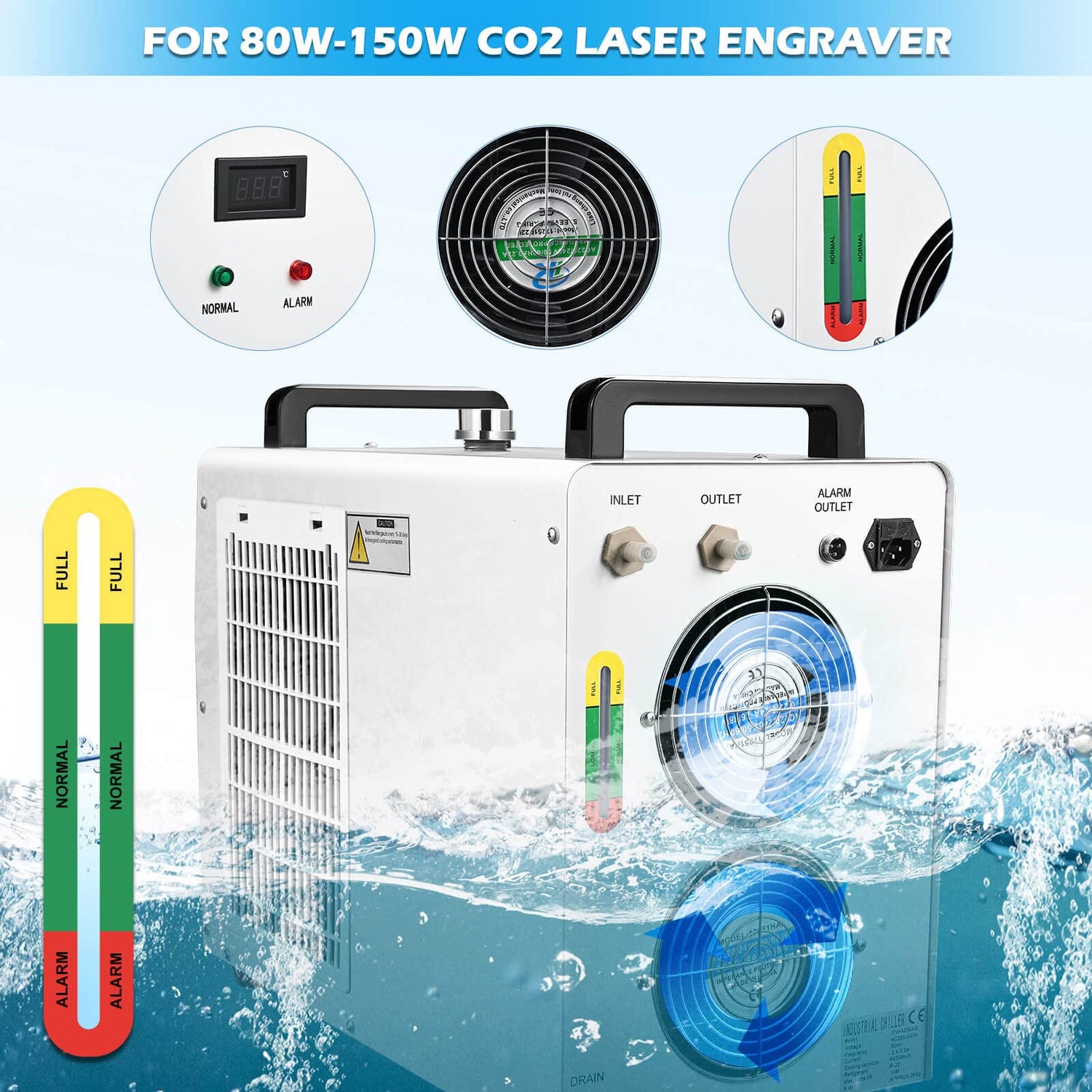

• 【Large Water Cooling Capacity】1.6 gallon (6L) water tank features a closed design to reduce water evaporation and ensures a powerful cooling performance. The water level observation window at the back of the machine lets you keep track of use and know when to refill the tank.

Binding: Office Product

model number: HKFD589

Part Number: DFHW589

Details: Software
Works on Windows XP, 2000, Vista, WIN 7, 8, 10 & 11, both 64 & 32 bit
MacOS (Version 10.11 and higher) ONLY with LightBurn software
Compatible with Lightburn, RDWorks, Coreldraw, Auto-CAD
Supported image formats: BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others
Laser System
Laser Wavelength 10640 nm;
Rated at over 100 watt;
Recommended engraving speed: 100 - 500mm/s
Recommended cutting speed: 1 - 30mm/s (actual speed depends on the thickness of material)
Mechanics
Linear System— Enclosed aeronautical aluminum rails
Motion— Equipped with stepper X, Y, Z axis, plus mechanical limit switches
Cooling— Easy-to-setup water pump and hoses
Air Assist— Built-in air assist with no external compressor required

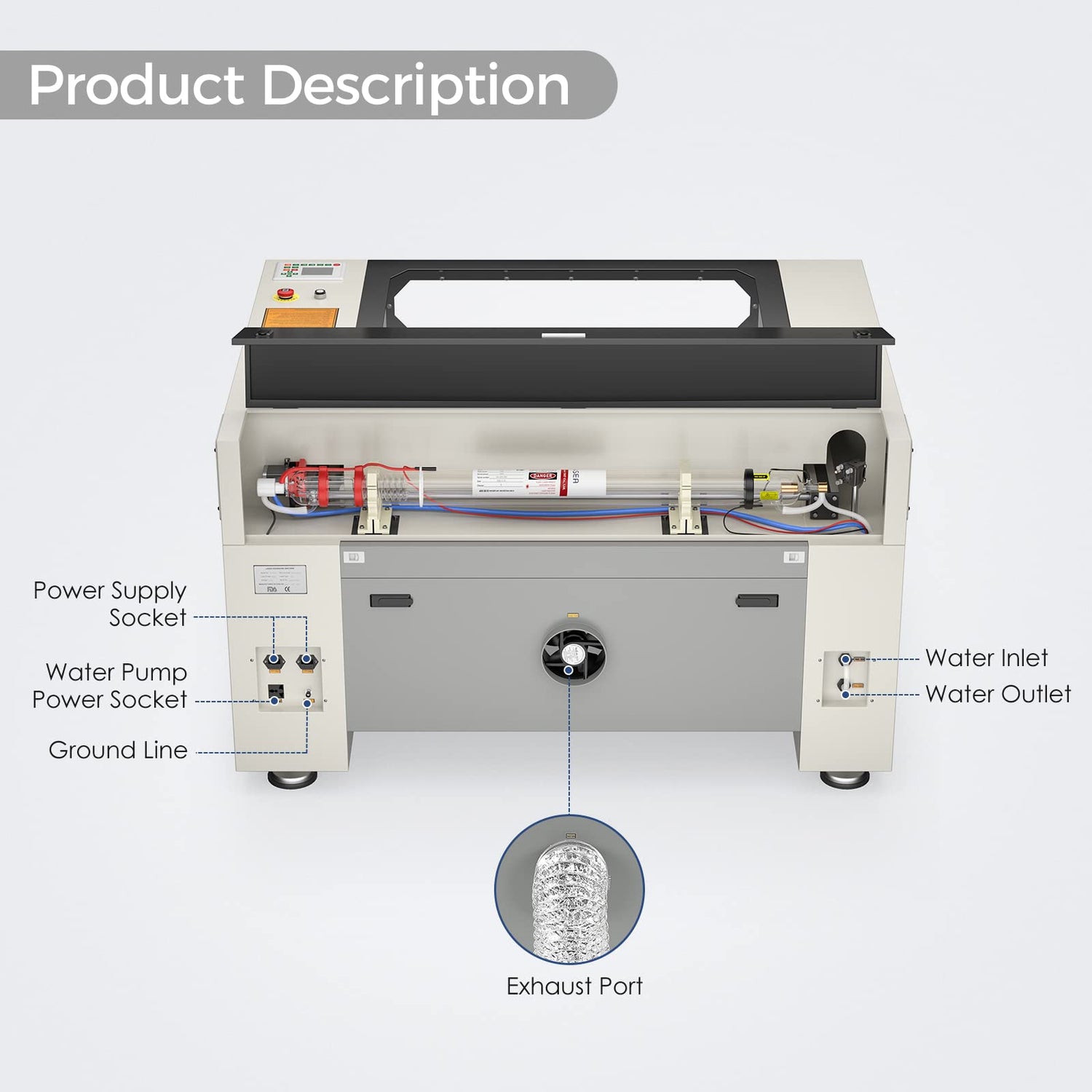

Ventilation— On-board exhaust fan, as well as an exhaust hose so you can vent the fumes to the outdoors
Standard 110V, AC power connection
4-pin port connection for rotary axis devices
Temperature
Recommended Operating Temperature: 60-104 °F (16C-40C)

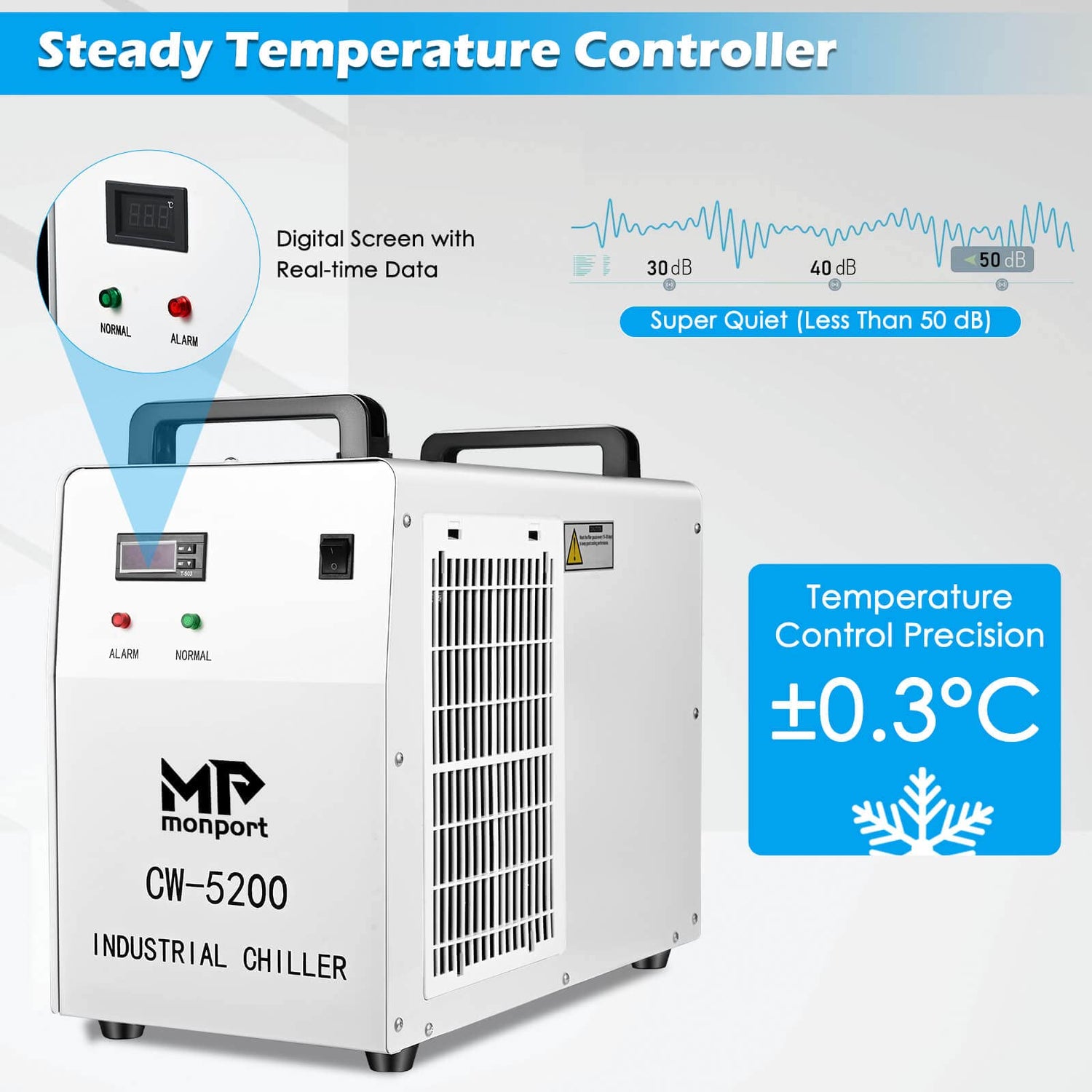

Attention: the CO2 water temperature must be maintained at 60-70°F (16-21°C)
