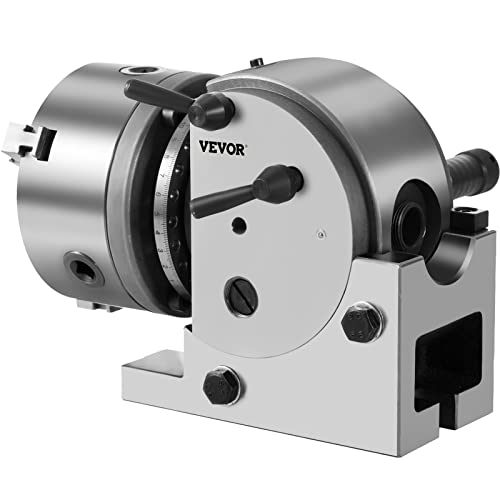

Mophorn Dividing Head BS-0 5Inch 3 Jaw Chuck Dividing Head Set Precision Semi Universal Dividing Head for Milling Machine Rotary Table Tailstock
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Mophorn
Color: 5 Inch Chuck
Features:

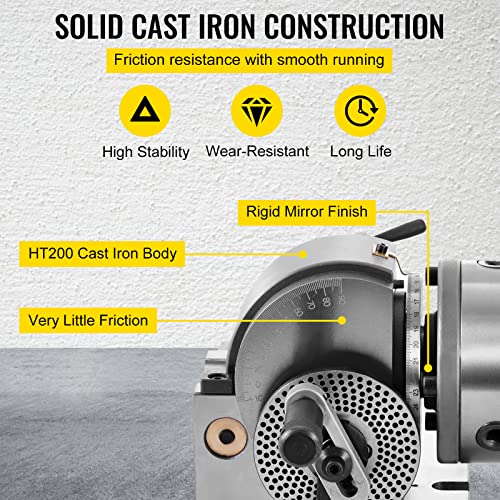

- 【STRONG IN CONSTRUCTION】 - Swing: 5.5"/140 mm. The dividing head features a rigid mirror finish that is wear-resistant, a good choice for long time use. Its delicate parts together work perfectly, mathematically dividing the materials to be cut.

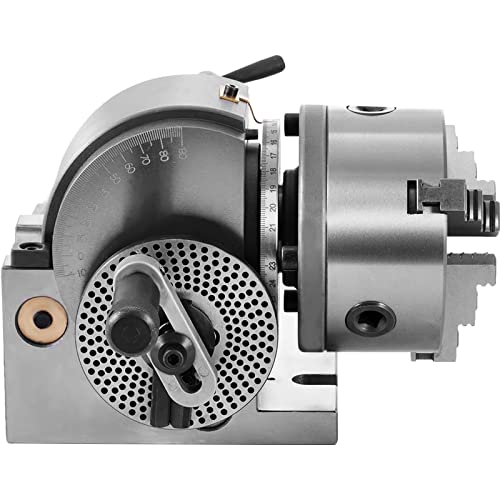

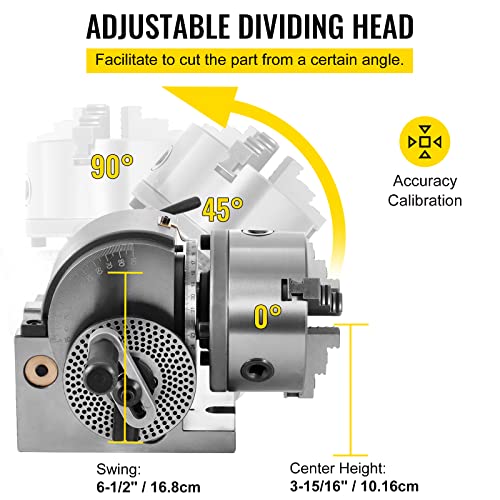

- 【EASE OF ADJUSTMENT】 - The headstock of the dividing head for milling machine can tilt from 10° below horizontal to 90° vertical so that you can handle the stuff of different sizes by changing its angle.

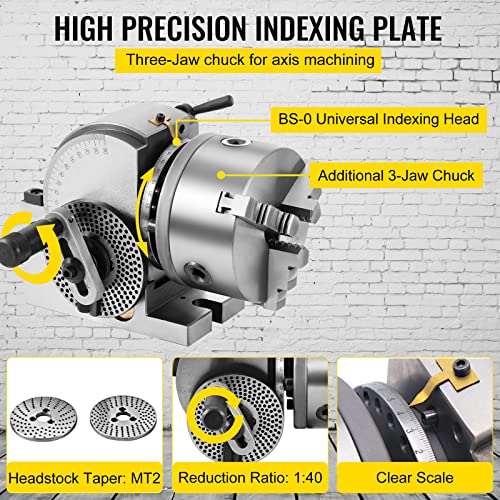

- 【WITH HIGH PRECISION】 - The universal dividing head comes with a direct indexing plate and an interchangeable one which is on the head, and two replacement interchangeable ones with different numbers of holes on them. It's the dividing plates that set the precise distance between cuttings.

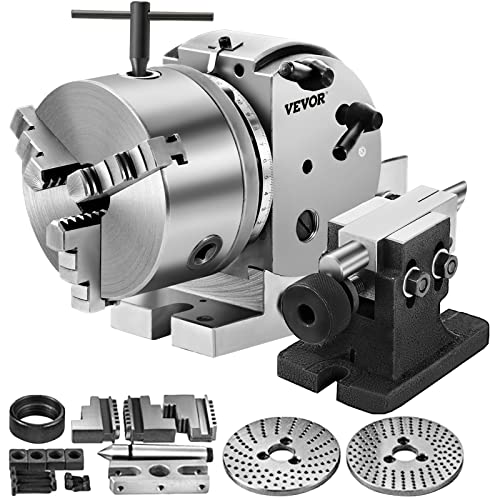

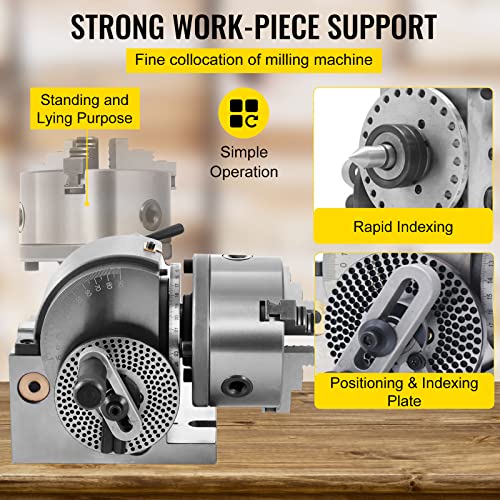

- 【STRONG WORKPIECE SUPPORT】 - The coming package also includes a tailstock which will give strong support to the long metal stick you are gonna deal with, providing a more stable working condition.

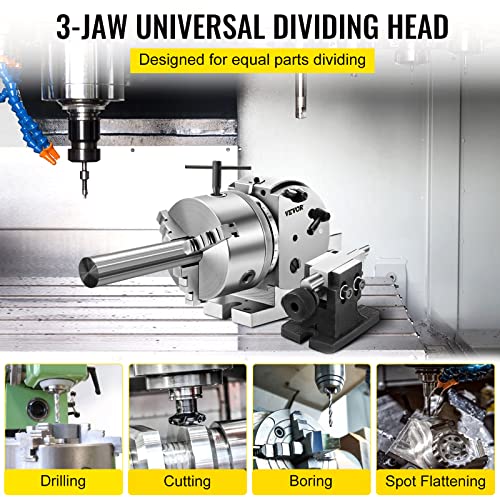

- 【WIDE APPLICATION】 - The rotary indexer is used on the tables of milling machines and other machine tools including drill presses, grinders, and boring machines.
model number: 5DividingHead
Part Number: Dividing Head
Details: BS-0 Precision Dividing Head 5" 3 Jaw Chuck Tailstock Dividing Plate CNC Milling Introduction : This is our semi-universal dividing head,one of machine tool accessories for dividing workpieces into equal partitions. By using dividing scale ring, vernier, locating pin, index plate and change gear, workpieces placed can be divided into equal partitions according to your demand. It can be used for direct and indirect dividing. Able to complete gear, face and flute processing without need of accessories, however its whole construction is the same with the universal type. Technical Parameters Swing: 7-7/8" Center Height: 3-15/16" Headstock Taper: 7 B&S Number of holes: A-Plate:15,16,17,18,19,20 B-Plate:21,23,27,29,31,33 C-Plate:37,39,41,43,47,49 Worm gear reduction ratio: 1:40 Hole Through Spindle: 0.709" Threads on back plate: 1-1/2" - 8 Spindle Bore (Clear Through): .708" Spindle Mount: 1-1/2" x 8 TPI Spindle Taper Runout: .0006" Features -Head stock swivels to all angles -All number from 1-50 -All even numbers from 50-100 -Many others from 50-400 -Spindles with tapered roller bearings are on integral part of all diving heads -Can be easily Adjusted to any angle between +10 to 90 degrees from a horizontal position Package Content Package Dimensions: 410*235*205mm (16*9*8inch) 1 X Dividing Head Set) 1 X Tailstock 1 X 125mm 3 Jaw Chuck
EAN: 0712166607947

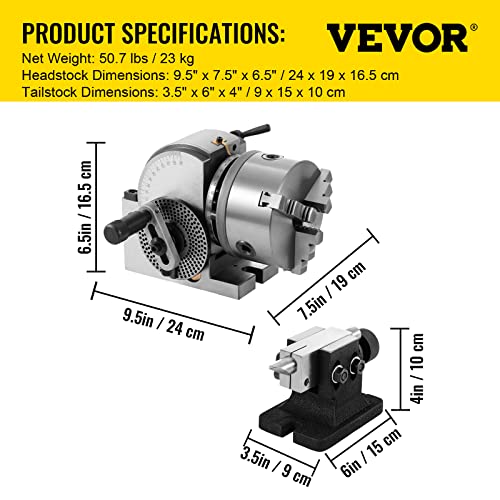

Package Dimensions: 16.1 x 9.6 x 9.4 inches
