MultifunctionWorktable Milling Working Cross Table Milling Machine Compound Drilling Slide Table For Bench Drill Adjustme X-Y (6350 SIZE)

Brand: AMYAMY

Features:

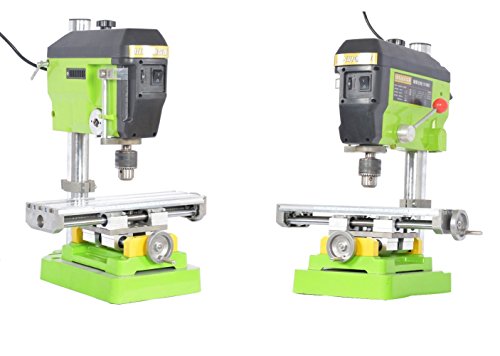

• ★Mini multifunctional working table 6350,The table is suitable for mini drill and drill bracket series. It can also be applied to other suitable machines.

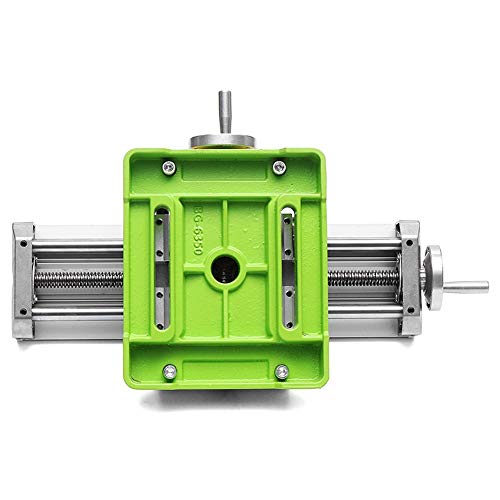

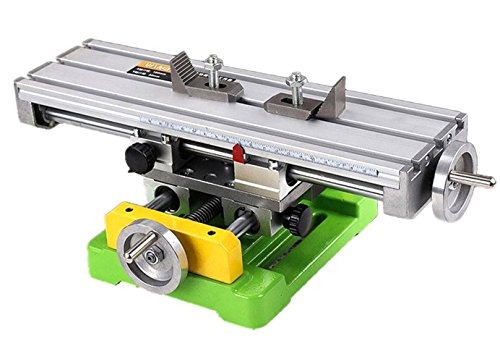

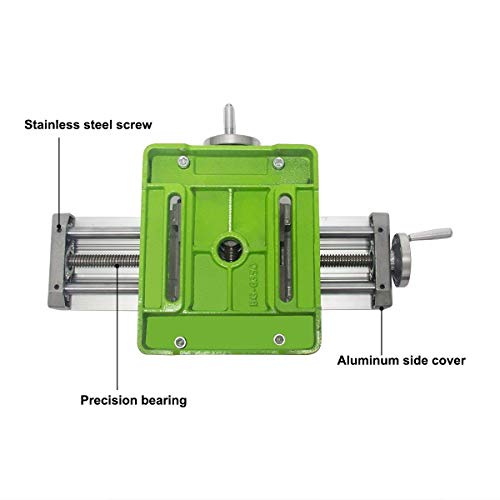

• ★The work table is composed of several adjustable dovetail slot aluminum alloy composition, can guarantee the minimum space and ensure the accuracy.
• ★Table size: 350 × 100 mm. Weight: 6.8 kg

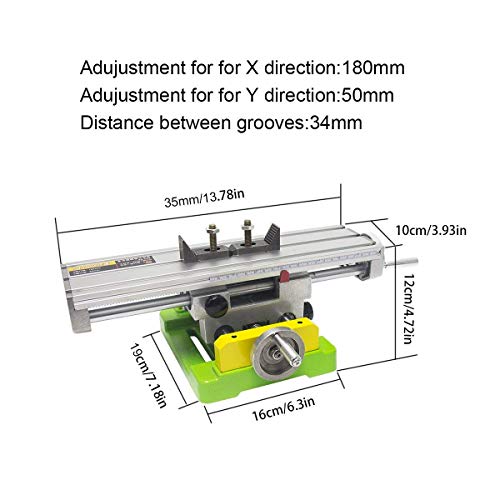

• ★Adjustment in X direction: 180 mm. Adjustment in Y direction: 50 mm，Distance between grooves : 34mm
• ★Hand wheel with adjustable scale: A ring = 3 mm.

model number: 714973925290

Part Number: 714973925290

Details: Get the most value for your money with Milling Working Table !
The miniature precision multifunction Milling Machine Bench drill Fixture worktable X Y-axis adjustment working table 6350,
which can be applied to mini drill and drill bracket series or other suitable machines.
6350 is upgraded version of 6330,The base replace aluminum to iron .And the size ,weight is much more than 6300.
Specification:
X axis travel : 180mm
Y axis travel : 50mm
Distance between grooves : 34mm
Working table size : 350mmx100mm
Hand wheel with adjustable scale:A ring=3mm,
Package include:

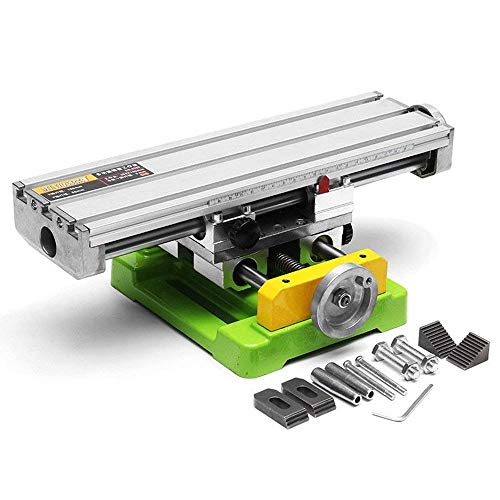

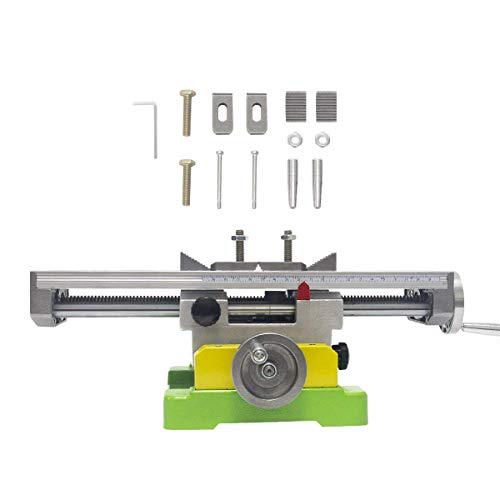

1 * 6350 Milling Working Table , 1* accessories box, 1* manual

EAN: 0714973925214

Package Dimensions: 16.0 x 9.6 x 6.5 inches
