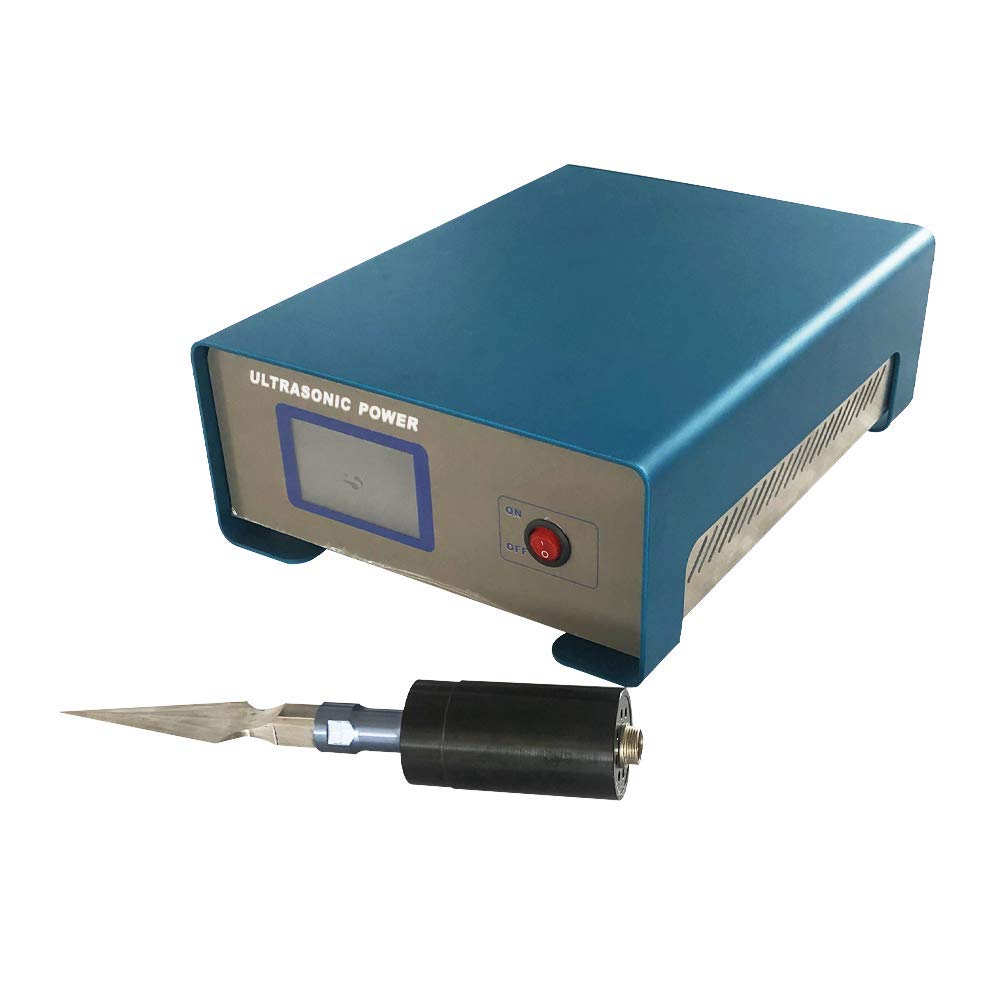

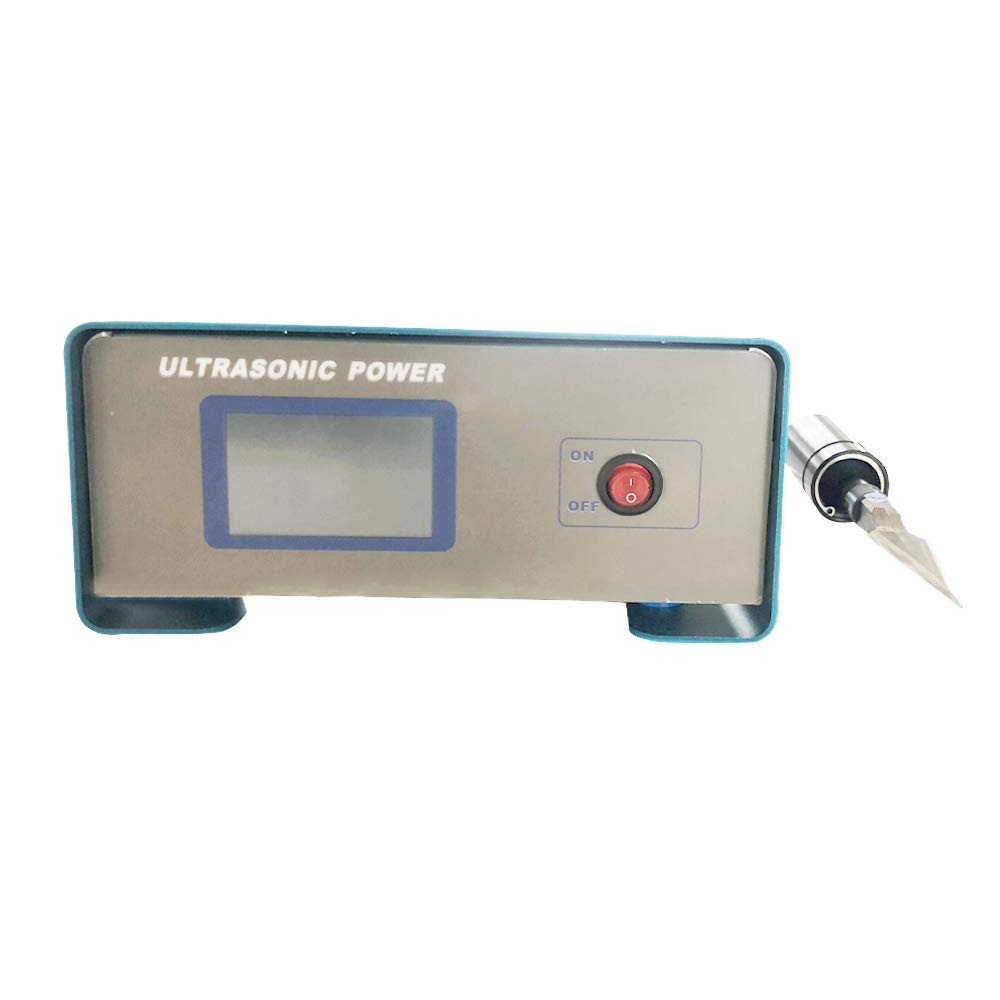

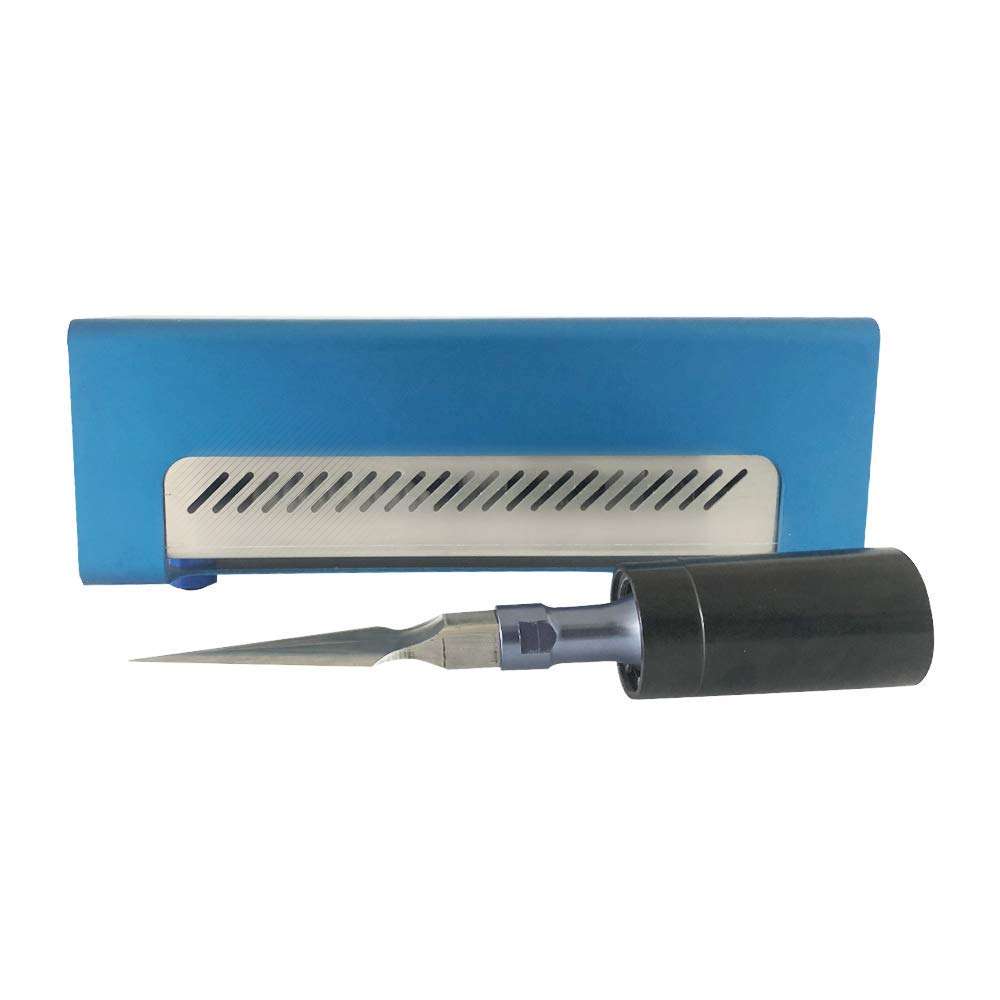

MXBAOHENG Handheld Ultrasonic Cutting Machine Lab Industrial Ultrasonic Cutter for PVC PE Acrylic 500W 19-26KHZ (US Plug)
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: MXBAOHENG
Color: Blue
Features:
- 【Application】 It is suitable for cutting PVC ,Acrylic, Non-woven, Rubber mat, Cardboard, and other materials.The cutting thickness is depending on materials.
- 【Automatic amplitude compensation】It can automatically work at the optimal frequency point and output point according to the fluidity of the sample.
- 【 Automatic resonance point】Automatic frequency sweep tracking in the frequency range of 19-26KHZ ,can record data at any time。 Color industrial touch display : can view data at any time, strong timeliness.
Details: The product usually takes 7--13 business days to arrive to your hand after your order is confirmed
Parameters
Model : FS-10N
Model : FS-10N
Power: 85～240V/50-60Hz
Net power output: 500W
Nominal frequency:24KHz, real-time display (19-26KHz sweep frequency automatic tracking)
Timer:1min ~ 99H can be set
Power regulation:1% - 100%, 1% progressive
Temperature setting: 0-300 ° C, 1 ° C progressive
User program: 10 groups (can be set, can be stored, working status can be viewed in real time)
Pulser:Closed cycle, open cycle, 1S ~ 60min can be set
Operating mode:Pulse、Time、continuous
LCD :Color touch screen, resolution: 400 × 240
Operating language : English
Main interface display parameters:Ultrasonic output power, frequency, working mode, user group, setting button, device running status, start/stop, device operating parameter details button
Run interface display:Total running time, working time, stop time, user group, overload temperature, power output ratio, working mode, program save button.
Piezoelectric frequency conversion energy converter configuration
Piezoelectric variable frequency energy converter:CV33, PZT lead zirconate titanate piezoelectric ceramic
Diameter:43mm
Ultrasonic probe total length:255mm
Standard configuration horn:Aluminum alloy material: T1-6AL-4V
Ultrasonic cutter material:Mold Steel
Binding: Kitchen
Part Number: HQ-1697
model number: HQ-1697
