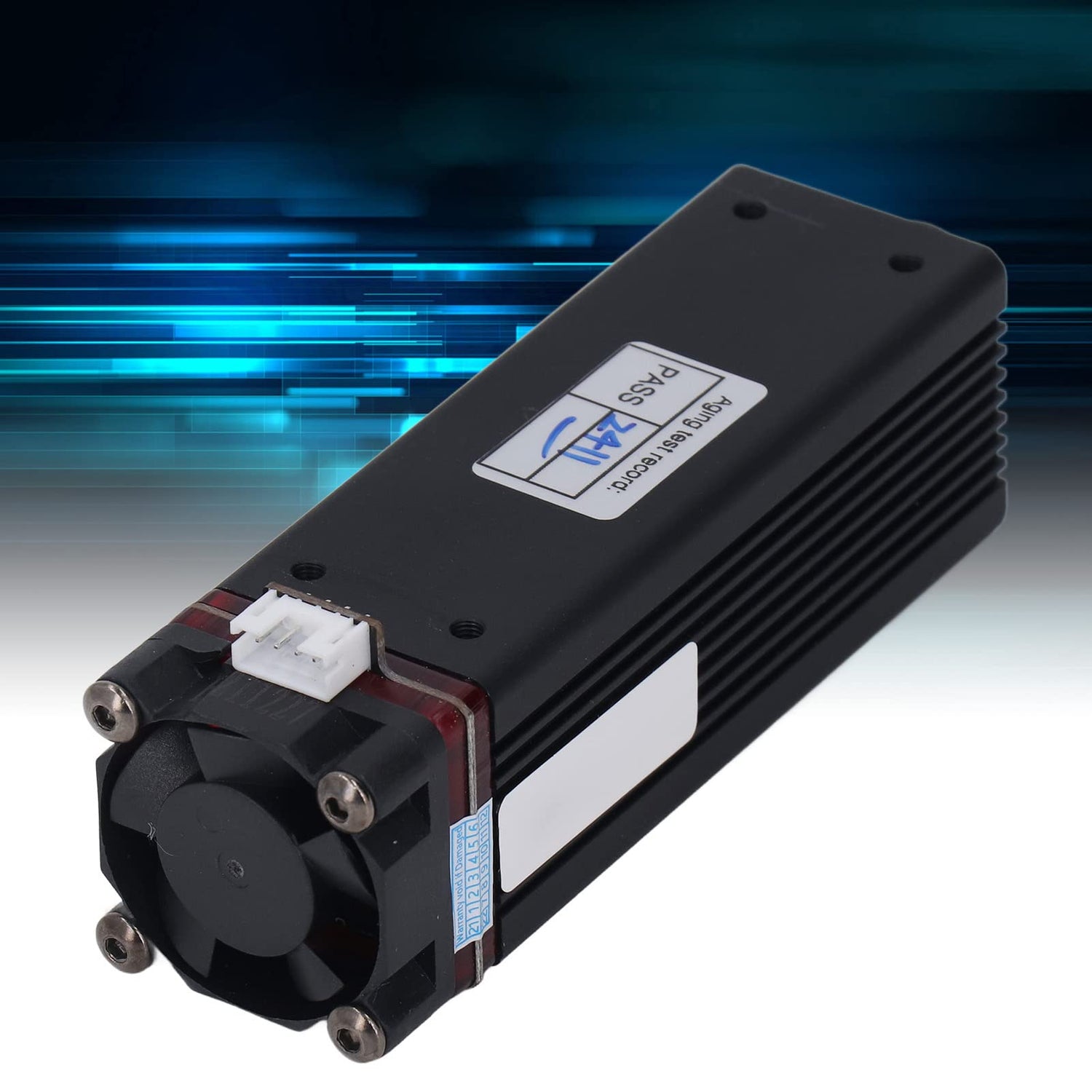

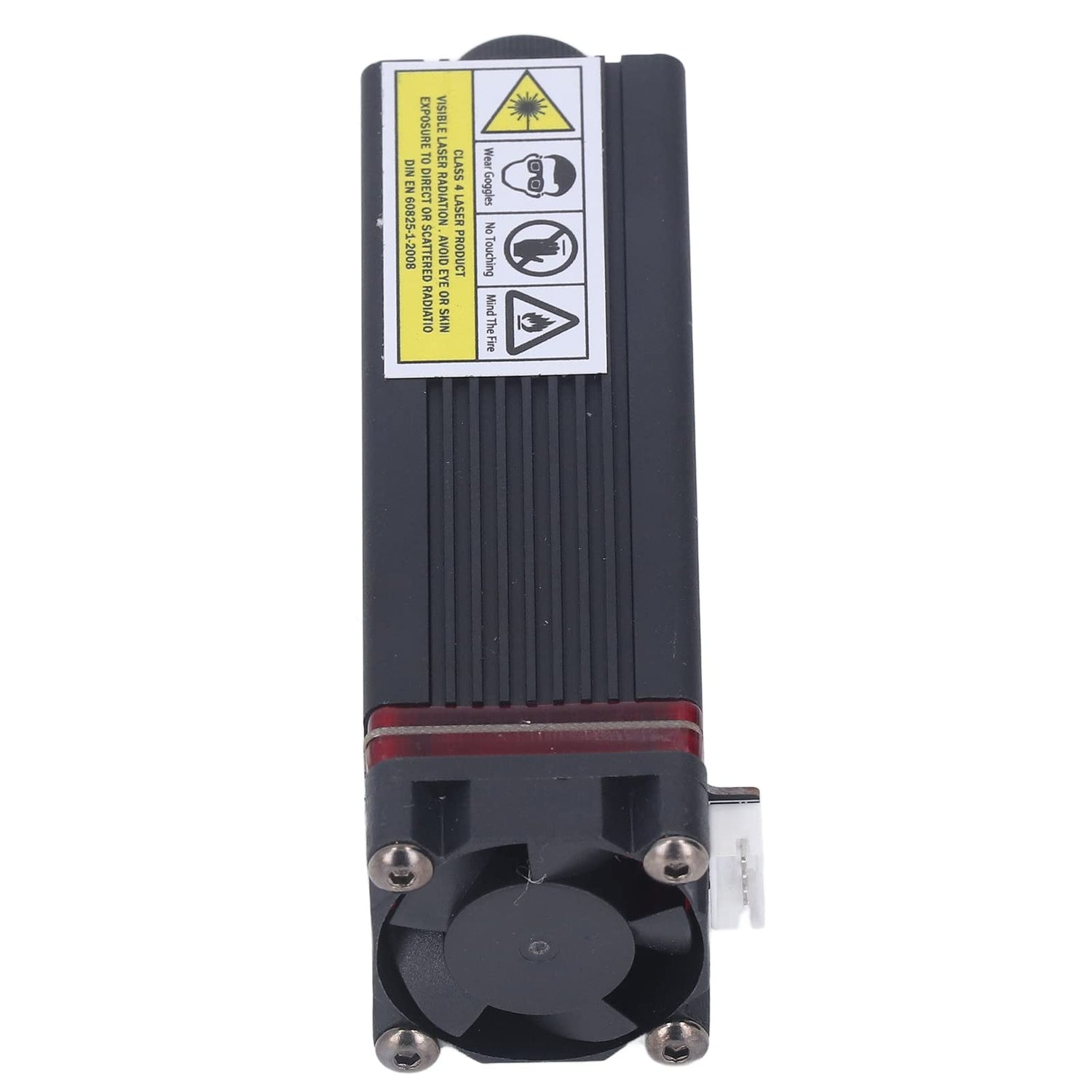

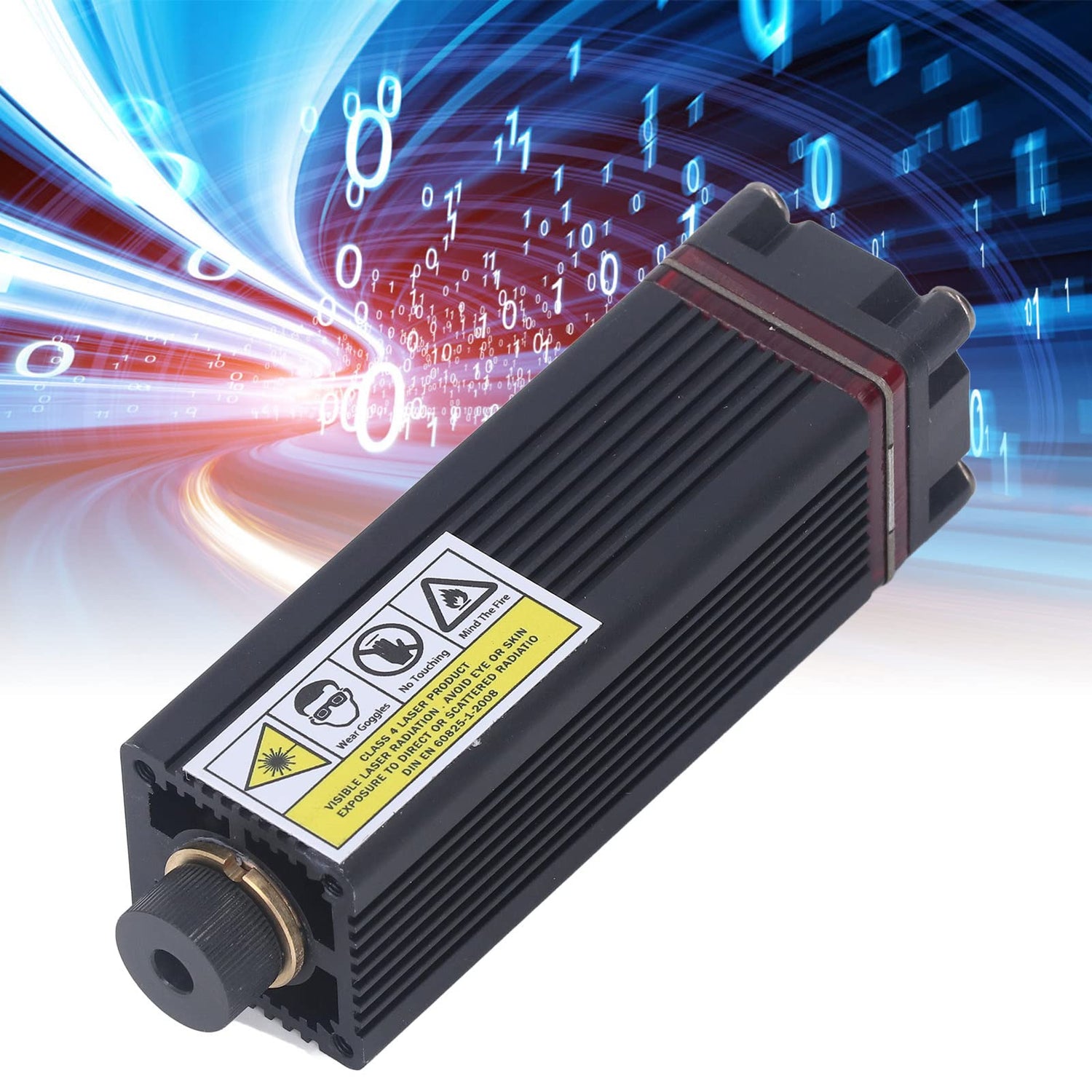

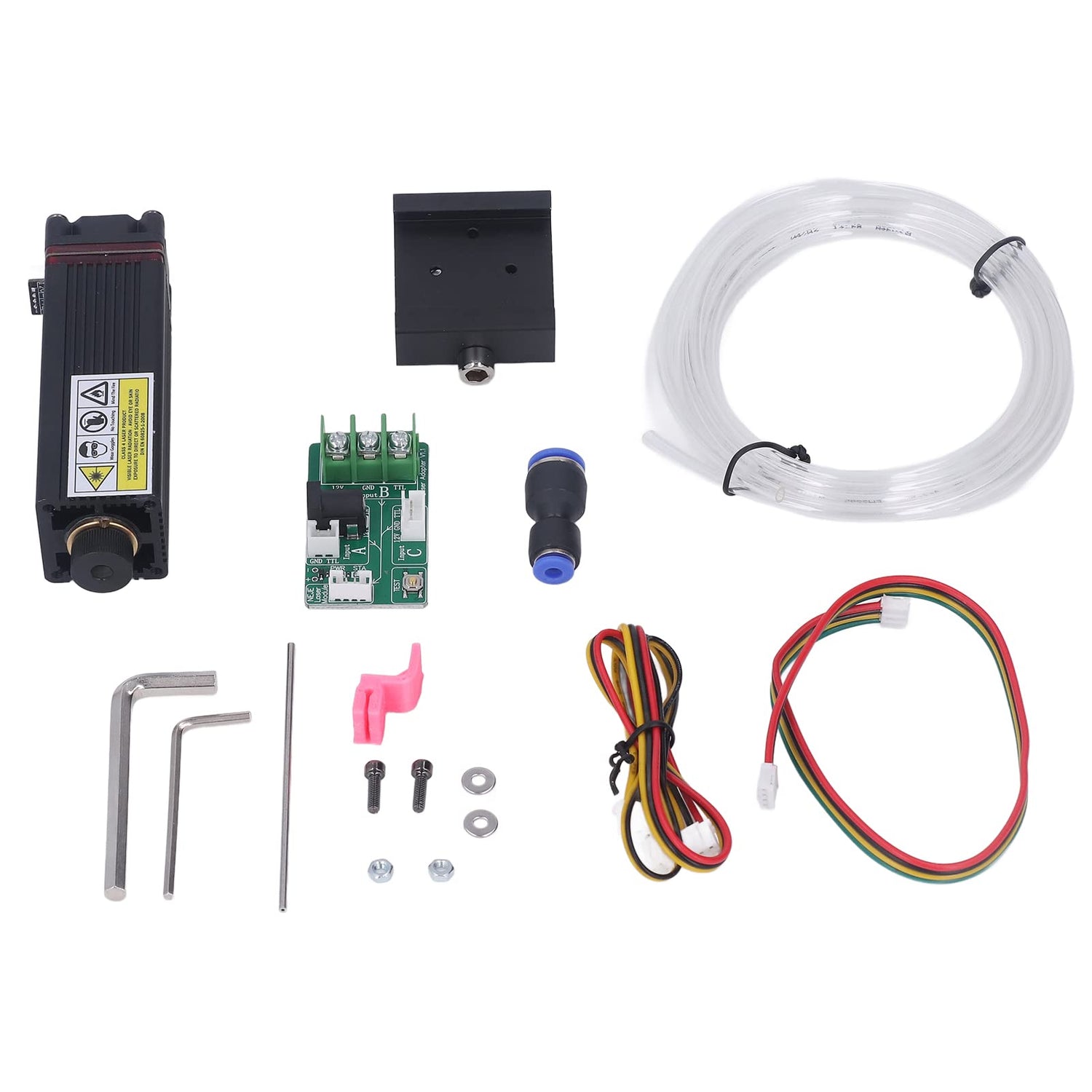

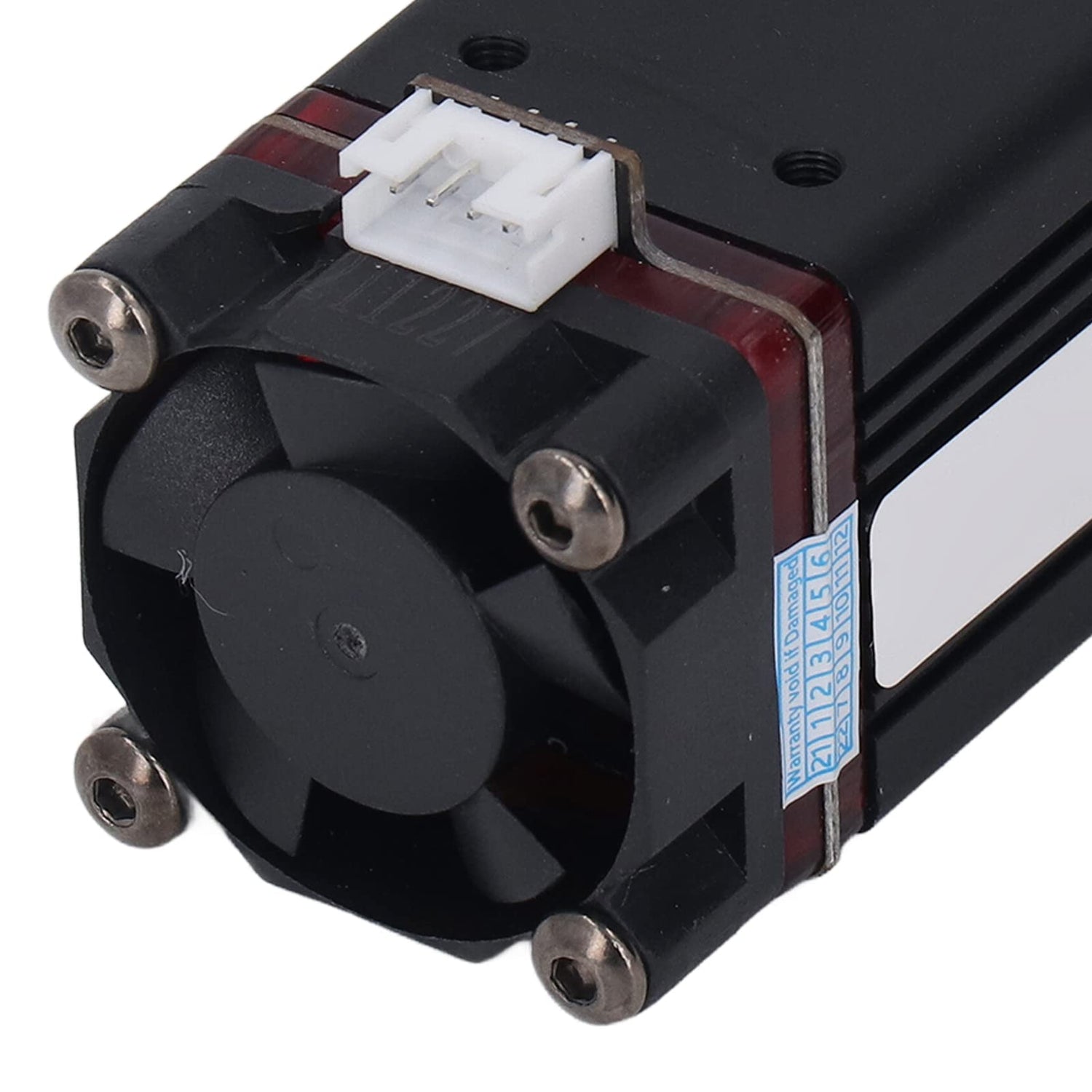

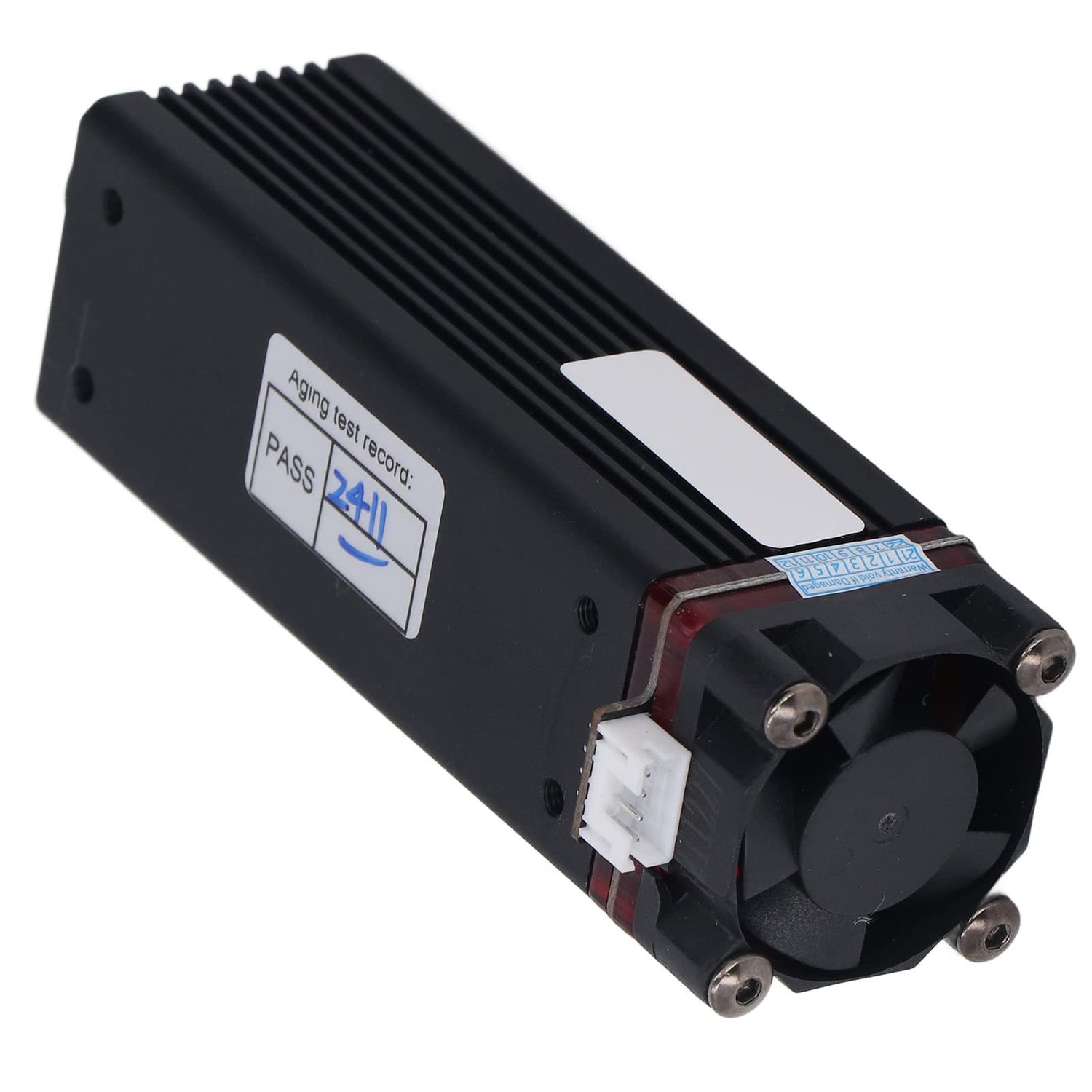

NEJE Laser Module, Laser Module Kit 5.5W Output Power for CNC Engraving Machine Router 3D Printer E30820
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: Fafeicy
Features:

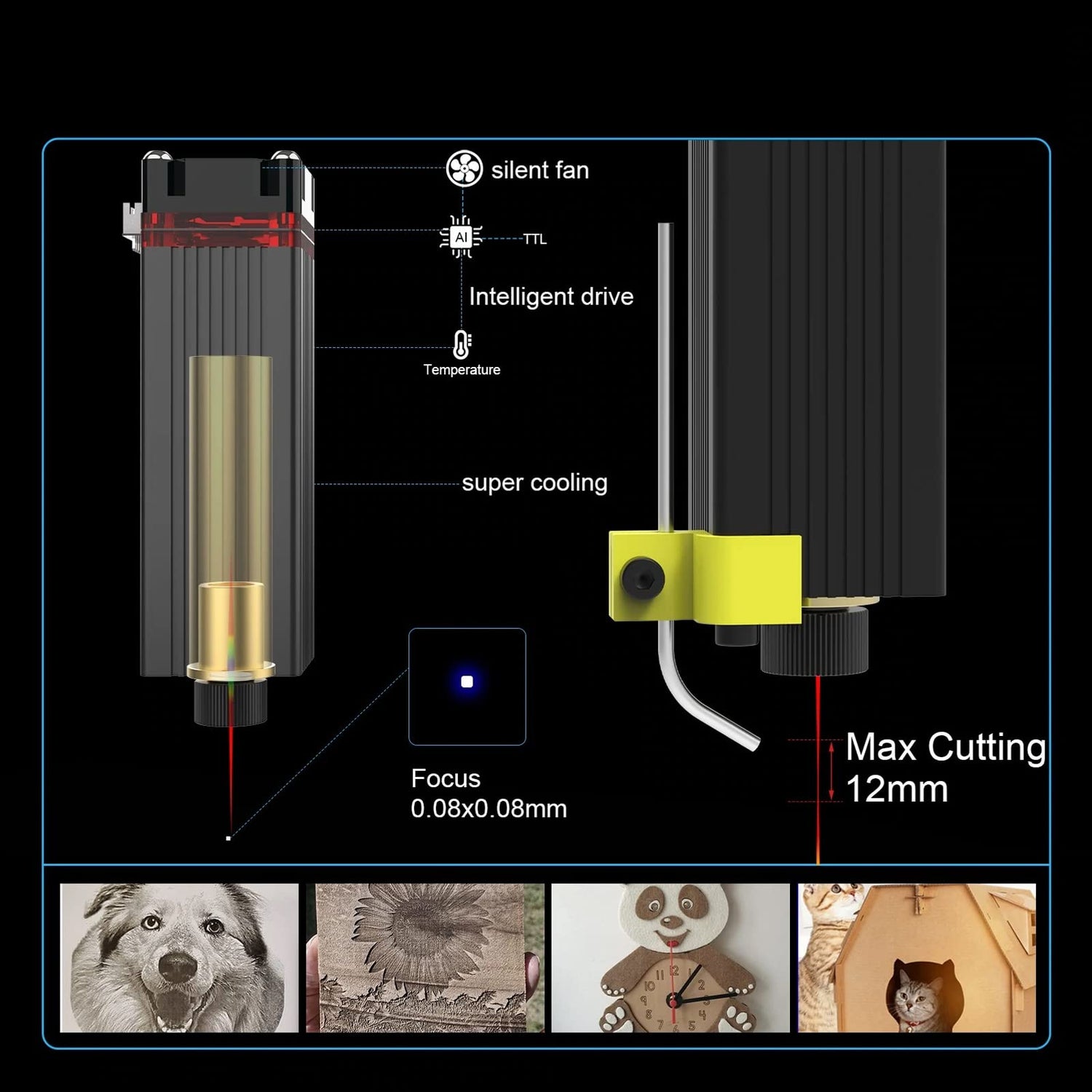

- INTELLIGENT ADJUSTMENT: Built in fast intelligent drive, realize timely temperature detection, intelligent adjustment of the fan to reduce noise, guarantee safe and quiet engraving work. Bring you a new and different using feeling
- NO ASSEMBLY REQUIRED: As a professional engraving tool, the engraving module is fixed with spring clips without any screws. Wide range of engraving materials up to 5‑8mm. Can be used with peace of mind
- TECHNICAL PARAMETERS: If compatible with other CNC equipment, the NEJE engraving module must correspond to the application interface voltage of 3.3~12V, duty cycle 1%~100%, and frequency 0-20kHz. Its quality is guaranteed
- UPGRADE ENGRAVING MODULE: Designed N30820 engraving module with 5.5W output power, can cut 3mm thick plywood cleanly at one time. Meet your needs
- WIDE USES: Can engrave wood, MDF, leather, paper, cotton, etc. Stainless steel, glass, transparent acrylic can be engraved after spraying. Bring you more creative work to cut and engrave on DIY business signs, greeting cards, miniatures, engraved children's drawings. Widely used in many situations
model number: Fafeicydm956ynqoz
Part Number: Fafeicydm956ynqoz

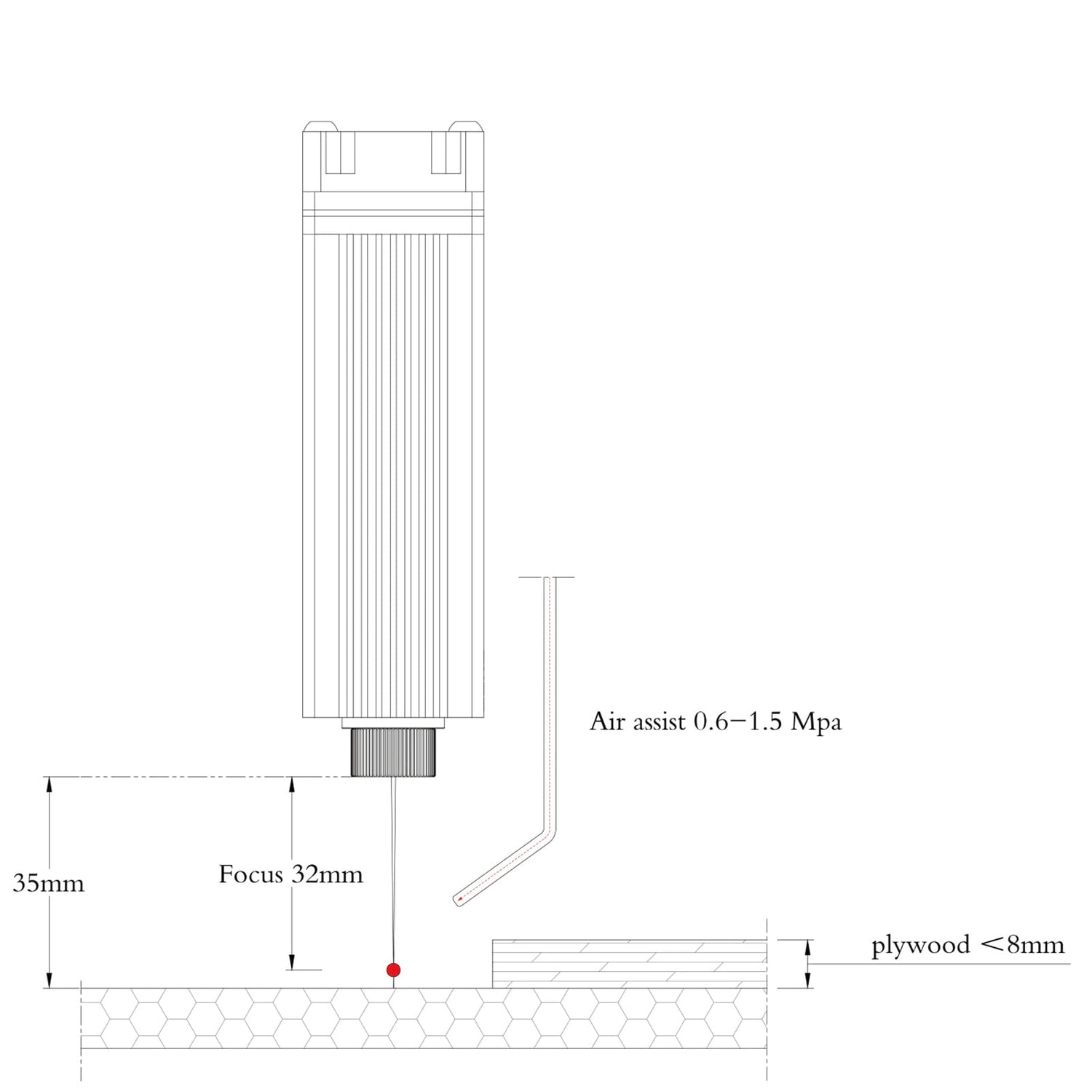

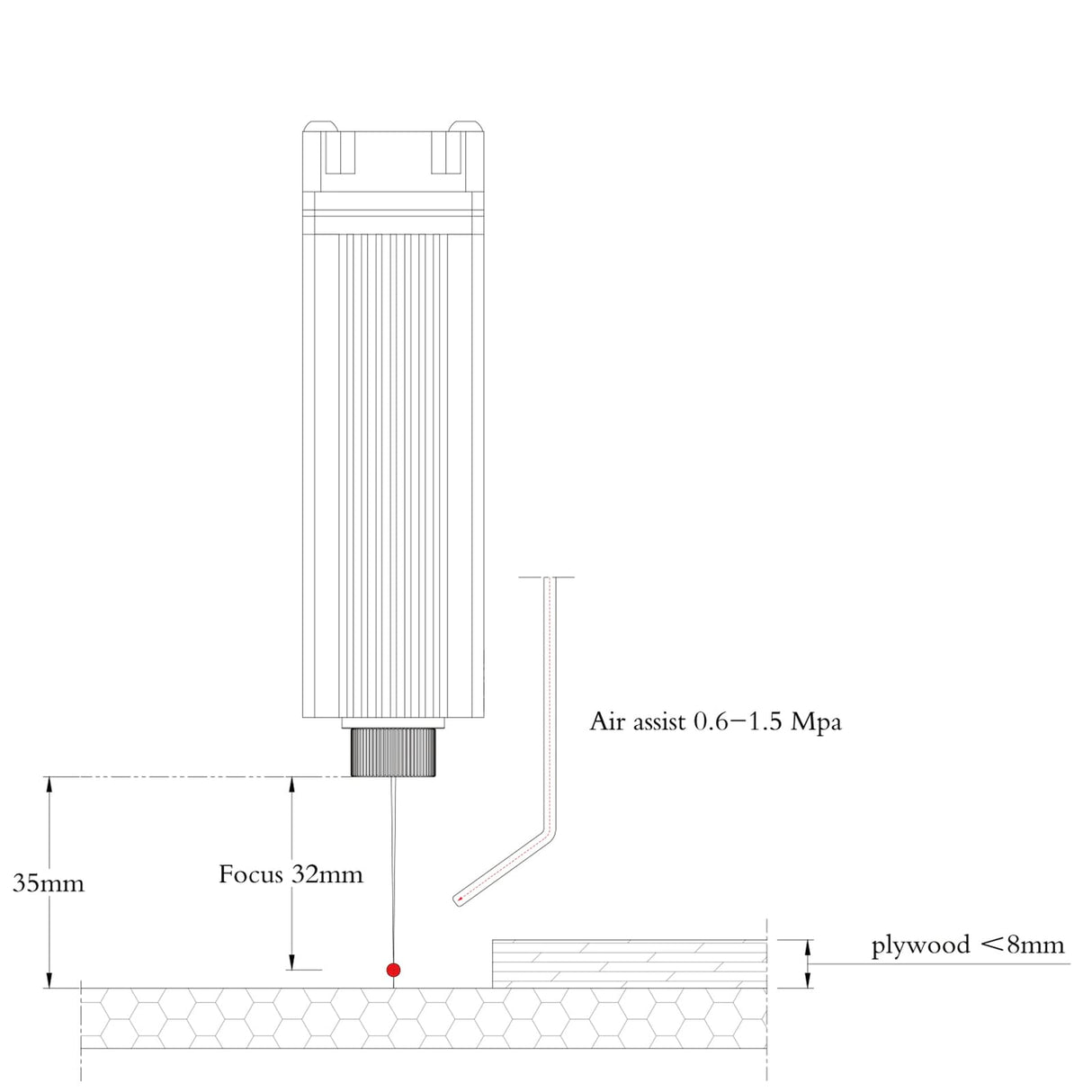

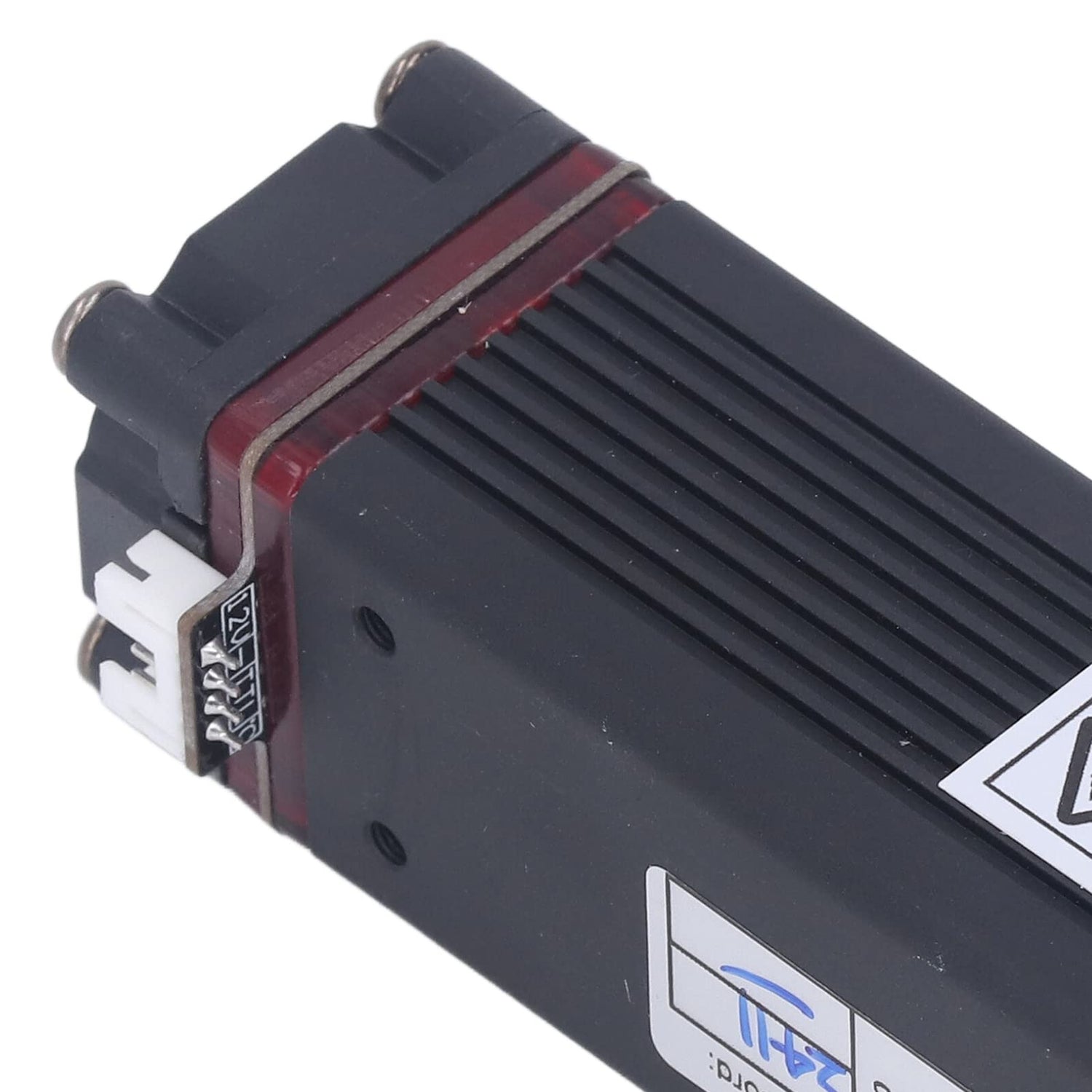

Details: Specification: Item Type: NEJE Laser Module Model Number: N30820 Heat Sink Material: Aircraft aluminum, brass shell Luminous Color: Blue Laser Diode: NUBM0A with NEJE Cap Technology LD Current: 3.2A Section Size: Approx. 30 x 30mm / 1.18 x 1.18in Heat Dissipation Method: 40mm copper core, heat sink, thermal grease, 15000rpm cooling fan Input Voltage: DC 12V Can Engrave: MDF, balsa, paper, wood, fabric, plastic, leather, plywood, foam, anodized aluminum Can Not Engrave: Metal, glass, stone, ceramic, PCB, stainless steel, reflective material, transparent material Technical Parameter: Input Power: 20W Laser Output Power: 5.5W (5500mW) Wavelength: 445-450nm Beam Shape: Dot (Focusable) Working Voltage: DC 12V TTL and PWM Modulation: Yes, compatible with TTL and PWM modulation Input Voltage: DC 12V PWM or TTL Input: DC3.3V-12V Input Interface: PH2.0-4Pin (+,-, PWM or TTL, Temperature), 3Pin (+,-, PWM or TTL) , 2Pin and 2Pin (+,-) and (PWM or TTL,-) Drive Mode: External ACC Safe Temperature Range: Service Life: 20,000 Hours Test: Material: Plywood, thickness 3mm Speed 330, cut 3 times, each cut 1.0mm Speed 200, cut 2 times, each cut 1.5mm Speed 100, cut once, each cut 3mm How to Use: Install and use directly. Package List: 1 x E30820 Module 1 x Air Pipe 1 x Air Pipe Adapter 1 x Interface Adapter Board 3 x Wire 1 x Module General User Manual 1 x Sliding Card Slot 2 x Hex Key 2 x Accessories 2 x Screws 2 x Nuts 2 x Spacers Note: The temperature interface can be disconnected, NEJE provides a text description of temperature acquisition on the wiki.
Package Dimensions: 6.7 x 4.3 x 2.8 inches
