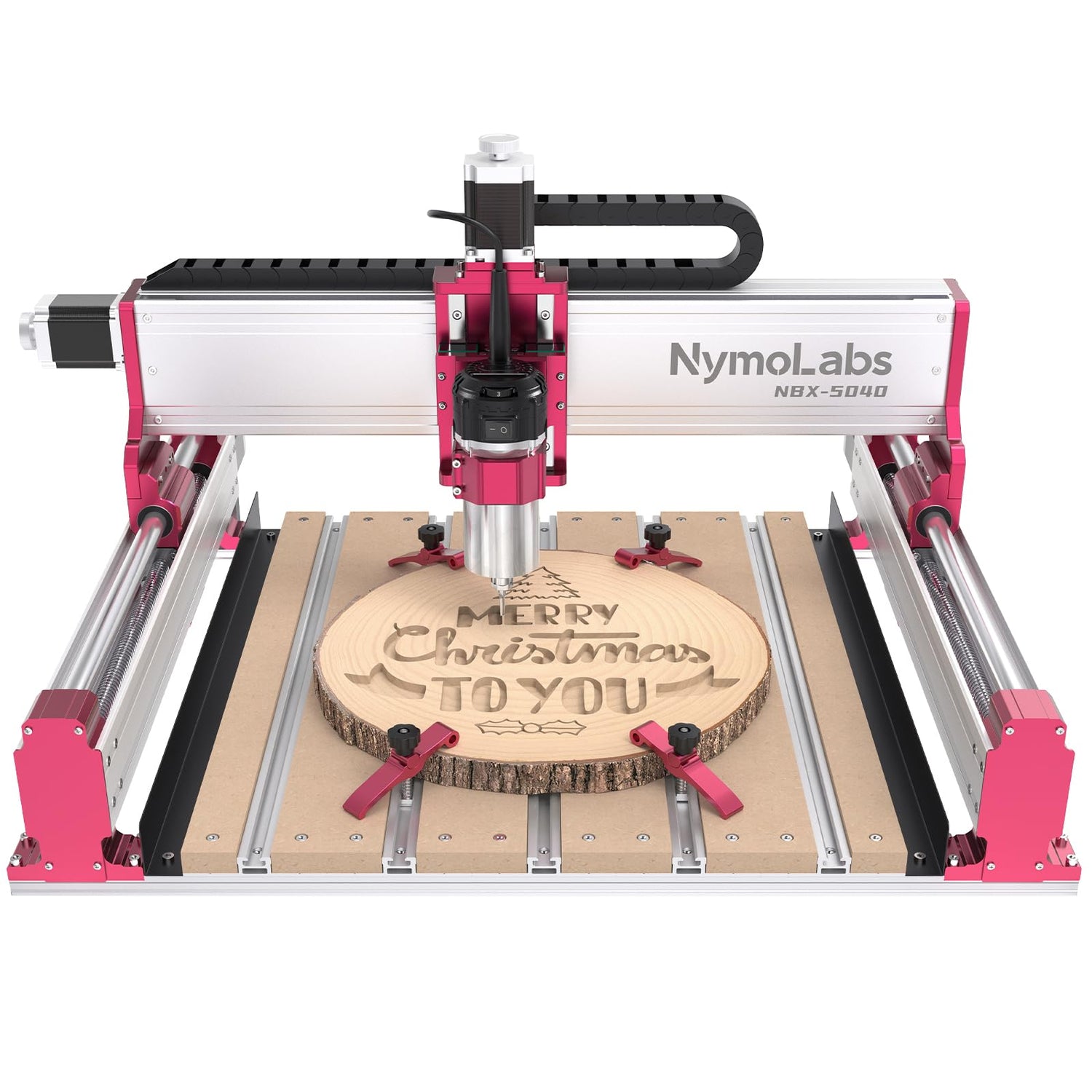

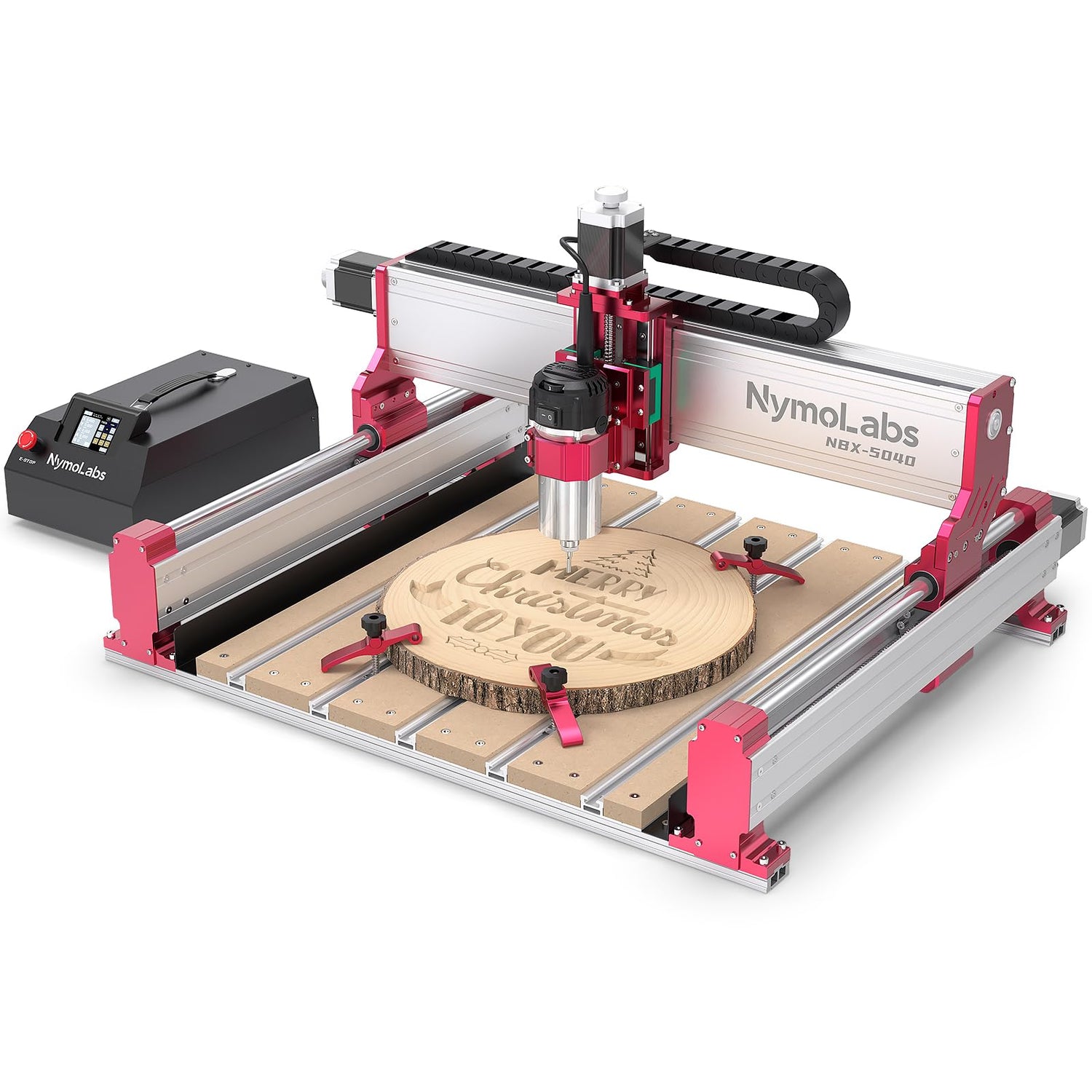

NymoLabs NBX-5040 CNC Router Machine with Custom-Made 710W 7000-30000 RPM Trim Router Spindle & ER-11 Collet, Milling Engraving for Wood Acrylic

Brand: NYMOLABS

Features:

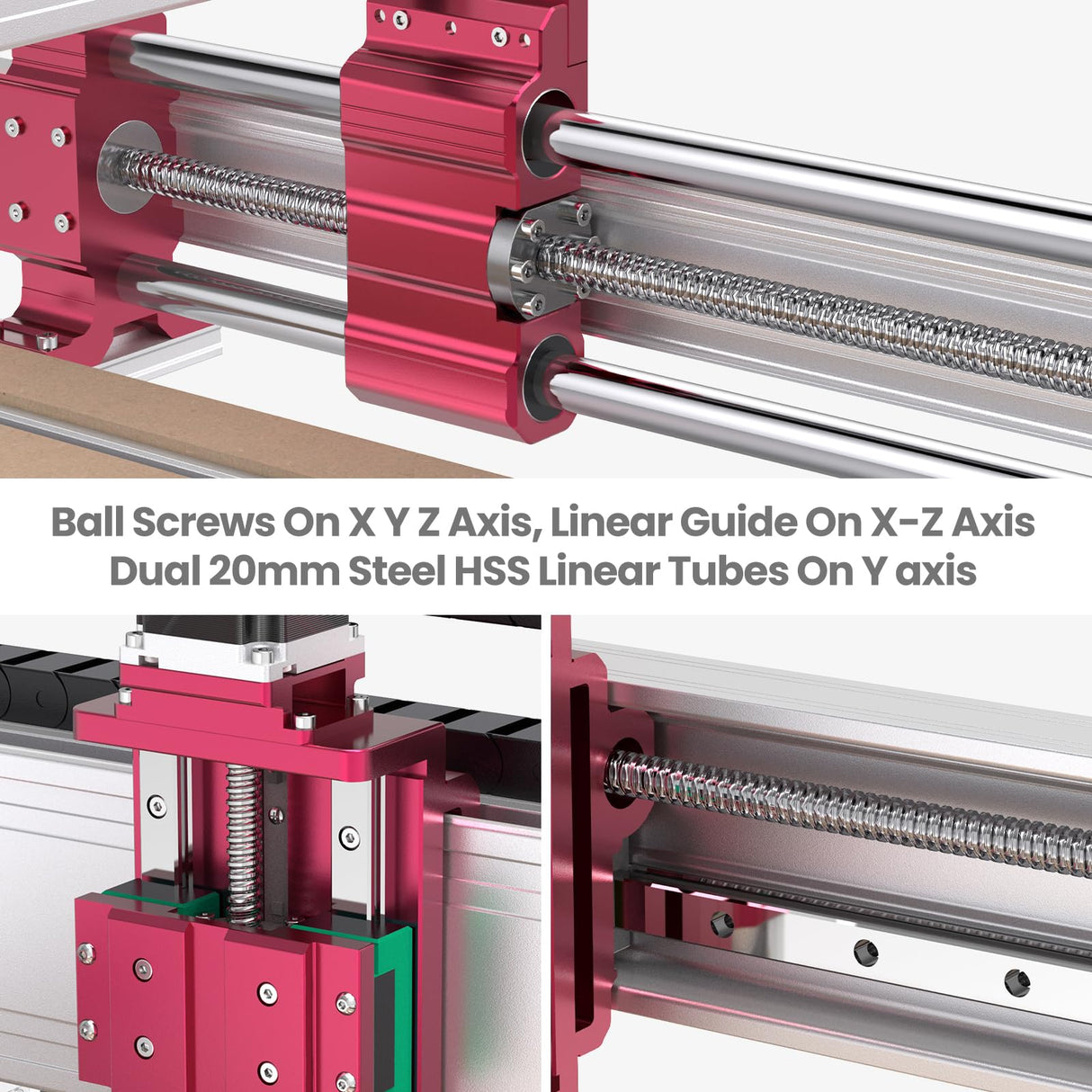

• NBX-5040: We replaced the linear rails on the NBS-6040's Y module with dual 20mm Steel HSS Linear tubes to create a cost-effective, productive CNC Machine. We took everything we could from the NBS-6040 and applied it to the new NBX-5040. In our testing, the NBX-5040 gets you most of the performance of NBS-6040, at a big savings.

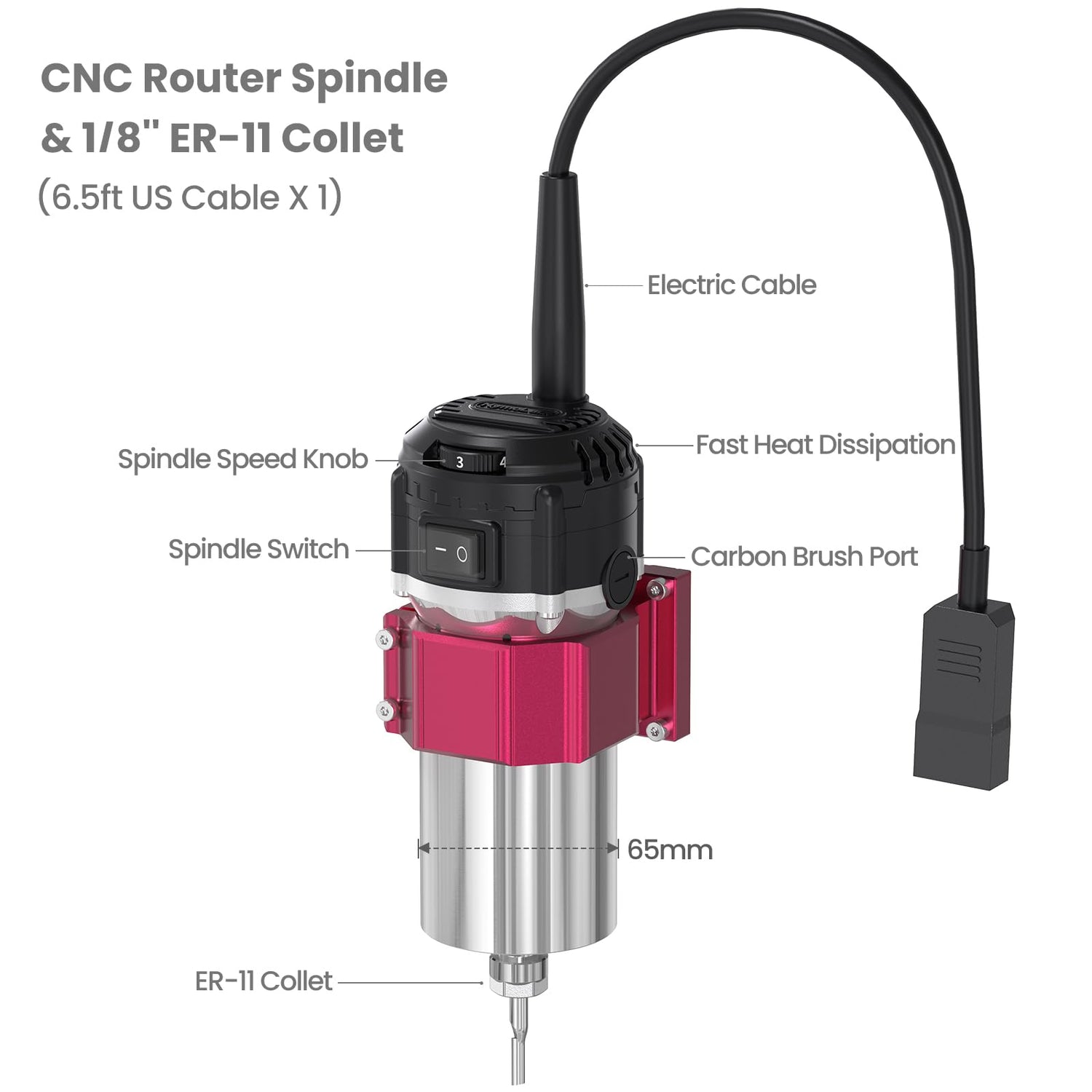

• NymoLabs Custom-made 710W Router: The NBX-5040 features the Self-developed Trim Router as a spindle, a Second-to-none move in the market. Its soft start, and constant current drive features, make the spindle RPM slow to fast without stalling, ranging from 7000 to 30000 adjustable. ER11 Collet Gripping Range: 1-8mm, 1/4", 1/8".

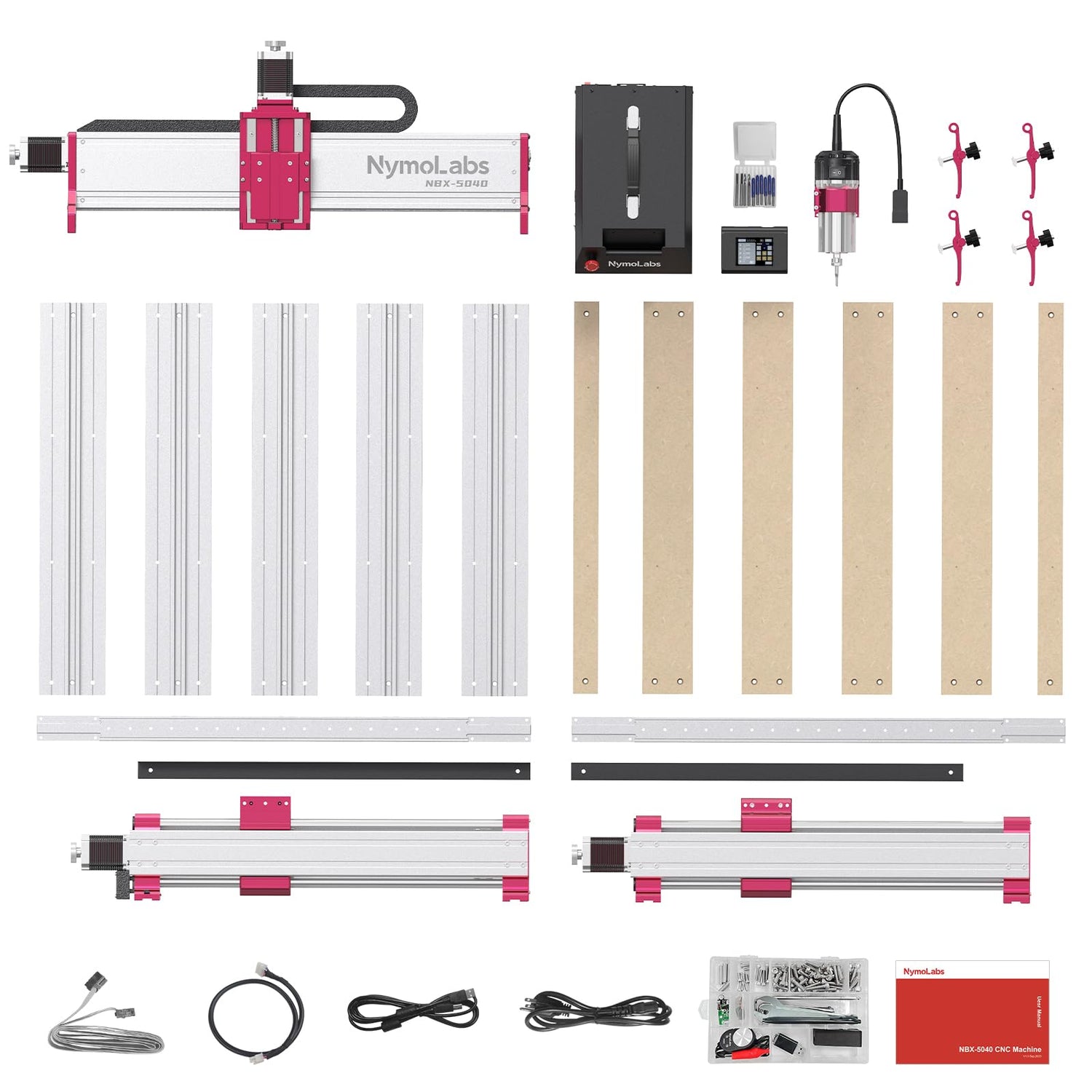

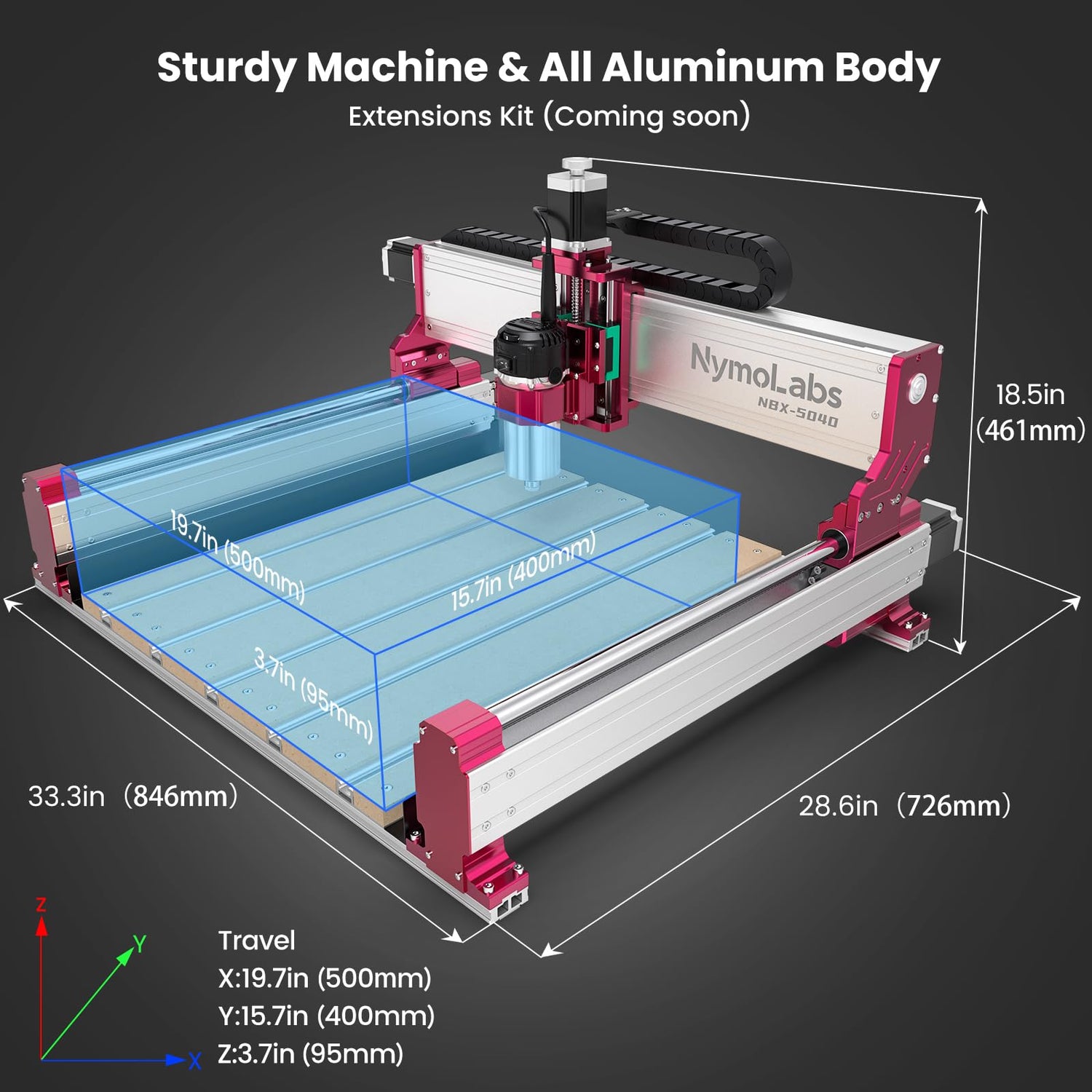

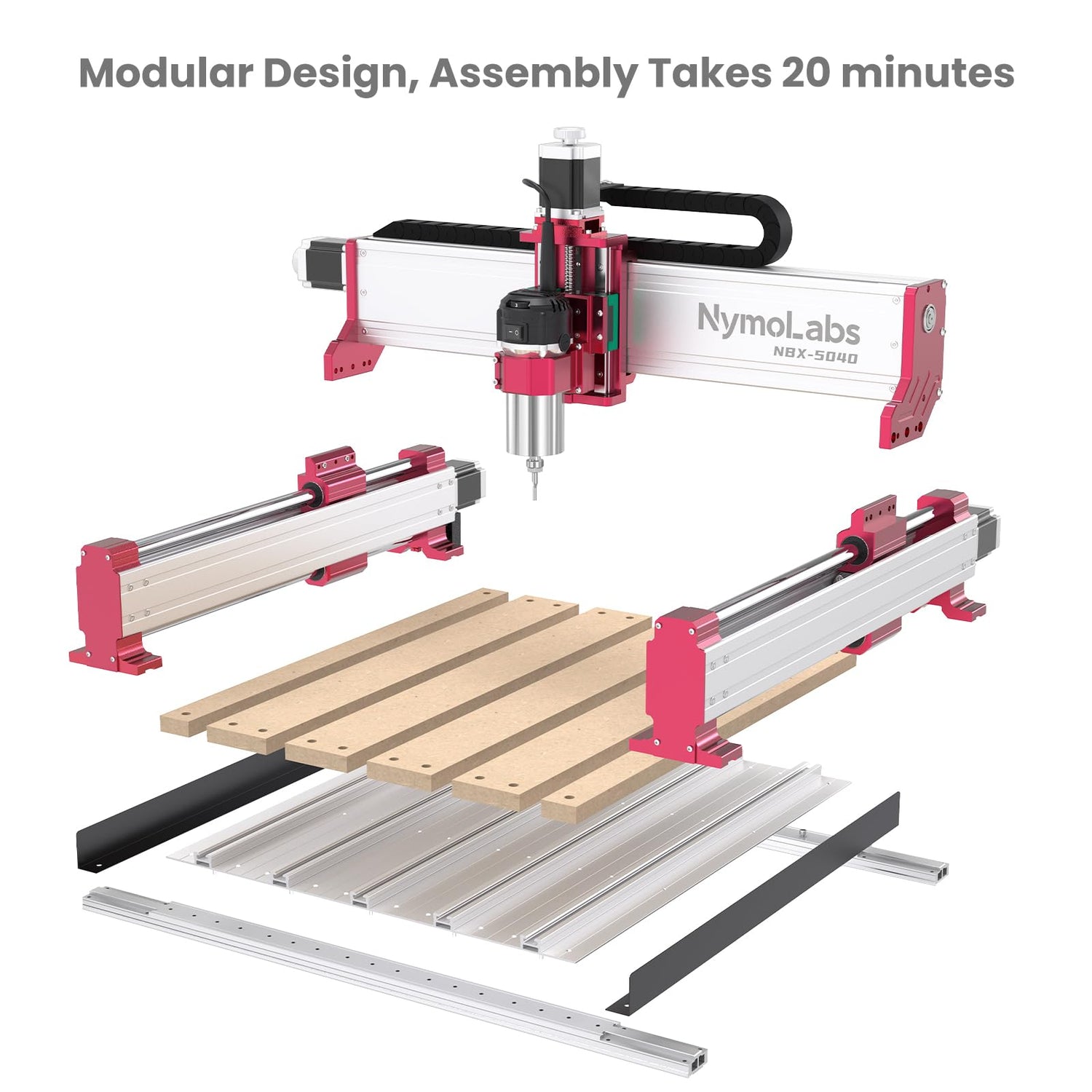

• Modular Design: The pre-assembled modular design makes the 20-minute installation possible, with just a few installation steps and wiring of electronics before starting your projects. Now with a larger working area (19.7" x 15.7" x 3.7"), 710W trim router spindle, The NBX-5040 CNC router is ready for all your projects, whether you're just going to use it occasionally in your garage, or if you're going to run it all day, every day.
• Based on Open-source Grbl v1.1: The NBX-5040 CNC router features the driver with 32-bit chips, making the pulse frequency up to 80 KHZ. Adds 4-axis linkage motion, MPG, offline control, 3-pin laser port, air pump, and other extended functions. It also supports transforming the code files from offline controller to local memory to engraving stabler.
• Create a New and Friendly Maker Ecology: In order to give makers a better experience, we reserved a series of expansion function ports when designing, including the fourth-axis expansion (four-axis linkage), MPG, Z probe tool set, air pump port, lighting port, air blowing, and dust boot placement,.etc. Which will be listed separately in the coming next!
• Advanced Stepper Motor Driver DM542: Featuring the DM542, the NymoLabs CNC 5040 has the advantages of smooth motor movements without losing steps, current adjustment capability for precise control, and overheat protection to ensure device safety which is ideal for CNC machine applications.

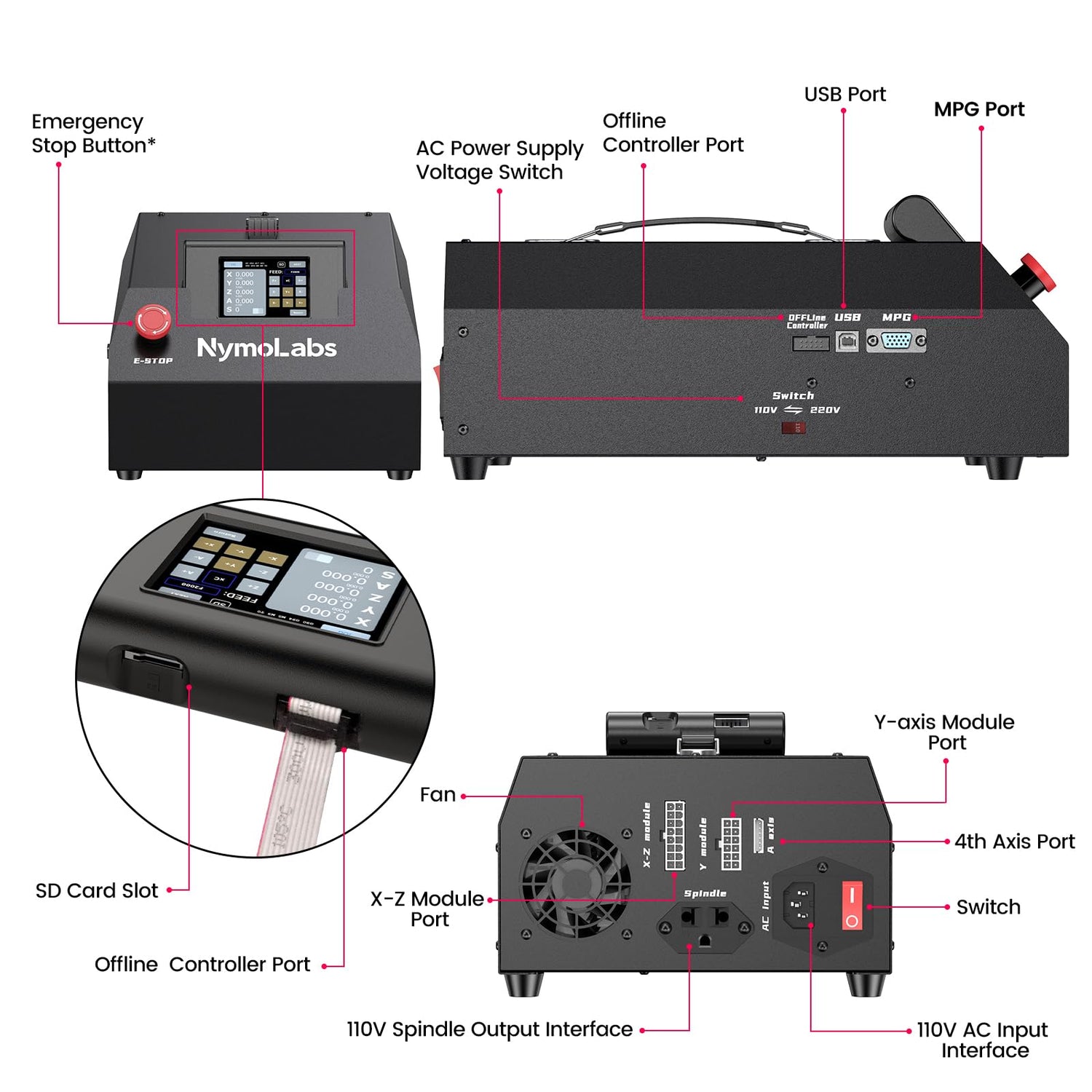

• TFT Touchscreen Offline Controller: With a 2.8” touchscreen display, the 5040 offline controller makes controlling your engraving machine simple and convenient. Users can operate 5040 manually, or put it on the Electric Controller Box reserved placement.
• Tips: The ER-11 Router is made for use in CNC machines so we skip all of the bases and jigs that won't be used anyway. The 1/4" collet is Not included in the package.

model number: NBX-5040-AJ

Package Dimensions: 43.7 x 18.0 x 11.7 inches
