O'SKOOL Precision Aluminum Router Table Insert Plate, Router Templates With Pre-Drilled Adapt to Multiple Routers of Different Model

Brand: O'SKOOL

Color: Orange

Features:

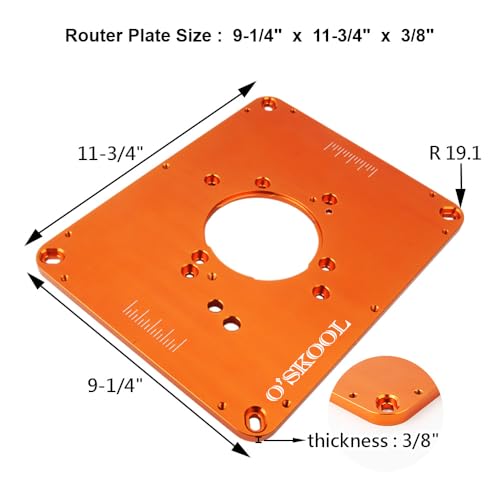

• O’SKOOL Insert Plate enables you to easily invert and mount your router on a router table for more versatile routing applications. With a size of 9-1/4" x 11-3/4", it fits the insert plate opening of most common commercial router tables, ensuring seamless integration.

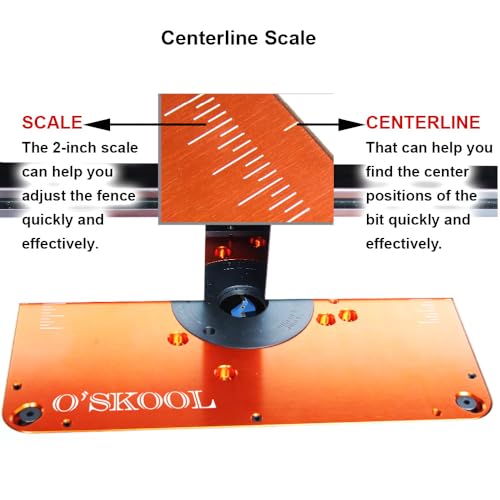

• Crafted from precision CNC machined 3/8" solid aluminum, our insert plate guarantees exceptional flatness and durability. The sturdy 3/8" thickness prevents any bending or deformation, ensuring a consistently flat registration surface. Laser engraved scales on both sides facilitate accurate router fence setup.

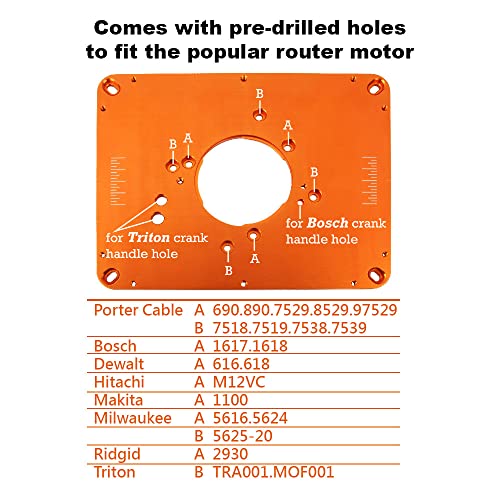

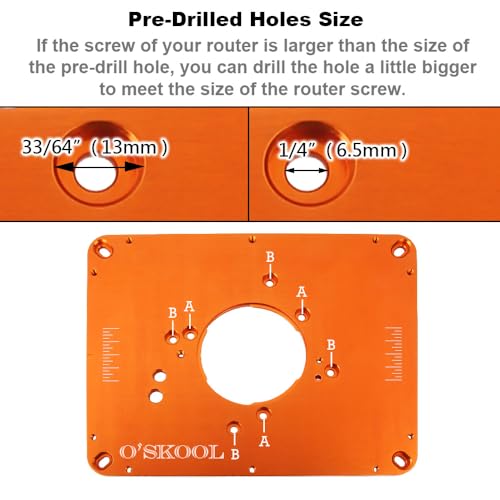

• The insert plate features a series of 1/4" pre-drilled mounting holes with 1/2" counterbore, specifically designed for popular router models including 690, 890, 7529, 8529, 97529, 1617, 1618, 616, 618, MV12VC, 1100, 5616, 5624, 5625-20, A2930, TRA001, and MOF001. Additionally, There are through holes provide easy access to the bottom lead screws of certain routers.

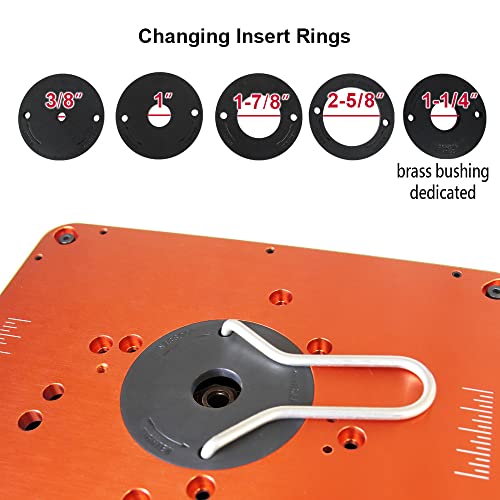

• Our insert plate includes five insert rings, offering optimal stock support for various router bit sizes. The sizes include 3/8", 1", 1-1/4" (compatible with guide bushings), 1-7/8", and 2-5/8" rings, catering to your diverse routing needs. Changing insert rings is a breeze with the included ring wrench, allowing for quick adjustments.

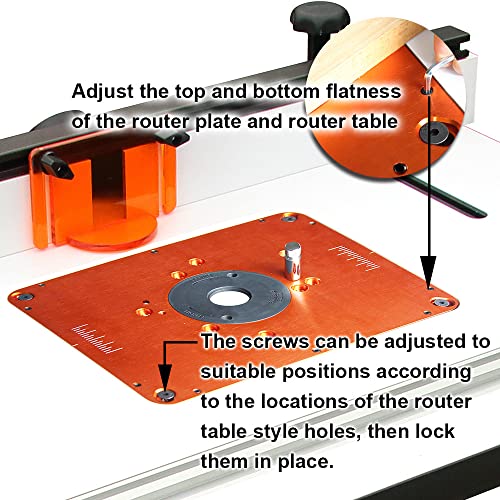

• With ten leveling points, our insert plate ensures a stable and level working surface. The diagonal counterbore slots at the corners allow you to securely bolt down the plate, accommodating slight positional differences in the router table's threaded holes(Four 1/4" x 1" bolting screws are included). Additionally, the insert plate features two installing positions for the included starting pin, enhancing the safety and smoothness during pattern routing.

Binding: Tools & Home Improvement

model number: RTS02A

Part Number: RTS02A

Details: 1.This aluminum router plate come with pre-drilled to adapt to multiple routers of different models.
2.The plate is made by aluminium alloy, it is practical in use and not easy to rust.
3.Convenient center-hole bushing used to aligned the router so it is centered in the bit hole.Make accurately drilling and mounting any router easy.
4.The plate is suitable for high-precision woodworking.It is easy to operate,save effort, and make the work be well done.

Plate material: aluminum alloy
Insert material: ABS plastic
Color: Orange

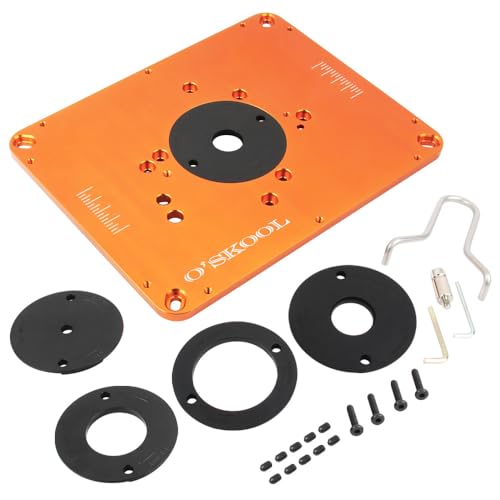

Package Contents:
*Router Table Insert Plate X1
*Start pin X1
*Insert ring X3
*3mm Allen wrench hex key X1
*4mm Allen wrench hex ke X1
*Hex socket button head screw X4
*Leveling screw X8

EAN: 4711198630721

Package Dimensions: 14.0 x 11.3 x 2.6 inches
