Description
Description
Brand: Palmgren
Color: Grey & Black
Features:
- Radial arm design with swing from 9 to 33", Tilting head and table
- Swing depth from 9-Inch to 33-Inch (4.5-Inch to 16.5-Inch from spindle to column)
- Head tilts 90-Degree right and left with spindle travel of 3.15-Inch
- Keyed 5/8-Inch Chuck with JT3 taper with drilling capacity of 5/8-Inch in case iron
Binding: Tools & Home Improvement
model number: 80342 AMAZONUSERCT9
Part Number: 80342 AMAZONUSERCT9
Details: Product Description

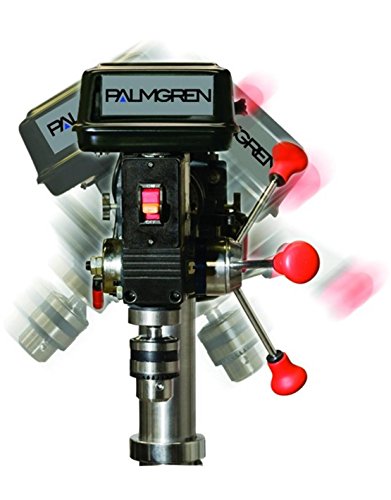

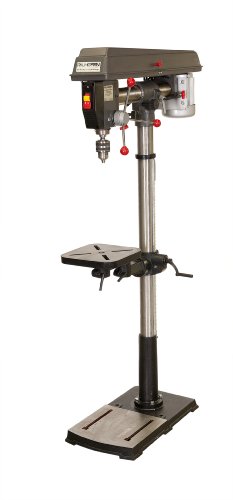

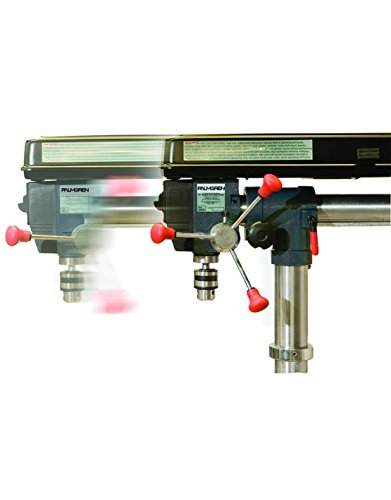

The Palmgren radial arm drill press features a heavy cast iron base, worktable, and head. The head moves 12-Inch forward and backward using a rack and pinion system. Head also swivels 360-Degree around the column and tilts 45-Degree both right and left. The worktable height is adjustable using a rack and pinion system. Table can be tilted 45-Degree both right and left and rotates 360-Degree on a vertical axis. The worktable surface is precision ground and features slots for secure, accurate mounting of work piece. Other features include an enclosed ball bearing quill assembly, quick belt change and tension mechanism, positive quick-adjust feed depth stop and a 1/2 HP, 1725 RPM motor. The unit comes with a keyed chuck and chuck arbor. Spindle speeds are adjustable for drilling in steel, cast iron, aluminum, wood and plastic.
From the Manufacturer
Belt Drive Radial Drill Presses - These versatile general purpose drill presses feature pivoting, multi-angle and multi-positioning of the drill head for drilling at just about any angle. The drill head will drill to the center of a 33" circle and can be used on a wide variety of materials. Durable cast iron head, table & base. Spindle supported by high quality ball bearings. Drill head swivels 360 degrees around the column, tilts 90 degree left and 45 degrees right, and is graduated in 5 degree increments with a positive stop at 0 degrees. Rack and pinion table raiser. Slotted table rotates 360 degrees around the column. Front mounted on/off switch. Drill chuck & key.
EAN: 0726896803425
Package Dimensions: 55.0 x 19.5 x 10.0 inches
