Brand: PGFUN
Features:
- This 3 coordinate XYZ axis CNC probe is designed for wide DIY cnc applications, like fast zero-point acquisitions, surface flatness acquisition, measuring workpiece geometries such as edges, holes, grooves, studs, angles and corners, workpiece scanning & digitizing.( Tips: it's developed for DIY application, not recommended for industrial use)
- Main Specs: power: DC5-24V, NPN-NO wiring ( High-level IO signal output when powered and turns to Low-level signal output when Triggered), repeatability accuracy: 0.01 mm/ 0.0004 in, feedrate: 50-200 mm/min, over travel protection distance: X- ±4mm/0.16 in, Y- ±4mm/ 0.16 in, Z- 2mm/ 0.08in, XY axis trigger force: 0.5-0.82N, Z axis trigger force: 2.7N. (Note: ensure the sensitivity of the tool setter is higher than this edge finder/trigger force less than 2.7N if working with a tool setter)
- Application: theoretically it can work with MACH3, Mach4, Dynamotion, LiNUXCNC, UCCNC, Centroid CNC or any other CNC control software with a probing routine and a breakout board that will accept 3-port probe input. (contact your software, and controller manufacturer or lookup forums for probe wiring and connections)
- Upgraded digitizing CNC Touch Probe: the probe uses high-quality electronics for true high measurement precision and high repeatability, the fine frosted black oxidized aluminum alloy with a flat surface anti-roll/non-round shaped design, which makes it looks great and protects the touch probe well from dropping. Besides, This tool can be converted to a tool setter by a tool setter base and flat tip.

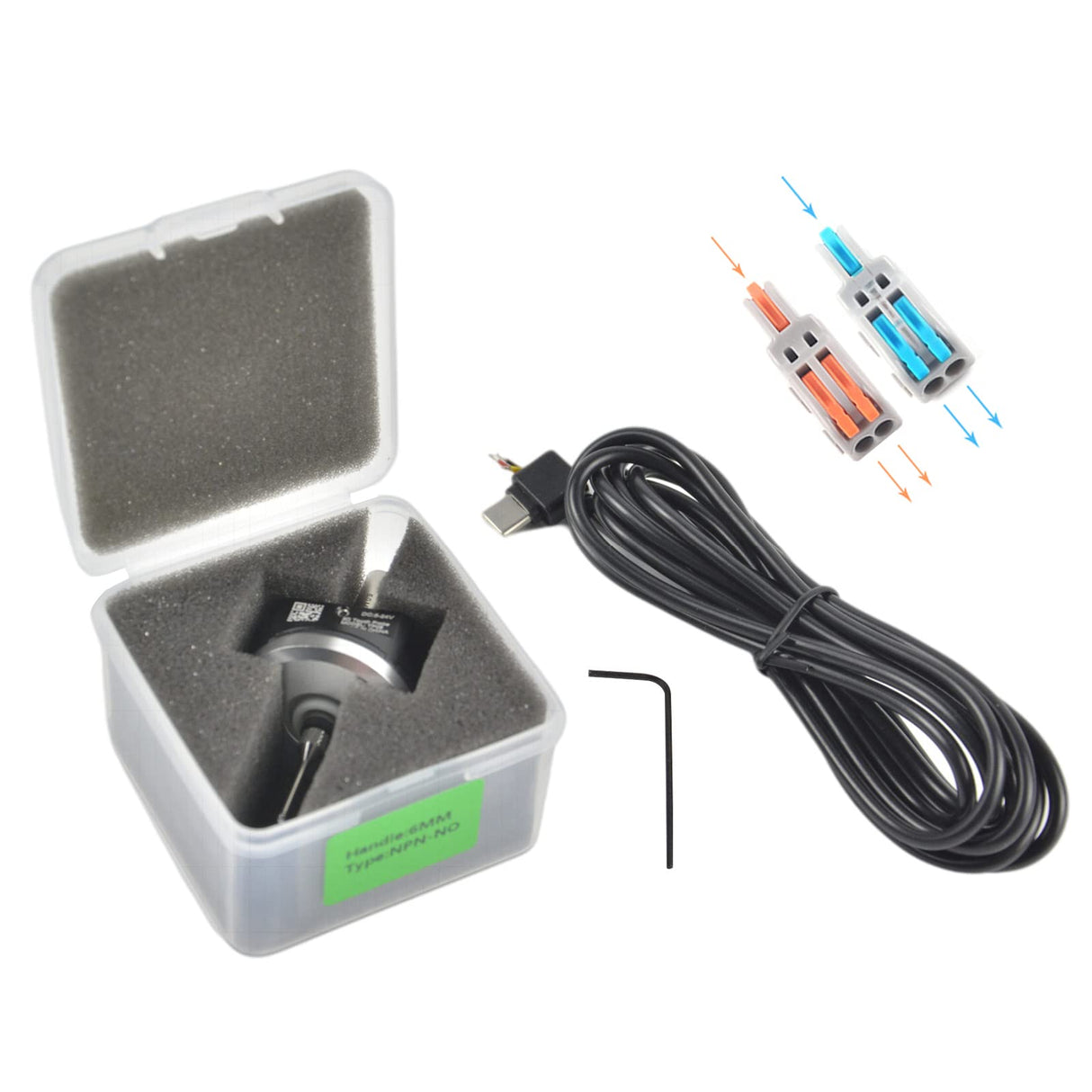

- Package Include: 3D touch probe x 1, cable x 2 m/ 6.5ft, allen wrench x 1, straight probe tip x 1, wire connector kit x 1 (to solve the lack of control board wiring ports and extend the wire ).
Binding: Tools & Home Improvement
model number: TR0041_NO
Part Number: TR0041_NO

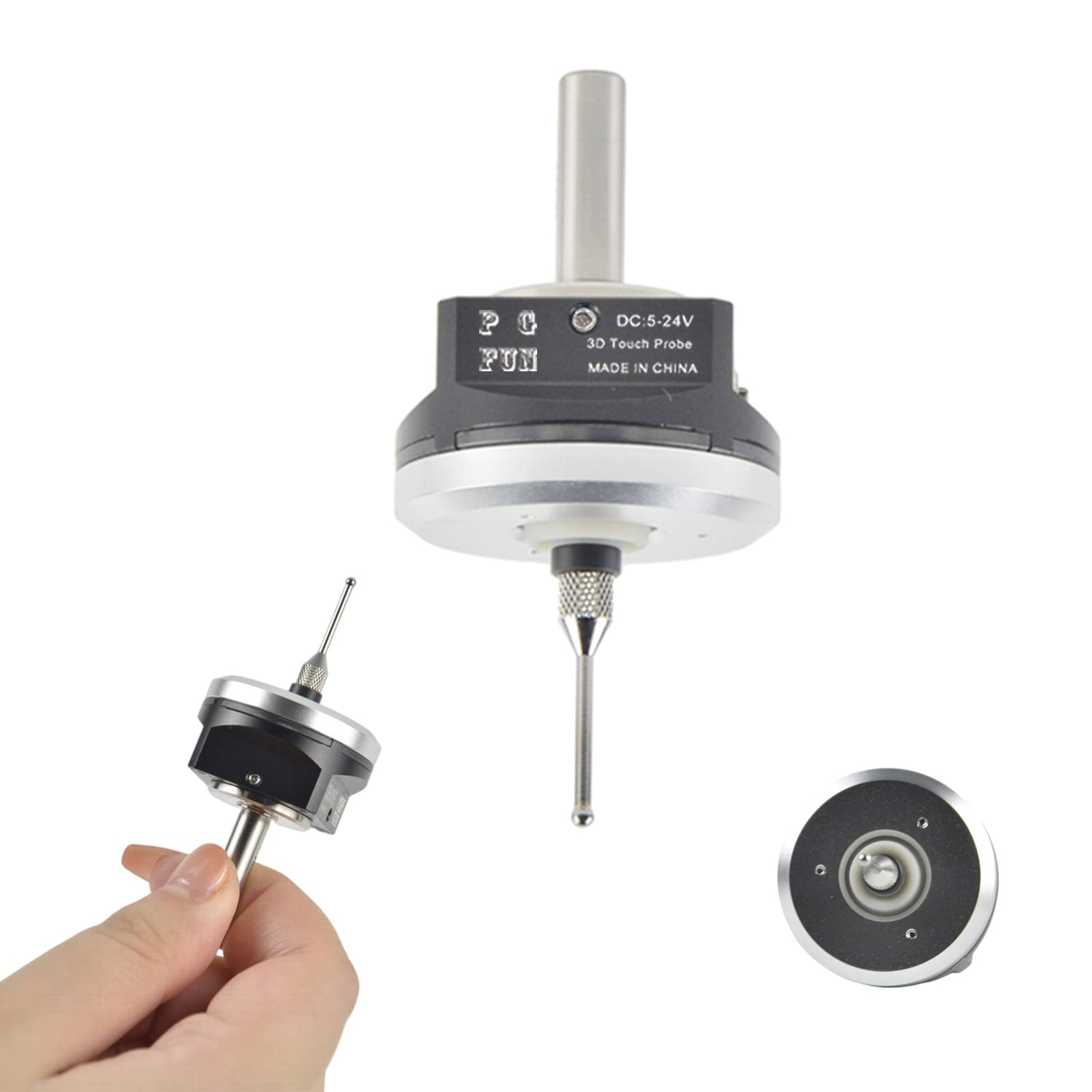

Details: PGFUN The Latest Upgraded Anti-roll 3D Touch Probe Waterproof Edge Finder

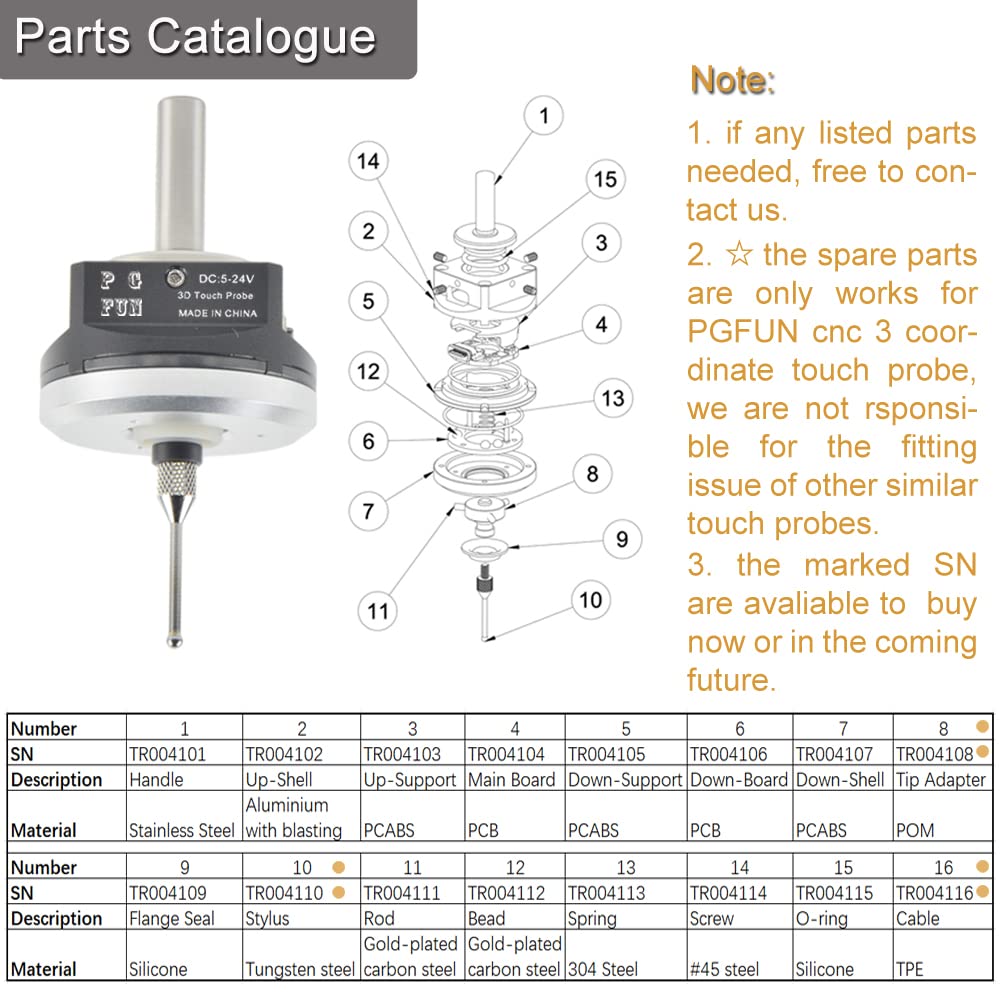

Specification:
Power: DC5-24V

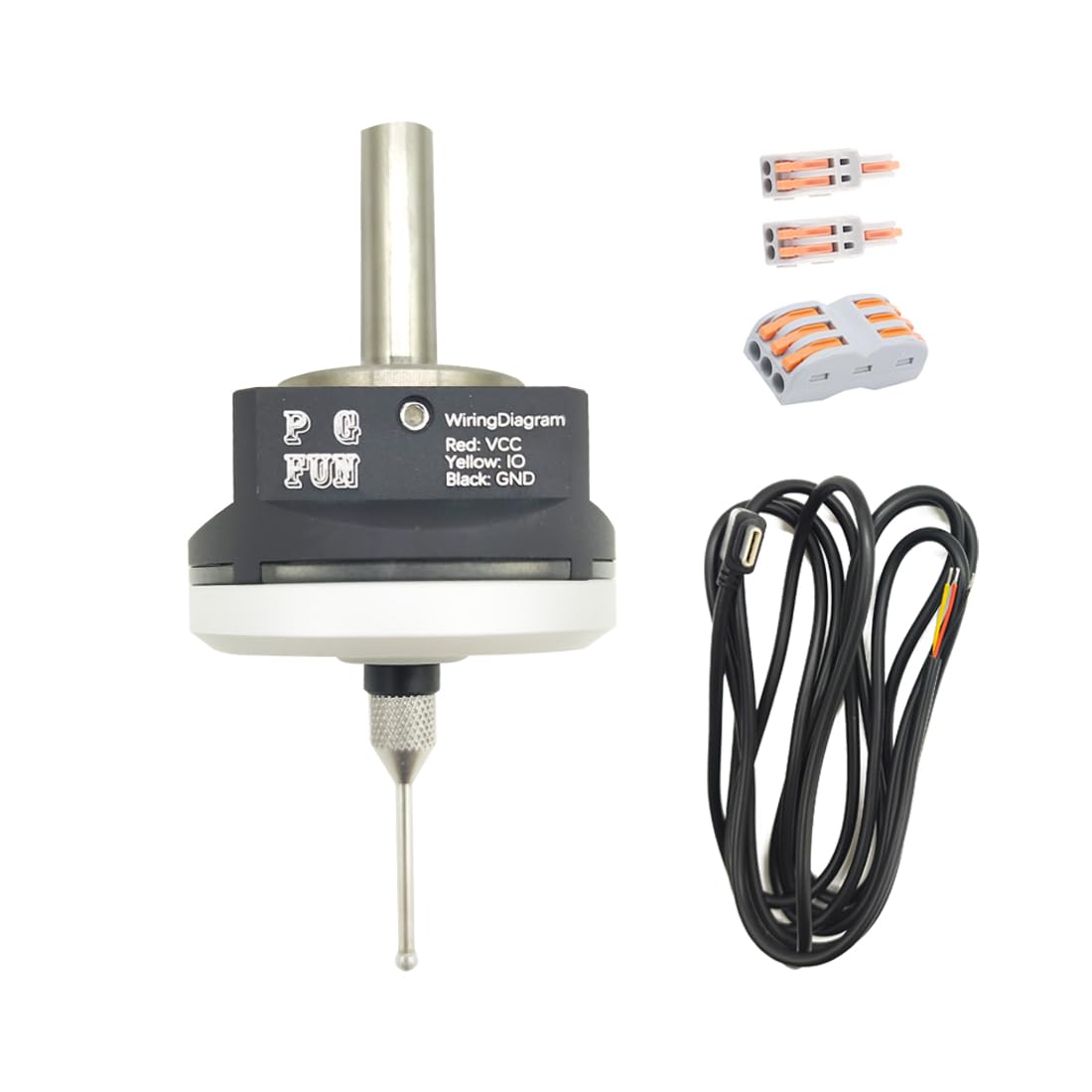

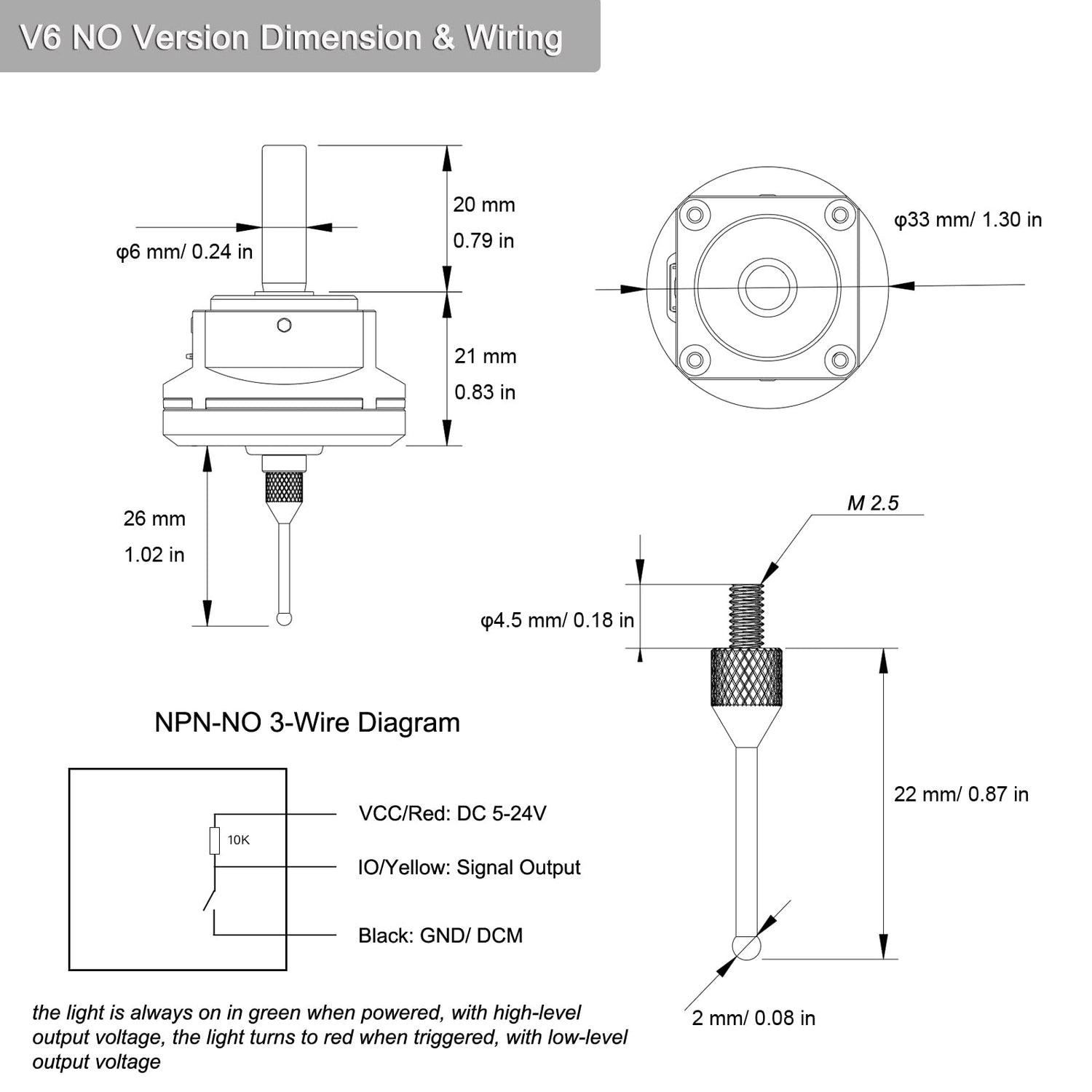

3 NPN-NO Wiring: Red-VCC (DC5-24V power), Yellow: IO/ Signal Output, Black- GND(DCM)
Repeatability Accuracy: 0.01 mm/ 0.0004 in.
Feedrate: 50-200 mm/min.
Approach Direction: ±X, ±Y, +Z.
Over Travel Protection Distance: X- ± 4mm/0.16 in, Y- ±4mm/ 0.16 in, Z- 2mm/ 0.08 in.
Lifetime: > 3 million triggers.
Trigger Force: XY- 0.3-0.5 N, Y- 2.7N.
Application: theoretically it can work with MACH3, Mach4, Dynamotion, LiNUXCNC, UCCNC, Centroid CNC, or any other CNC control software
Package Include: 3D touch probe x 1, cable x 1, allen wrench x 1, probe tip x 1, wire connector pack x 1 (to solve the lack of control board wiring ports and extend wire).

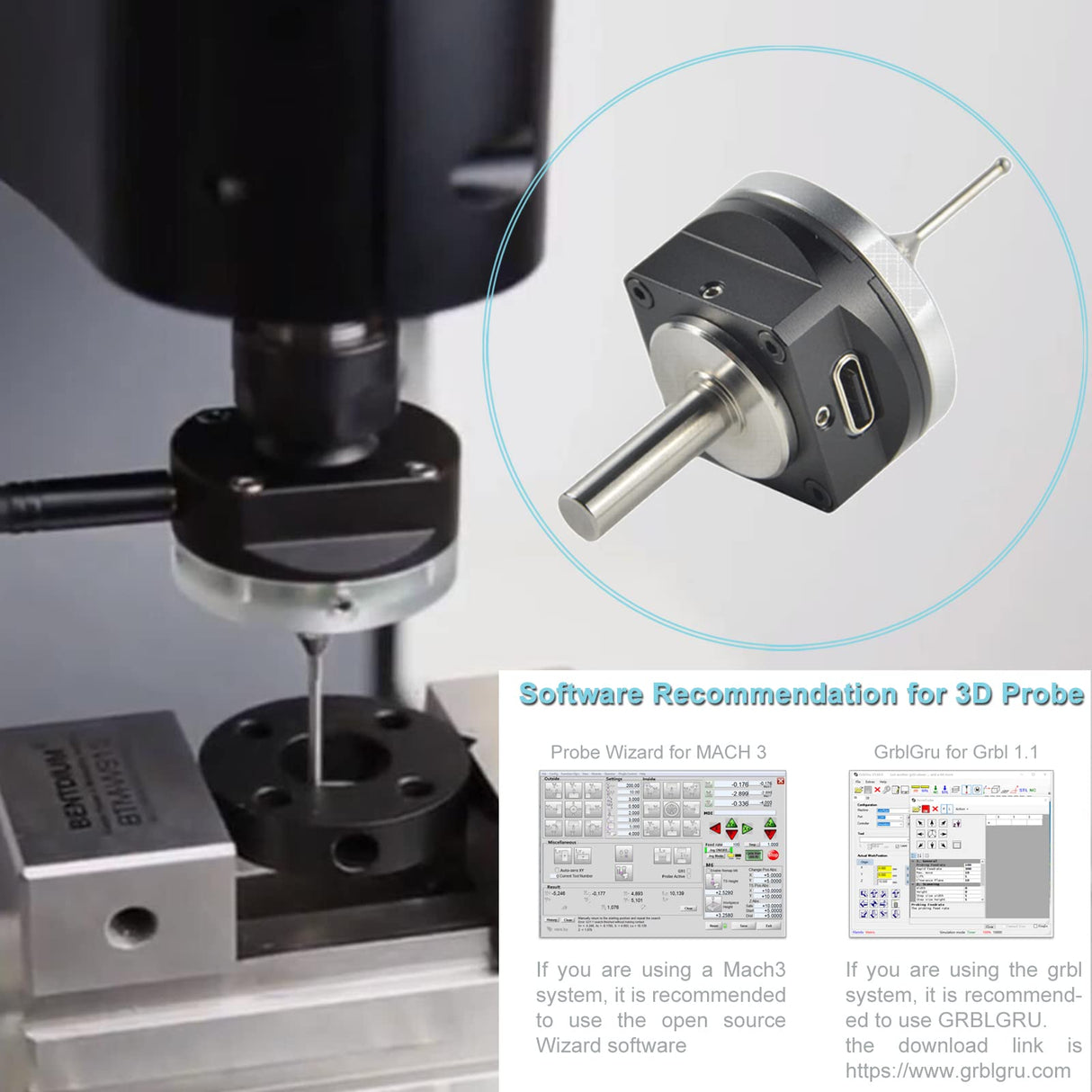

Software Recommendation
Probe Wizard or ProbeIt are recommended for Mach3, and GRBLGRU is recommended for GRBL.
FAQs:
Q1: Need to turn on the spindle speed?
A1: Please do not, or it may cause measurement error.
Q2: Why is the concentricity different when the probe is installed?
A2: Because the low-accuracy spring collet can't guarantee 100% positive position. After each installation of the probe, even if the concentricity is adjusted to 10 μm, there will still be deviations when the probe is re-installed. So it is best to use a AAA /UP or higher accuracy ER spring collect (run-out tolerance <0.0002") for your chuck. It is recommended to use a high-precision gauge to check the concentricity after installing the chuck.
Q3: i need a NC touch probe, what should i do?
A3: we added the NPN-NC touch probe, you can buy the right wiring version for the machine now.
Q4: Does this touch probe work for the non-conductive material like acrylic?
A4: This is a mechanical probe, it identifies and transmits the signal by physical contact, do not worry about the conductivity of the material.
EAN: 0774491728667
Package Dimensions: 4.8 x 3.0 x 2.8 inches
