PGFUN CNC 3D Touch Probe XYZ Axis Edge Finder 3-Coordinate Measuring Sensor Kit with 8 mm Shank & 2.0 mm Ruby Ball Tip (NPN-NO)
Regular price
$99.99
Unit price
/
Unavailable
Availability & Shipping
Availability & Shipping
- Product availability: This is a US based website and some products may not be available outside the US.
- Shipping info: The majority of items have free shipping, but some products due to size or shipping location may have a shipping fee.
- Our Supporting Artisans who helped curate the products on this site will share commissions for purchases made through links in this post.
Transparency
Transparency
- Transparency: Unfortunately due to high levels of fraud committed on this shop our team has decided to only work with trusted suppliers to bring you the high quality items and fast shipping you've been used to from now on.
🔥 Newsletter 🔥
Sign up for exclusive offers, new items, and more.
Description
Description
Brand: PGFUN
Features:
- This 3-coordinate XYZ axis CNC probe is designed for wide DIY CNC applications, like fast zero-point acquisitions, surface flatness acquisition, measuring workpiece geometries such as edges, holes, grooves, studs, angles and corners, workpiece scanning & digitizing. ( Tips: it's developed for DIY application, not recommended for industrial use)

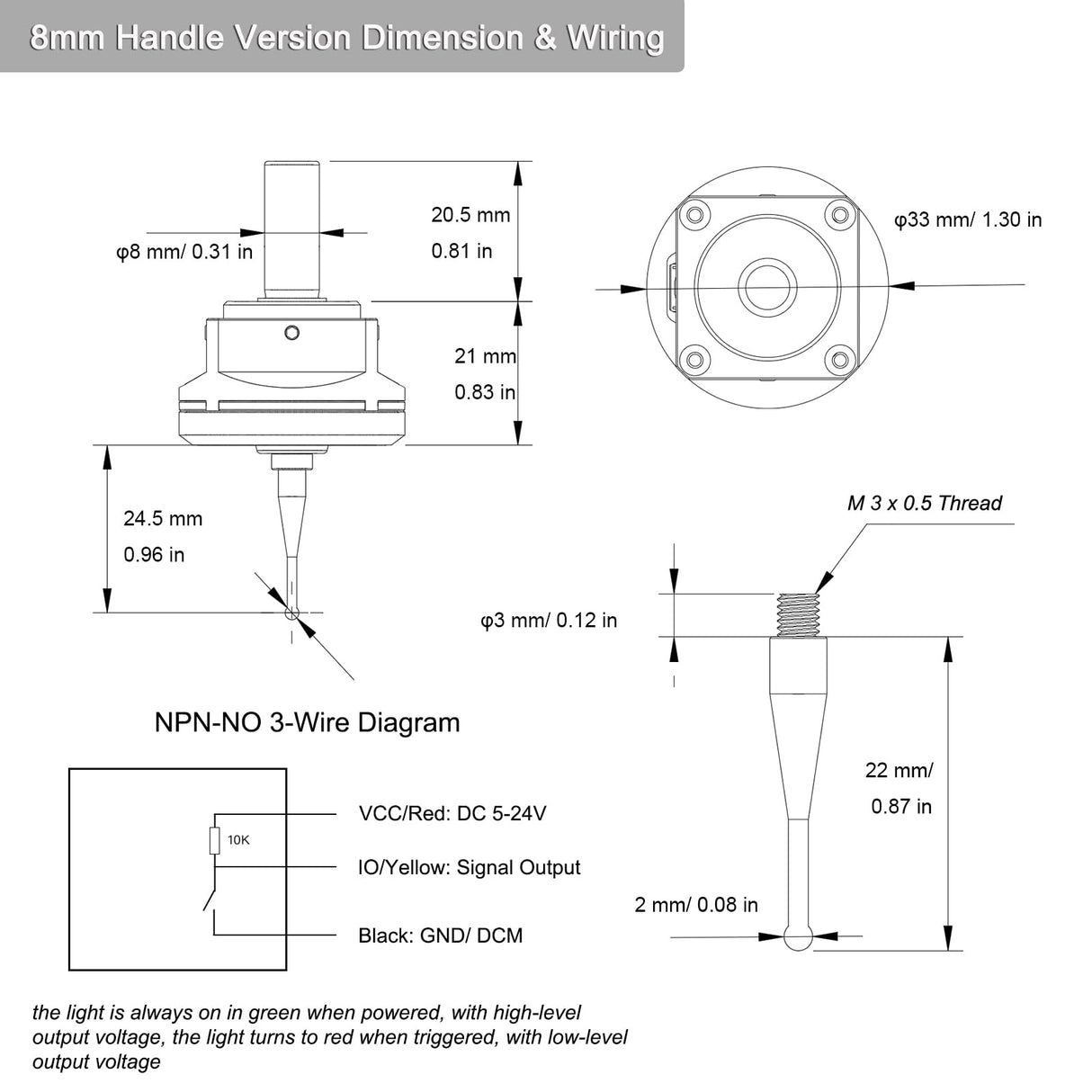

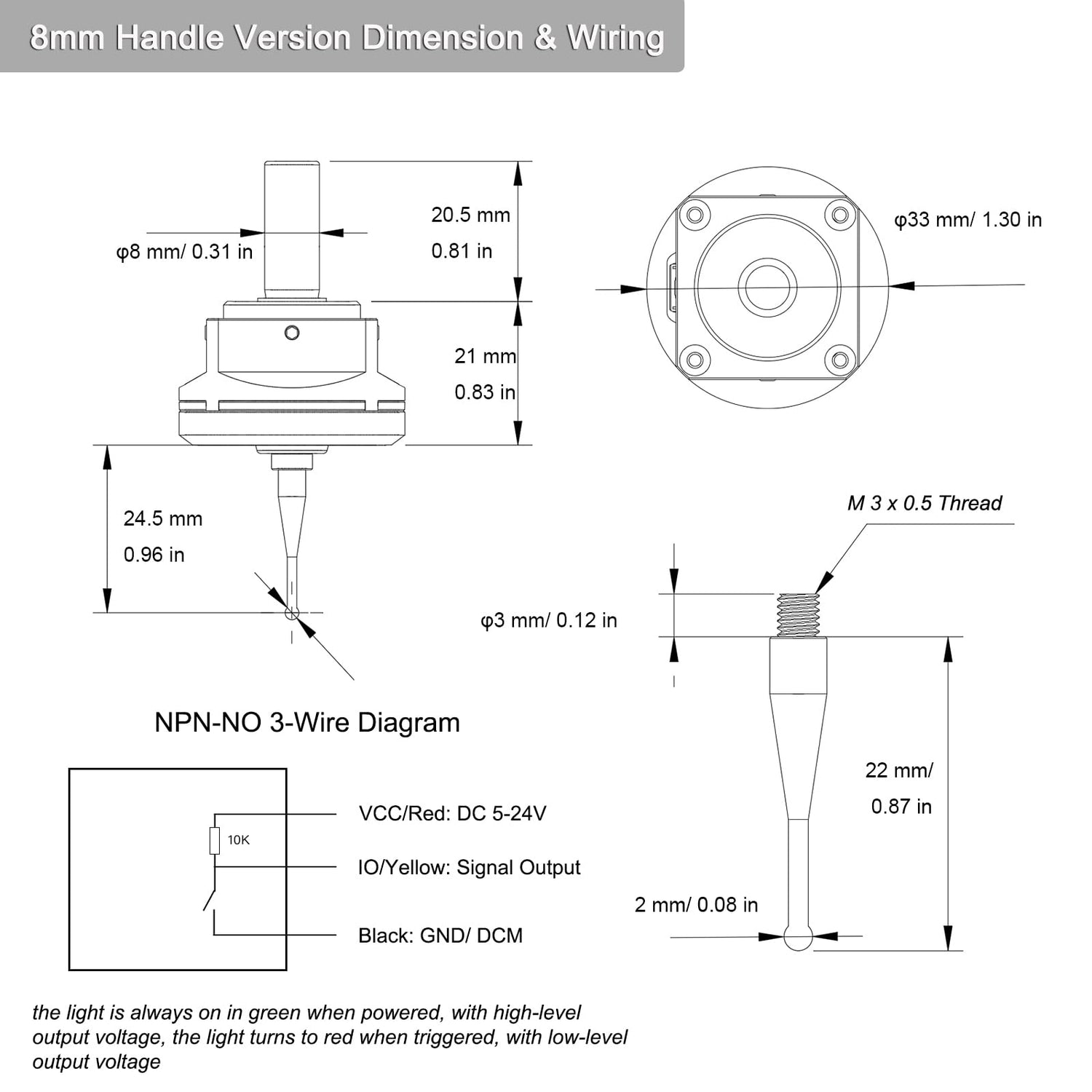

- Main Specs: power: DC5-24V, NPN-NO wiring ( High-level IO signal output when powered and turns to Low-level signal output when Triggered), repeatability accuracy: 0.01 mm/ 0.0004 in, feedrate: 50-200 mm/min, over travel protection distance: XY- 12°, Z- 2mm/ 0.08in, XY axis trigger force: 0.5-0.82N, Z axis trigger force: 2.7N. (Note: ensure the sensitivity of the tool setter is higher than this edge finder/trigger force less than 2.7N if working with a tool setter)

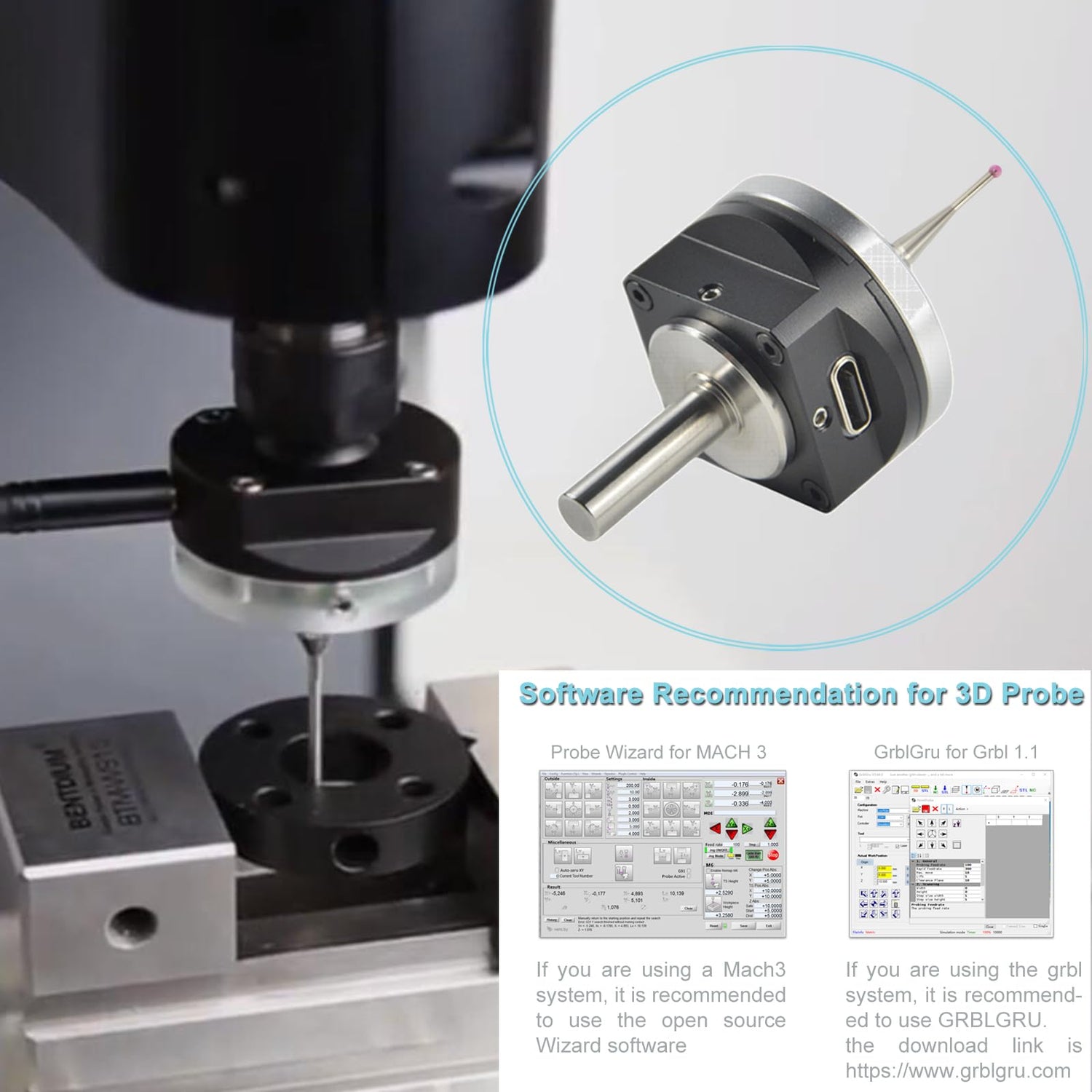

- Application: theoretically it can work with MACH3, Mach4, Dynamotion, LiNUXCNC, UCCNC, Centroid CNC or any other CNC control software with a probing routine and a breakout board that will accept 3-port probe input. (contact your software, and controller manufacturer or lookup forums for probe wiring and connections)
- Upgraded digitizing CNC Touch Probe: the probe uses high-quality electronics for true high measurement precision and high repeatability, the fine frosted black oxidized aluminum alloy with a flat surface anti-roll/non-round shaped design, which makes it look great and protects the touch probe well from dropping.

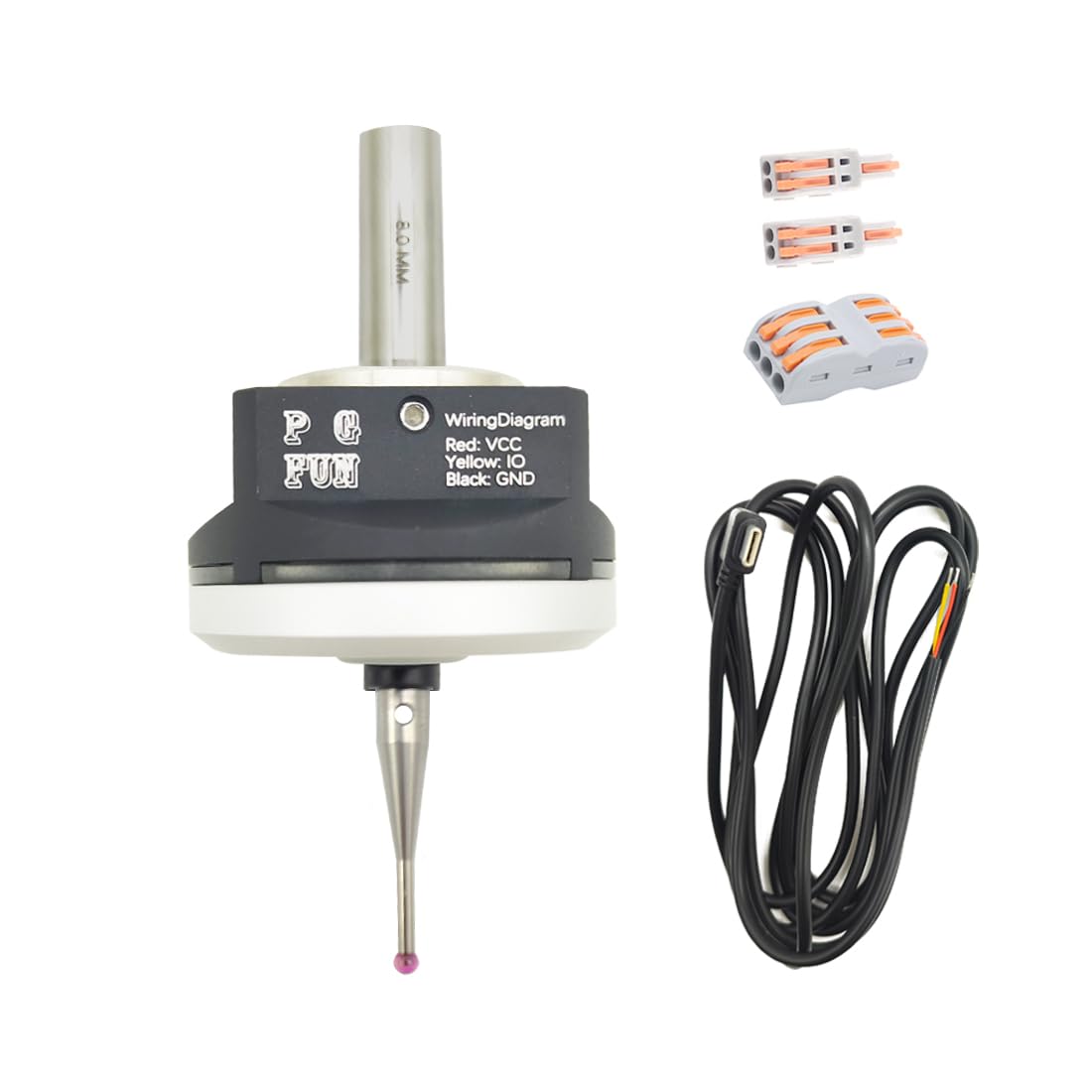

- Package Includes: 3D touch probe x 1, cable x 2 m/ 6.5ft, allen wrench x 1, straight probe tip x 1, wire connector kit x 1
Part Number: TR-0041_8_Probe
EAN: 0717225952099
Package Dimensions: 4.7 x 2.8 x 2.8 inches
