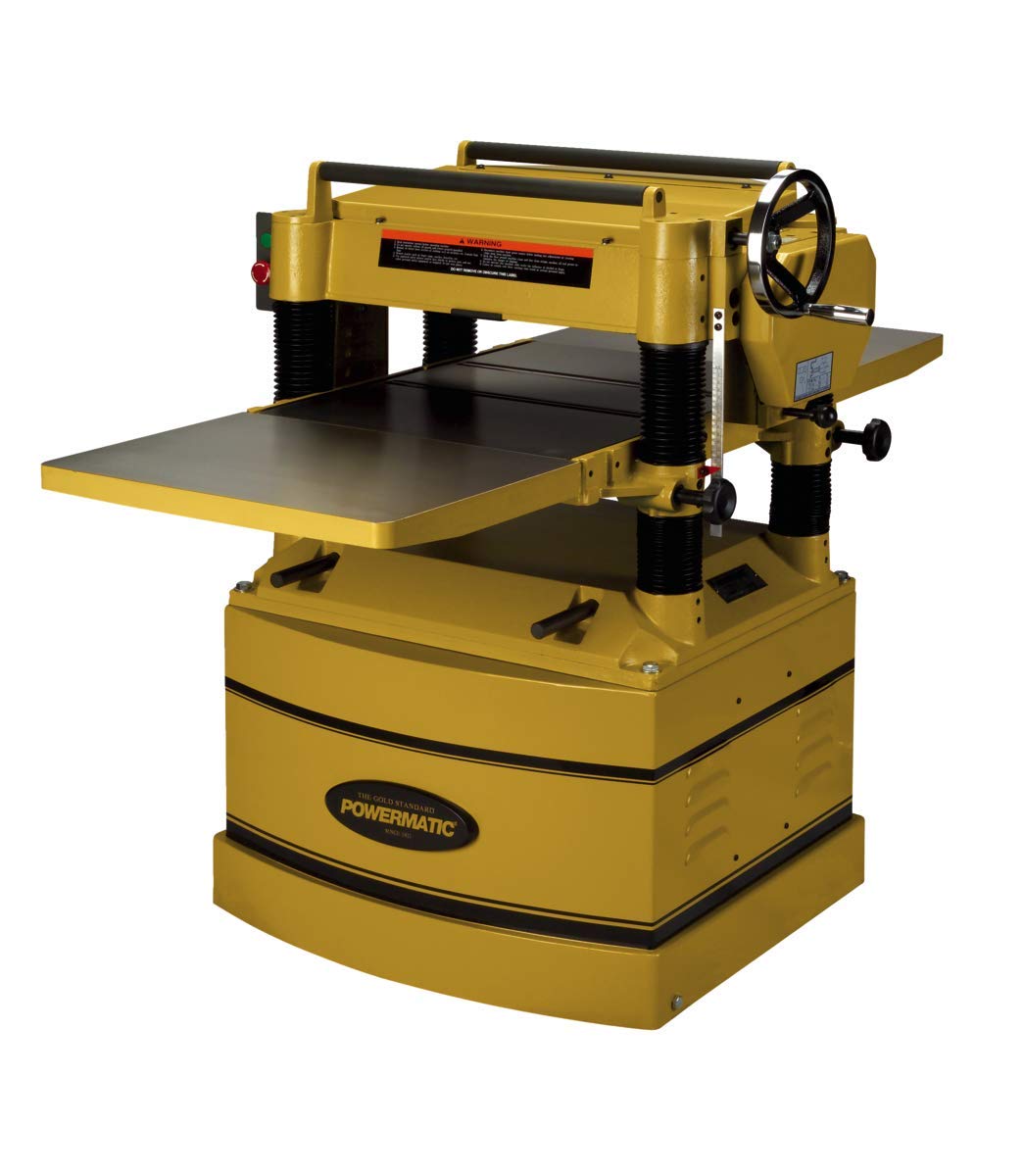

Powermatic 20-Inch Planer, 4 HSS Knives, 5 HP, 1Ph 230V (Model 209)

Brand: Powermatic

Color: Yellow

Features:

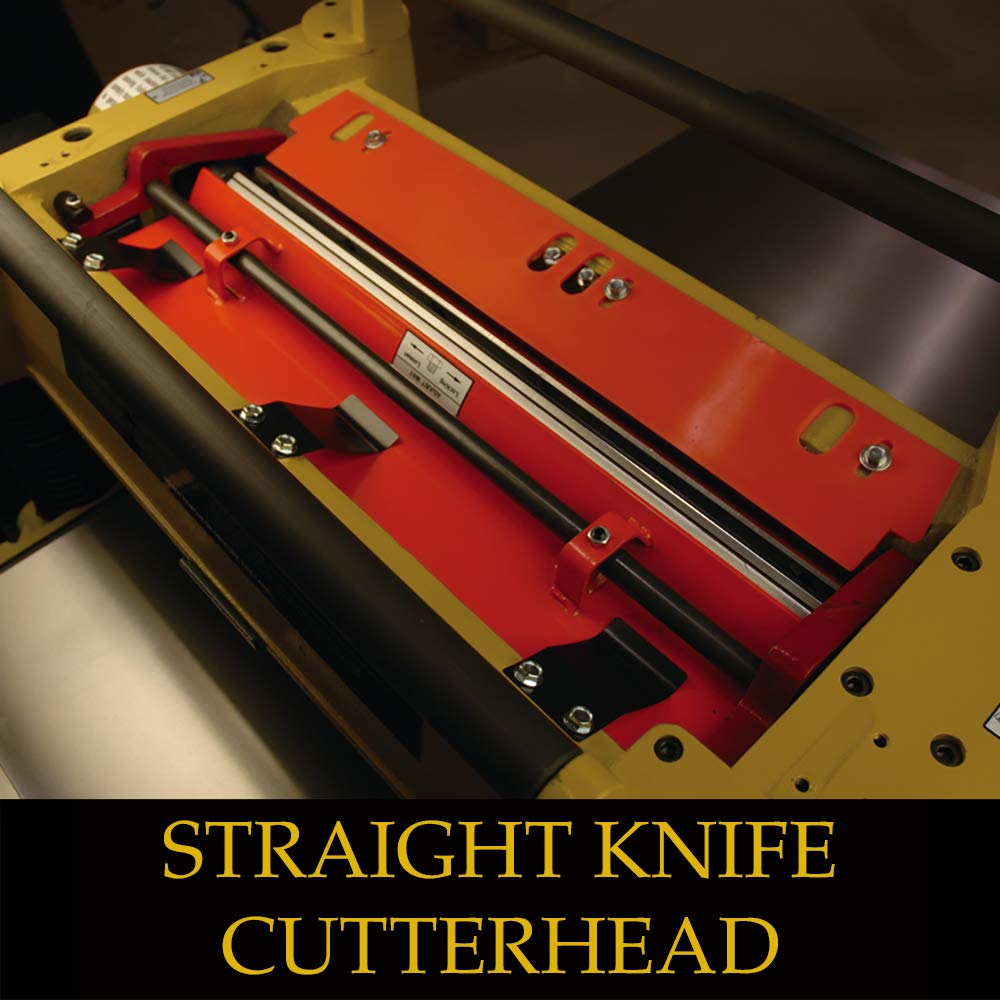

• Cutterhead contains four high speed steel straight knives for clean, smooth cuts
• Oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM
• Cast iron table with extensions creates a big 55-1/2" x 20" working area

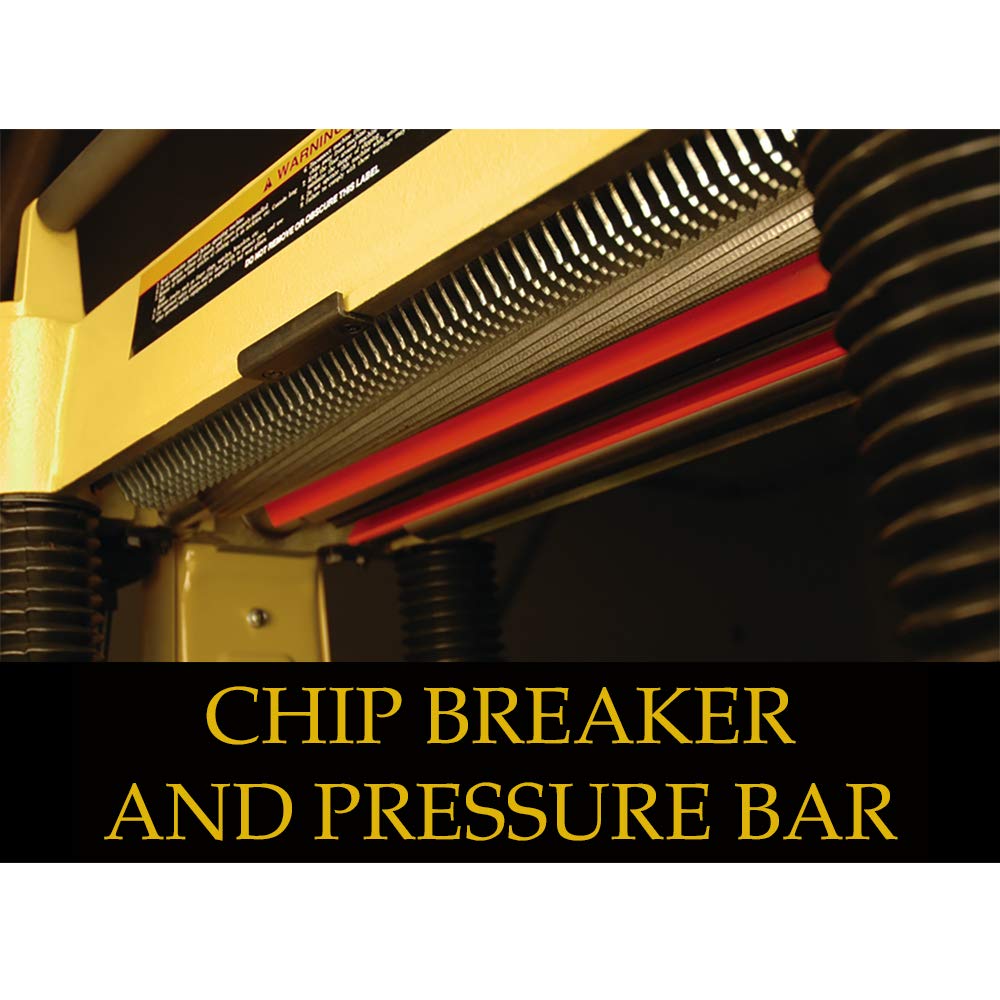

• Chip breaker and pressure bar helps to reduce snipe
• Feed rollers and cutterhead are supported by full cast iron head assembly for rigidity

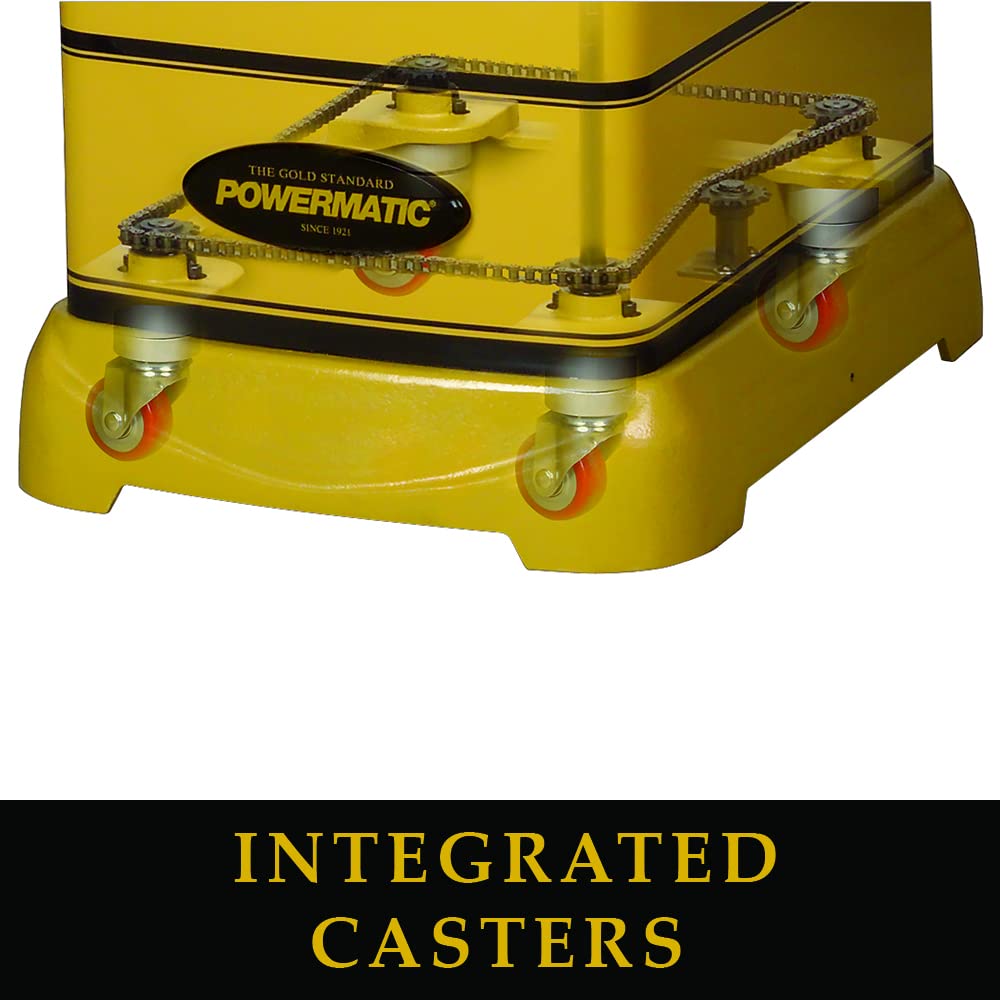

• Fully-enclosed base cabinet with integrated casters for shop mobility
• Chrome-plated, ergonomic handwheel makes adjustments smooth and easy

Binding: Tools & Home Improvement

model number: 1791296

Part Number: 1791296

Details: Description

Amazon.com

A great value with incredible performance and standard features not available on other models in its class, the Powermatic 209 20-Inch Planer turns out ultra-smooth surfaces quickly and consistently. And because it can create 20,000 cuts per minute, the 209 is the perfect tool for high-capacity jobs. Accurate and dependable, this planer's powerful motor, smooth feeds, and robust construction make it a true workhorse that is a must-have for every professional woodworking shop.
Powerful Motor and Cutterhead for Big Results

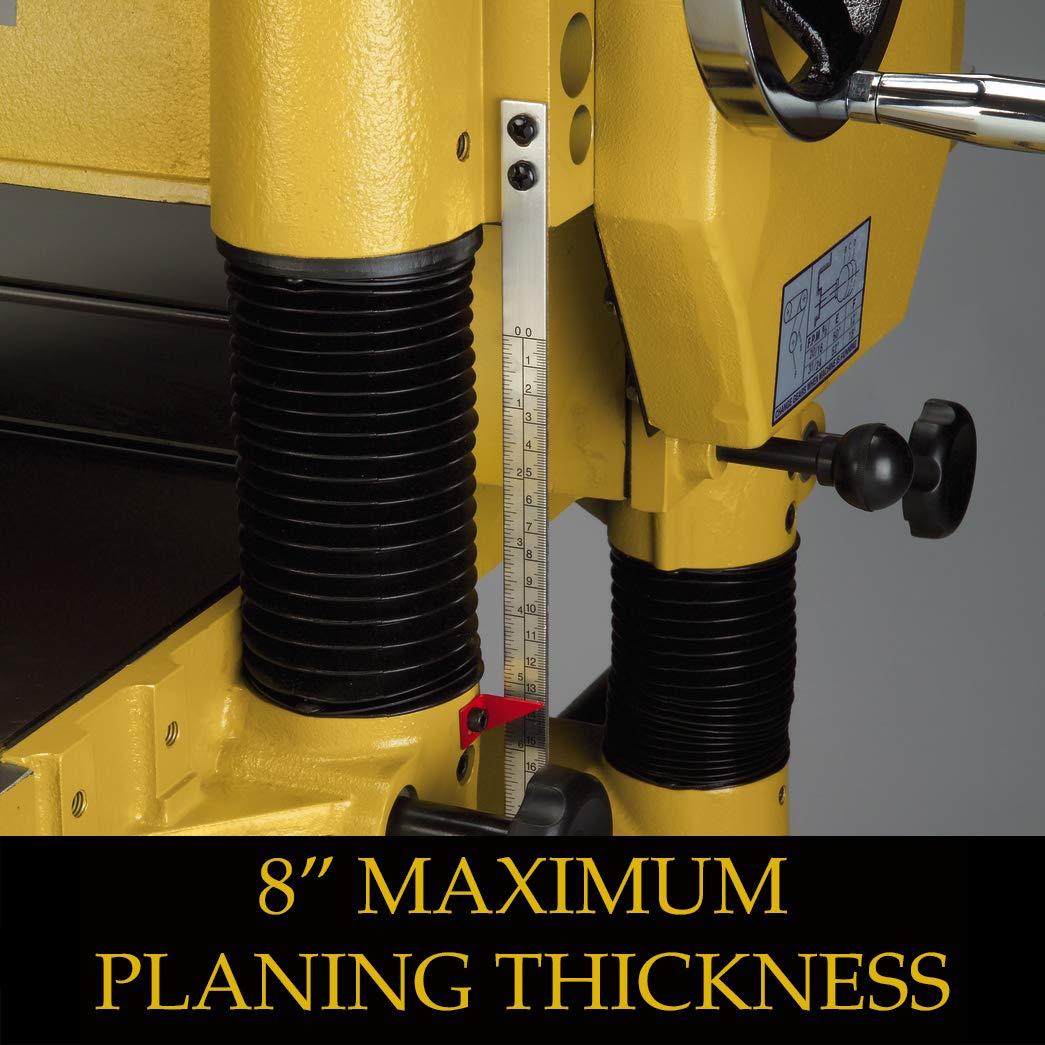

The 209 owes its vigorous performance to a five-horsepower motor. Power is transferred from the motor directly to the four-knife cutterhead at 5,000 RRM, which allows for up to 20,000 cuts per minute. This robust design not only means you'll be able to get jobs done quickly, but you'll also be able to tackle workpieces up to eight inches thick and 20 inches wide (minimum length of 6-3/4 inches).
For exceptional finishes, anti-kickback fingers and a pressure bar are located in close proximity to the cutterhead.
Smooth Infeeds and Outfeeds
The Powermatic 209 offers two feed speeds--24 and 31 feet per minute--and the option of upgrading to four speeds via the gear box and included parts.
With this planer, even heavy loads are no problem, as the 209 automatically slows the feed rollers to ensure smooth cuts. To help you return heavy boards to the infeed, there are two heavy-duty return rollers located on top of the machine.
Adjustable, Durable Tables and Convenient Dust Port
The 209's tables are made of cast iron with polished, precision-ground surfaces for durability and easy feeds. A pair of extension wings lets you handle larger workpieces, and four posts give you plenty of workpiece support.
For convenience, a five-inch dust port hooks up to your dust collection system for improved visibility while you work.
Dimensions and Warranty Information
The Powermatic 209 measures 36.6 x 41.3 x 26.0 inches, weighs 770 pounds, and comes with a five-year warranty.
What's in the Box
Planer; dust hood; two cast-iron extension tables; handwheel; handle; low-speed gear kit containing one 50P chain, 12T sprocket, three open-end wrenches, four hex wrenches, and two hardware bags; one knife setting gauge; manual; and warranty card.



Product Description

This heavy duty planer offers performance and value, loaded with standard features not found on other machines in its class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The 5" dust port connects easily to any dust collector. The cutterhead has four high speed steel knives and turns at 5,000 RPM producing 20,000 cuts per minute. The anti-kickback fingers and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to feed rollers and facilitates fast speed changes at 24 and 31 FPM. The gearbox can be changed to 4-speed with the included gear to run lower speeds of 16 and 20 FPM. The corrugated infeed and fine groove outfeed rollers ensure a smooth feed. The precision ground and polished cast iron table rides on four steel columns giving it plenty of support for the larger workpiece. Heavy cast iron extension wings ensure a flat, smooth cut.

From the Manufacturer

This heavy duty planer offers performance and value, loaded with standard features not found on other machines in it's class. The powerful 5HP motor and 20" planing capacity will handle the most demanding work. The 5" dust port connects easly to any dust collector. The cutterhead has four high speed steel knives and turns at 5000 RPM producing 20,000 cuts per minute. The anti-kickback finger and pressure bar are located in close proximity to the cutterhead for an exceptional finish. The solid cast iron base, table and head are designed for production. The 2-speed oil bath gearbox transmits full power to f

EAN: 0662755500602

Package Dimensions: 43.0 x 38.0 x 27.0 inches
