Author: Powermatic
Brand: Powermatic
Color: Yellow
Features:
- Belt and disc tables are precision-ground cast iron with miter slots, for precision and rigidity
- 12" disc spins at 2,375 RPM, and 6" x 48" belt turns at 2,410 SFPM

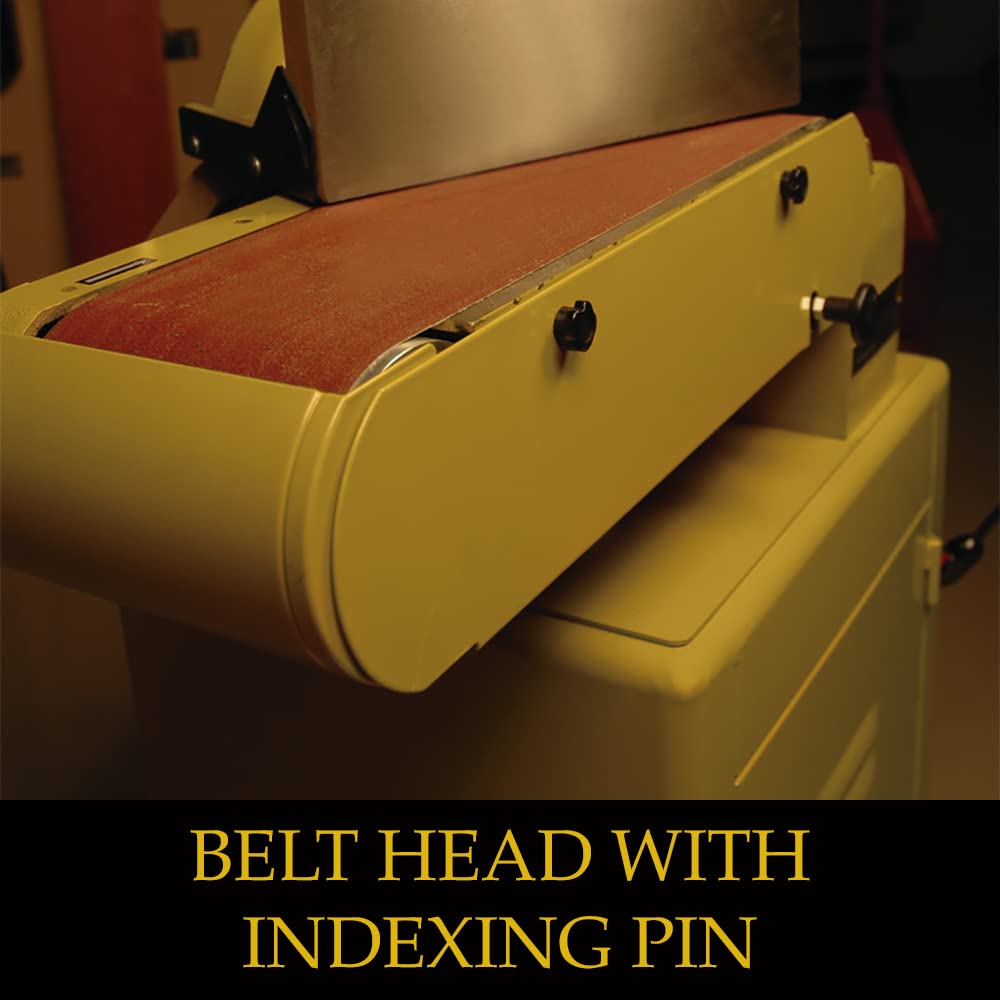

- Multi-position belt head locks at any angle from 0 to 90 degrees (includes indexing pin for 0, 45, and 90-degree stops)
- Belt table tilts down to 45 degrees, and can be set for beveled and mitered angle sanding

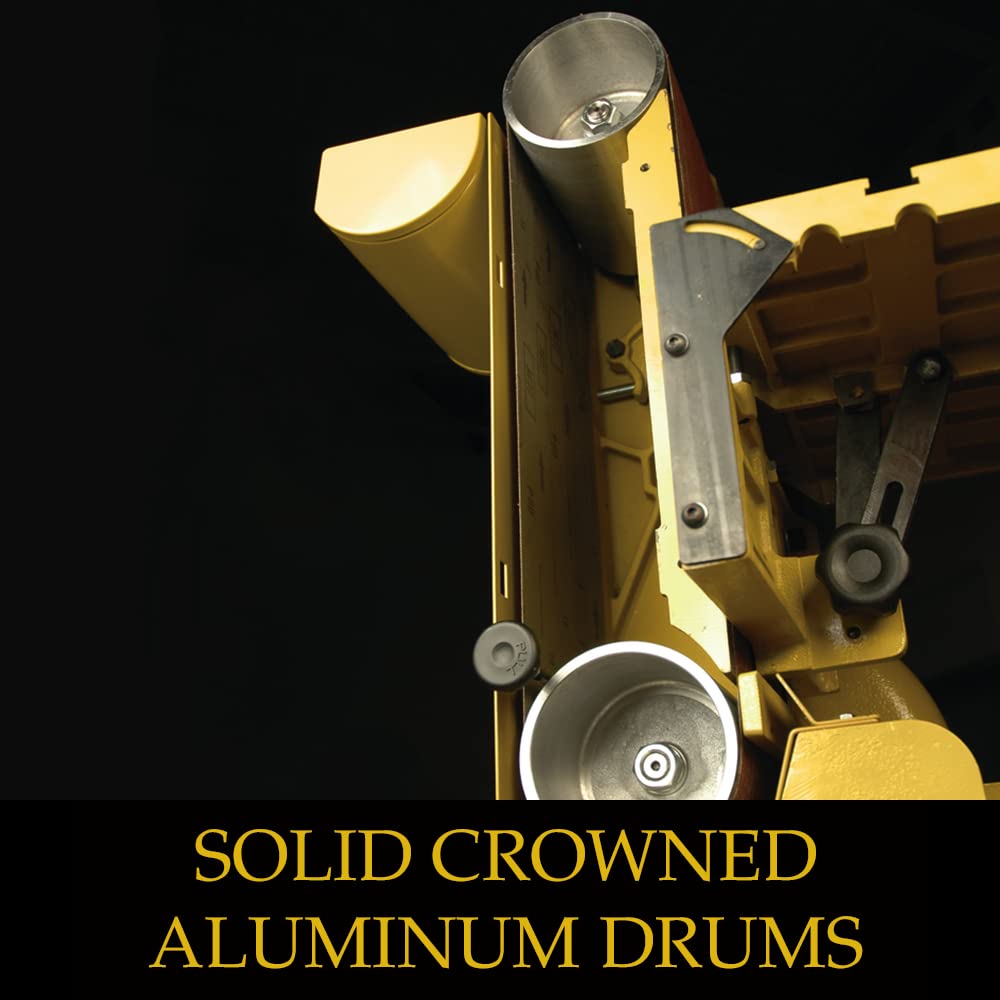

- Full cast iron platen with solid crowned aluminum drums for smooth sanding belt movement and support
- Backed by Powermatic's industry-leading five-year warranty against manufacturing defects
Binding: Tools & Home Improvement
model number: 1791291K
Part Number: 1791291K
Details: Description
Amazon.com

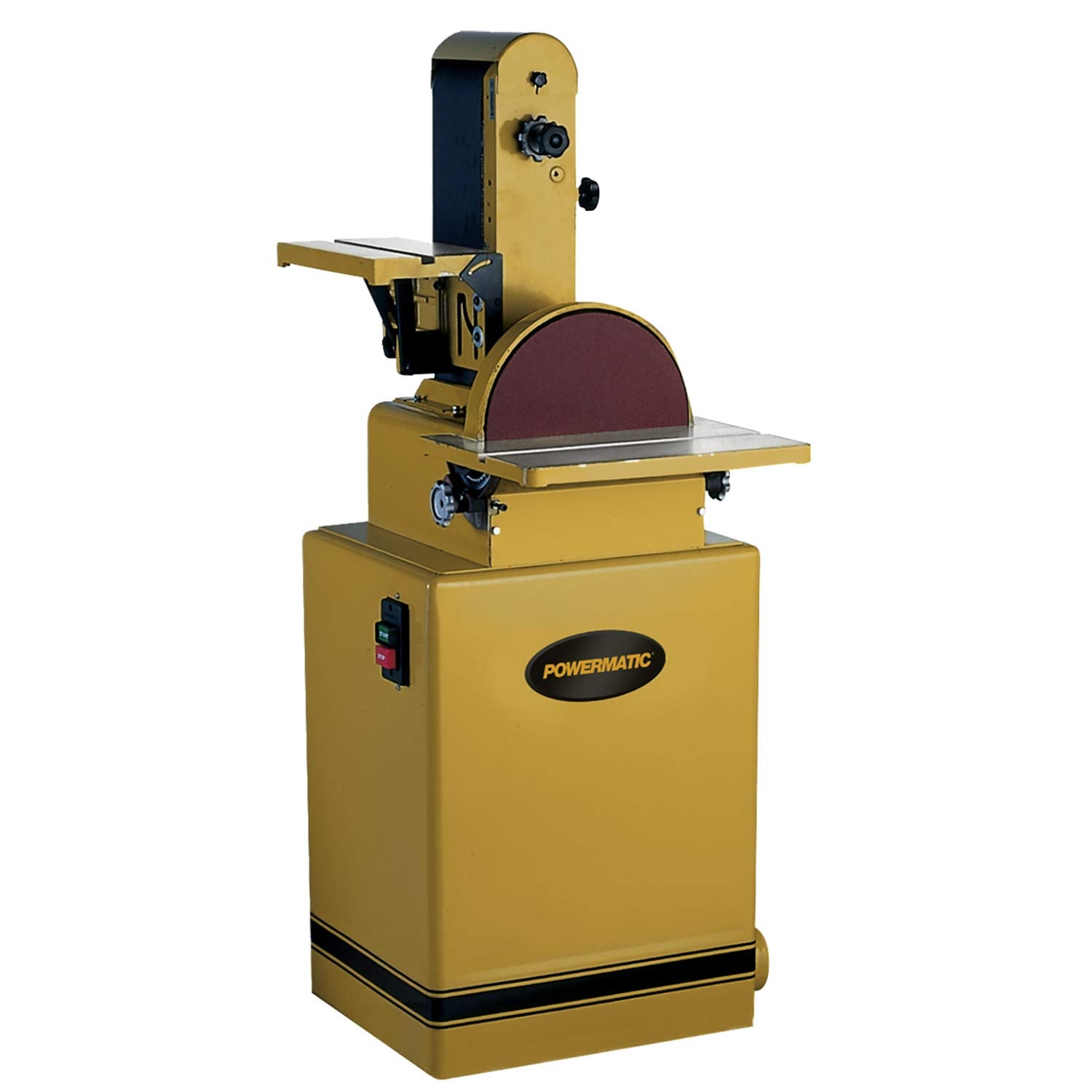

Loaded with innovative features, the Powermatic 31A Belt/Disc Sander has the power to accomplish even the most demanding tasks. Its heavy-duty, full cast-iron construction allows both metalworking and woodworking to be done on the same machine, saving space and money while maximizing the capabilities of both abrasive types.
Powerful 1-1/2 Horsepower Motor
The Powermatic 31A is a solid, full-feature sanding machine that has a 1-1/2 horsepower TEFC (totally enclosed fan cooled) motor mounted within the enclosed base cabinet. The 31A comes wired for 115-volt, 12-amp, one-Ph current, yet it can be converted to use 230-volt, six-amp power for greater versatility.
The motor delivers power to the belt and disc units via a pair of balanced pulleys and a V-belt. The belt is easily accessible for tensioning adjustments through a large door on the rear of the base cabinet.
Fully Welded Base Cabinet for Stability
The fully welded, all-steel enclosed base cabinet measures 20.0 x 27.5 x 17.25 inches (W x H x D), providing a stable platform for the entire machine in addition to enclosing and protecting the motor and dust collection chute.
The height of the base cabinet places the disc sanding table 34.5 inches off the floor and the belt (in the horizontal position) to 37 inches. These heights plus the total weight (246 pounds) and stability of the cabinet make the Powermatic 31A easy and comfortable to work with.
Cast-Iron Table Provides Ample Workspace

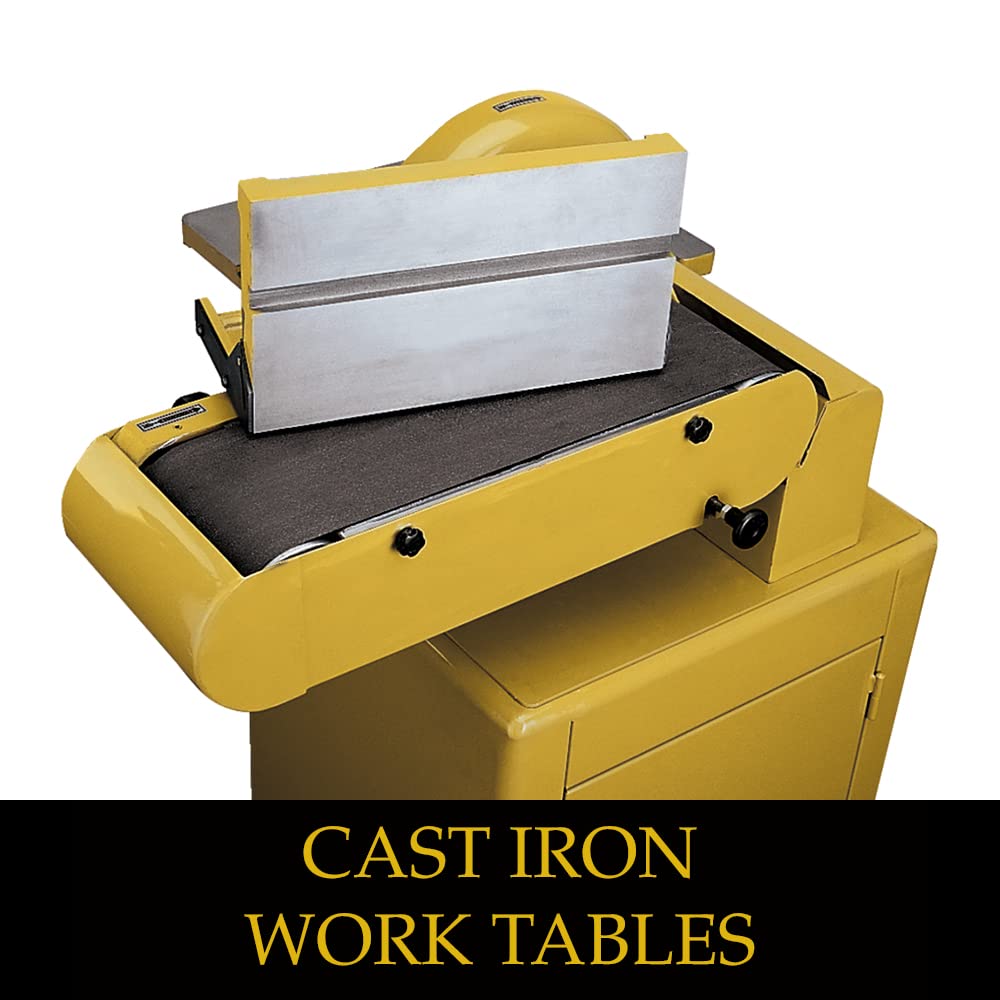

A large 17.25- by 9.0-inch cast-iron table provides a solid, spacious platform that both supports and stabilizes even the largest project pieces.

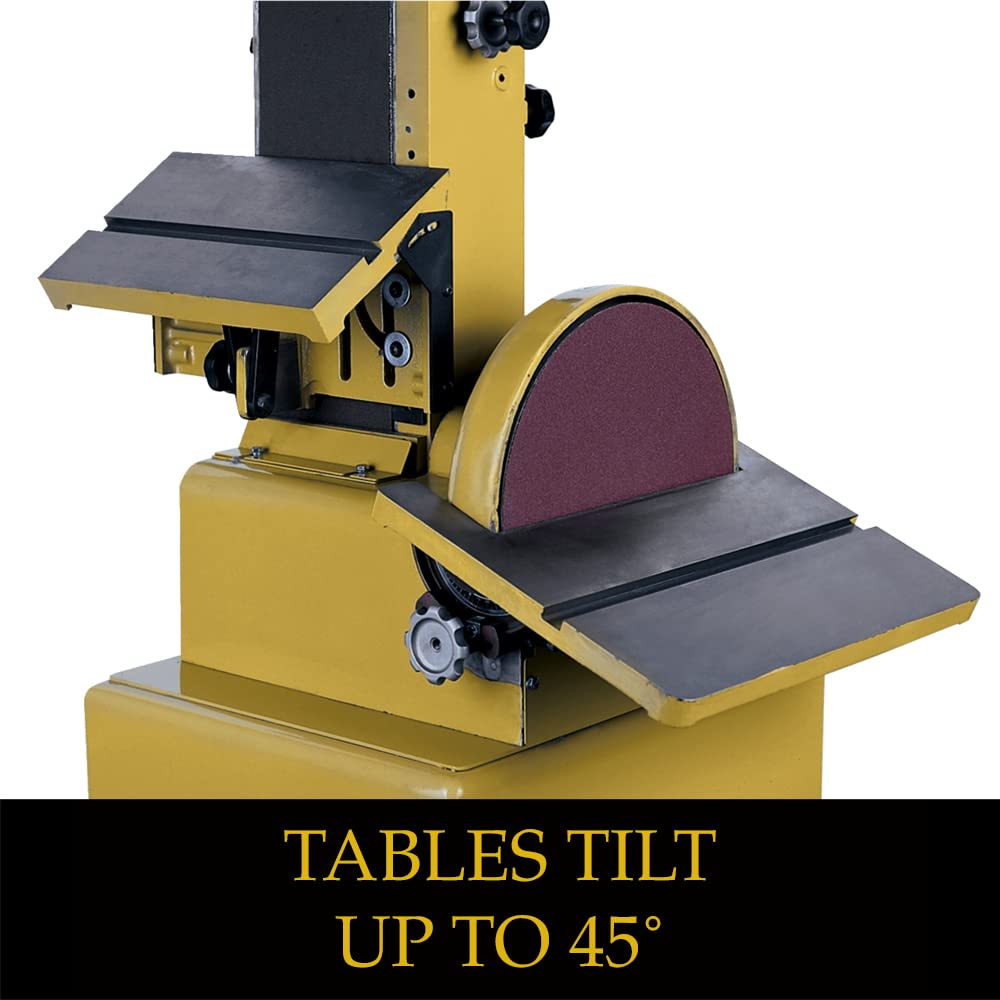

The table tilts up to 45 degrees and is secured by large hand wheels on either side. A full-sized miter slot accepts the included miter gauge, making it easy to build specialty jigs.
Versatile, User-Friendly Operation

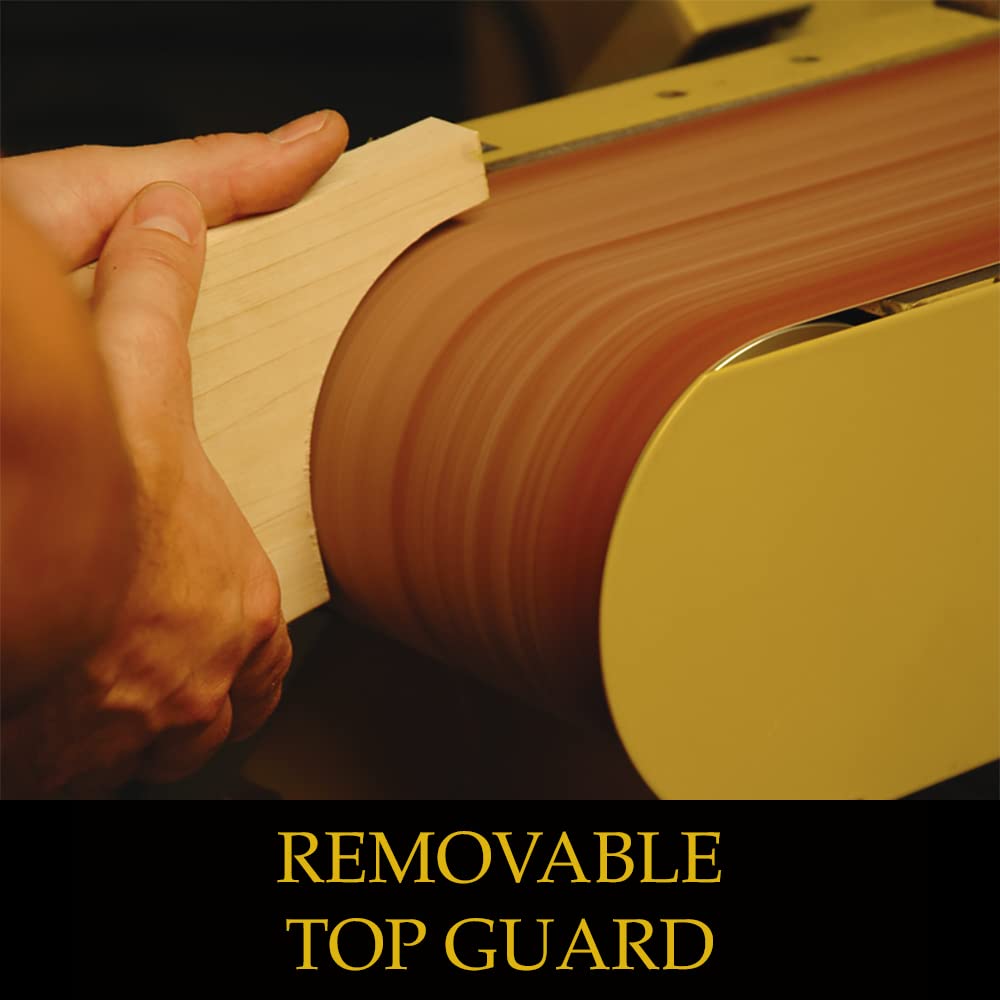

The Powermatic 31A offers true versatility. First, the belt can be used in both the horizontal and vertical positions--and just about any angle in between. The multipurpose cast-iron table allows you to work at different angles, giving you greater project flexibility. You can also remove the top guard for contour sanding jobs.
To help ensure long life and user-friendly operation, the Powermatic 31A features a four-inch-diameter dust port for effective dust evacuation to keep your shop and your air cleaner, improve visibility, and protect components from damaging debris. At the same time, the cast-iron table with miter gauge slots and positive stops make setup fast, accurate, and simple for any angle.
The Powermatic 31A is backed by a five-year warranty.
What's in the Box
One Powermatic 31A, one abrasive belt, one abrasive disc, one disc table assembly, one fence assembly, one miter gauge assembly, two bags of fasteners, one stand with motor, one dust outlet, manual, and warranty card.
Product Description
We see a future built on great brands, products, and people. In every facet of our business, we leverage the strengths of our global infrastructure to maximize the benefits of all three.
From the Manufacturer
Loaded with features, the new 31A from Powermatic can tackle the most demanding tasks. Full cast iron construction allows both metal and woodworking to be done on the same machine and the Integral Dual Dust Port keeps both belt and disc portions clean, extending abrasive life. The articulating table mounted on the 6" x 48" belt sander head can be used vertically, horizontally, or angled to accommodate any job. The belt head has an indexing pin with stops at 0, 45 and 90 degrees and the head lock allows use at any angle in between. Removing the top guard facilitates contour sanding and the cast iron tables with miter gauge slots and positive stops make set-up fast, accurate, and simple for any angle.
FEATURES
1-1/2 HP motor provides plenty of power for any sanding operation Heavy cast iron construction designed for metal and woodworking applications, minimized vibration Multi-position belt head with i
EAN: 0662755485480
Package Dimensions: 55.5 x 32.2 x 25.0 inches
